MSD Ignition Control Box 6564; 6M3L Marine Digital 135 mJ Blue Aluminum
$484.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Large
- Easy To Read LED Display
- Fully potted housing to stand up to demanding race conditions

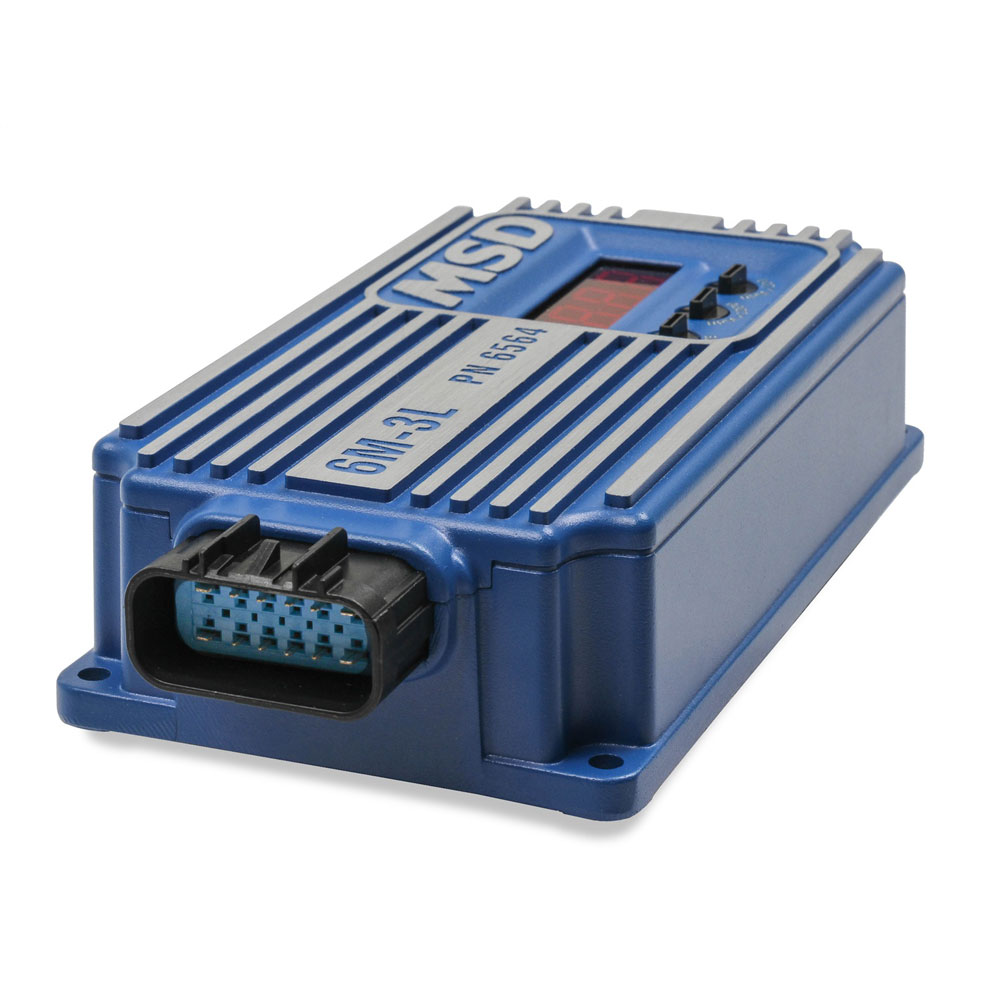

- Sealed Connector For Clean Wiring/Trouble-Free Operation
- Shift Interrupt Feature Eases Shifting
- Smoothest Rev Limiter
- Protecting Parts And Saving Engine
- Records Highest RPM Engine Turned Within Last 20 Mins/Run Time
- Easy Setup Of Features with Three Rotary Dials On Unit Face
- Built-In Start Retard In 0/10/20 Degree Increments
- Displ. rev limit/highest RPM/cyl. select/start retard/batt. volt
- Full Delivery of Spark Energy Down to 6 Volts Battery Supply
- Highly efficient
- low current draw for extended battery life
- Shift Interrupt Feature Eases Shifting
- Smoothest Rev Limiter
- Protecting Parts And Saving Engine
- Records Highest RPM Engine Turned Within Last 20 Mins/Run Time
- Easy Setup Of Features with Three Rotary Dials On Unit Face
- Built-In Start Retard In 0/10/20 Degree Increments
- Displ. rev limit/highest RPM/cyl. select/start retard/batt. volt
- Full Delivery of Spark Energy Down to 6 Volts Battery Supply
- Highly efficient
- low current draw for extended battery life
Product Description

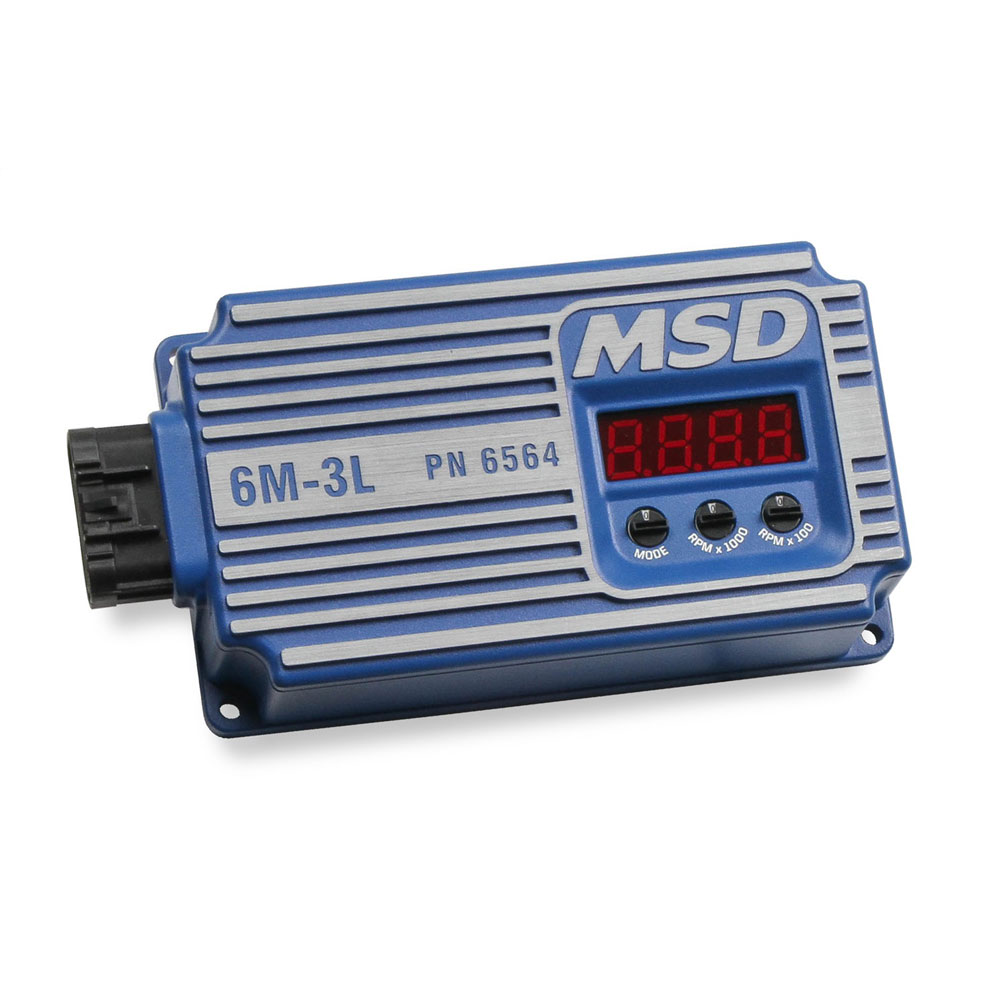

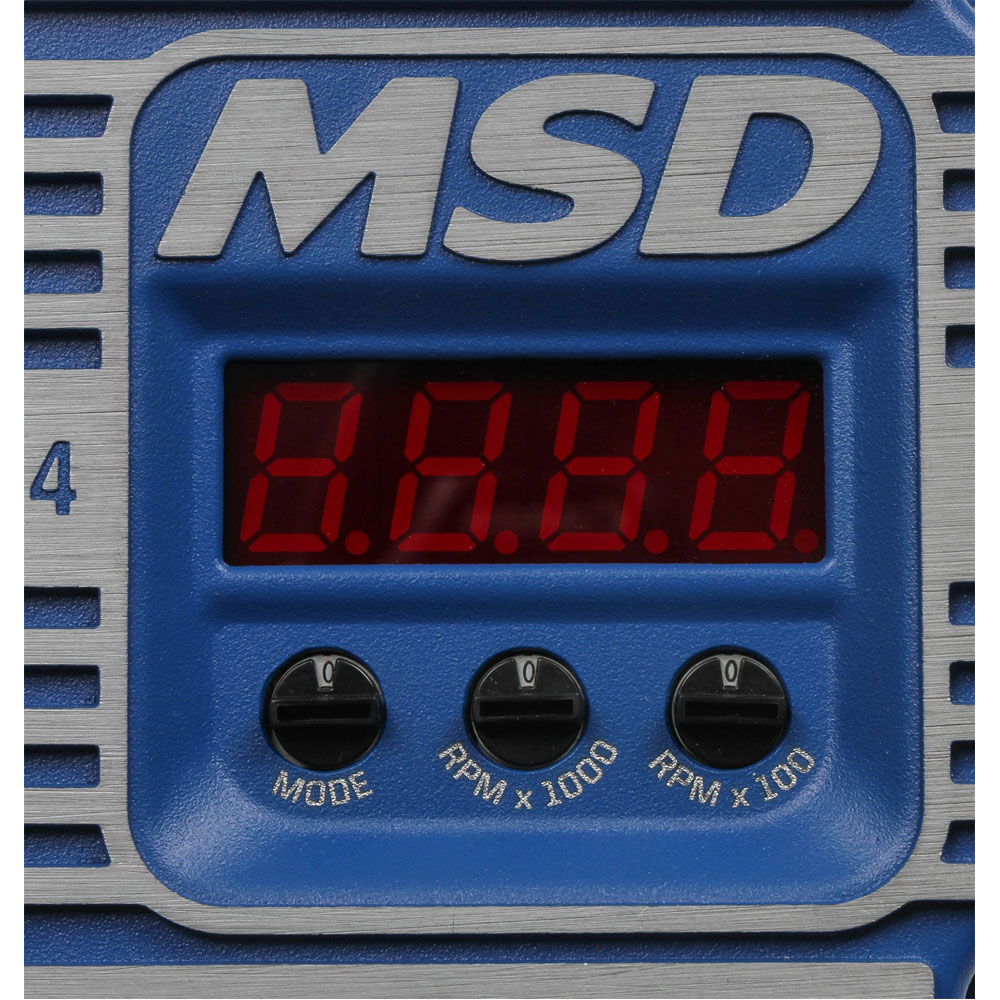

We've raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector makeing installation neat and easy. Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob. The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs!
Specifications
- Ignition Control Box Model or Series:
- 6M3L Marine
- Circuitry:
- Digital
- Spark Energy:
- 135 mJ
- Spark Duration:
- 20 deg.
- Primary Voltage:
- 535 Volt
- Secondary Voltage:
- 45,000 Volt
- Single or Dual Coil Output:
- Single
- Maximum RPM:
- 12,000 RPM
- Rev Limiter:
- Yes
- Rev Limiter Adjustment:
- Chips
- Case Material:
- Aluminum
- Case Finish:
- Blue
- Launch Control:
- No
- Vacuum Advance:
- No
- Boost Retard:
- No
- Data Logging:
- No
- Notes:
- With start retard
- Quantity:
- Sold As Each
