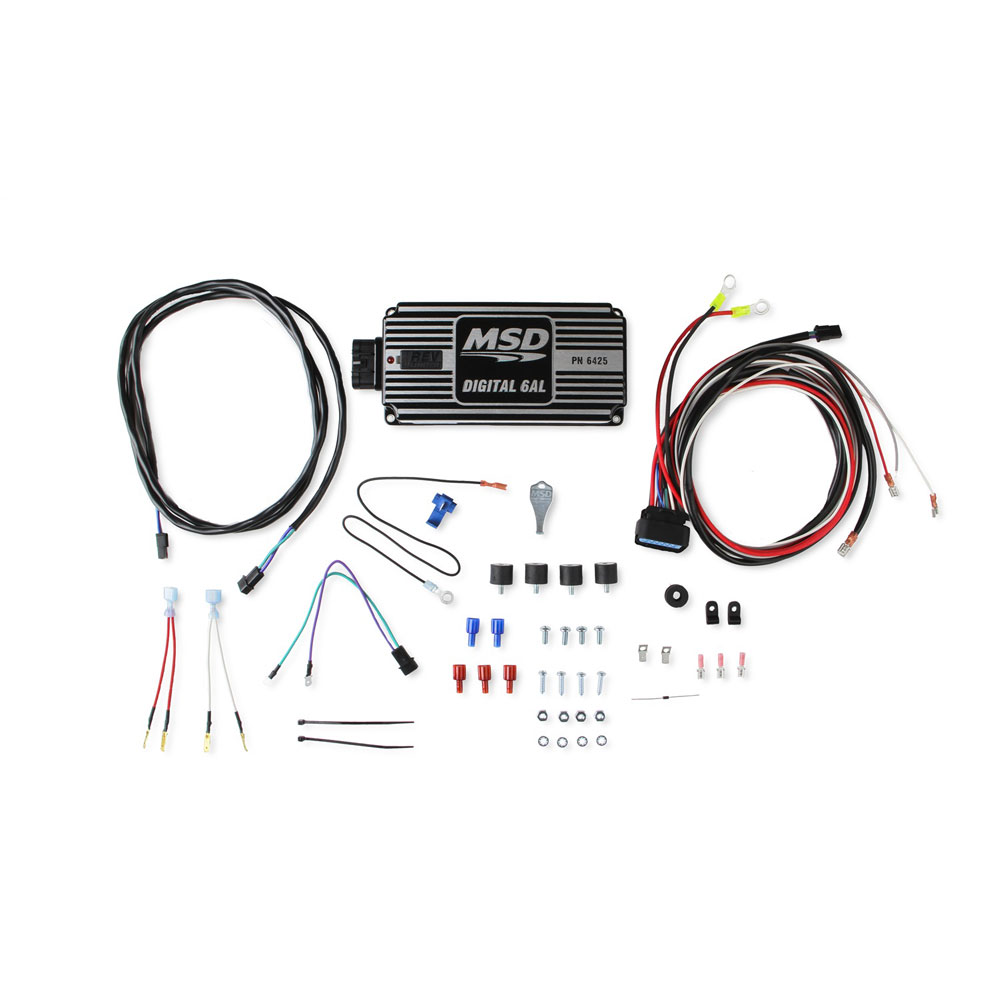

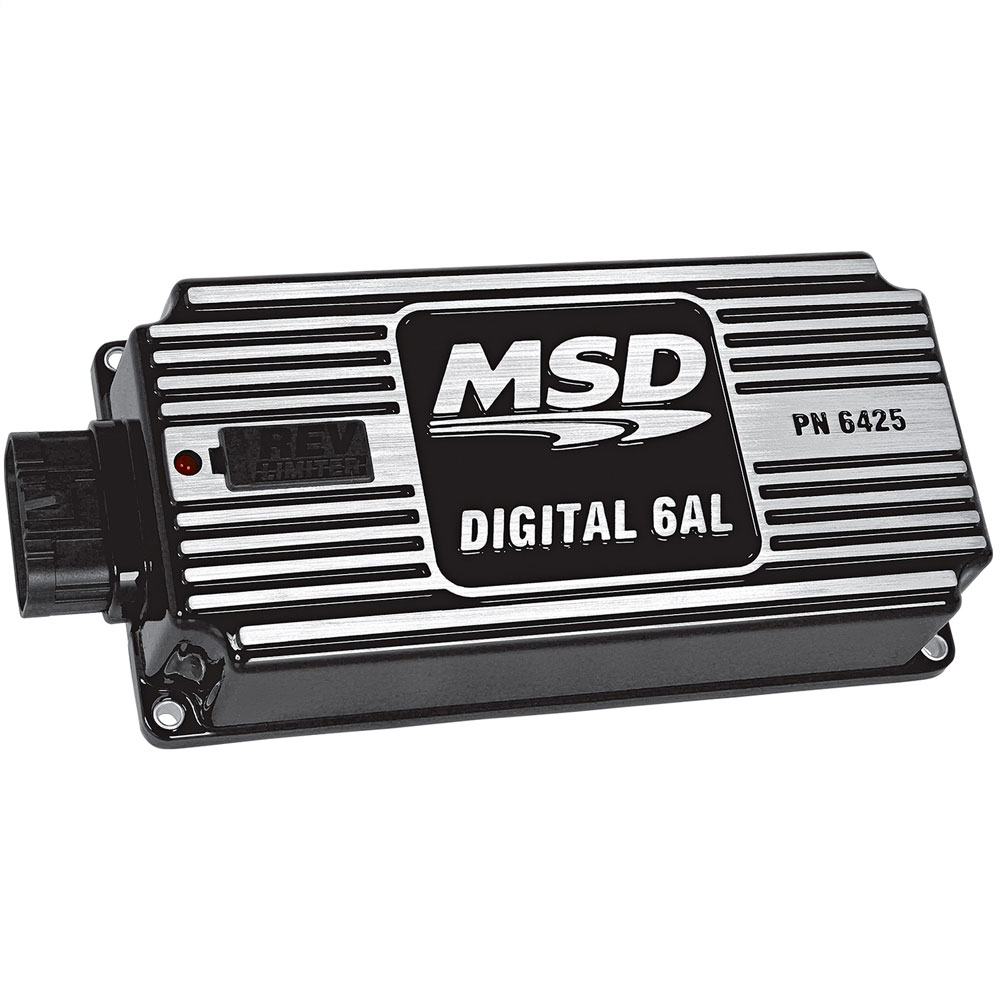

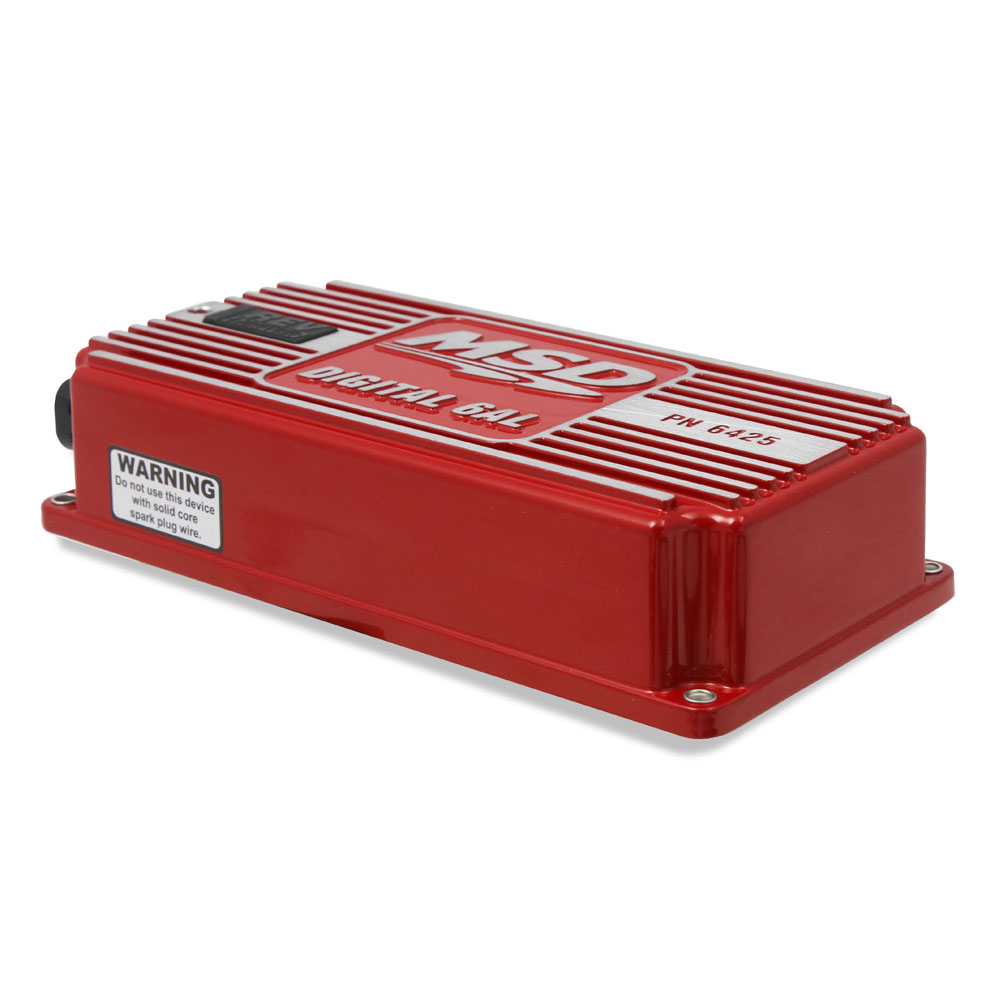

MSD Ignition Control Box 6425; 6AL Digital 135 mJ Red Powdercoat Cast Aluminum
$278.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- High Output with 530 Volts And 135Mj Of Spark Energy
- Efficient components use less current to produce more power
- Set An Rpm Limit with Two Rotary Dials In 100 Rpm Increments
- Built-in LED for system checks

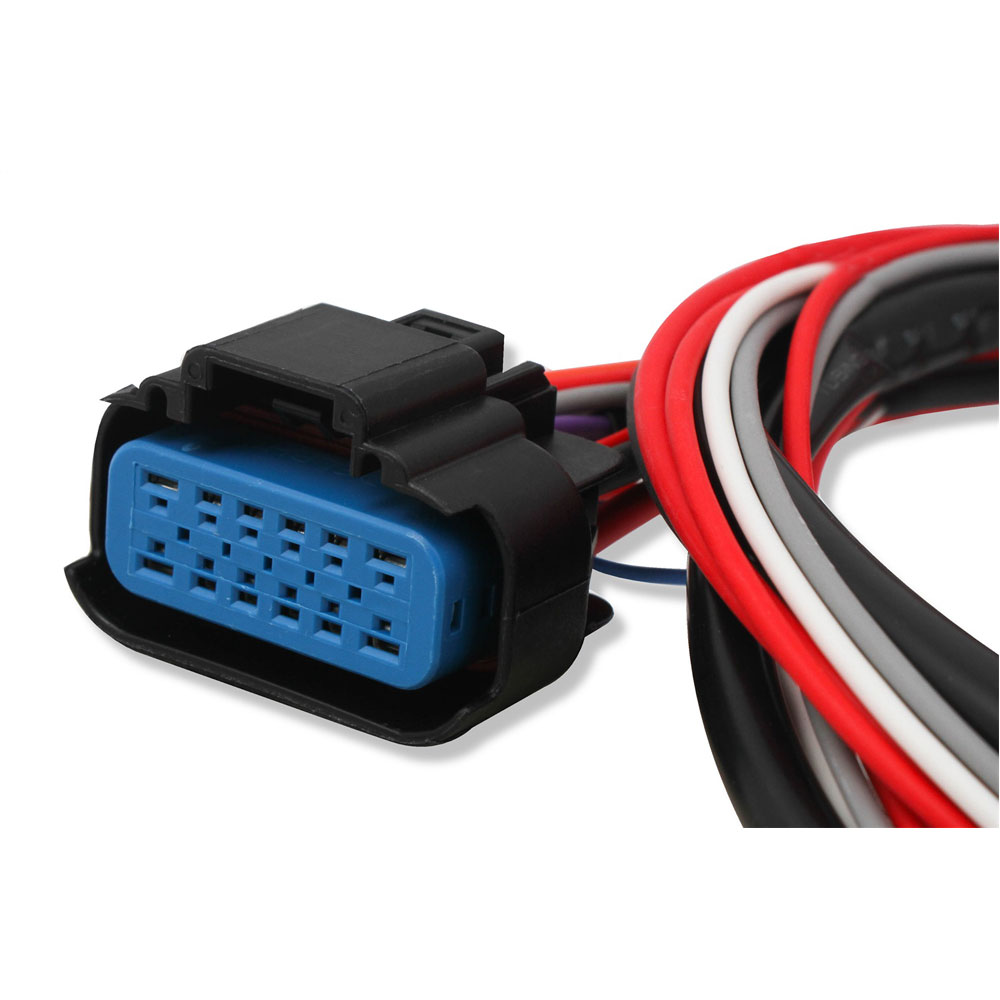

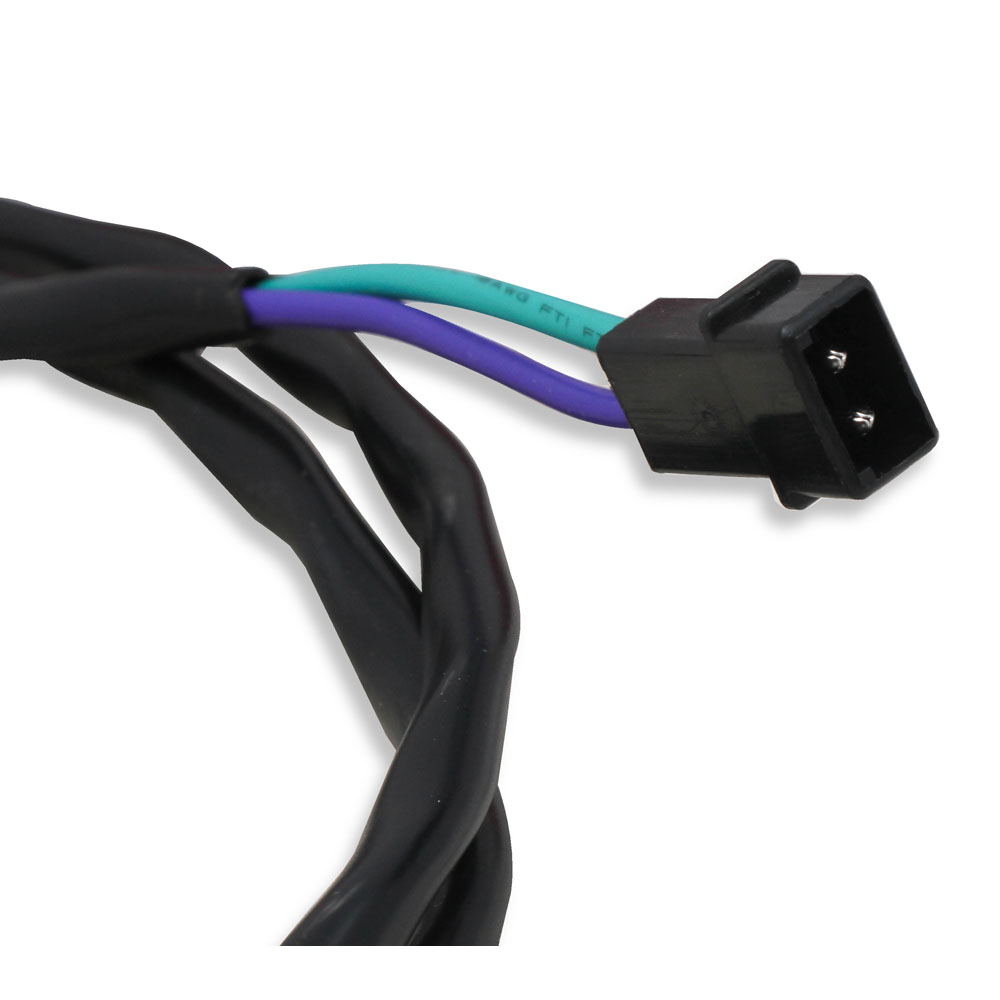

- All wires exit through a locked
- sealed connector
- Compatible with 4/6/8 Cylinder Engines
- All wires exit through a locked
- sealed connector
- Compatible with 4/6/8 Cylinder Engines
Product Description

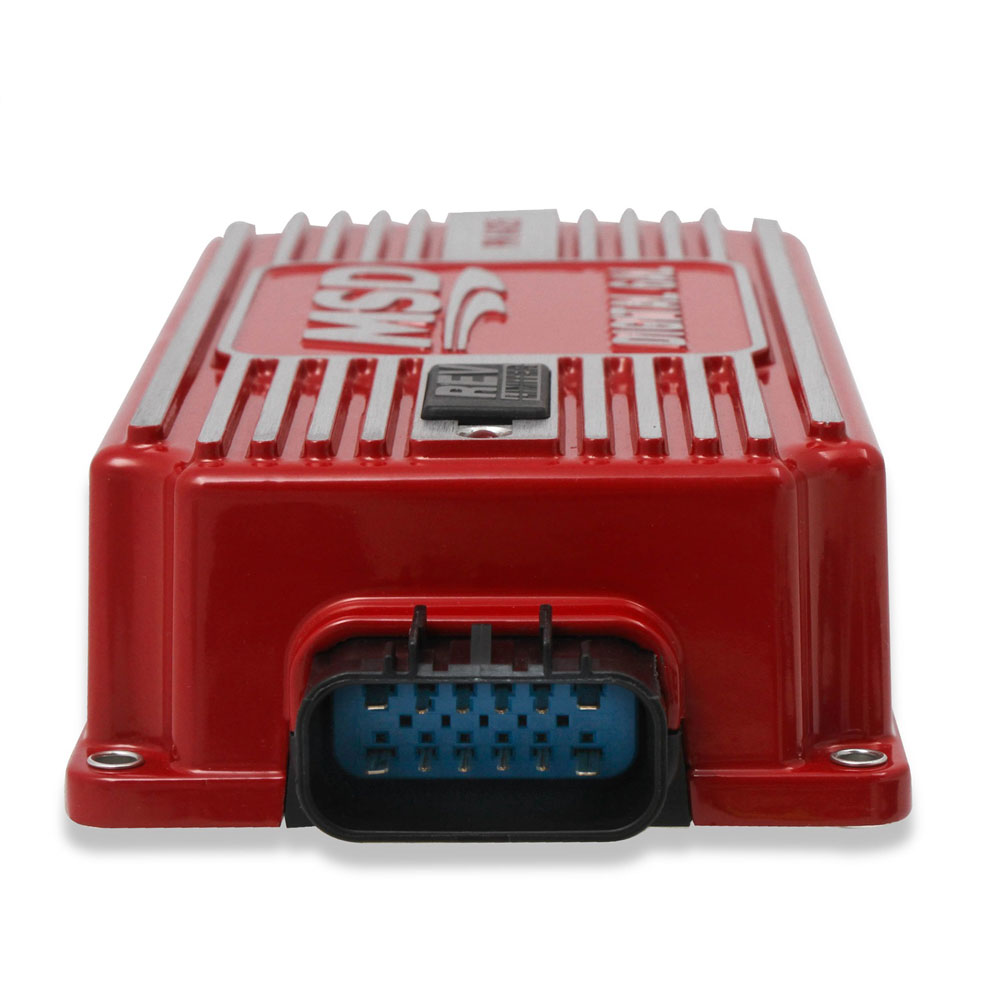

The MSD 6AL Ignition Control set the standards that other ignitions strive to reach. In fact, you'll find ignitions from other companies that carry the 6AL name (and in some cases, the same part number). For 2011, the bar has been raised even higher as we introduce the all new Digital 6AL Ignition Control! MSD started with a clean slate and drew up plans for an all new housing. We kept the same footprint as the traditional 6AL but lowered the profile for a sleek look. The wiring is all routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. The rev limiter was moved right on top of the housing for easy access to the two rotary dials to set the limit in 100 rpm increments. Inside the Digital 6AL you'll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current! In fact, the new Digital 6AL delivers over 530 volts to the coil with up to 135mJ of spark energy for every firing! Increased output combined with MSD's proven multiple spark series is a win-win situation!
Specifications
- Ignition Control Box Model or Series:
- 6AL
- Circuitry:
- Digital
- Programmable:
- Non Programmable
- Spark Energy:
- 135 mJ
- Primary Voltage:
- 530 Volt
- Secondary Voltage:
- 45,000 Volt
- Maximum RPM:
- 11,000 RPM
- Rev Limiter:
- Yes
- Rev Limiter Adjustment:
- Dial Adjustable
- Rev Limiter Range:
- 2,000 to 11,000 RPM
- Case Material:
- Cast Aluminum
- Case Finish:
- Red Powdercoat
- Launch Control:
- No
- Vacuum Advance:
- No
- Boost Retard:
- No
- Data Logging:
- No
- Quantity:
- Sold As Each
