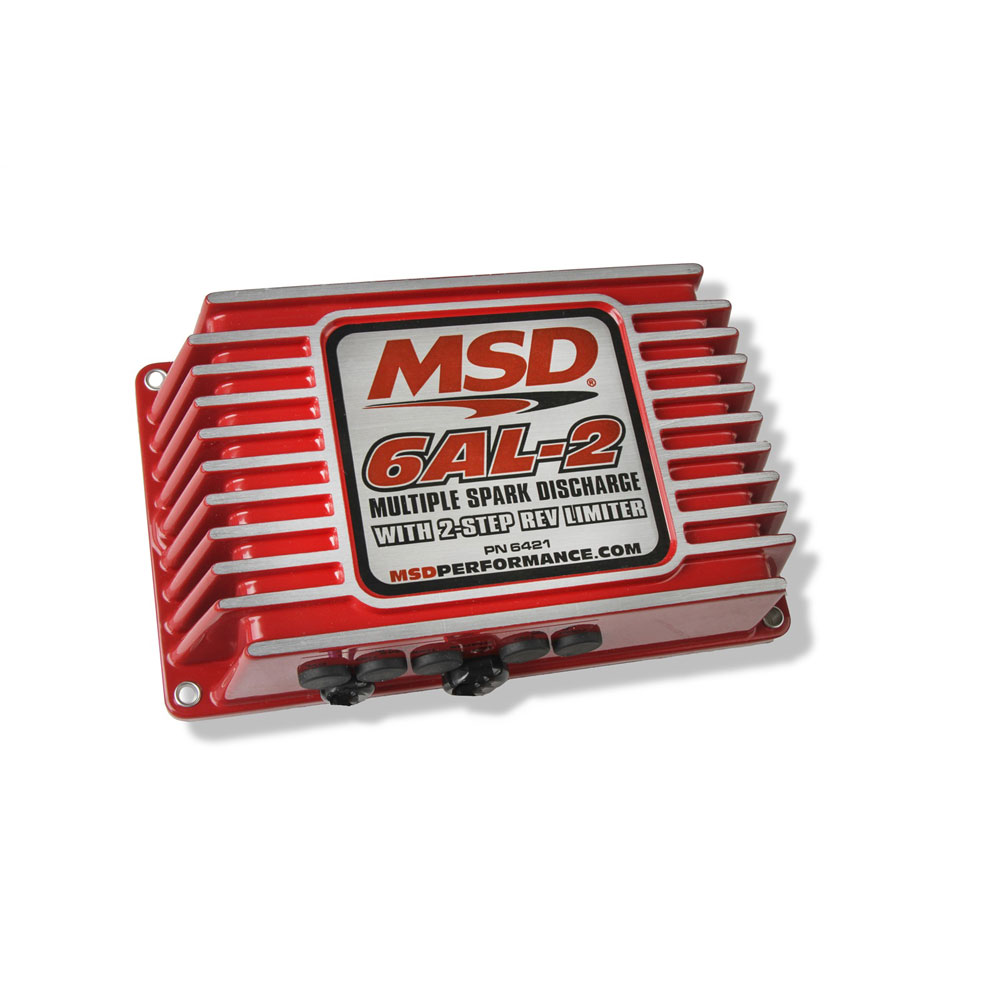

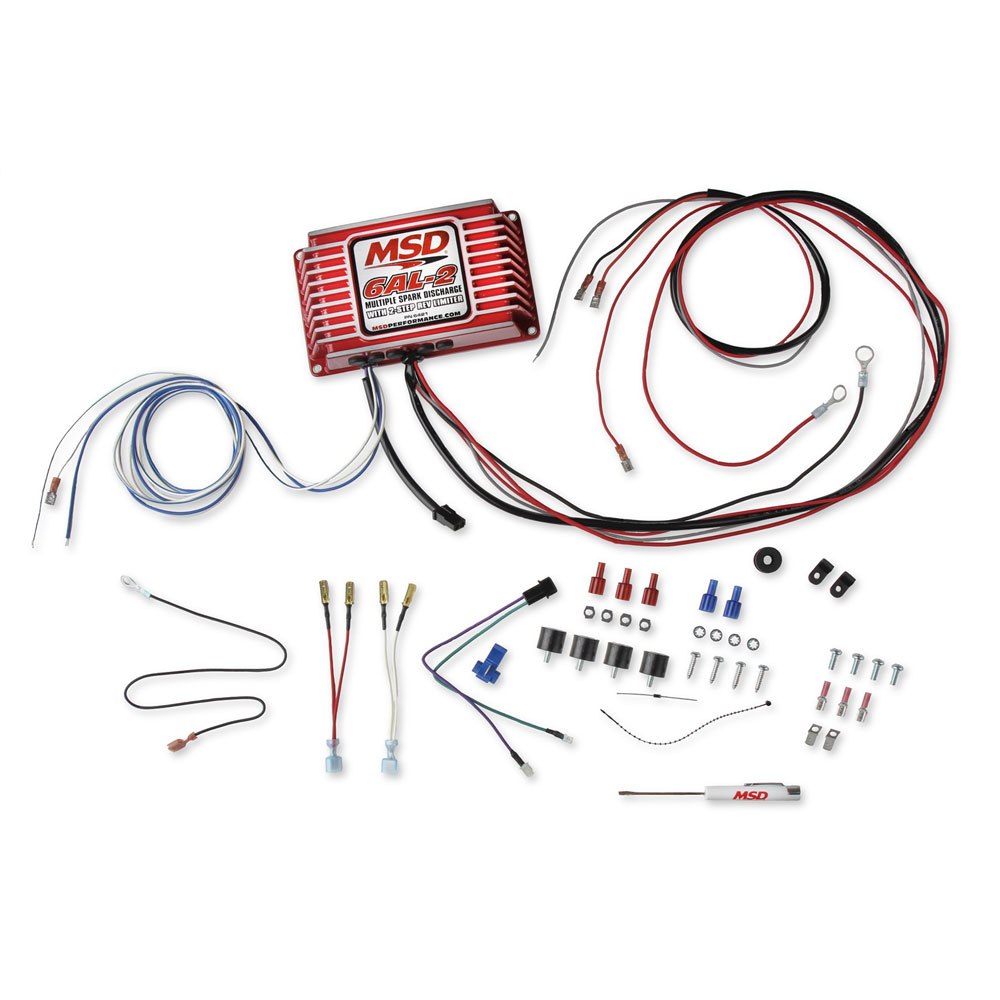

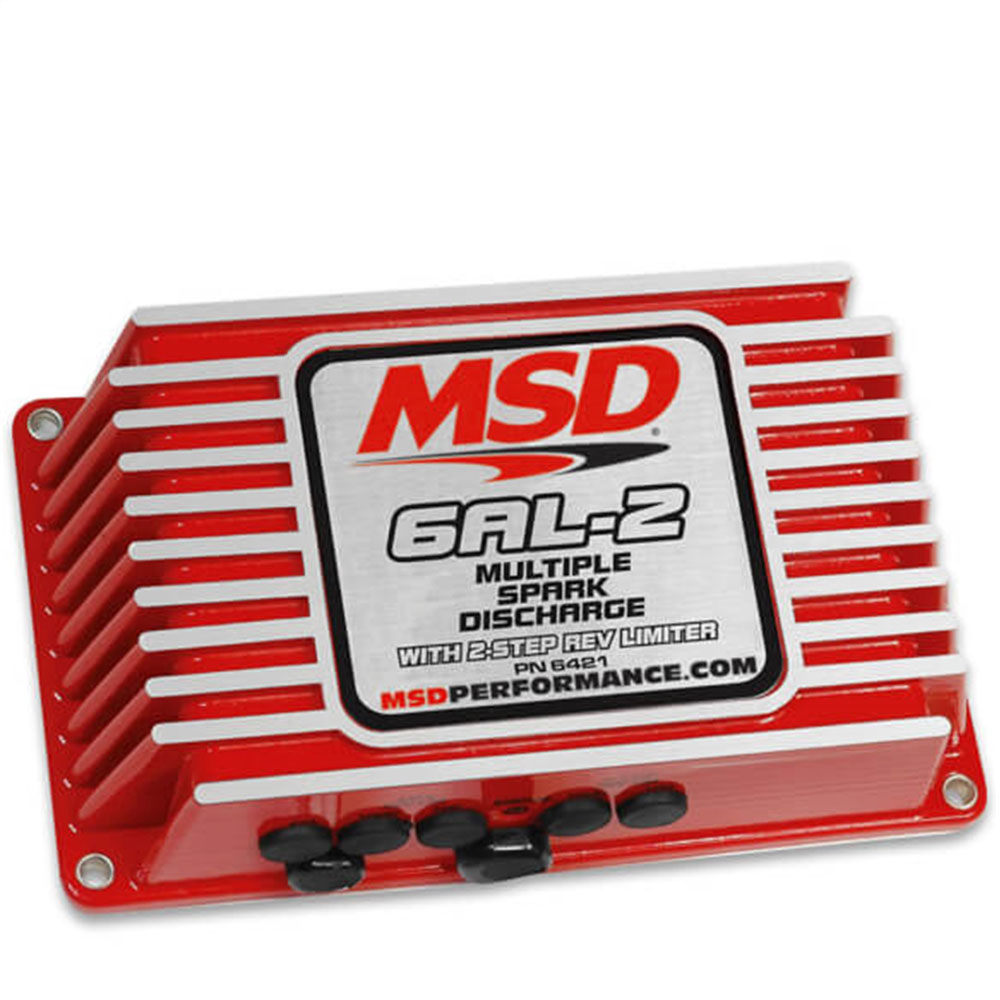

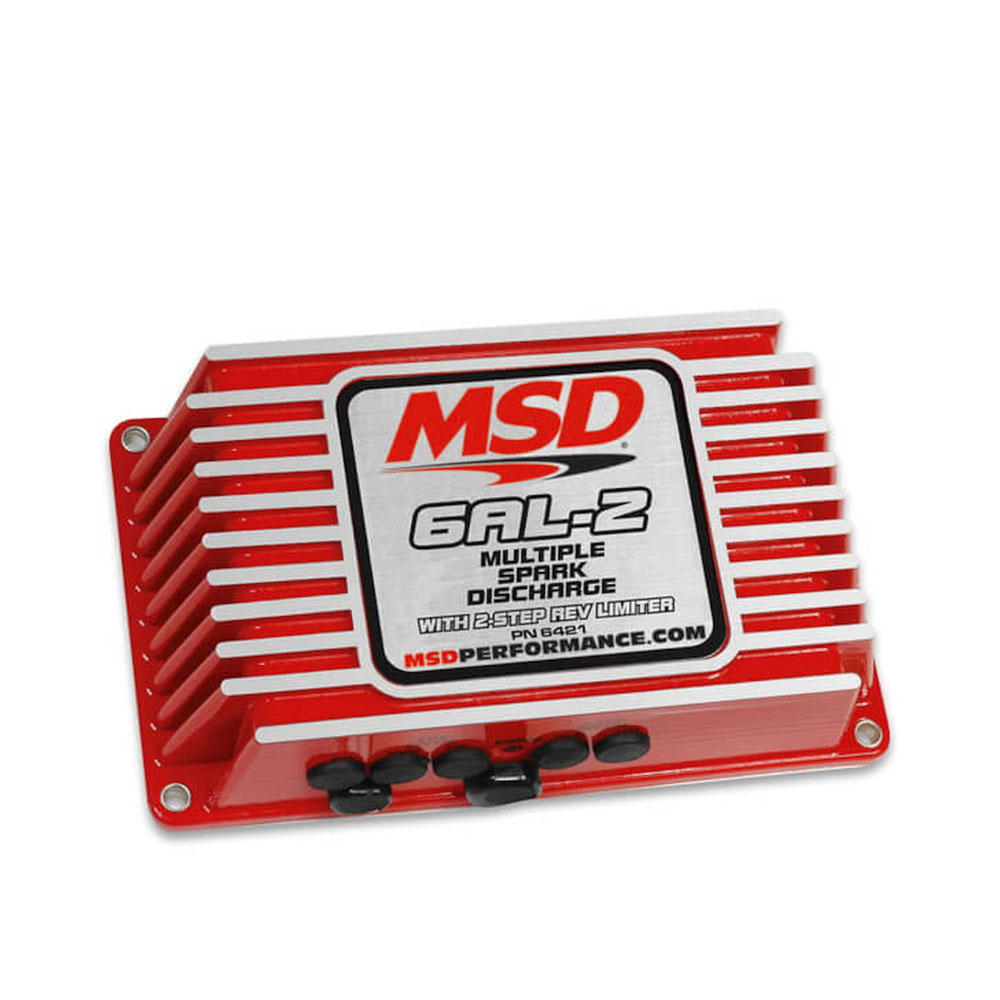

MSD Ignition Control Box 6421; 6AL2 with 2 Step Digital 135 mJ Red Aluminum
$367.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- All new housing
- same reliable digital circuitry and performance
- Built-In 2-Step Rev Control Adjustable with Rotary Dials
- Higher Output with Up To 135Mj Of Spark Energy
- Accepts Hall-effect
- points and mag pickup triggers
- Managed by an efficient digital processor
- Accepts Hall-effect
- points and mag pickup triggers
- Managed by an efficient digital processor
Product Description
MSD is excited to announce the next generation of 6-Series ignition controls– the 6AL-2. The all new ignition control combines a new housing, new digital controls and more power in a sleek package. Inside the new cast aluminum housing you'll find an advanced micro-controller that manages the timing and rpm of the ignition. The spark output of the new box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135 millijoules. The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion. Two more great features are the rev limits. There are two rev limiters; one for high end overrev protection and another you can activate off a clutch or transbrake to set a launch limit. This feature will help your car blast off the starting line. Adjustments are made via four rotary dials for 100 rpm increment control. The all new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system.
Specifications
- Ignition Control Box Model or Series:
- 6AL2 with 2 Step
- Circuitry:
- Digital
- Programmable:
- No
- Spark Energy:
- 135 mJ
- Primary Voltage:
- 535 Volt
- Single or Dual Coil Output:
- Single
- Maximum RPM:
- 12,500 RPM
- Rev Limiter:
- Yes
- Rev Limiter Adjustment:
- Rotary
- Rev Limiter Range:
- 2,000 to 11,900 RPM
- Case Material:
- Aluminum
- Case Finish:
- Red
- Launch Control:
- 1,000 to 9,900 RPM
- Vacuum Advance:
- No
- Boost Retard:
- No
- Data Logging:
- No
- Quantity:
- Sold As Each
