MSD Ignition Control Box 62013; Digital 6A Ignition Control Digital 135 to 145 mJ Black Aluminum
$224.95
Need It Faster?
We recommend this alternative part:
Details
- Will not accept a rev limiter
- High Output with 530 Volts And 135Mj Of Spark Energy
- Efficient components use less current to produce more power
- Built-in LED for system checks
- All wires exit through a locked

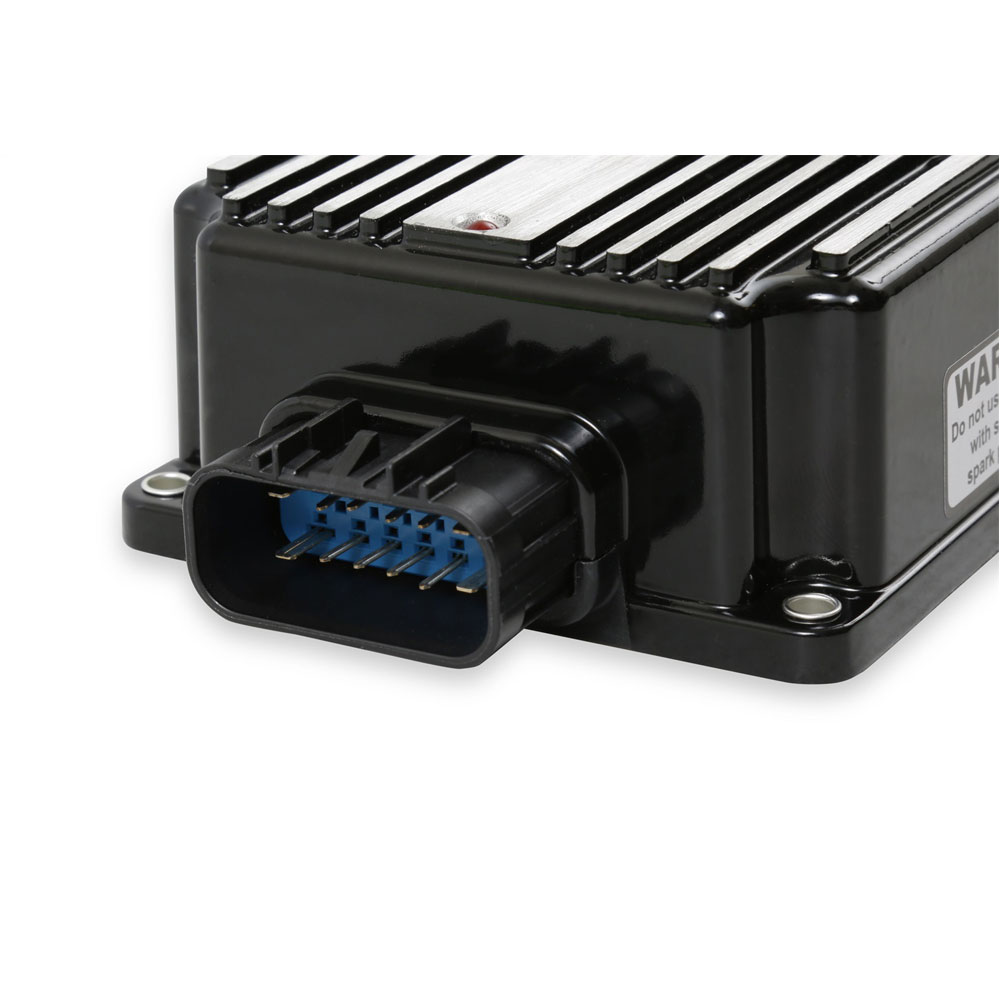

- Sealed connector
- Compatible with 4/6/8 Cylinder Engines
- All wires exit through a locked
- Sealed connector
- Compatible with 4/6/8 Cylinder Engines
Product Description
The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 20⁰ of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers… the 6A is a surefire way to harness all the ponies under your hood.
Specifications
- Ignition Control Box Series:
- Digital 6A Ignition Control
- Circuitry:
- Digital
- Programmable:
- No
- Spark Energy:
- 135 to 145 mJ
- Primary Voltage:
- 520 to 540 Volt
- Secondary Voltage:
- 45,000 Volt
- Single or Dual Coil Output:
- Single
- Maximum RPM:
- 15,000 RPM
- Rev Limiter:
- No
- Case Material:
- Aluminum
- Case Finish:
- Black
- Launch Control:
- No
- Vacuum Advance:
- No
- Boost Retard:
- No
- Data Logging:
- No
- Quantity:
- Sold As Each
