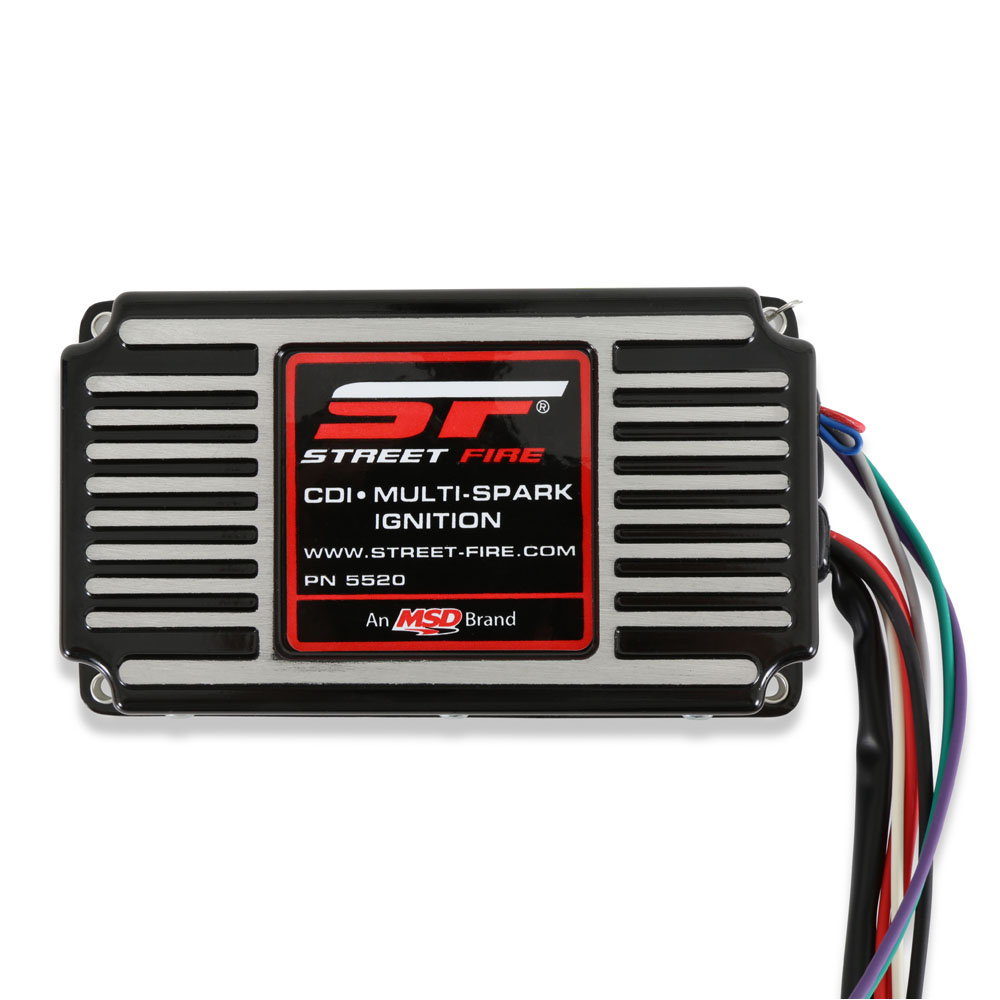

MSD Ignition Control Box 5520; Street Fire CD Ignition 95 mJ Black Aluminum
$197.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Capacitive Discharge Technology
- Multiple Sparks Improve Starting And Idle
- Full Power Output At High RPM
- Connects to points/amplifiers/magnetic pickup distributors
- Adjustable rev limiter for overrev protection
Product Description
This street fire CDI ignition is perfect for budget minded enthusiasts. The ignition offers capacitive discharge technology and will fire a series of multiple sparks that lasts for 20 degrees of crankshaft rotation when the engine is running under 3,000 rpm. This ensures combustion and produces great throttle response and smooth idle. The CDI is built around a durable cast aluminum housing and easily connects to points, amplifiers and magnetic pickup distributors. There's even an adjustable rev limiter for overrev protection.
Specifications
- Ignition Control Box Series:
- Street Fire CD Ignition
- Programmable:
- No
- Spark Energy:
- 95 mJ
- Spark Duration:
- 20 deg.
- Primary Voltage:
- 435 Volt
- Secondary Voltage:
- 43,000 Volt
- Single or Dual Coil Output:
- Single
- Maximum RPM:
- 15,000 RPM
- Rev Limiter:
- Yes
- Rev Limiter Adjustment:
- Rotary
- Rev Limiter Range:
- 2,000 to 9,900 RPM
- Case Material:
- Aluminum
- Case Finish:
- Black
- Launch Control:
- No
- Vacuum Advance:
- No
- Boost Retard:
- No
- Data Logging:
- No
- Notes:
- CARB E.O. D-40-43
- Quantity:
- Sold As Each
