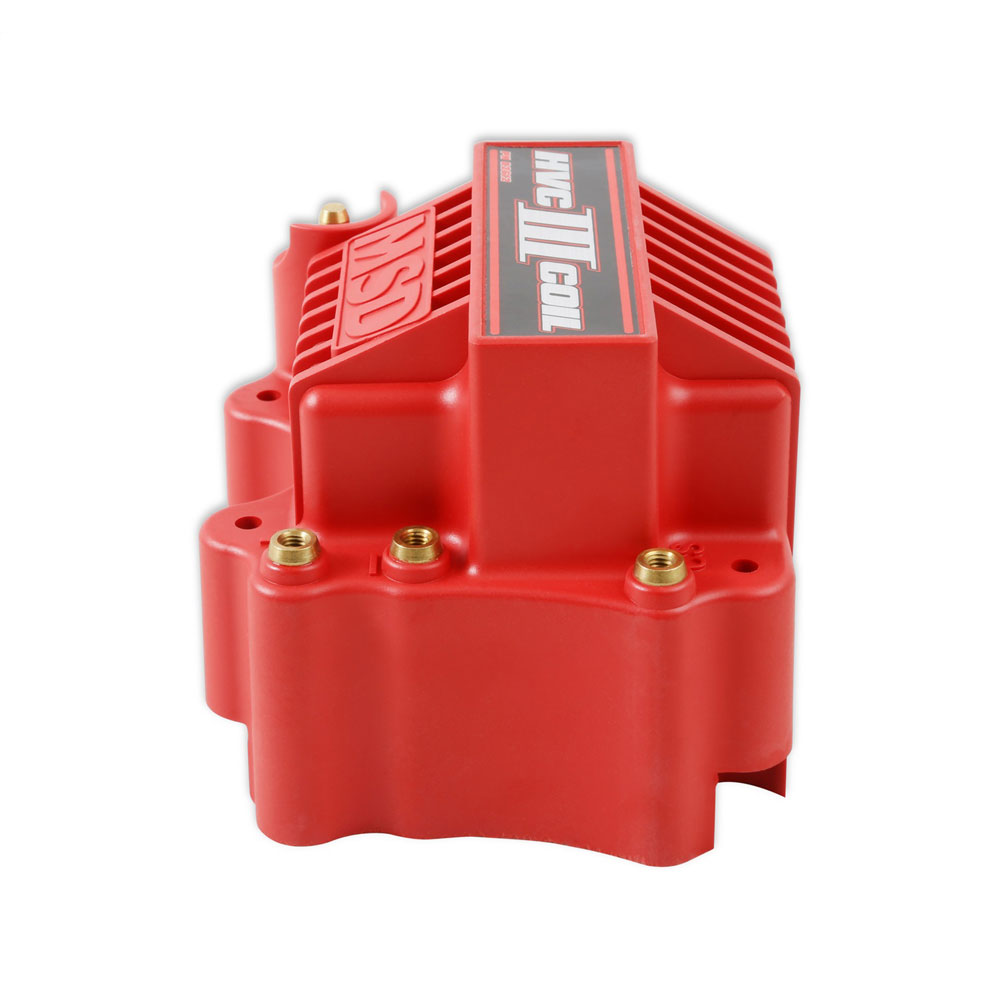

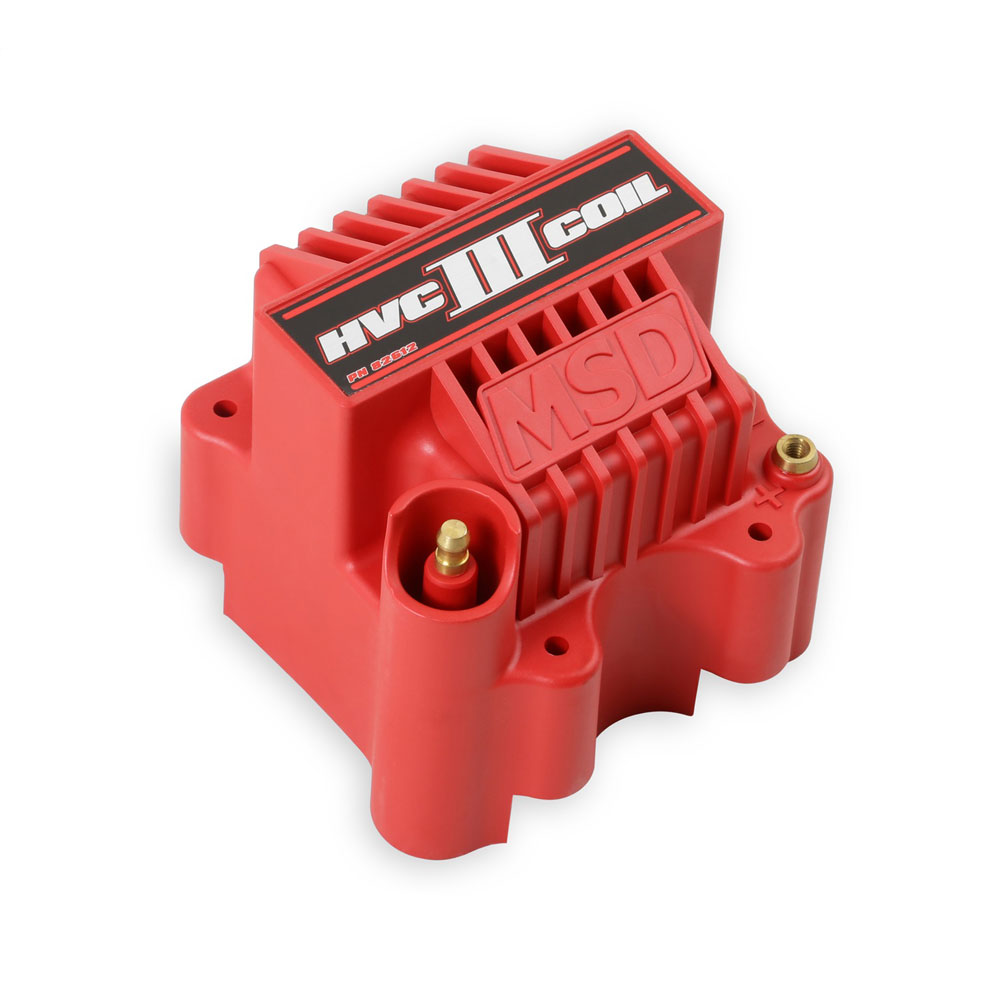

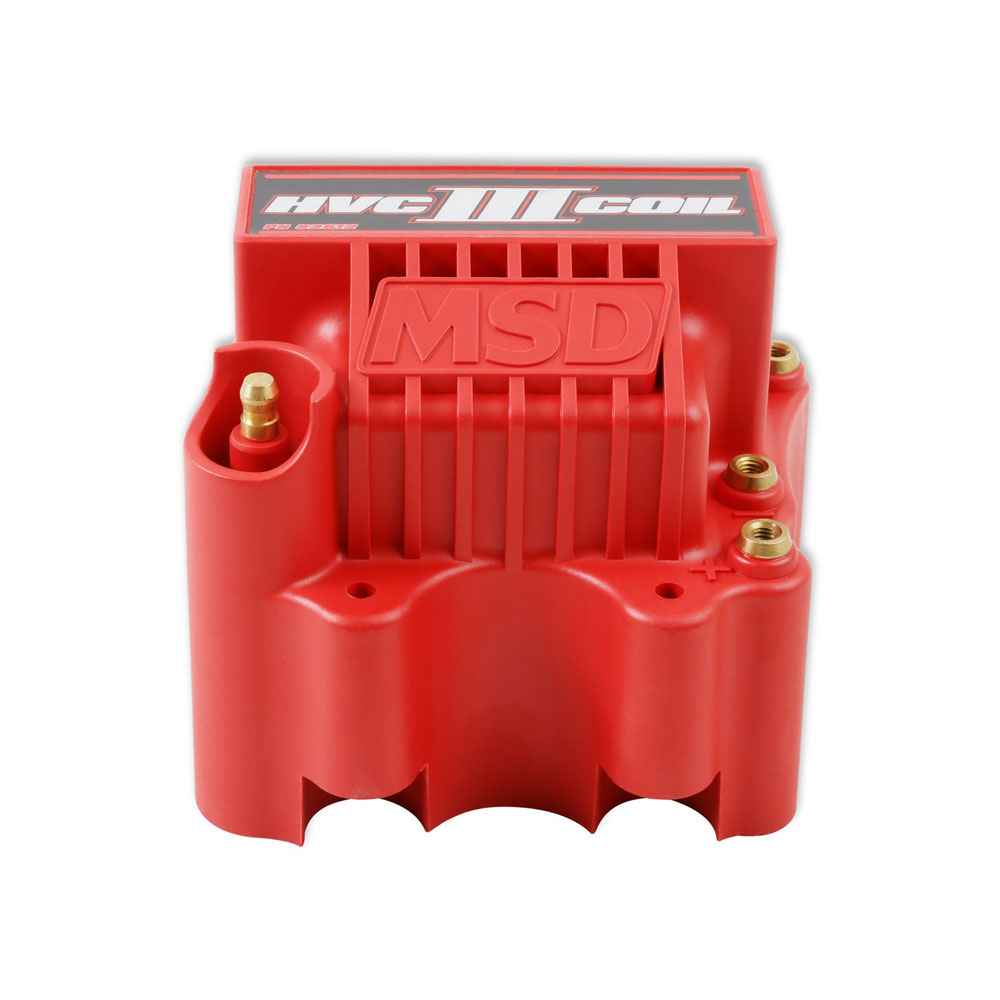

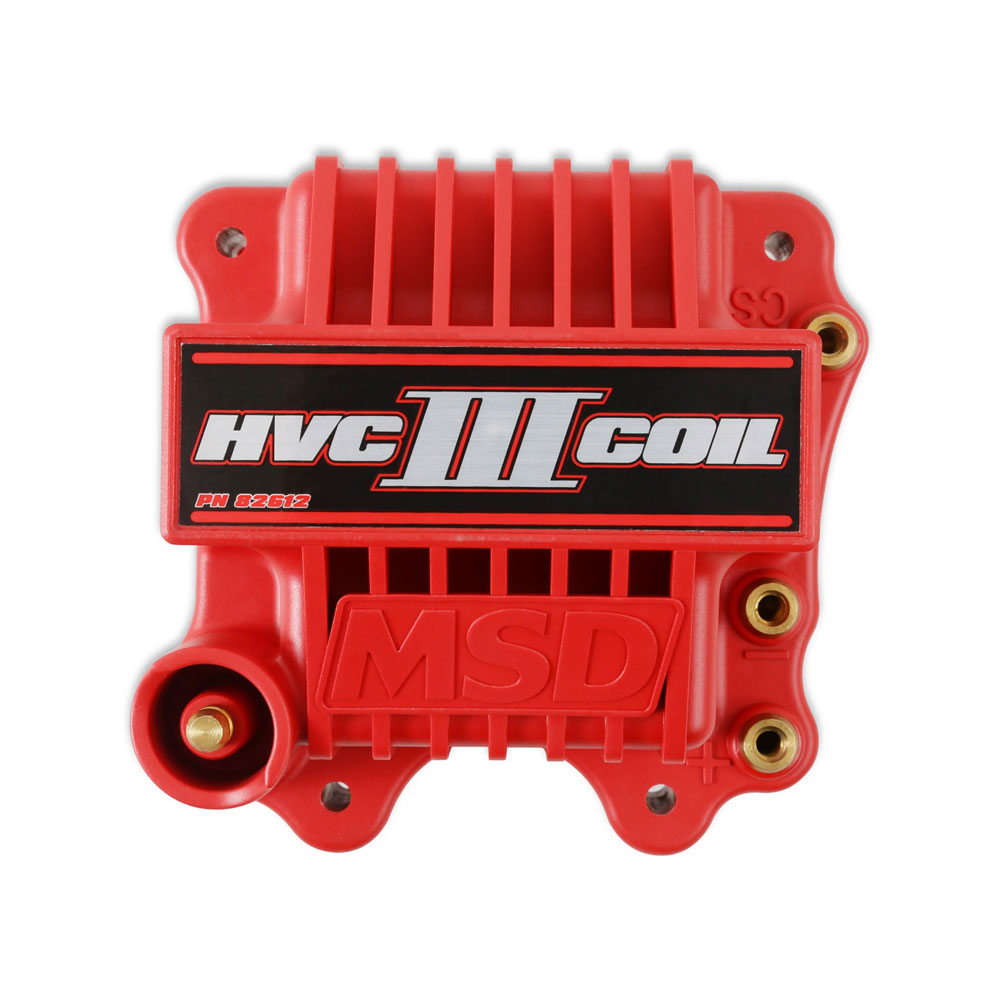

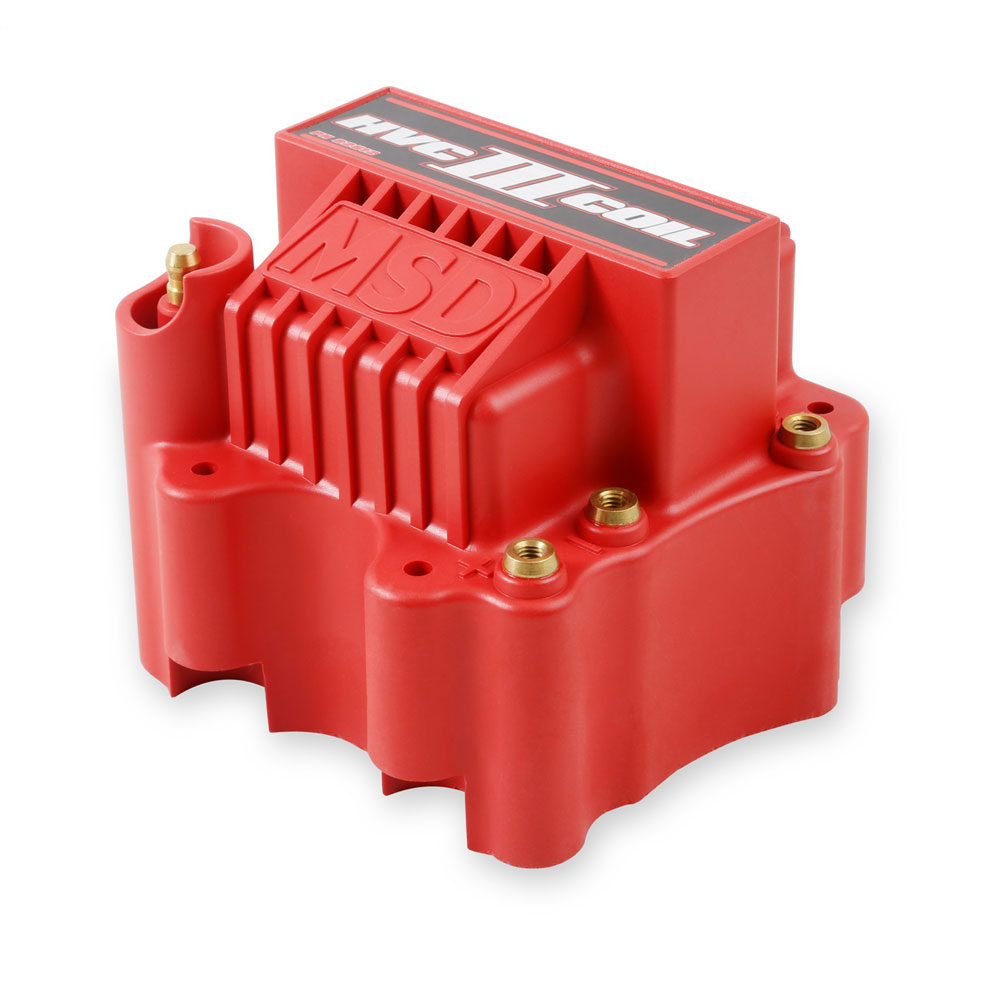

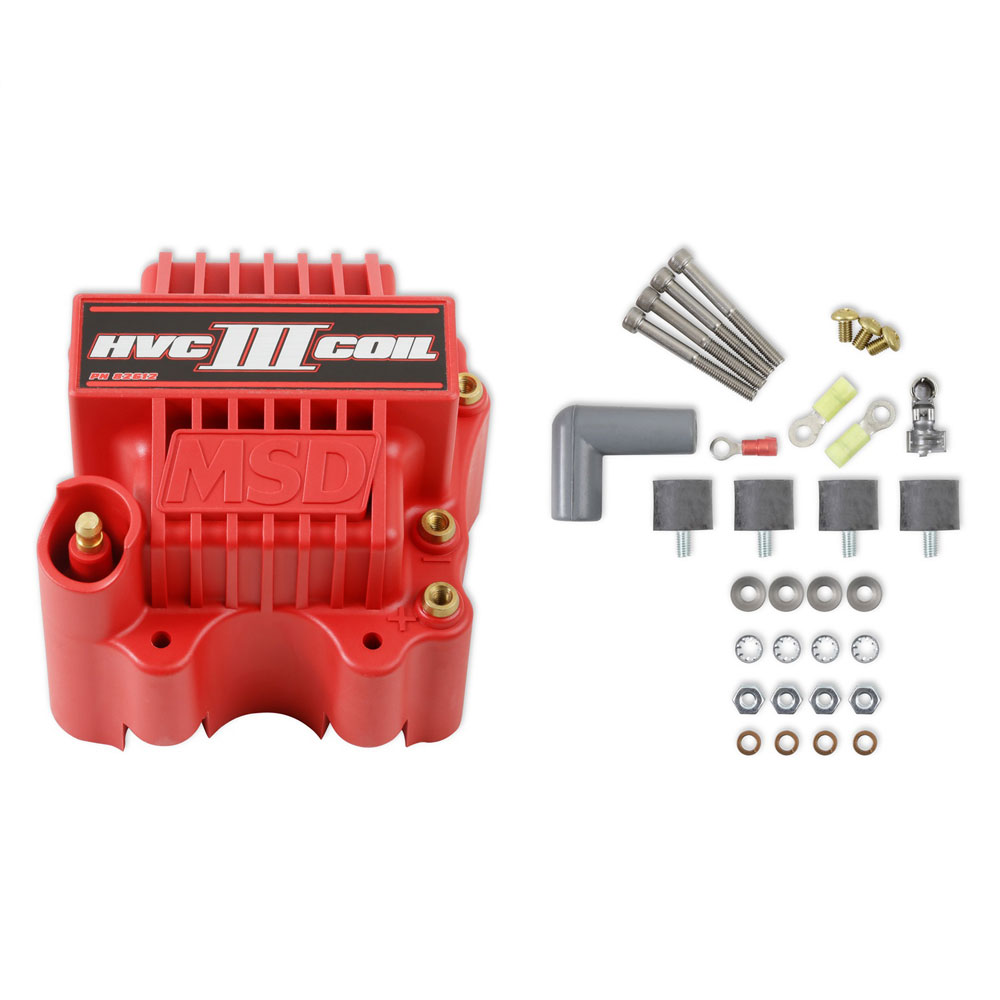

MSD Ignition Coil 82612;
$391.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Adjustable Output Energy Up To 680 Millijoules
- Internally Protected From Damage
- Diagnostic Led Detects The Presence Of Faults
- On-The-Fly Power Output Selection Wire
- Compatible With 8/6/4 Cylinder Engines
- Spark Current Sense And Recording For Each Firing
- Spark Duration Of Greater Than 250 Microseconds
- Rated For Continuous Operation At An Output Of 600 mJ
- Operates Between 12- 28V
- Starting And Running Down To Six Volts
- Programmable Trigger Edge
- Reverse Battery Protection
- Compatible With 8/6/4 Cylinder Engines
- Spark Current Sense And Recording For Each Firing
- Spark Duration Of Greater Than 250 Microseconds
- Rated For Continuous Operation At An Output Of 600 mJ
- Operates Between 12- 28V
- Starting And Running Down To Six Volts
- Programmable Trigger Edge
- Reverse Battery Protection
Product Description
The HVC III Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. Equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.
