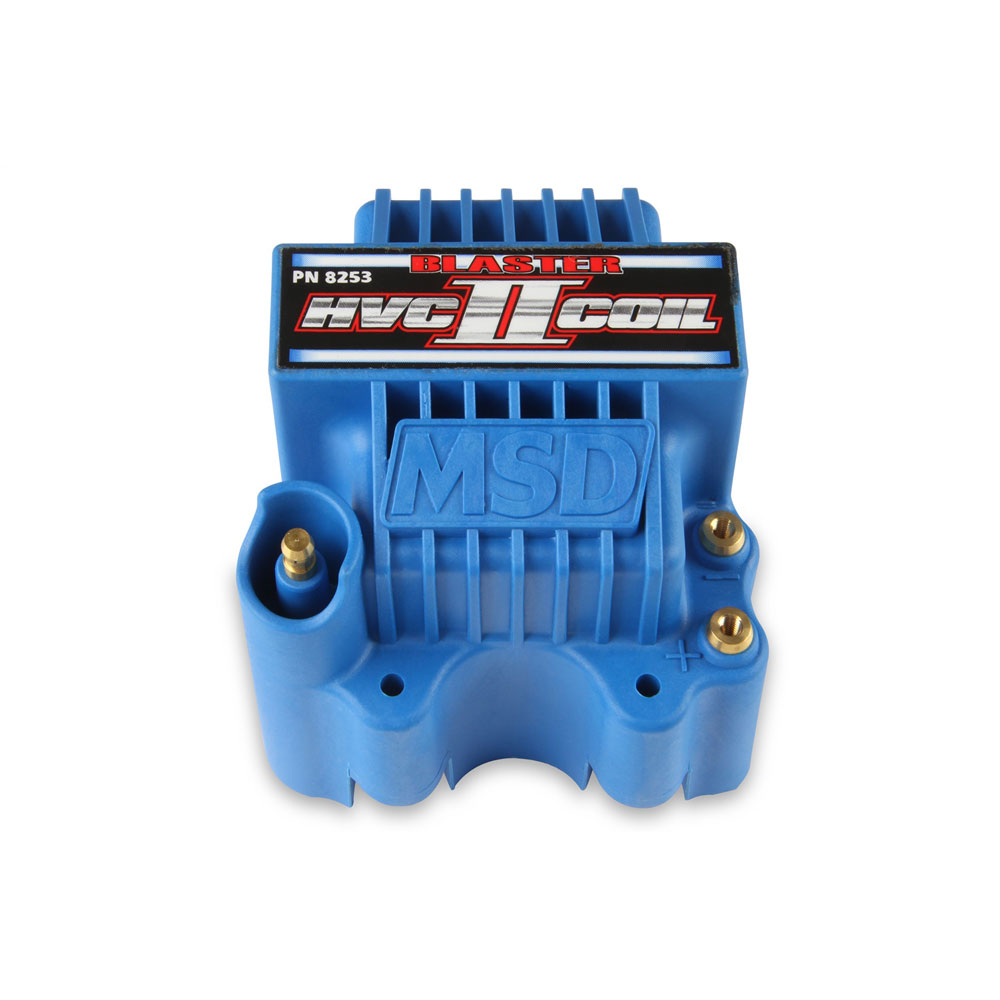

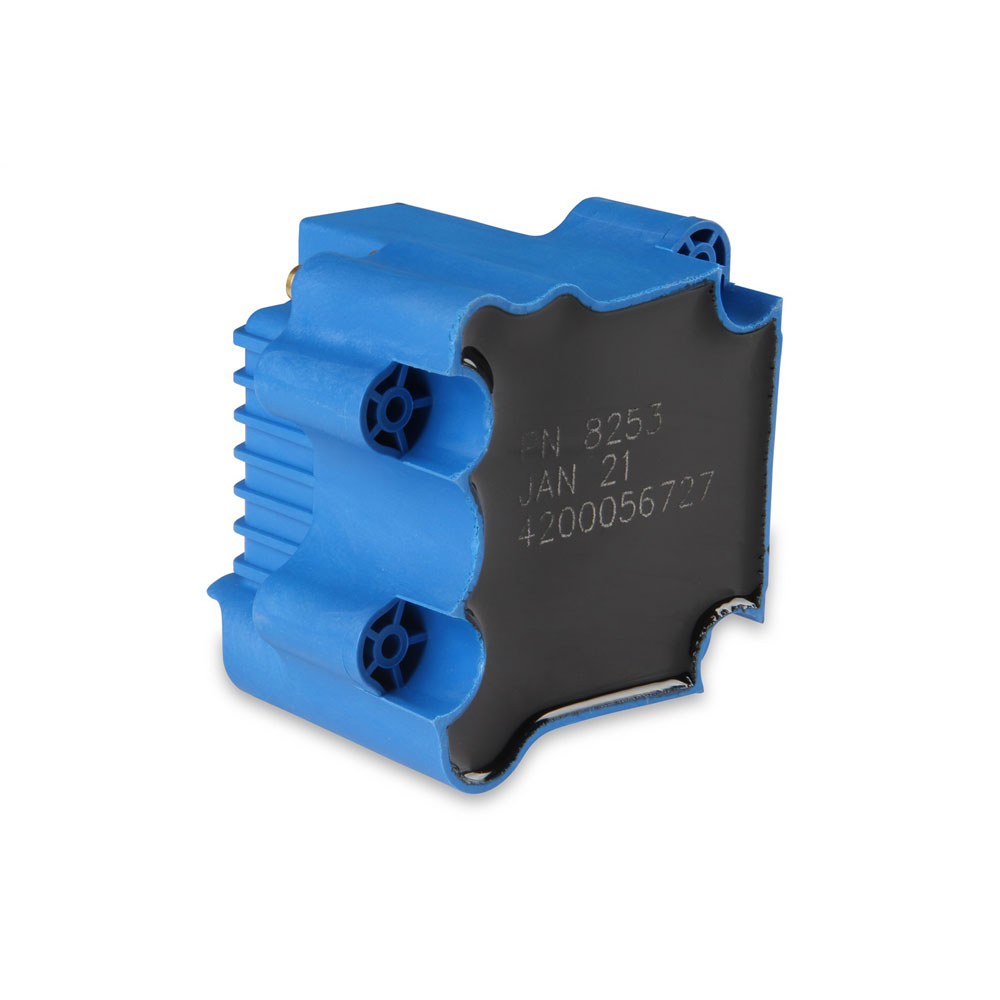

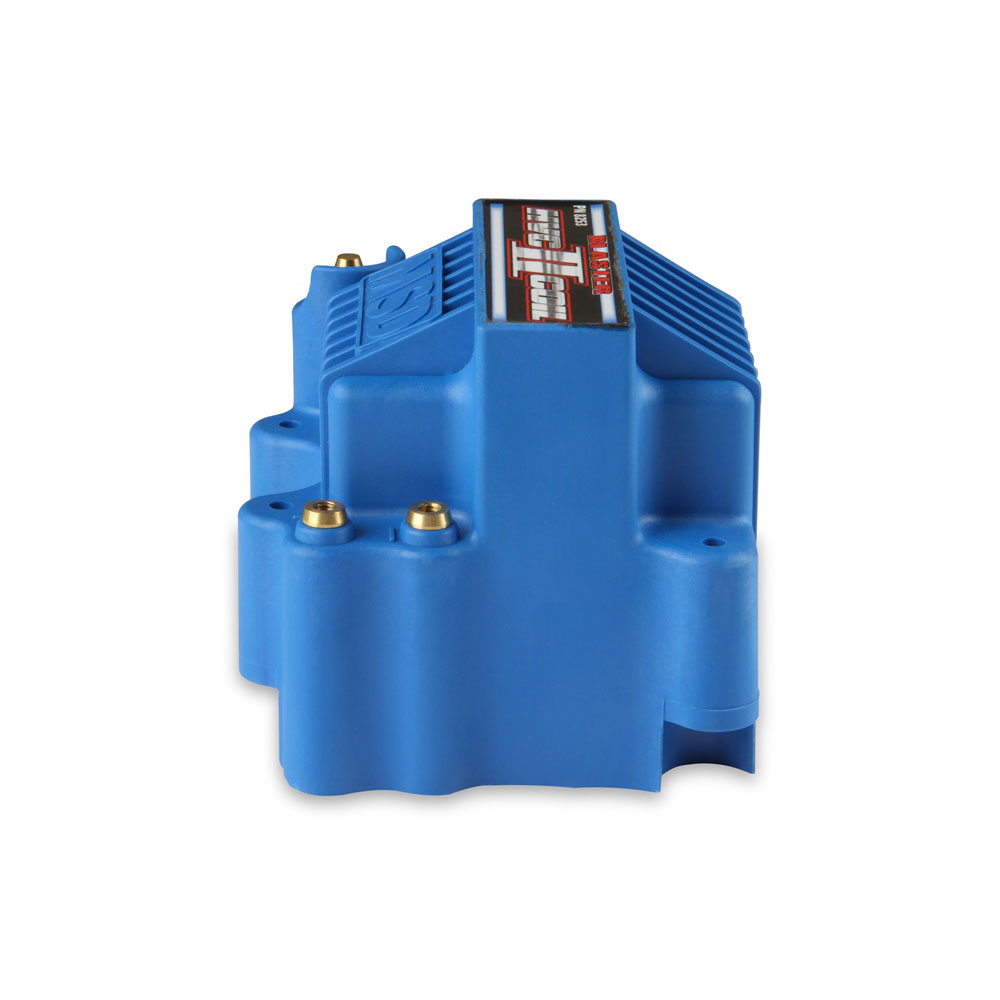

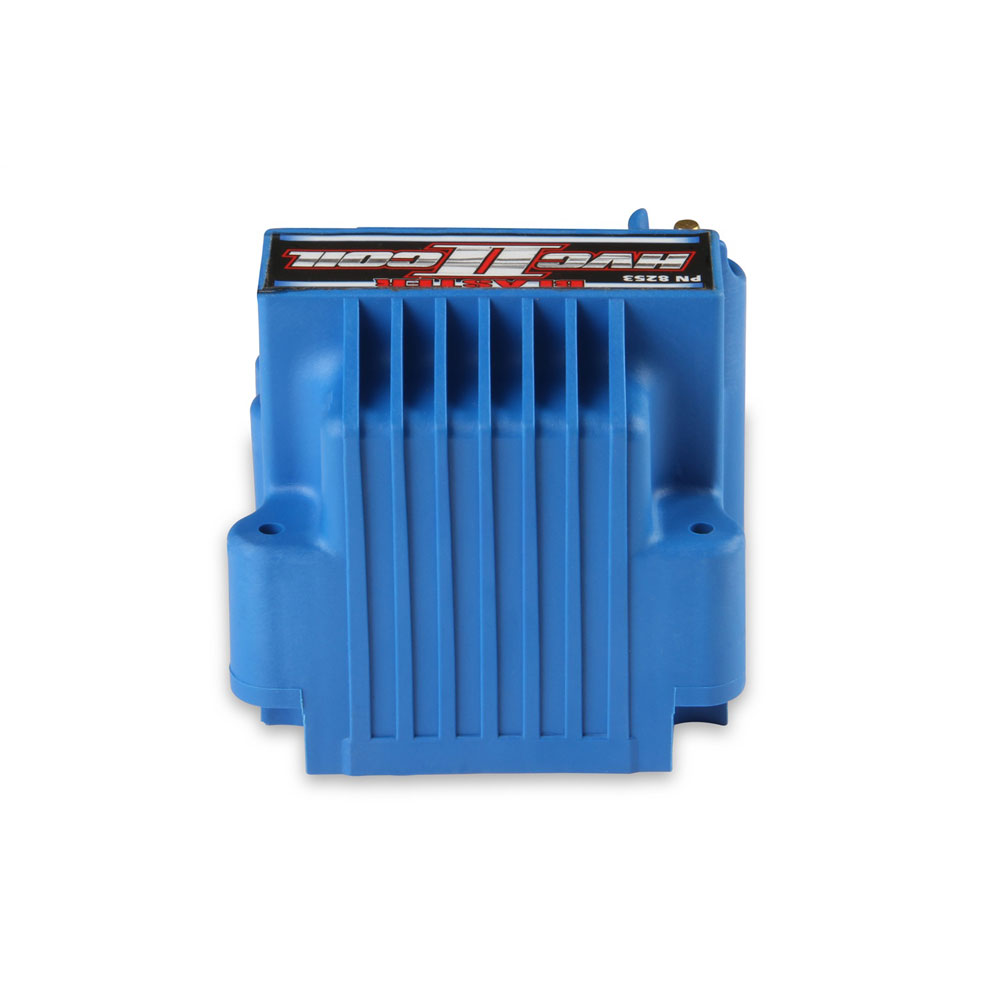

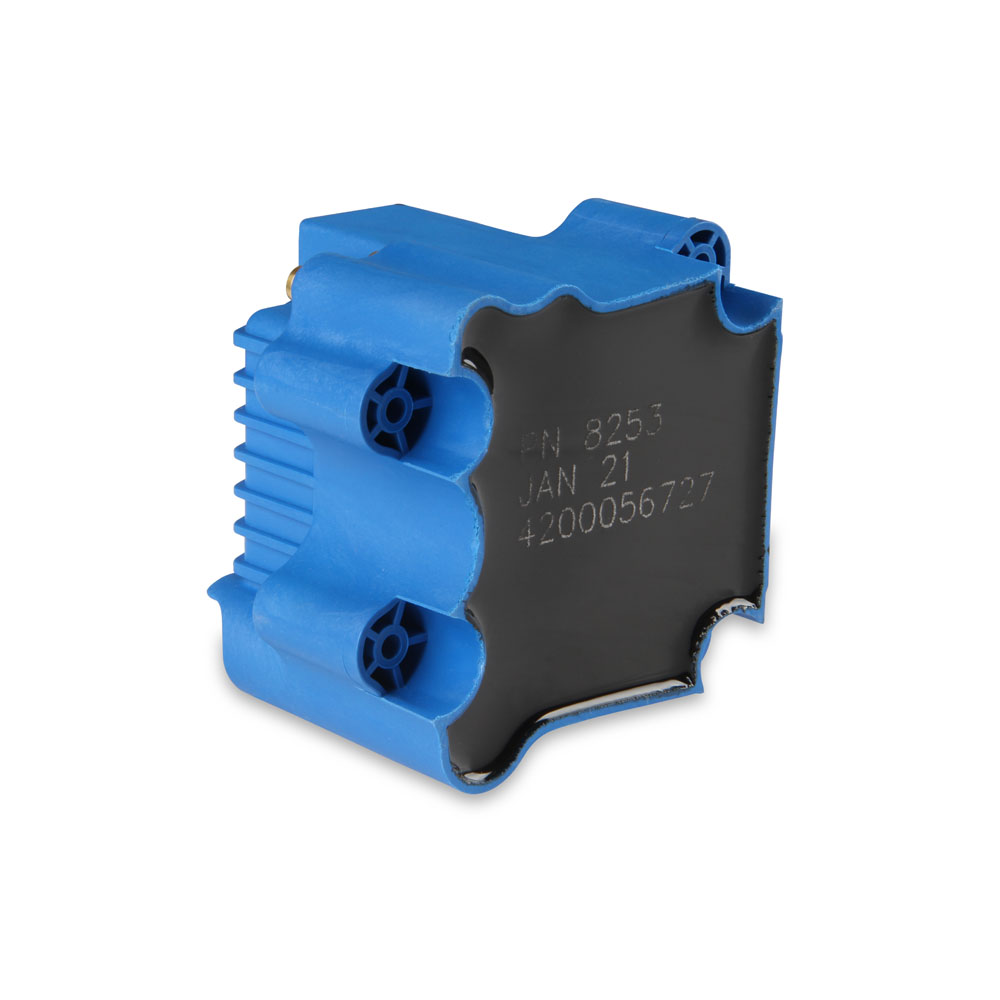

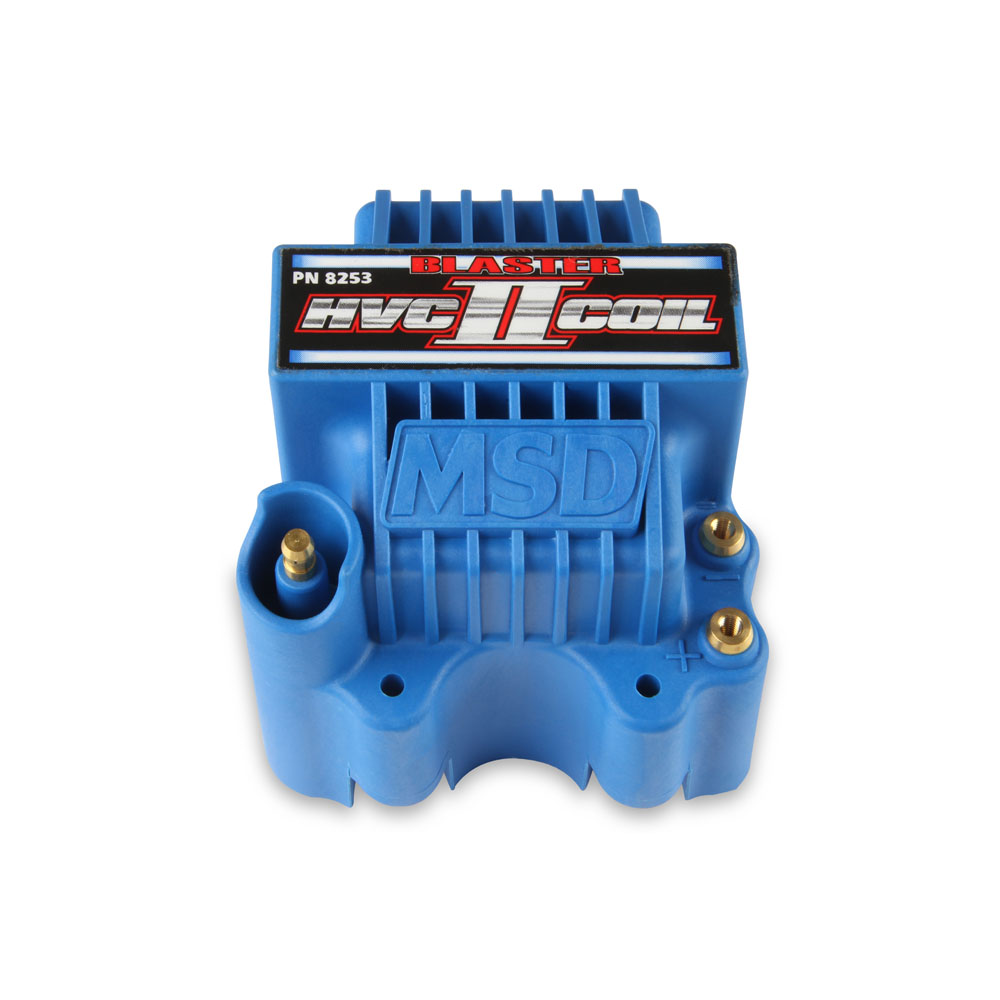

MSD Ignition Coil 8253; Blaster HVC 2 Blue 44000 Volt U Core HEI, Male
$286.15
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- For high rpm/long duration applications using MSD 6 Series Ign.
- New U-core winding design produces more voltage and current
- 100:1 Turns Ratio
- Lower Primary Resistance Produces High Voltage Output
- Windings encased in fracture resistant compound for vibration
- Rynite housing with isolated tower and brass primary terminals
- Supplied with Rubber Shock Mounts
- No CARB Exemption Order Number
- Windings encased in fracture resistant compound for vibration
- Rynite housing with isolated tower and brass primary terminals
- Supplied with Rubber Shock Mounts
- No CARB Exemption Order Number
Product Description
The latest coil to be built entirely in-house at MSD is designed to be used with MSD 6 and SCI Series ignition Controls. This coil utilizes an iron u-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special DuPont rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time. The blue housing is also molded from high dielectric rynite material. The brass primary terminals are spaced far apart and the secondary tower is well protected for increased spark isolation. The housing is completely coated with an epoxy compound for vibration resistance and installs with sturdy vibration mounts.
Specifications
- Ignition Coil Model or Series:
- Blaster HVC 2
- Coil Type:
- U Core
- Maximum Voltage:
- 44000 Volt
- Primary Resistance:
- 0.160 Ohms
- Secondary Resistance:
- 630 Ohms
- Coil Wire Attachment:
- HEI, Male
- Height:
- 3.000 in.
- Finish:
- Blue
- Internal Construction:
- Epoxy Filled
- Primary Inductance:
- 3.50 mH
- Turns Ratio:
- 100:1
- Includes Mounting Bracket:
- No
- Includes Ballast Resistor:
- No
- Includes Hardware:
- No
- Notes:
- For use with 6-series ignition
- Quantity:
- Sold As Each
