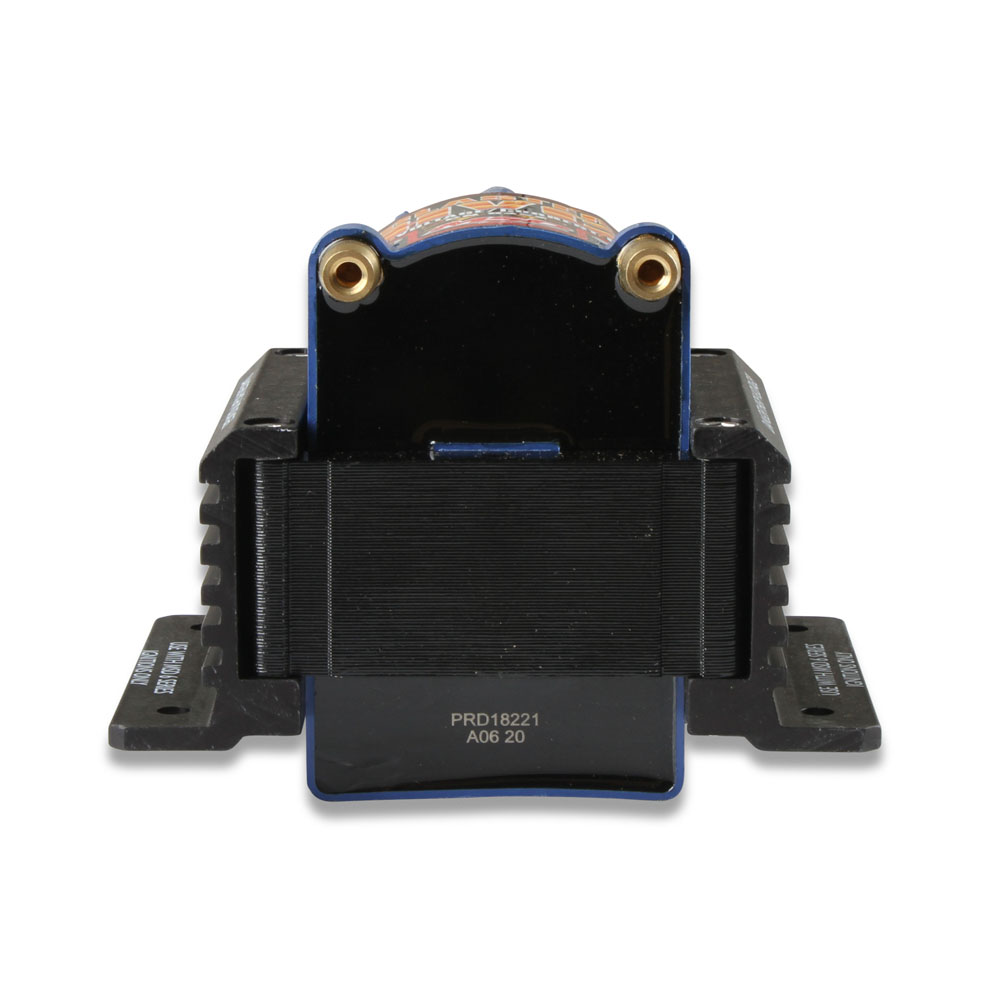

MSD Ignition Coil 8252; Blaster HVC Blue 42000 Volt E Core HEI, Male
$180.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Designed for high rpm
- long duration applications
- Works with Electronic Ignitions And MSD Ignition Controls
- 100:1 Turns Ratio
- Lower Primary Resistance Produces High Voltage Output
- Windings encased in blue epoxy and secured with extruded brackets
- Spark Plug Style Terminal and Threaded Brass Primary Studs

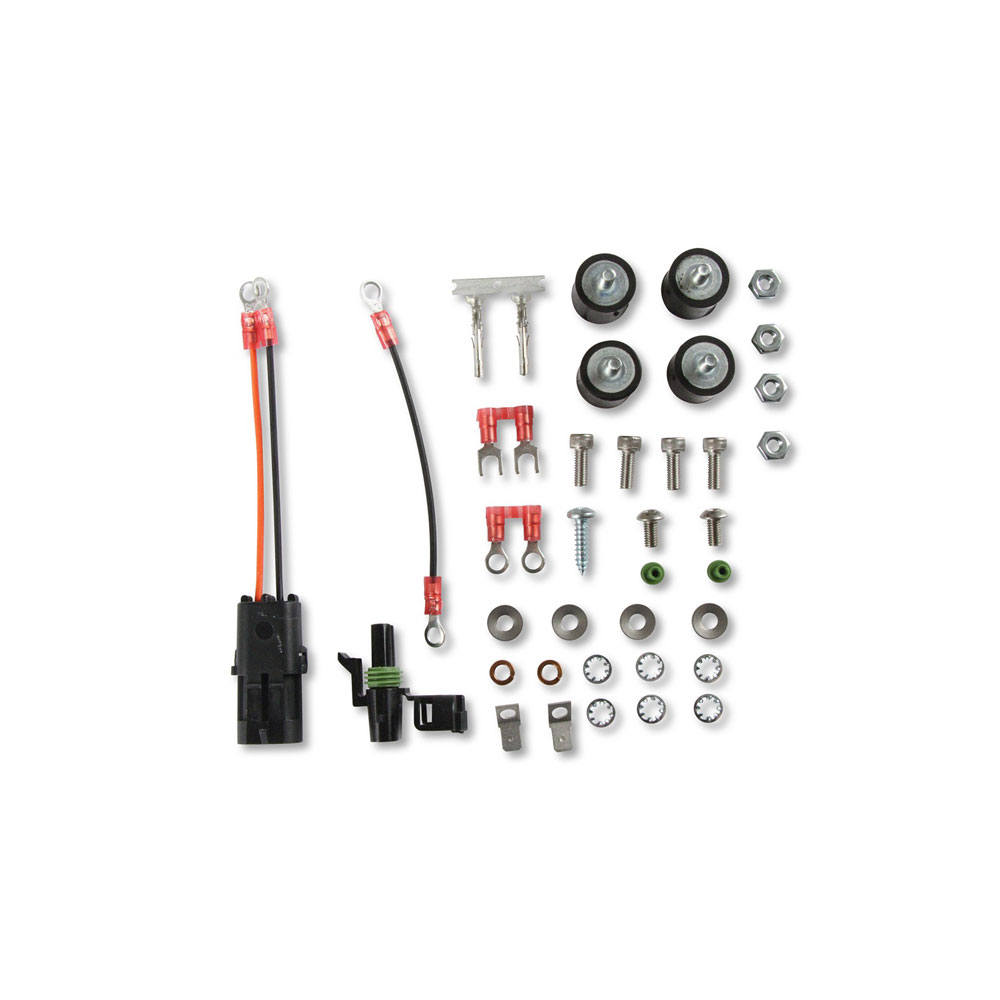

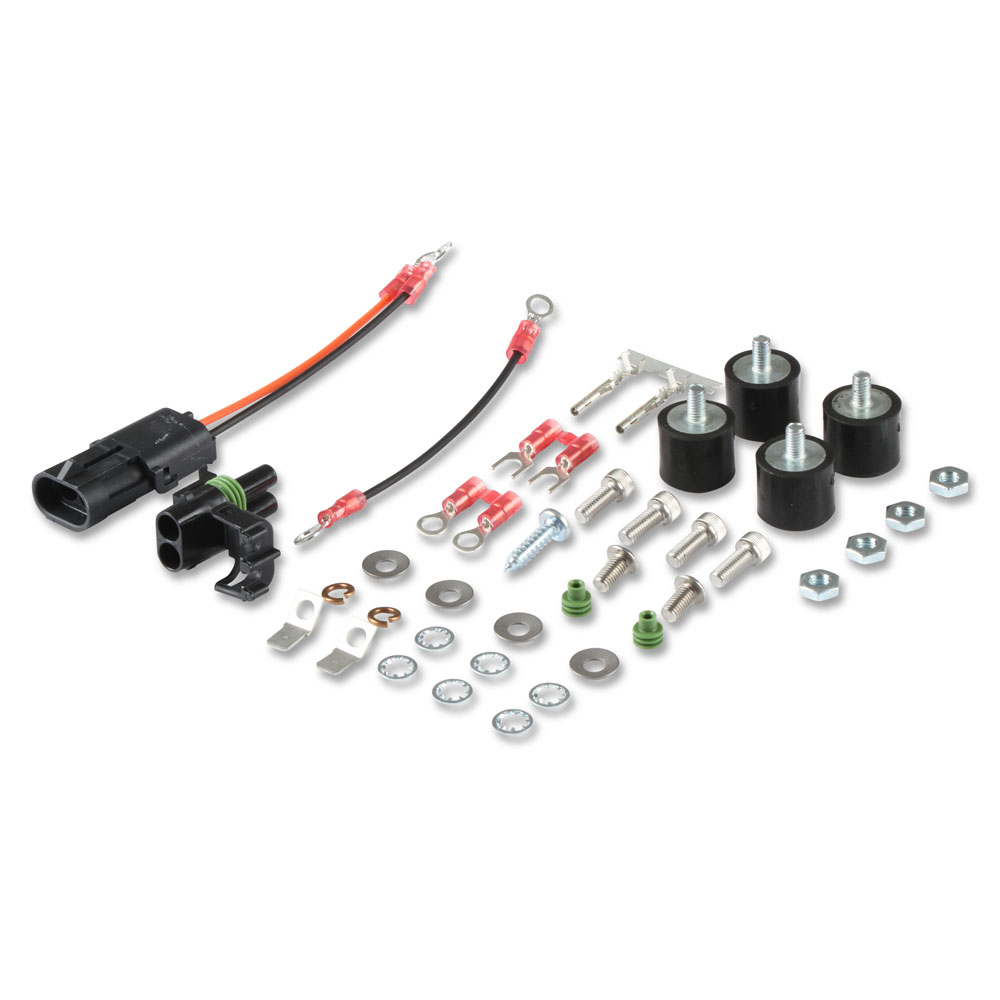

- Supplied with Rubber Shock Mounts
- CARB E.O. Approved
- Lower Primary Resistance Produces High Voltage Output
- Windings encased in blue epoxy and secured with extruded brackets
- Spark Plug Style Terminal and Threaded Brass Primary Studs
- Supplied with Rubber Shock Mounts
- CARB E.O. Approved
Product Description
The blaster HVC is designed for high rpm, long duration applications such as road course and circle track racing using an MSD 6 series ignition. Works with electronic ignitions and MSD ignition Controls (ballast resistor required for points systems). Features 100:1 turn ratio and lower primary resistance produce high voltage output. Windings are encased in blue epoxy and secured with extruded brackets. Spark plug style terminal and threaded brass primary studs. Supplied with rubber shock mounts. Carb E.O. approved.
Specifications
- Ignition Coil Model or Series:
- Blaster HVC
- Coil Type:
- E Core
- Maximum Voltage:
- 42000 Volt
- Primary Resistance:
- 0.020 Ohms
- Secondary Resistance:
- 1.38k Ohms
- Coil Wire Attachment:
- HEI, Male
- Length:
- 5.000 in.
- Width:
- 5.000 in.
- Height:
- 5.000 in.
- Finish:
- Blue
- Internal Construction:
- Epoxy Filled
- Primary Inductance:
- 7.00 mH
- Turns Ratio:
- 100:1
- Includes Mounting Bracket:
- Built In
- Includes Ballast Resistor:
- No
- Includes Hardware:
- No
- Notes:
- For use with 6-series ignition
- Quantity:
- Sold As Each
