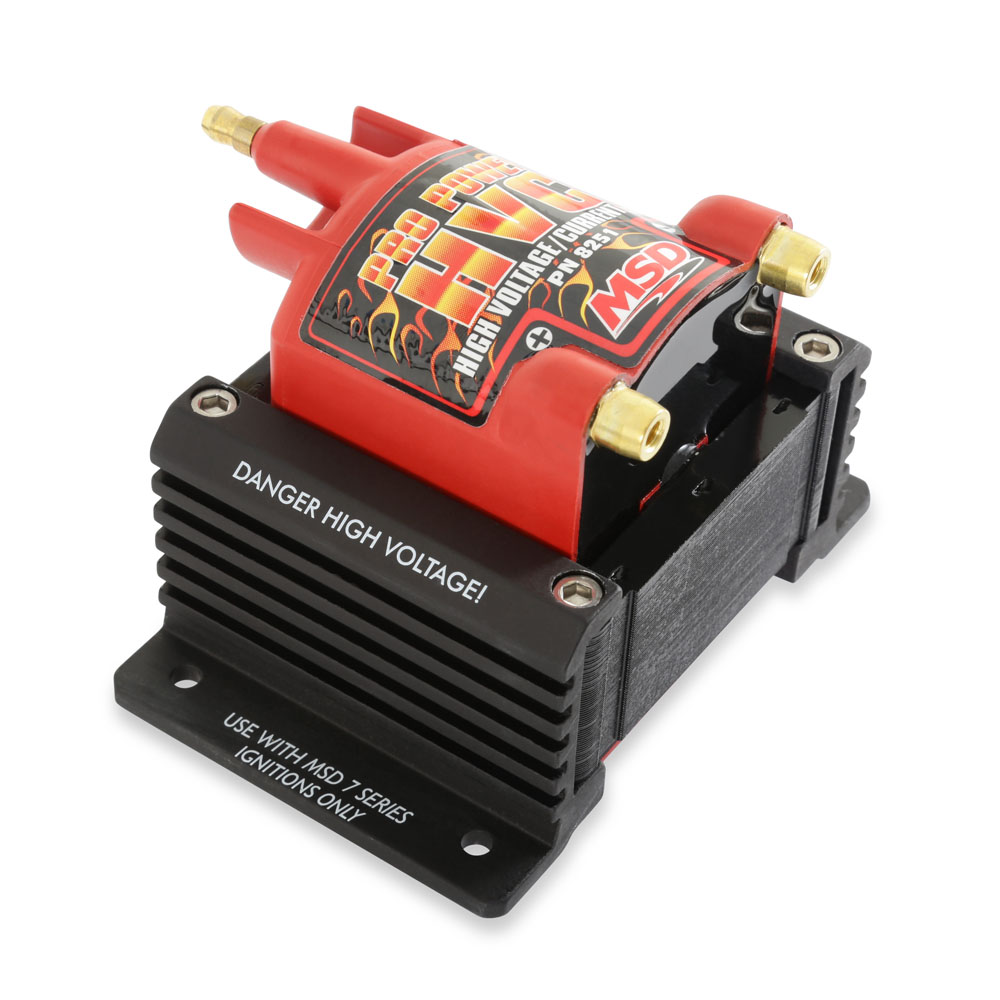

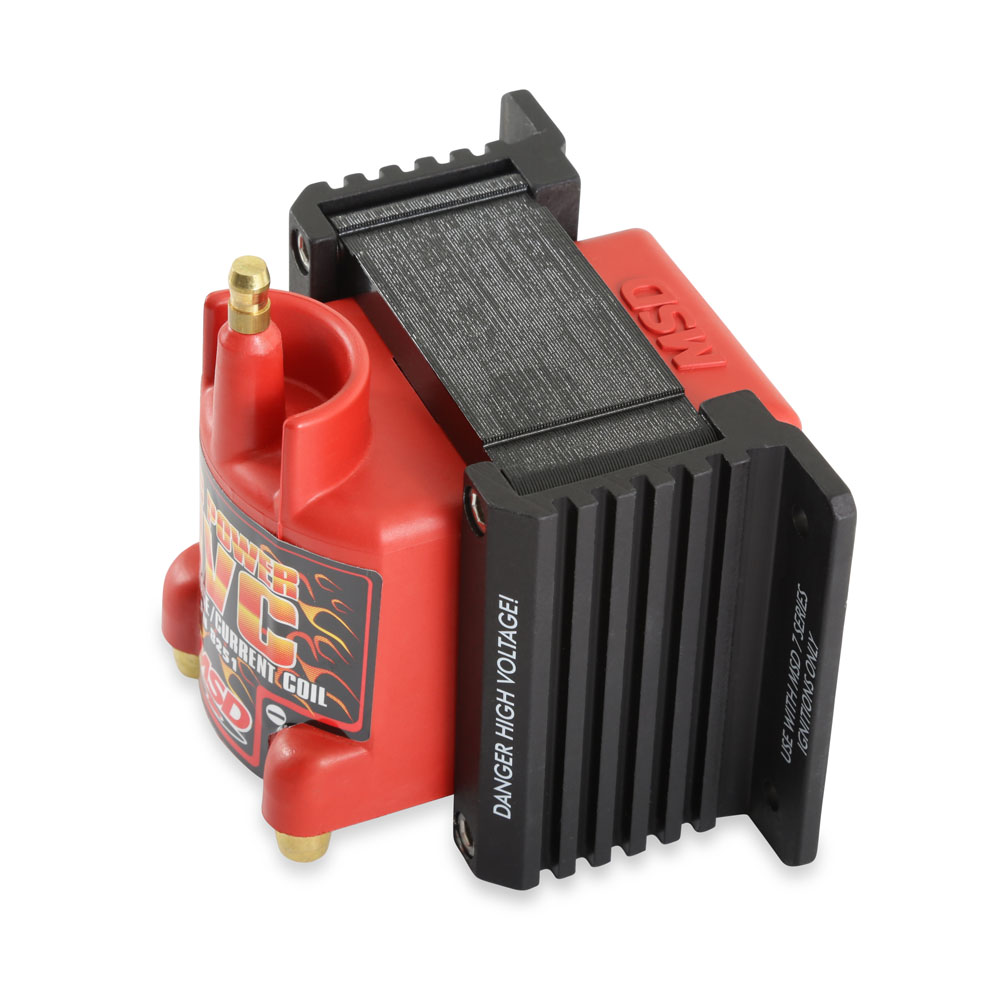

MSD Ignition Coil 8251; Pro Power HVC Red 45000 Volt E Core HEI, Male
$180.85
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Designed For Racing Apps with MSD 7 or 8 Series Ignition Control
- Efficient E-Core Winding Design Produces More Voltage and Current
- Lower Primary Resistance Produces High Voltage Output
- Windings Are Encased in Red Epoxy and Secured with Extruded Brackets
- Spark Plug Style Terminal and Threaded Brass Primary Studs
- Supplied with Rubber Shock Mounts
- Spark Plug Style Terminal and Threaded Brass Primary Studs
- Supplied with Rubber Shock Mounts
Product Description
Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC coils are designed to produce maximum voltage and energy. To accomplish this combination of high voltage and current MSD uses an e-core winding design. This is a very efficient design where less loss occurs during the transfer of electricity due to the closed core of the coil. Another benefit is that the coils run extremely cool, even at high racing rpm, thanks to the efficient design and huge laminations.
Specifications
- Ignition Coil Series:
- Pro Power HVC
- Coil Type:
- E Core
- Maximum Voltage:
- 45000 Volt
- Primary Resistance:
- 0.040 Ohms
- Secondary Resistance:
- 86 Ohms
- Coil Wire Attachment:
- HEI, Male
- Length:
- 5.000 in.
- Width:
- 5.000 in.
- Height:
- 5.000 in.
- Finish:
- Red
- Internal Construction:
- Epoxy Filled
- Primary Inductance:
- 1 mH
- Turns Ratio:
- 85:1
- Includes Mounting Bracket:
- Built In
- Includes Ballast Resistor:
- No
- Includes Hardware:
- No
- Notes:
- For use with MSD 7, 8, 10 Plus
- Quantity:
- Sold As Each
