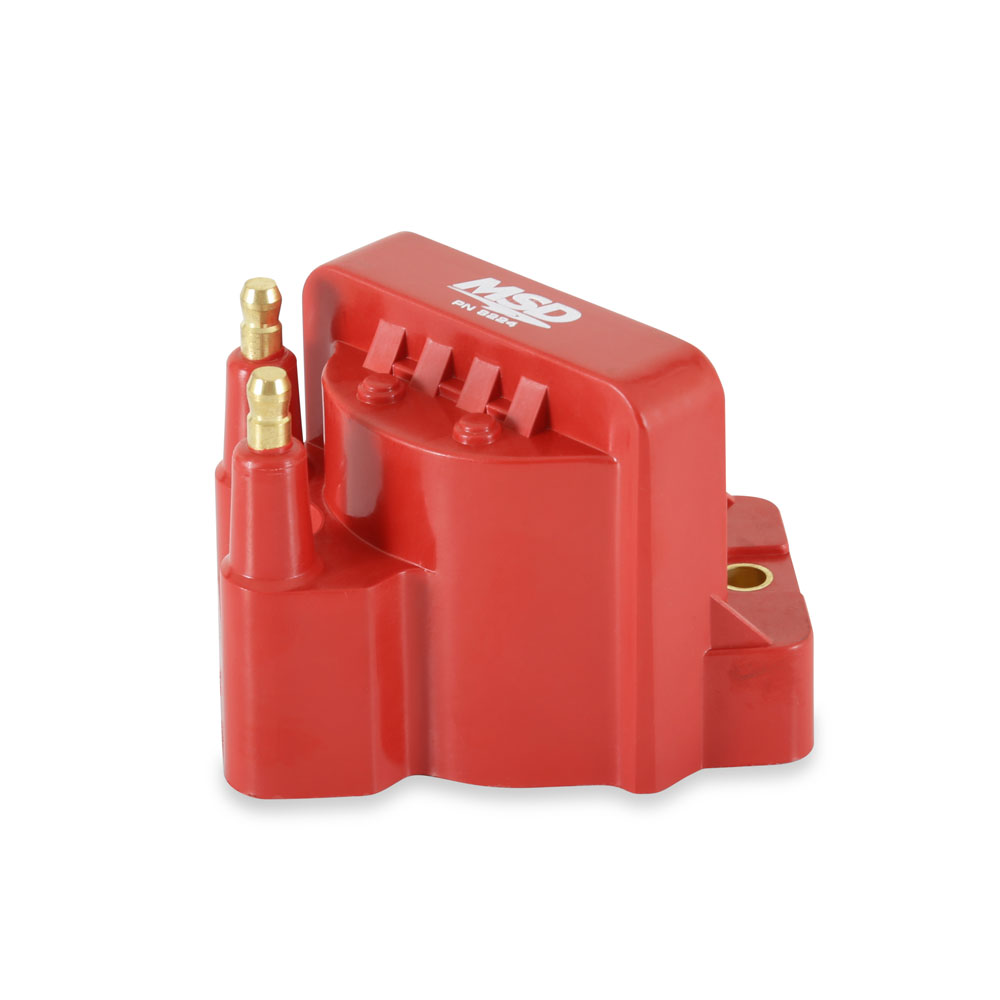

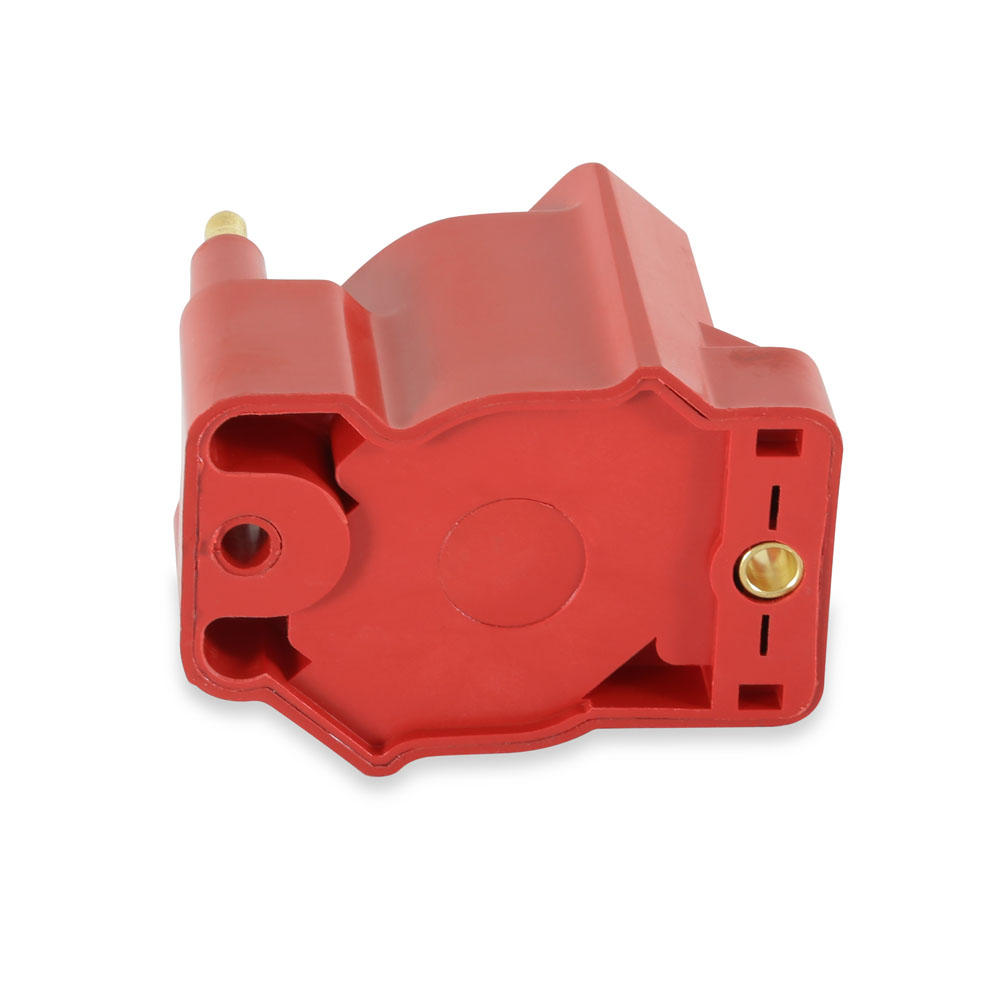

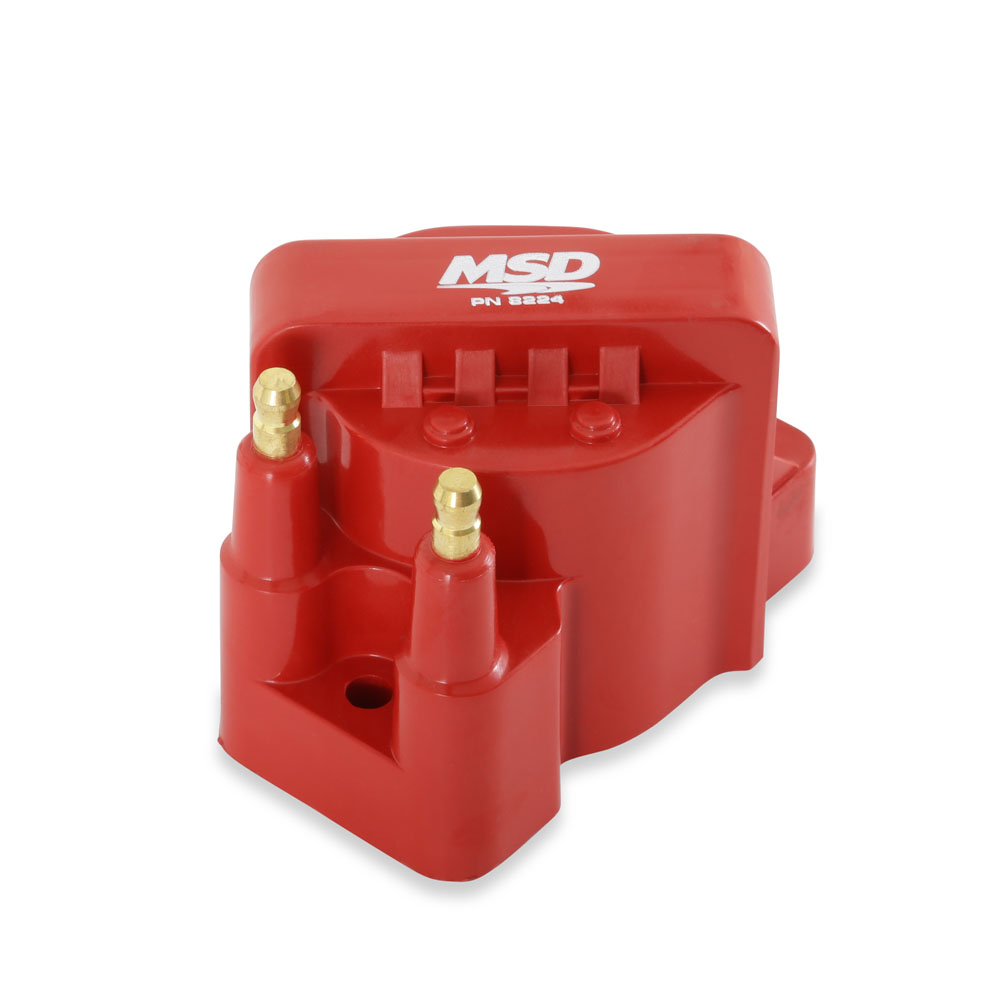

MSD Ignition Coil 8224; Blaster Red 40000 Volt Coil Pack HEI, Male
$95.75
Please note that this part is not included in any pre-paid freight agreement.
See our shipping policy for more details.
Details
- Direct performance replacement
- For GM 2 Tower Coils Used From Mid 1980s To Late 1990s
- 80:1 turns ratio
- Lower Primary Resistance Produces High Voltage Output
- Works with Stock Ignition As Well As MSD Ignitions
- CARB E.O. Approved
- Works with Stock Ignition As Well As MSD Ignitions
- CARB E.O. Approved
Product Description
The updated Fuel Pump Booster is an easy way to maintain the proper fuel pressure on your car after adding a power adder such as a turbo or supercharger. The new model allows you to make your boost adjustments through a PC for improved control and accuracy. The Booster ensures that the engine receives the fuel it needs to make up for the increase in air being pumped into the intake manifold. It will increase the voltage to the factory fuel pump in proportion to manifold boost pressure in order to maintain the proper fuel delivery. The amount of increase is adjustable from a range of an additional 1.5 –22 volts up to 30 PSI which can all be set and adjusted from your PC with MSD's easy to use Windows based software. The MSD Booster will wire to the factory fuel pump relay or with a secondary booster pump.
Specifications
- Ignition Coil Series:
- Blaster
- Coil Type:
- Coil Pack
- Maximum Voltage:
- 40000 Volt
- Primary Resistance:
- 0.350 Ohms
- Secondary Resistance:
- 7.8K Ohms
- Coil Wire Attachment:
- HEI, Male
- Height:
- 4.000 in.
- Finish:
- Red
- Internal Construction:
- Epoxy Filled
- Primary Inductance:
- 4.20 mH
- Turns Ratio:
- 80:1
- Includes Mounting Bracket:
- No
- Includes Ballast Resistor:
- No
- Includes Hardware:
- No
- Quantity:
- Sold As Each
