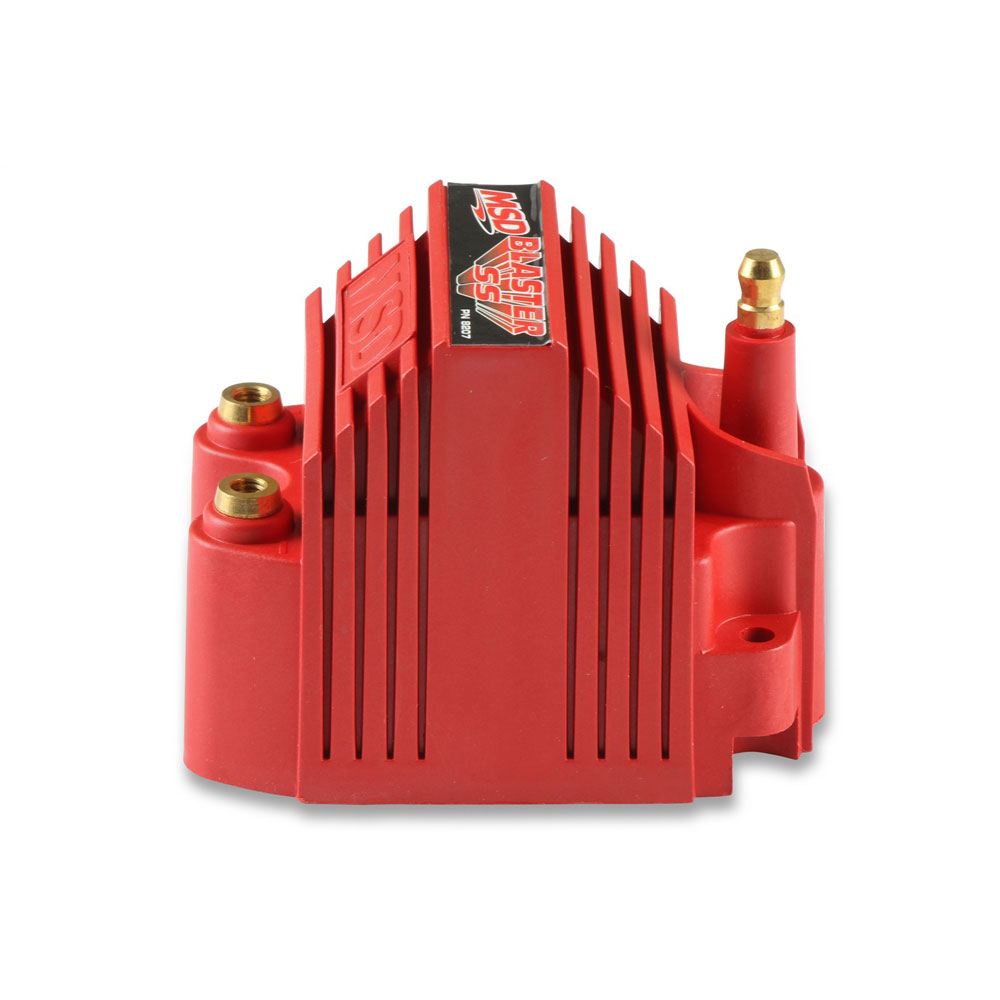

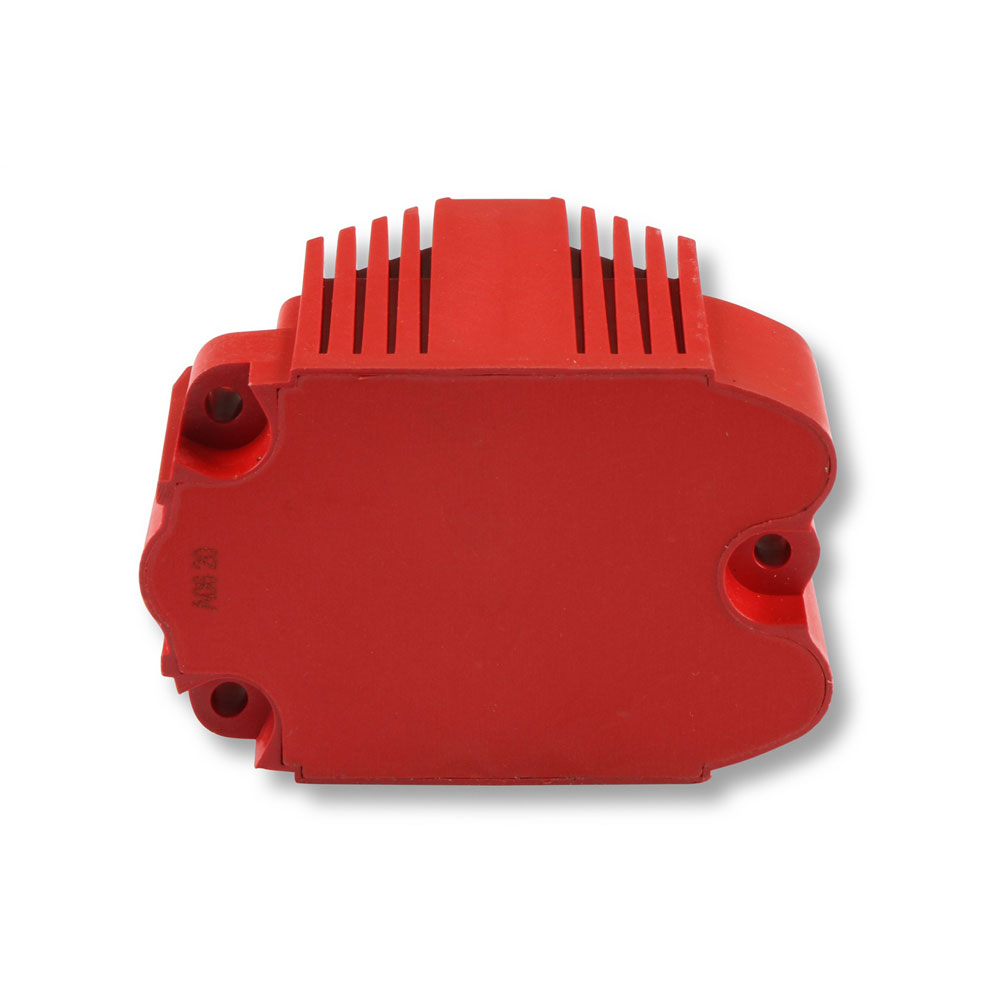

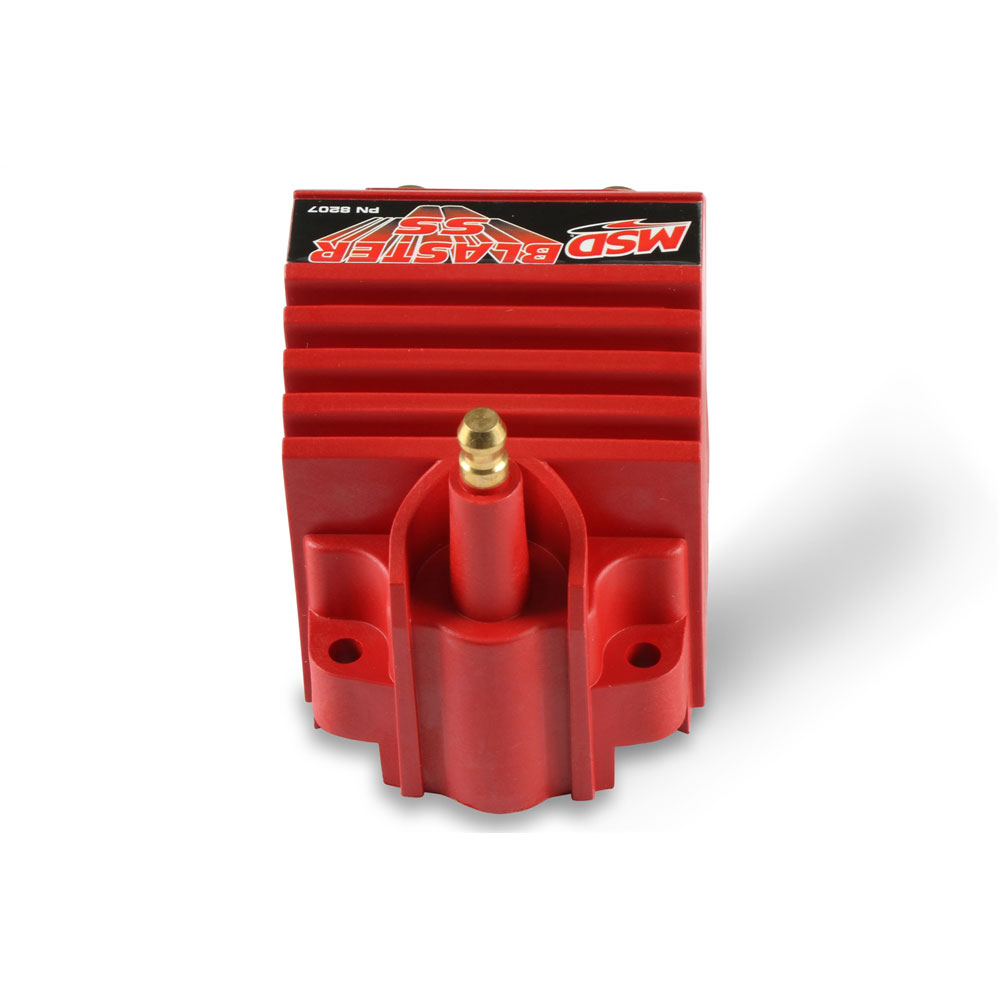

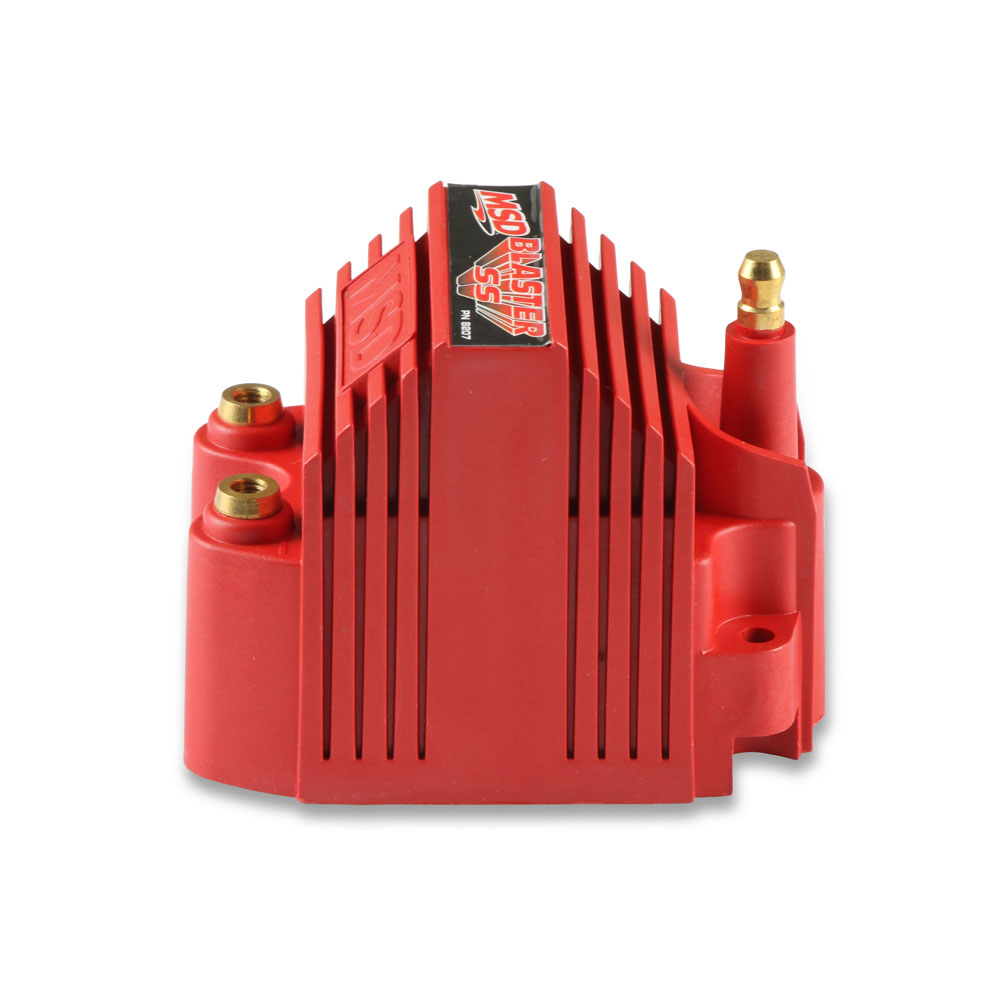

MSD Ignition Coil 8207; Blaster SS Red 40000 Volt E Core HEI, Male
$69.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Improved output coil for electronic ignitions and MSD Ignitions
- Efficient winding design and assembly creates a compact housing
- Primary and secondary windings are encased in Ciba polyurethane
- 70:1 Turns Ratio
- Lower Primary Resistance Produces High Voltage Output
- Rynite Housing with Tall Tower And Brass Primary Terminals
- CARB E.O. Approved
- Lower Primary Resistance Produces High Voltage Output
- Rynite Housing with Tall Tower And Brass Primary Terminals
- CARB E.O. Approved
Product Description

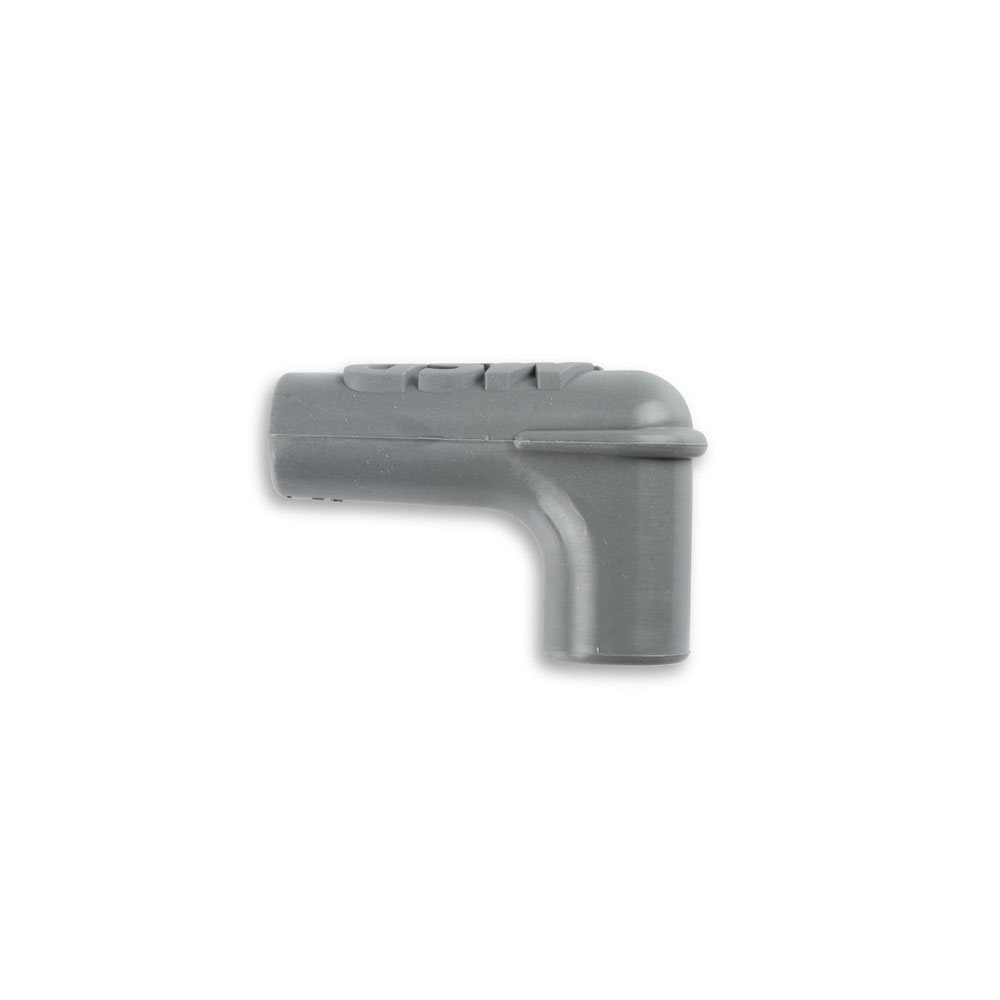

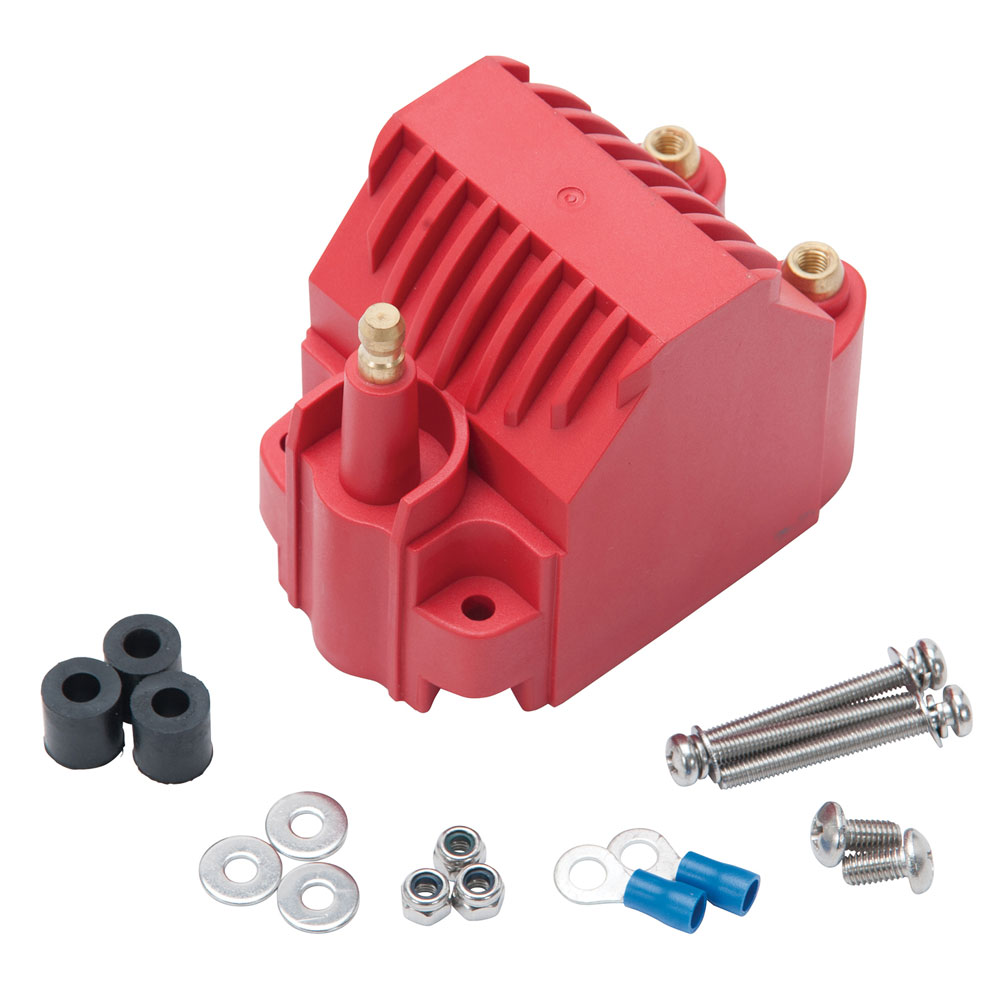

Don't let the compact size of the blaster SS Coil fool you, because it is packed with performance. The efficient e-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 series ignition, the blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts. The secondary windings are wound on a segmented bobbin which reduces the chance of voltage breakdown between the primary and secondary windings. For more protection, these windings are encased in a polyurethane compound for complete protection against vibration. The blaster SS features brass terminals and a sturdy rynite housing. It is supplied with a 90 degree boot, terminal and vibration mounts. A great addition to CD ignitions and some stock applications.
Specifications
- Ignition Coil Model or Series:
- Blaster SS
- Coil Type:
- E Core
- Maximum Voltage:
- 40000 Volt
- Primary Resistance:
- 0.355 Ohms
- Secondary Resistance:
- 4.4K Ohms
- Coil Wire Attachment:
- HEI, Male
- Height:
- 2.650 in.
- Finish:
- Red
- Internal Construction:
- Epoxy Filled
- Primary Inductance:
- 6.90 mH
- Turns Ratio:
- 70:1
- Includes Mounting Bracket:
- No
- Includes Ballast Resistor:
- No
- Includes Hardware:
- No
- Notes:
- CARB EO: D-40-37
- Quantity:
- Sold As Each
