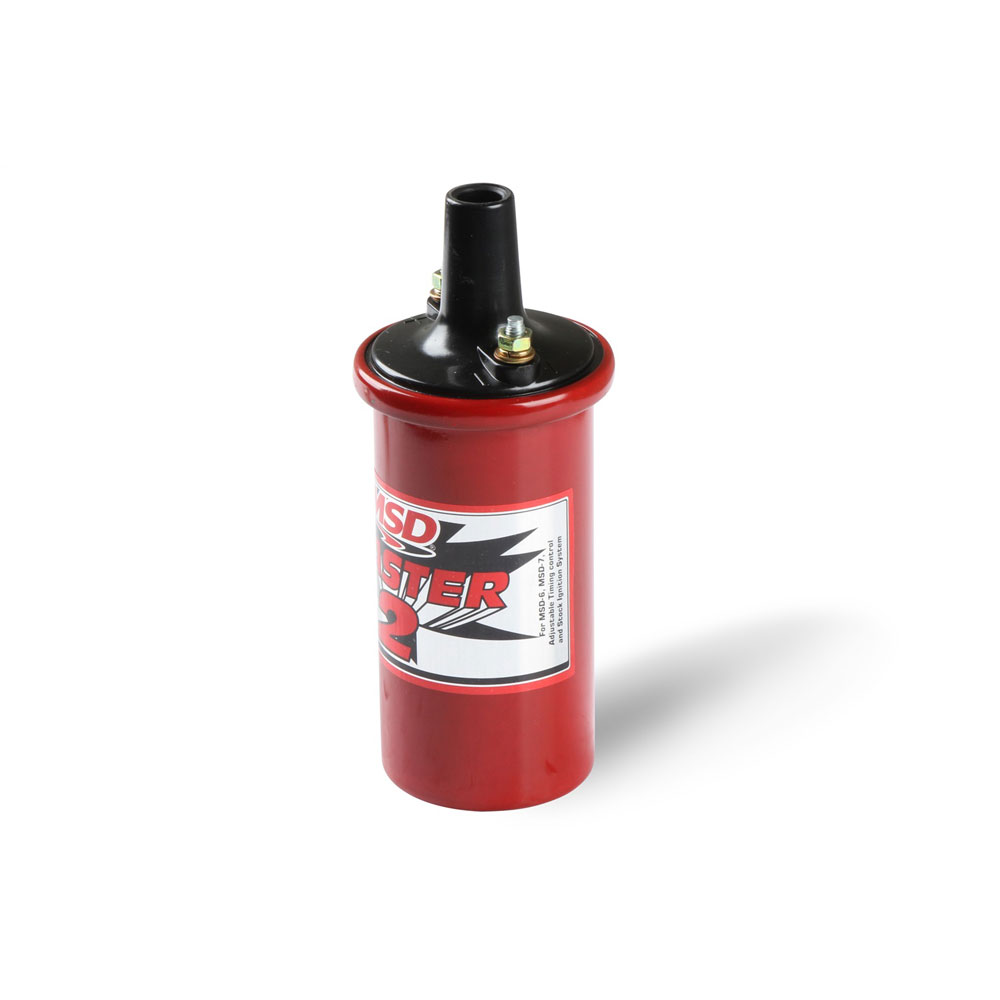

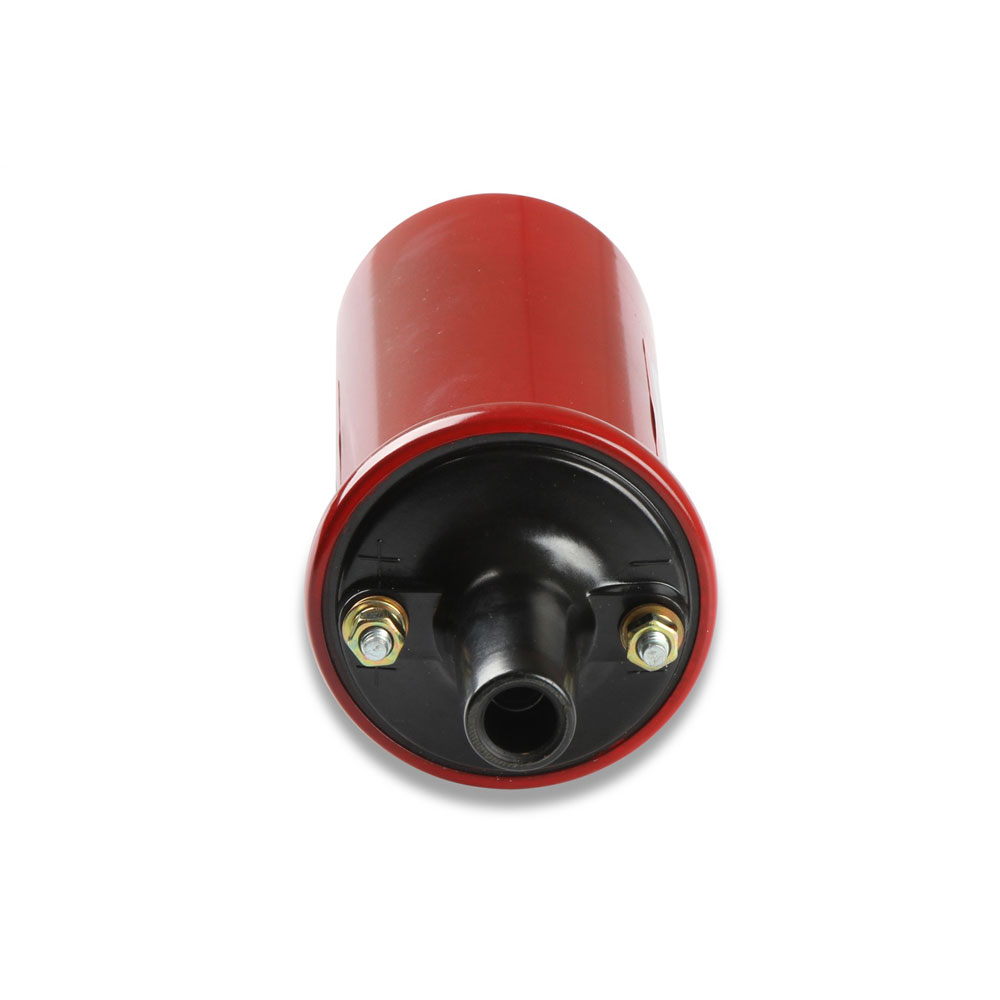

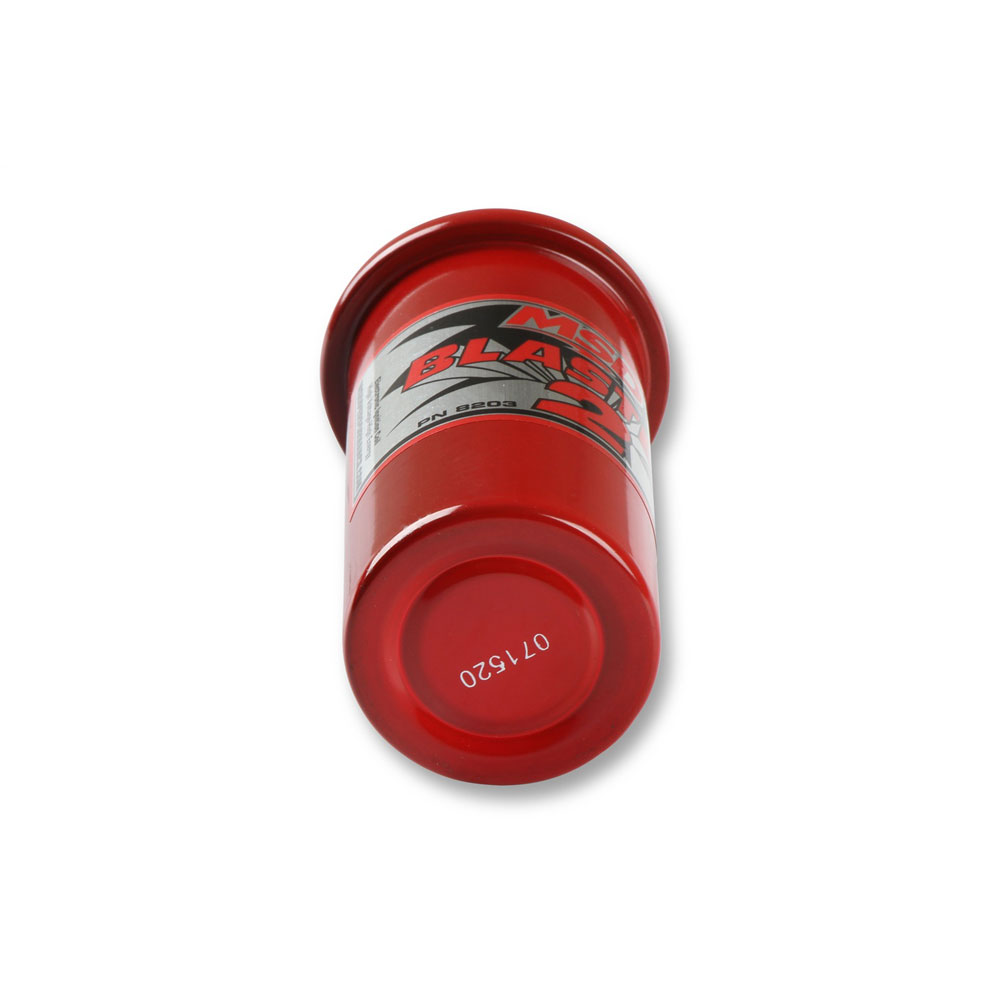

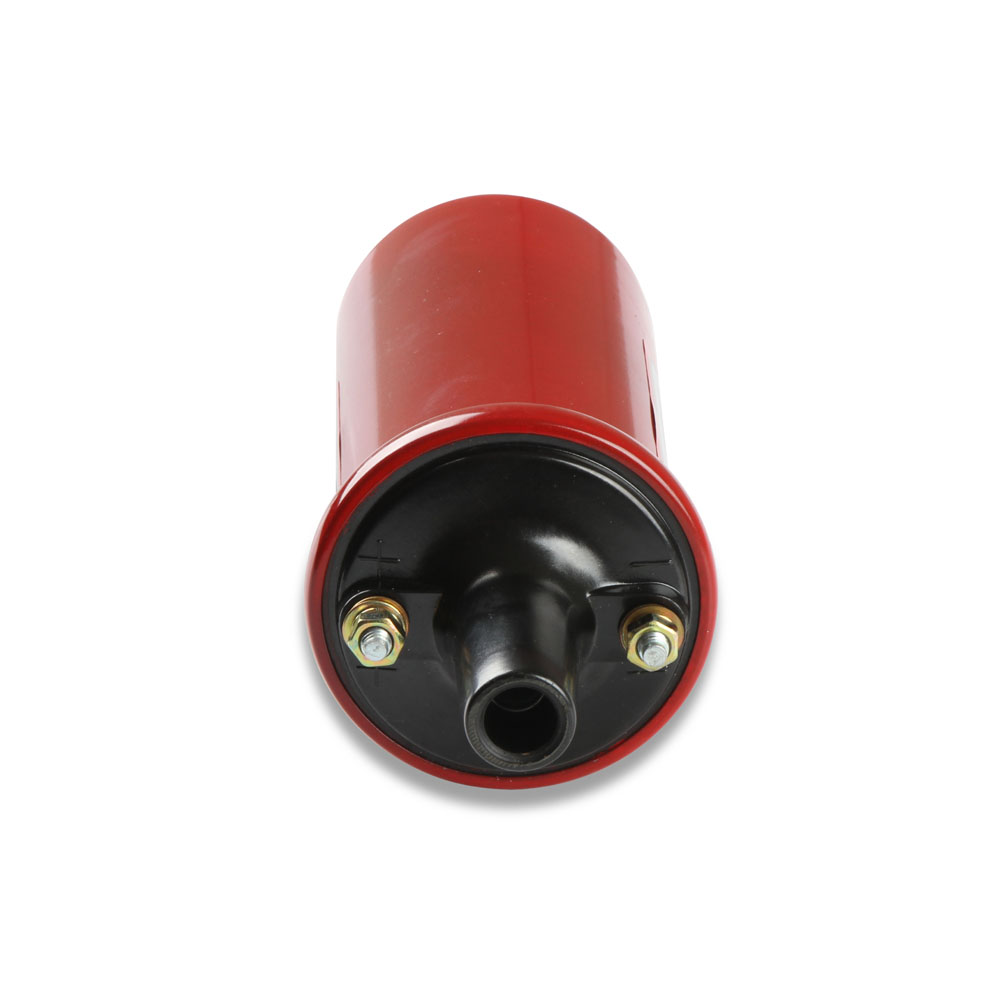

MSD Ignition Coil 8203; Blaster 2 Red 45000 Volt Canister Points, Socket

$53.96

Part #: 8203

Brand: MSD

UPC: 085132082032

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Improved output coil for stock points or electronic ignitions
  • Works with Blaster Ignition Or MSD 5/6/7 Series
  • Ballast Resistor Required If Used with Stock Points Ignition

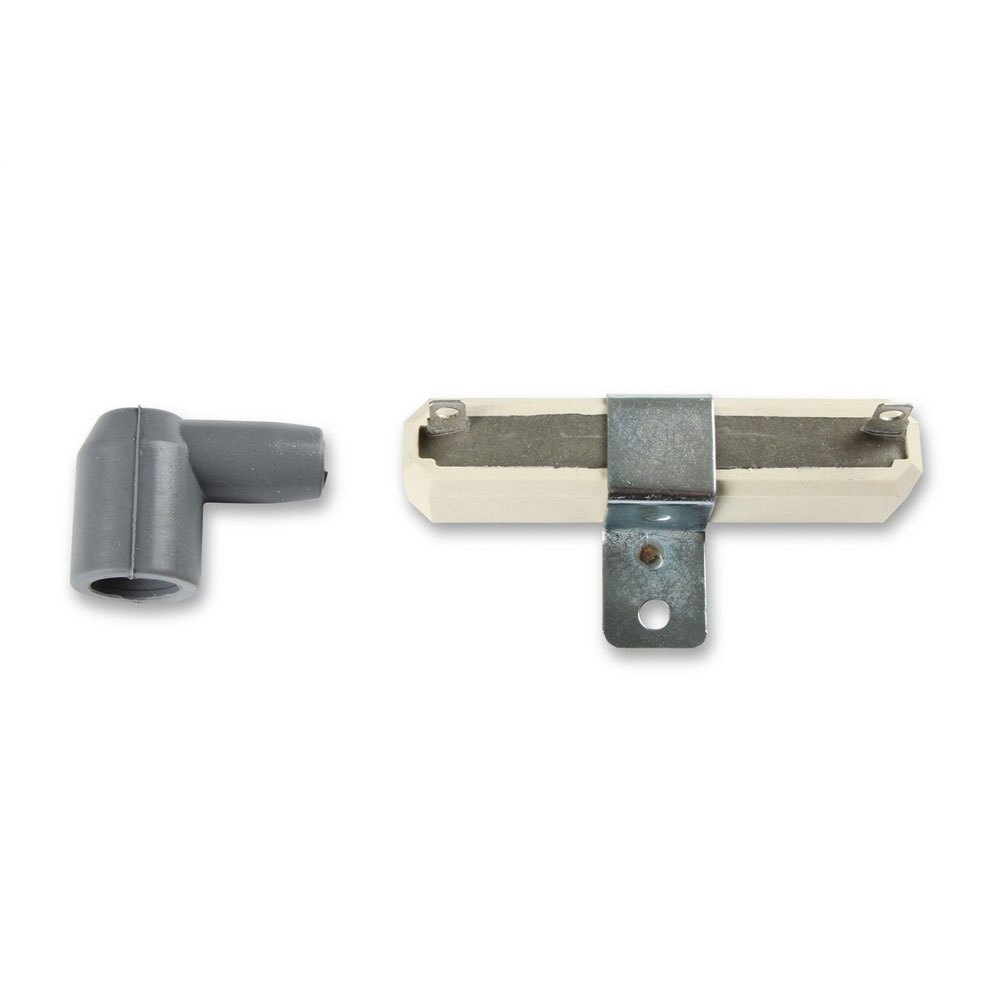

  • Supplied with 2 Spark Plug Wire Boots/Terminals/Ballast Resistor
  • 100:1 Turns Ratio
  • Lower Primary Resistance Produces High Voltage Output
  • Metal Canister Is Filled with Premium Grade Oil For Cooling
  • CARB E.O. Approved

Product Description

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD blaster ignition, MSD 5, 6 or 7, the blaster coil line is the right choice. All of the blaster coils are designed for improved spark output. Special 100:1 windings are used to provide maximum build-up of voltage. These windings are held secure and kept cool in an oil filled metal canister. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark. There are several versions of the blaster coil available. All of them have the same internal specifications, but have different housings or components. Each blaster coil can be used with a stock ignition, blaster ignition, MSD 5, 6 or 7 ignition control. Most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application.

Specifications

Ignition Coil Series:
Blaster 2
Coil Type:
Canister
Maximum Voltage:
45000 Volt
Primary Resistance:
0.700 Ohms
Secondary Resistance:
4.5K Ohms
Coil Wire Attachment:
Points, Socket
Height:
6.000 in.
Diameter:
2.125 in.
Finish:
Red
Internal Construction:
Oil Filled
Primary Inductance:
8.00 mH
Turns Ratio:
100:1
Includes Mounting Bracket:
No
Includes Ballast Resistor:
Yes
Includes Hardware:
No
Notes:
CARB EO: D-40-37
Quantity:
Sold As Each

Videos

Tech Resources

  • 8203_frm30162.pdf

Alternative Parts

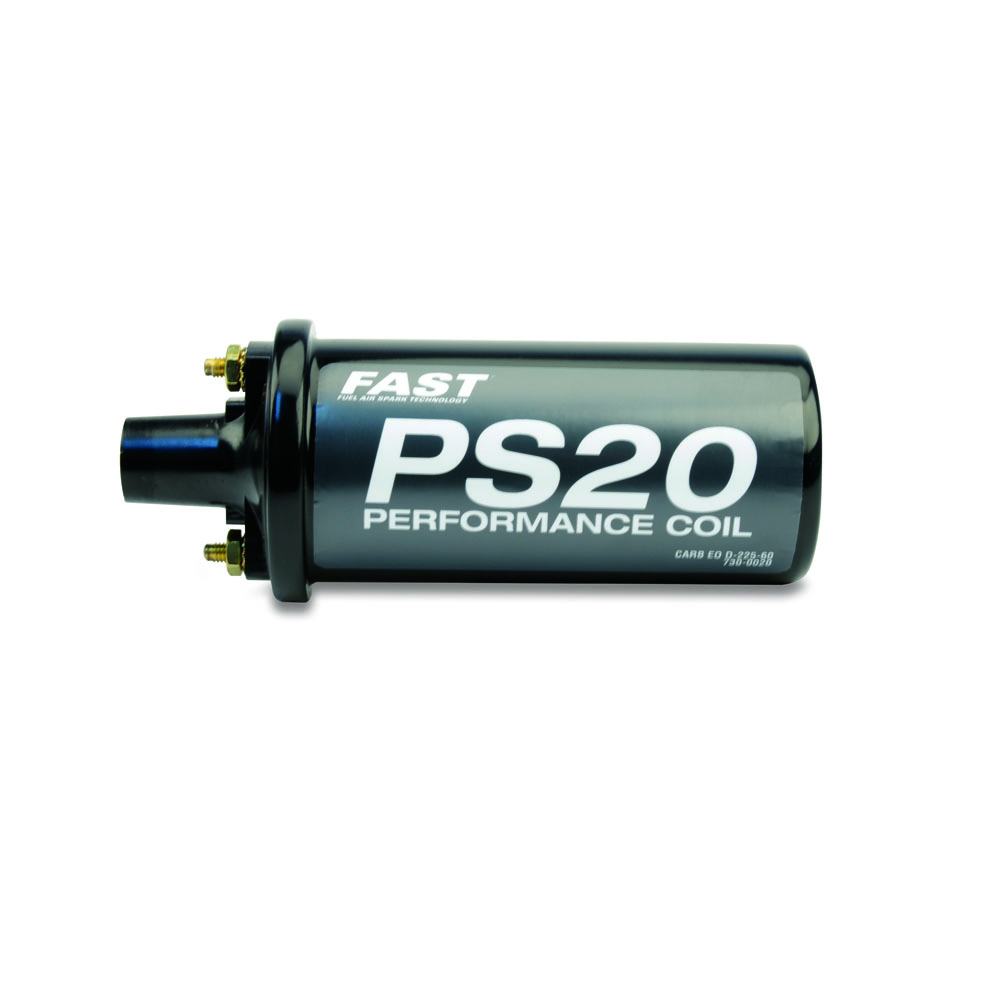

FAST Ignition Coil 730-0020; PS20 Black 46000 Volt Canister Socket, Female
