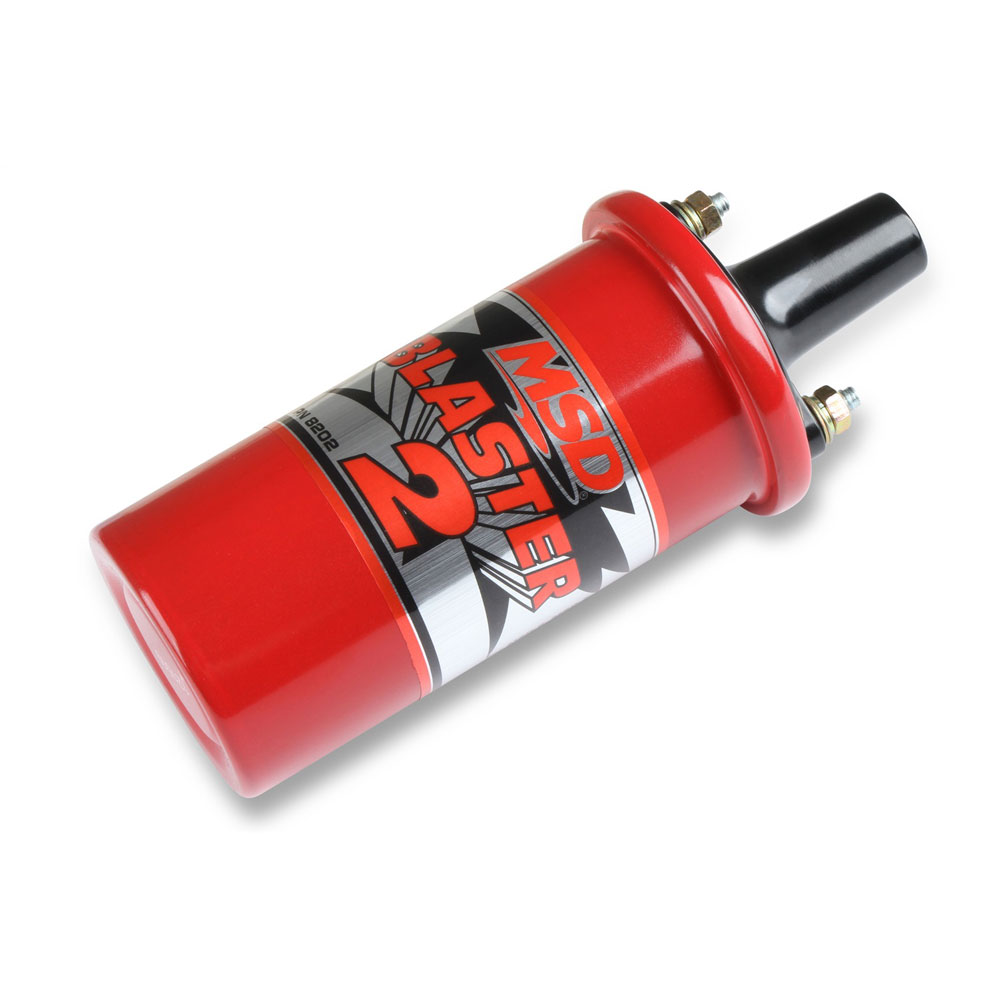

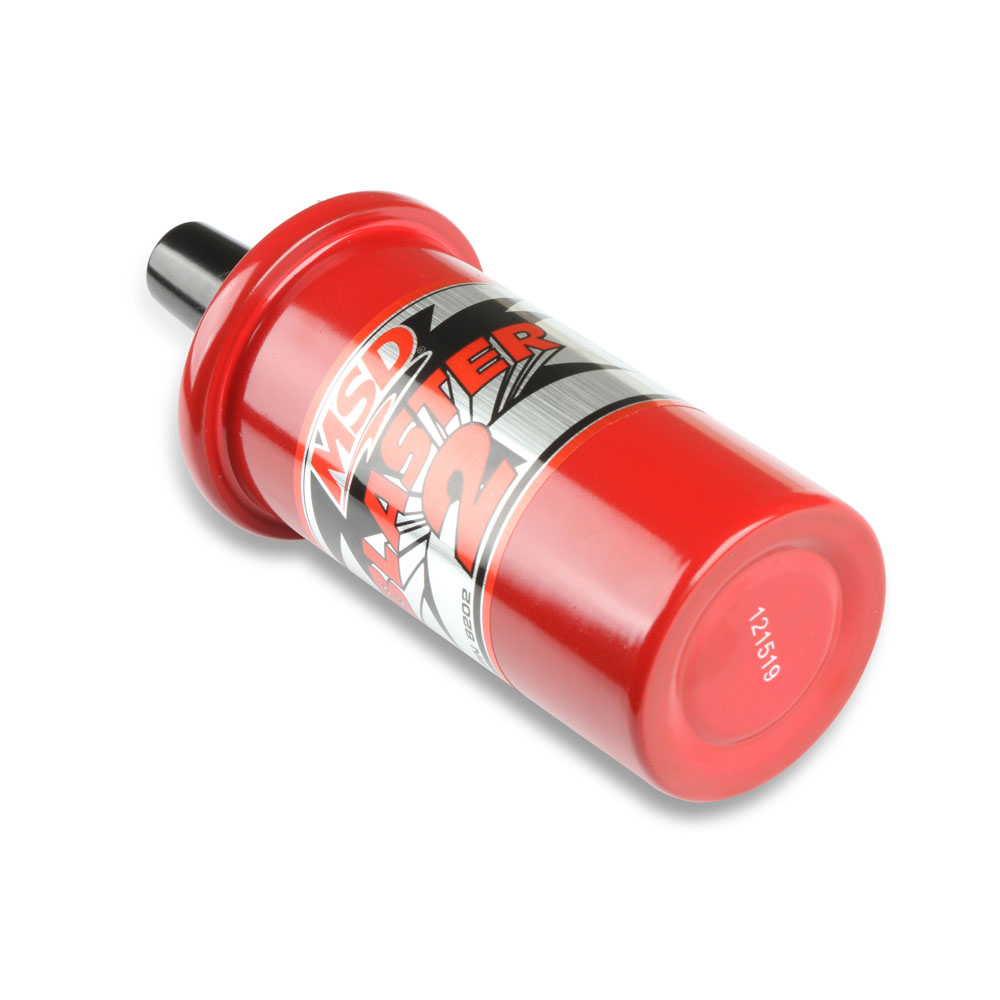

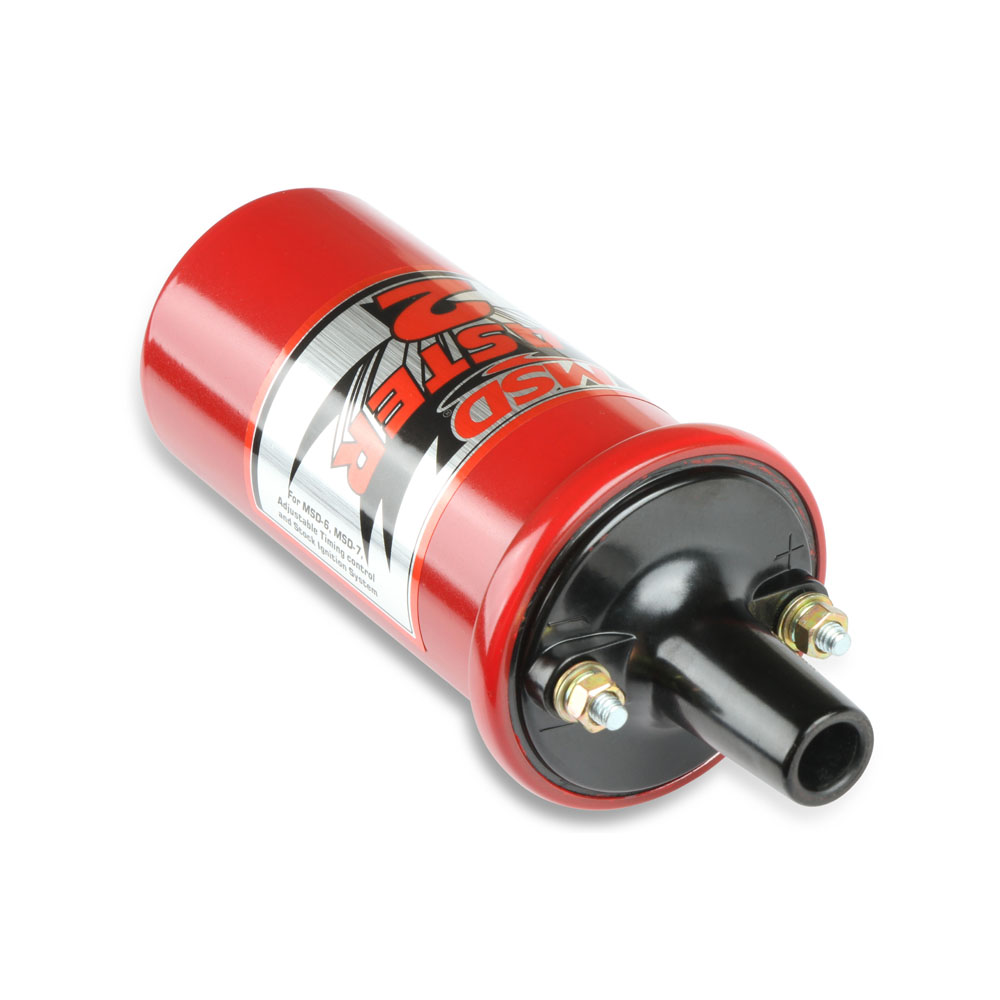

MSD Ignition Coil 8202; Blaster 2 Red 45000 Volt Canister Points, Socket
$44.96
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Improved output coil for electronic ignitions
- Works with Blaster Ignition Or MSD 5/6/7 Series
- Ballast Resistor Required If Used with Stock Points Ignition
- Alkyd tower with high dielectric properties lessens carbon tracking
- 100:1 Turns Ratio
- Lower Primary Resistance Produces High Voltage Output
- Metal Canister Is Filled with Premium Grade Oil For Cooling
- CARB E.O. Approved
- Available In Red And Black
- 100:1 Turns Ratio
- Lower Primary Resistance Produces High Voltage Output
- Metal Canister Is Filled with Premium Grade Oil For Cooling
- CARB E.O. Approved
- Available In Red And Black
Product Description
If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD blaster ignition, MSD 5, 6 or 7, the blaster coil line is the right choice. All of the blaster coils are designed for improved spark output. Special 100:1 windings are used to provide maximum build-up of voltage. These windings are held secure and kept cool in an oil filled metal canister. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of spark. There are several versions of the blaster coil available. All of them have the same internal specifications, but have different housings or components. Each blaster coil can be used with a stock ignition, blaster ignition, MSD 5, 6 or 7 ignition control. Most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application.
Specifications
- Ignition Coil Model or Series:
- Blaster 2
- Coil Type:
- Canister
- Maximum Voltage:
- 45000 Volt
- Primary Resistance:
- 0.700 Ohms
- Secondary Resistance:
- 4.5K Ohms
- Coil Wire Attachment:
- Points, Socket
- Height:
- 6.000 in.
- Diameter:
- 2.125 in.
- Finish:
- Red
- Internal Construction:
- Oil Filled
- Primary Inductance:
- 8.00 mH
- Turns Ratio:
- 100:1

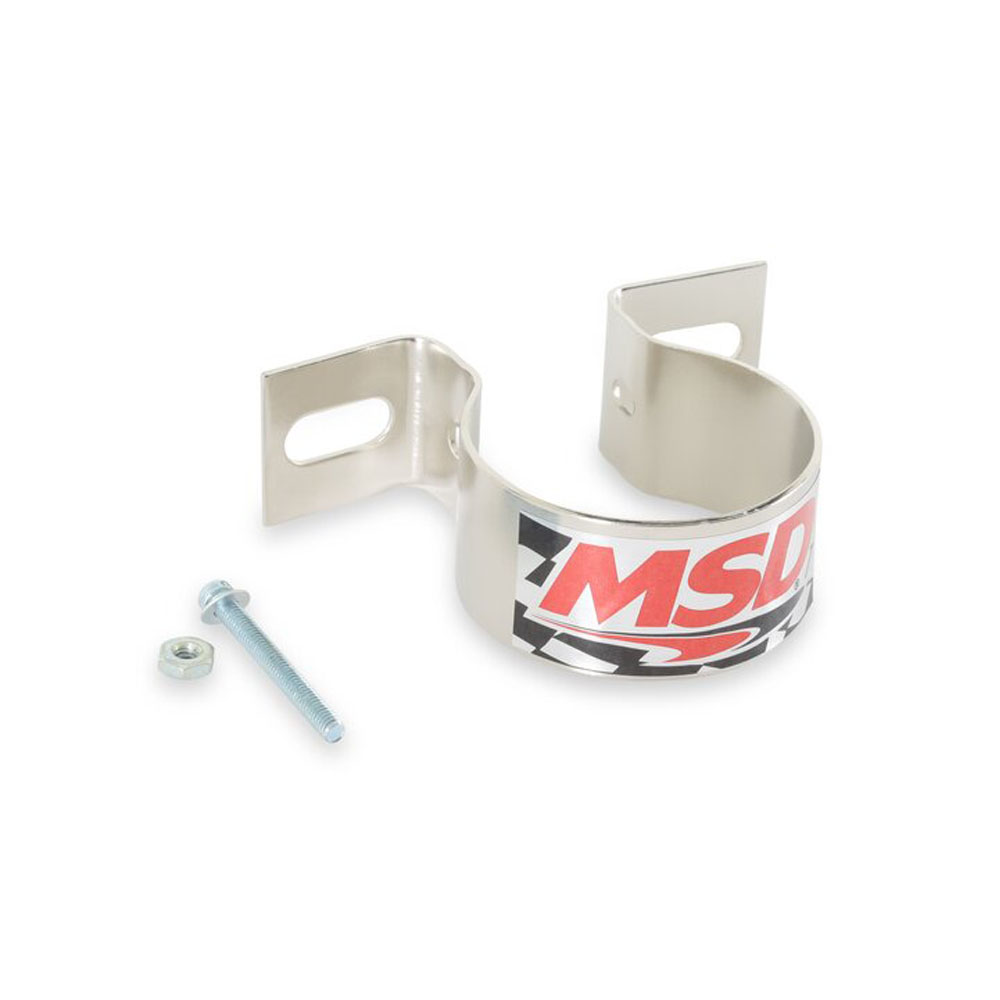

- Includes Mounting Bracket:
- No

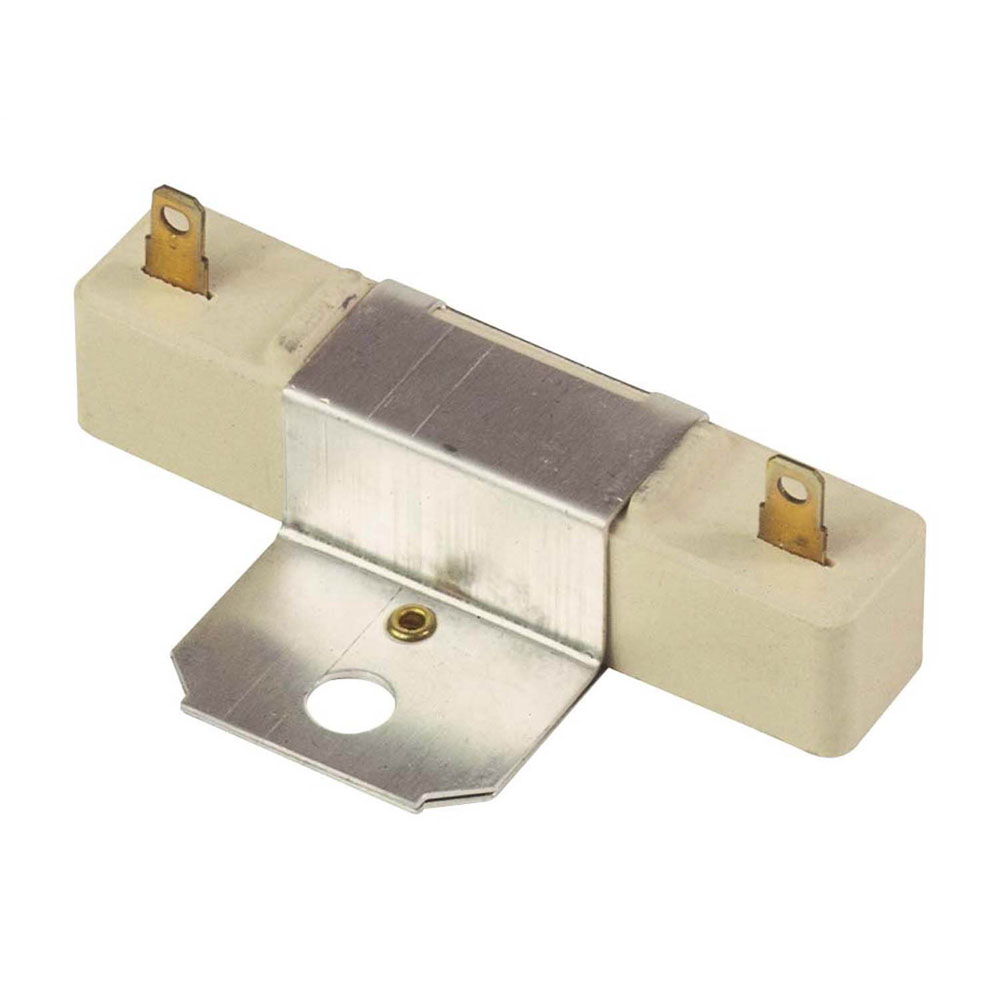

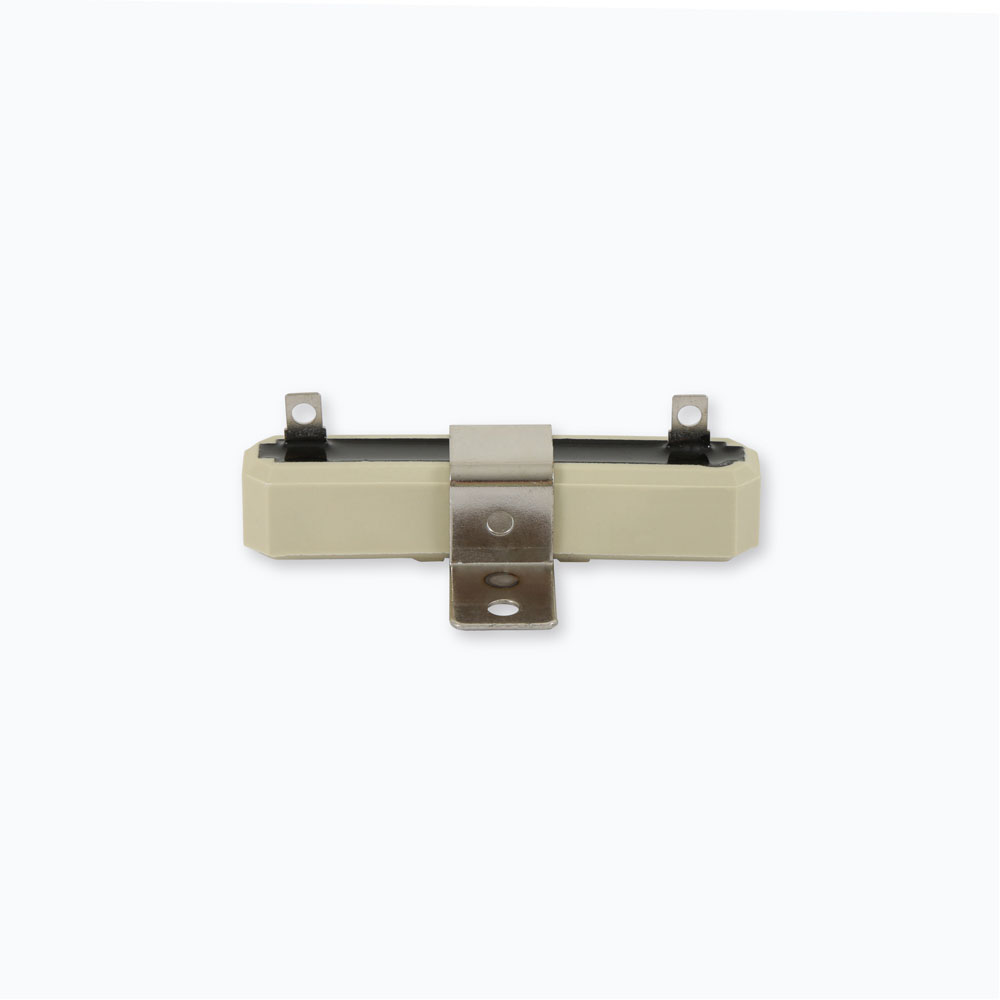

- Includes Ballast Resistor:
- No
- Includes Hardware:
- No
- Notes:
- CARB EO: D-40-37
- Quantity:
- Sold As Each
