MSD Ignition Coil 8201; Pro Power Red 55000 Volt Canister, Triangular HEI, Male
$170.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- High voltage coil designed for short duration applications only
- Primary and secondary windings are polyurethane encased
- Extremely low primary resistance
- Housing Is Molded From A Durable And High Dielectric Polyester

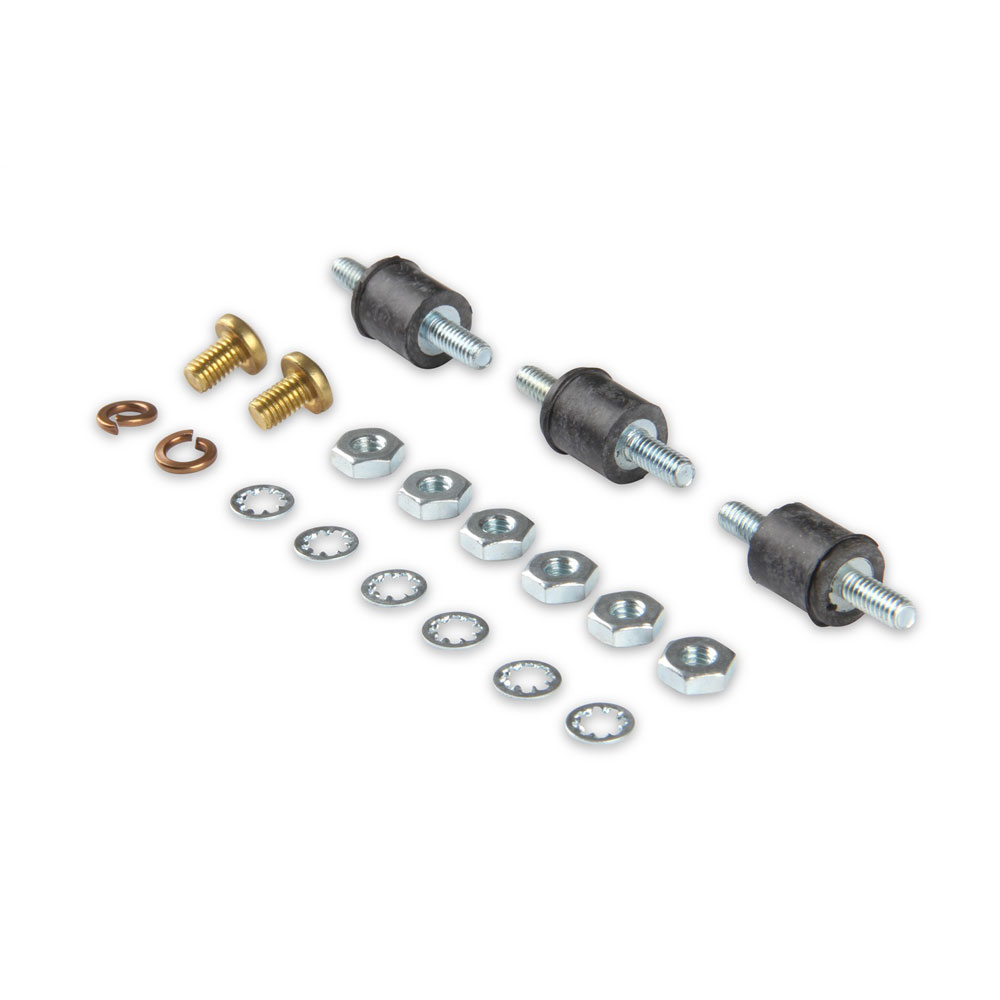

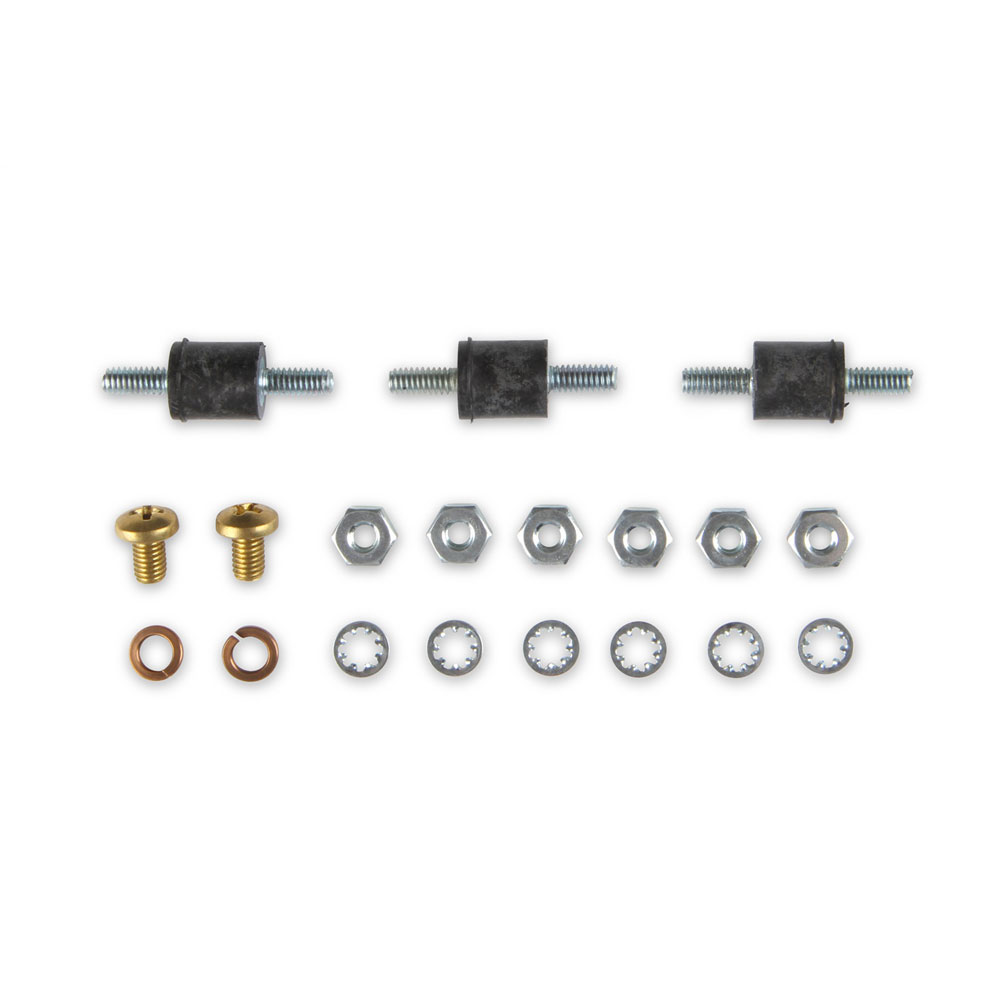

- Supplied with Rubber Shock Mounts
- For MSD 7 and 8 ignitions only
- not for use on street vehicles
- Supplied with Rubber Shock Mounts
- For MSD 7 and 8 ignitions only
- not for use on street vehicles
Product Description

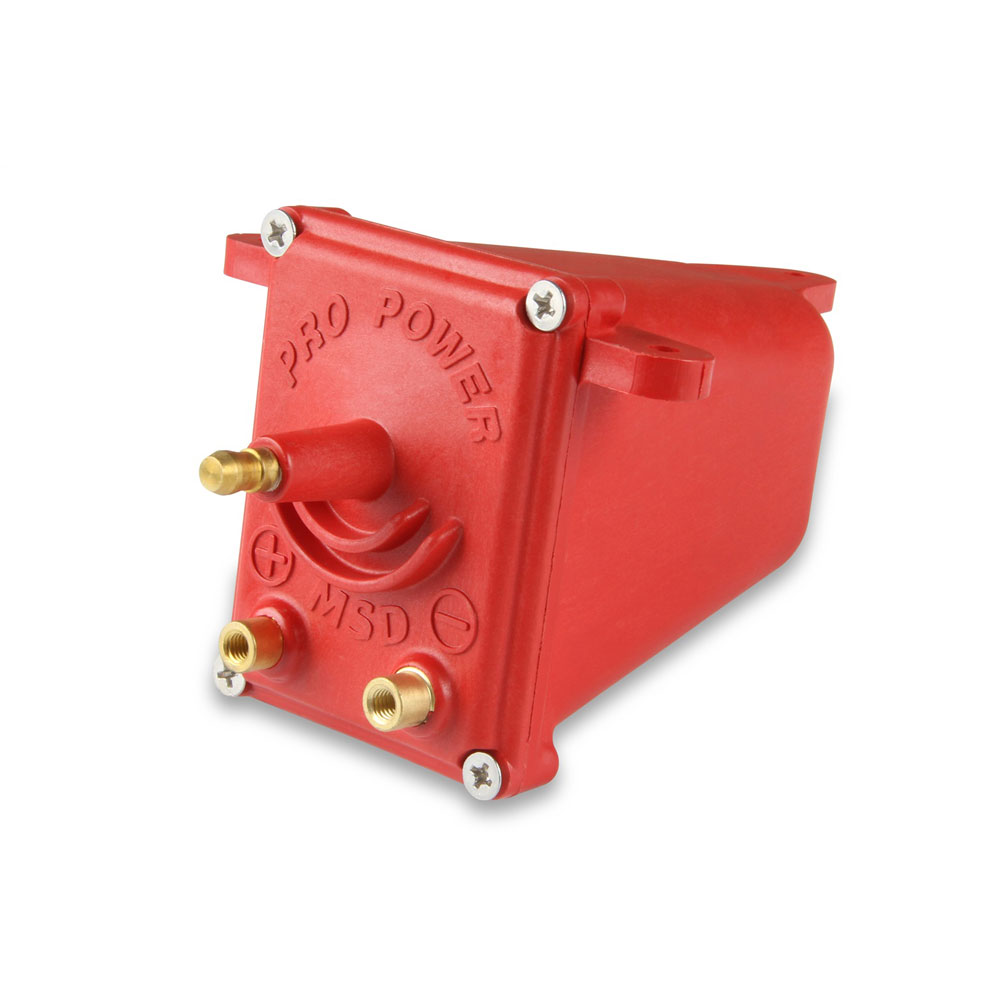

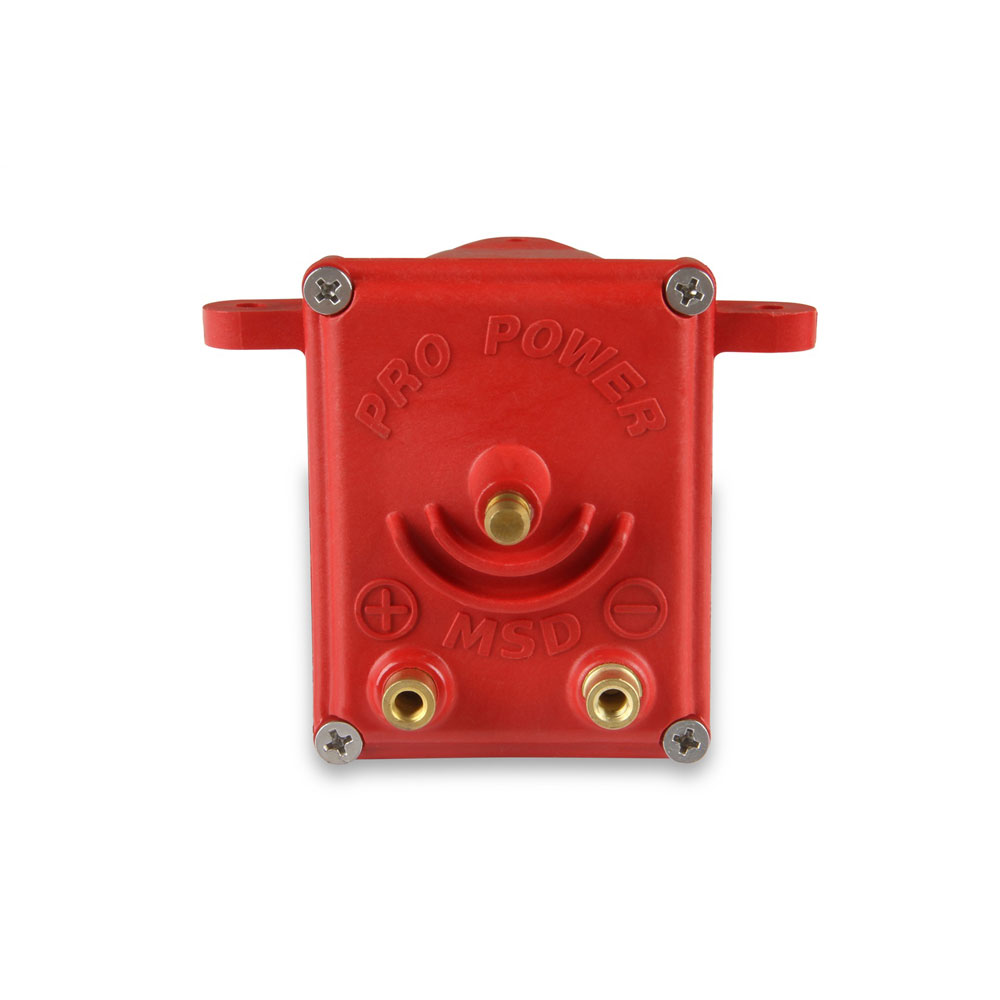

The MSD pro power coil is a great choice for short duration applications such as drag racing. The special windings of the pro power coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 series ignition control. The coil wire tower rises tall above the primary terminals and uses a spark plug style terminal for a firm connection to the coil wire. The housing is molded from a high dielectric polyester material and a ciba urethane compound adds vibration protection to the coil windings. Vibration mounts are also supplied.
Specifications
- Ignition Coil Series:
- Pro Power
- Coil Type:
- Canister, Triangular
- Maximum Voltage:
- 55000 Volt
- Primary Resistance:
- 0.030 Ohms
- Secondary Resistance:
- 240 Ohms
- Coil Wire Attachment:
- HEI, Male
- Length:
- 5.250 in.
- Width:
- 9.375 in.
- Height:
- 2.500 in.
- Finish:
- Red
- Internal Construction:
- Ciba Polyurethane
- Primary Inductance:
- 1 mH
- Turns Ratio:
- 100:1
- Includes Mounting Bracket:
- Built In
- Includes Ballast Resistor:
- No
- Includes Hardware:
- Yes, Rubber Shock Mounts
- Notes:
- Use with MSD 7 and 8 series ignitions only. Short duration.
- Quantity:
- Sold As Each
