MSD Fuel Injection System 2910; Atomic EFI 600 HP Throttle Body 1000 CFM Satin Aluminum

$1,509.95

Part #: 2910

Brand: MSD

UPC: 085132029105

Estimated Ship Date: 5/31/2025 (From manufacturer)

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Carb Approved
  • 8 Connections
  • Single Fuel Line
  • Self Tuning
  • No Laptop
  • Fuel Pump And Regulator Not Included

Product Description

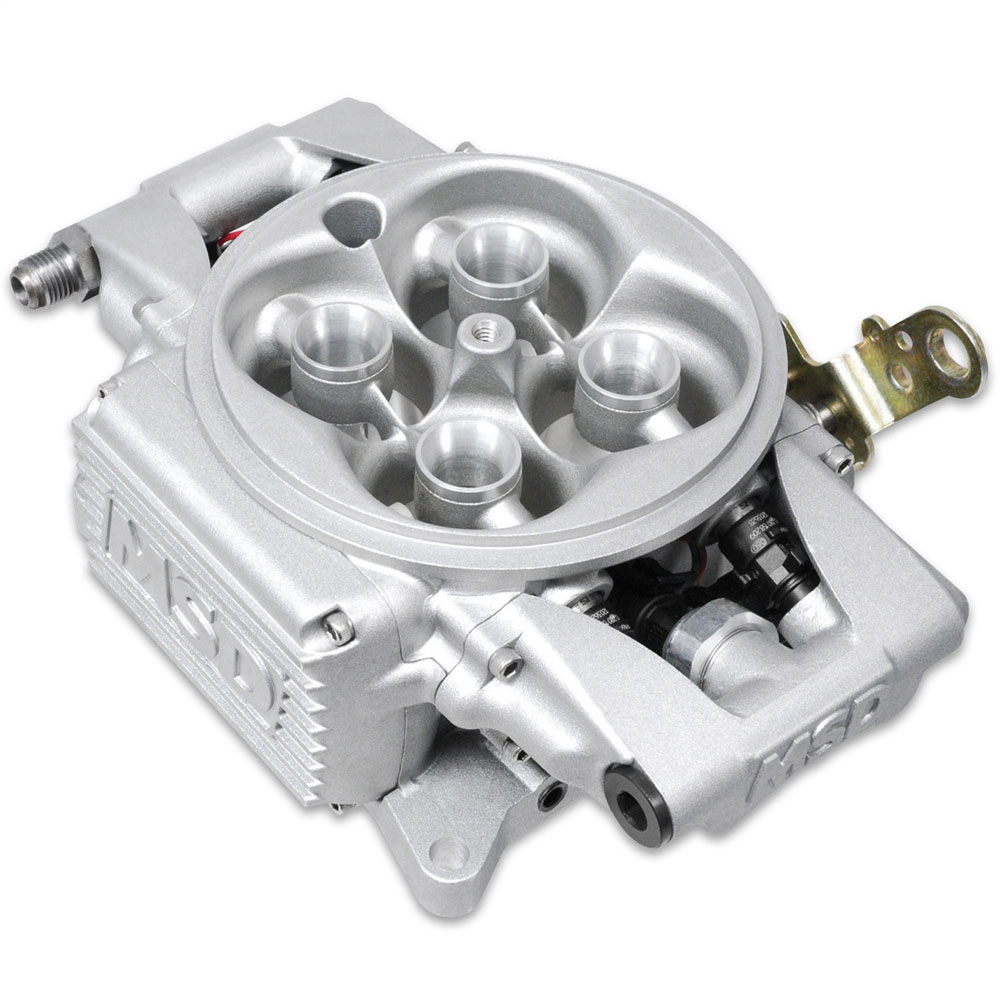

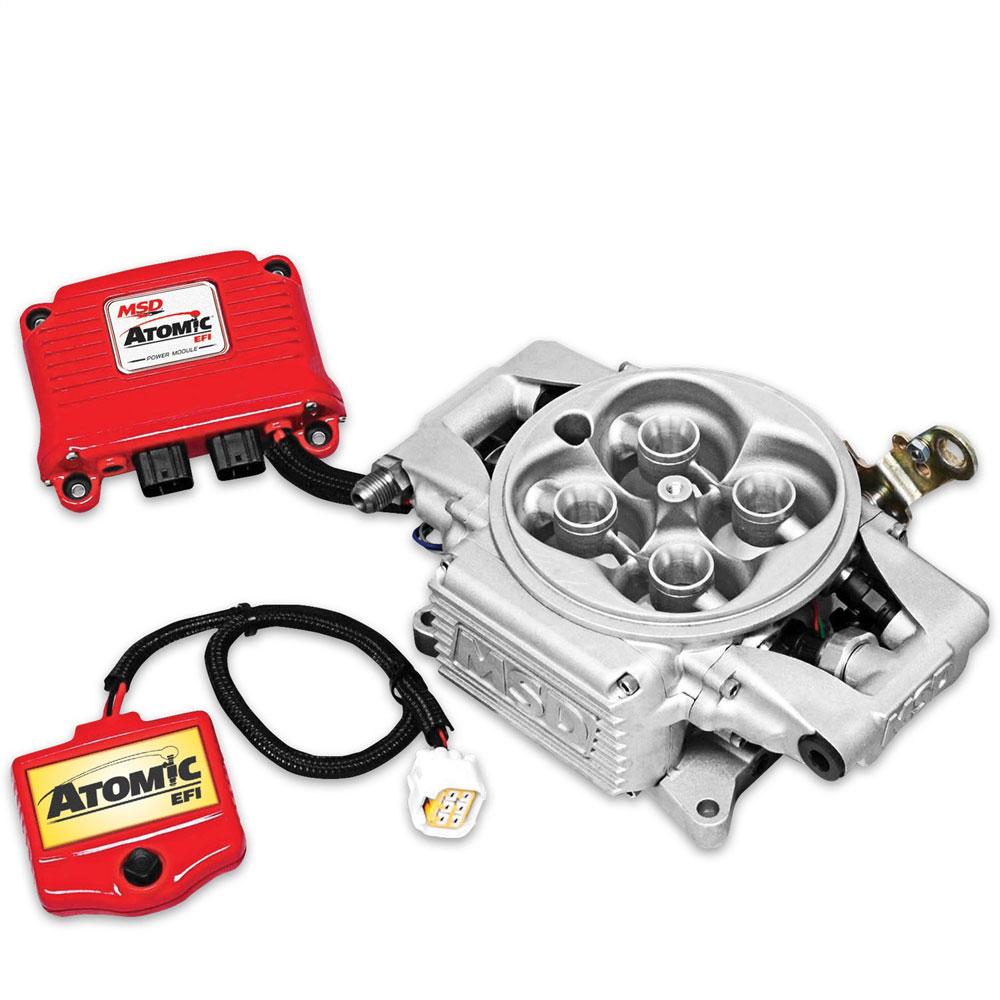

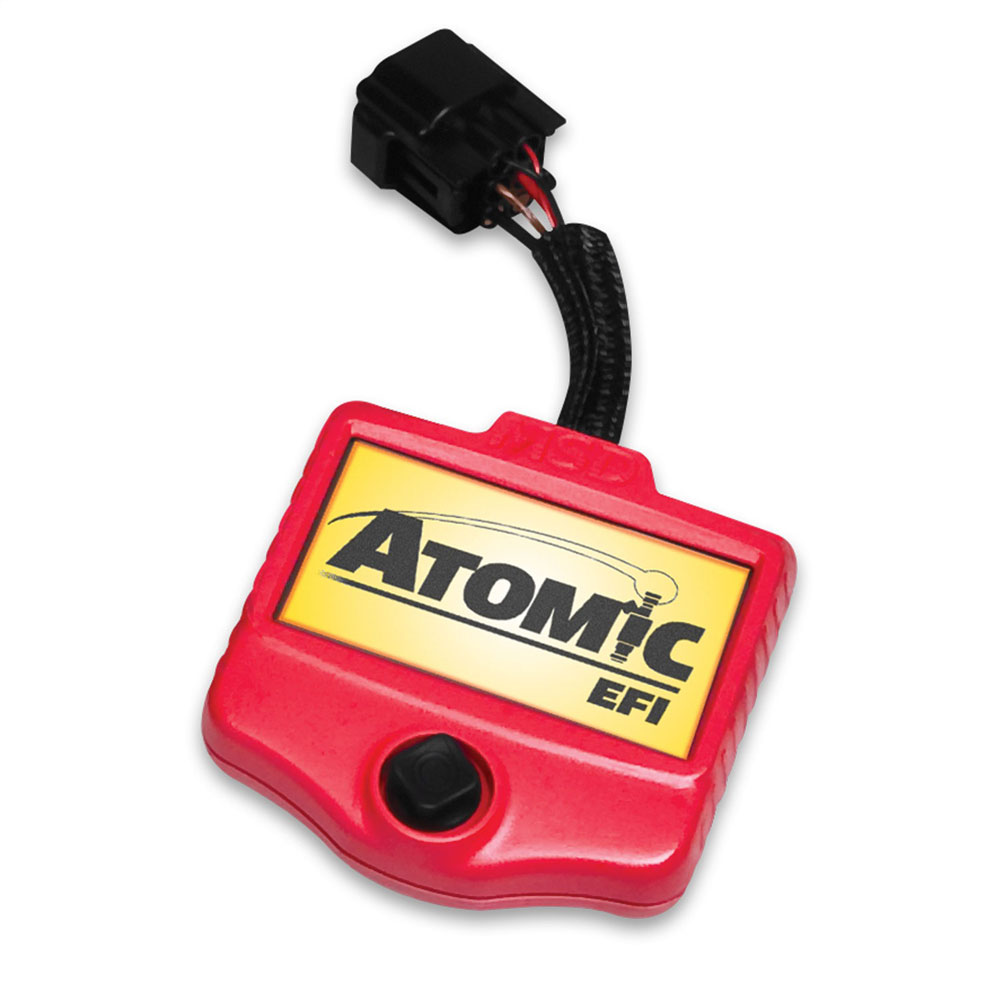

The Atomic system is based on an easy-to-install throttle body design that will provide modern drive ability benefits to street rods and muscle cars – anything with a carburetor. Note the sanitary and traditional look of the unit. It's meant to replace a standard square bore carburetor and can be installed by the average car guy and a friend in a home garage with simple tools within a weekend. In fact, with a little preparation, you should be able to start Saturday morning and make the cruise that night! We wanted to make EFI easy which means less wiring, self learning technology and a return less fuel system. This means you can incorporate the factory fuel line in most applications and you don't have to modify the tank or sending unit with a second line. Plus, the system is self learning and measures pressure and temperature so that once it is installed it's done. No lap top is needed for programming as everything is done through a simple hand-held monitor. As for the wiring, it's almost too simple with only 8 wires you will need to connect. Another cool feature is that the Atomic gives you the ability to control the ignition timing! MSD is an ignition company after all, so it makes sense that we deliver the tools for you to control fuel delivery and timing together in one system!

Specifications

Fuel Injection System Series:
Atomic EFI
Injection Style:
Throttle Body
Supported Horsepower:
600 HP
Includes Intake Manifold:
No
Includes Throttle Body:
Yes
Throttle Body Mounting Flange:
4150 Square Bore
Throttle Body CFM:
1000 CFM
Throttle Body Material:
Aluminum
Throttle Body Finish:
Satin
Includes Fuel Rails:
No
Number of Injectors Included:
4 Injector
Injector Flow Rate:
80 lbs/hr.
Includes Hand-Held Calibration Module:
Yes
Includes ECM:
Yes
Includes Fuel Pump:
No
Includes Fuel Pressure Regulator:
No
Sensors Included:
O2
Notes:
CARB E.O. D-722
Quantity:
Sold As Kit

Videos

Tech Resources

  • AtomicEFI-TBI-Installation.mov
