MSD Distributor 85791; Pro Billet Mechanical Magnetic for Ford 221, 255, 260, 289, 302
$399.77
$488.95 On Sale
Save 18%
This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.
Details
- CNC machined billet aluminum housing and billet aluminum base
- Steel Gear Installed
- Shaft Is QPQ Coated And Guided By A Sealed Ball Bearing
- Advance plate and weights are fine blanked from chrome moly steel
- Advance weight pins are staked and tig welded to the plate

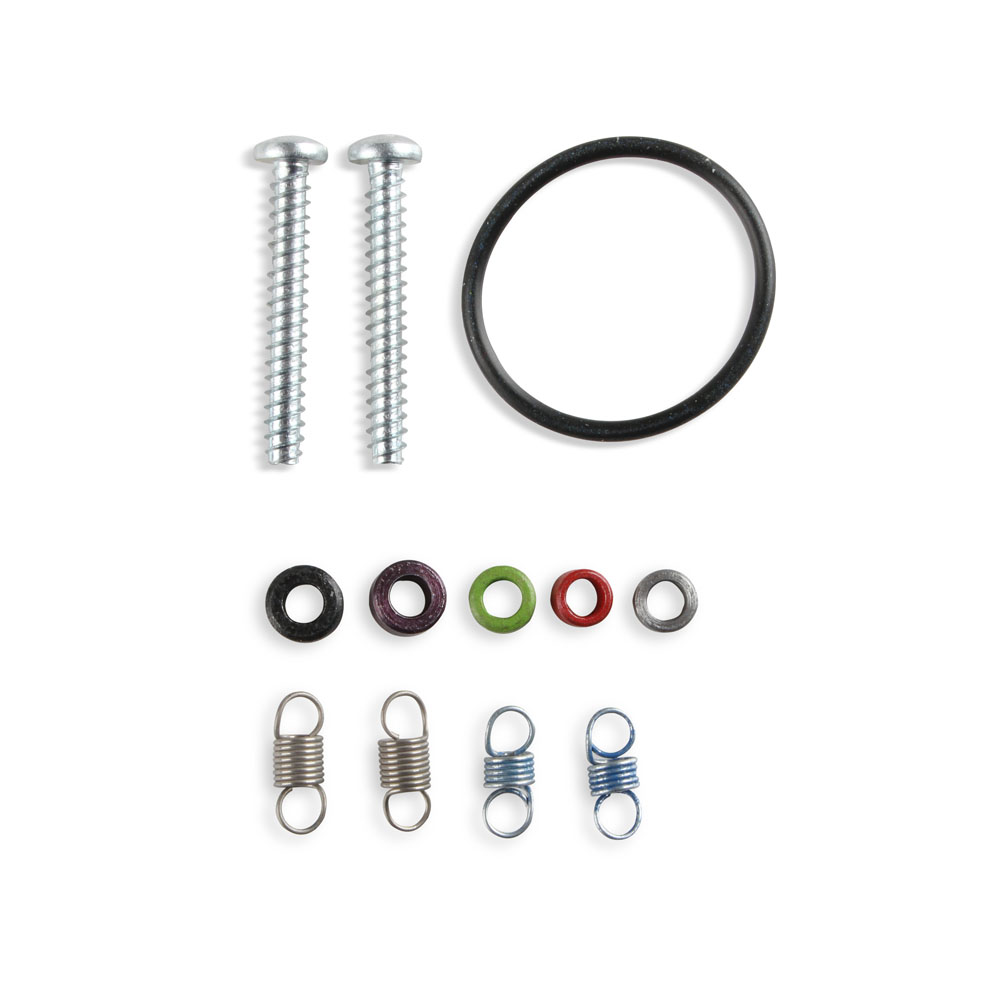

- Easy-To-Adjust With Supplied Springs And Stop Bushings
- Nylon pads ensure smooth operation of the advance weights
- Assembly Can Be Locked Out For Crank Trigger Systems
- Create Stable Trigger Signals Throughout The RPM Range
- Advance weight pins are staked and tig welded to the plate
- Easy-To-Adjust With Supplied Springs And Stop Bushings
- Nylon pads ensure smooth operation of the advance weights
- Assembly Can Be Locked Out For Crank Trigger Systems
- Create Stable Trigger Signals Throughout The RPM Range
Product Description
MSD now offers Ford distributors with steel gears for use with hydraulic roller cams. In the world of modern engine design, it's hard to beat a hydraulic roller camshaft for all-around performance. It's crucial to match the distributor gear with the cam material to prevent premature failure of the cam or distributor gear which can lead to engine damage. Ford distributors present a challenge when changing the distributor gear due to their pressed fit, the need to cross drill the distributor shaft and set the gear to a specific height. We've taken the trouble out of the mix with our line of popular Ford distributor applications that come with a steel gear installed ready for hydraulic roller cams. Whether you're working with a crate engine or building your own combination, MSD has the performance distributor ready.
Specifications
- Distributor Series:
- Pro Billet
- Make:
- Ford
- Engine:
- 221, 255, 260, 289, 302
- Trigger Type:
- Magnetic
- Advance Type:
- Mechanical
- Cap Style:
- HEI/Male
- Cap Color:
- Red
- Housing Material:
- Aluminum
- Housing Finish:
- Natural
- Requires Ignition Box:
- Yes
- Distributor Gear Material:
- Steel
- Cap Diameter:
- Small
- Compatible with Computer Control:
- No
- Rotation:
- Standard
- Shaft Material:
- Steel
- Fixed Collar or Slip Collar:
- Fixed
- Includes Ignition Coil:
- No
- Quantity:
- Sold As Each
