MSD Distributor 8572; Pro Billet Tach Drive Vacuum, Mechanical Magnetic for 1963 to 1974 Chevy Corvette 262 to 400, 396 to 454
$669.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Same features as the PN 8571 with the addition of a vacuum advance
- CARB E.O. Approved
Product Description

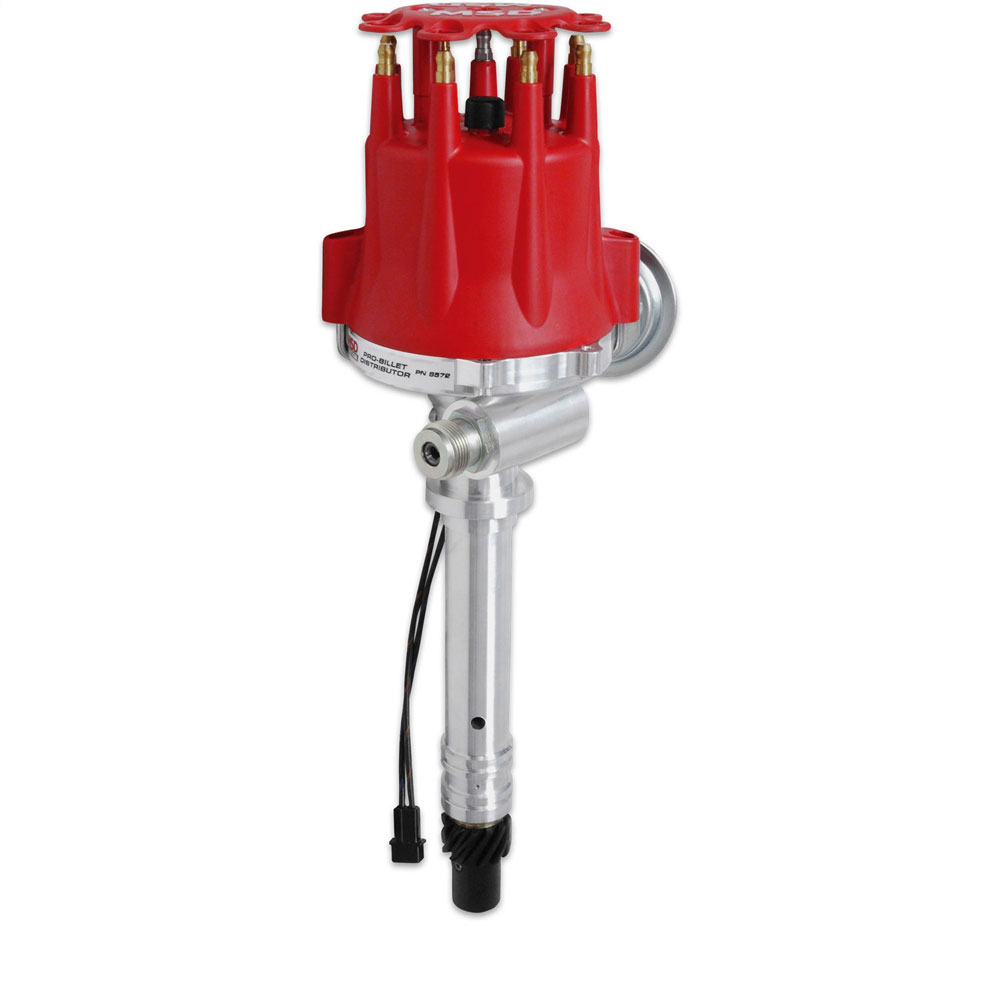

Corvette owners can now replace their worn out Magna-Pulse distributors with this precision Pro-Billet Tach Drive Distributor. Advantages such as an accurate magnetic pick-up, oversized shaft, vacuum advance and a billet aluminum housing are just a few of the MSD advantages. Inside the billet housing, a sealed ball bearing and long sintered bushing guide a 0.500" steel shaft for high rpm accuracy. A special reluctor is mounted to this shaft and is responsible for triggering the magnetic pick-up. An adjustable mechanical advance assembly allows you to get the most performance out of your Vette's engine by custom tailoring a timing curve to fit your application. The tach drive assembly is compact to clear the firewall and linkage. It can be repositioned easily to fit different applications plus has a grease fitting for lubrication.WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Distributor Series:
- Pro Billet Tach Drive
- Year:
- 1963 to 1974
- Make:
- Chevy
- Model:
- Corvette
- Engine:
- 262 to 400, 396 to 454
- Trigger Type:
- Magnetic
- Advance Type:
- Vacuum, Mechanical
- Cap Style:
- HEI/Male
- Cap Color:
- Red
- Housing Material:
- Aluminum
- Housing Finish:
- Machined
- Requires Ignition Box:
- Yes

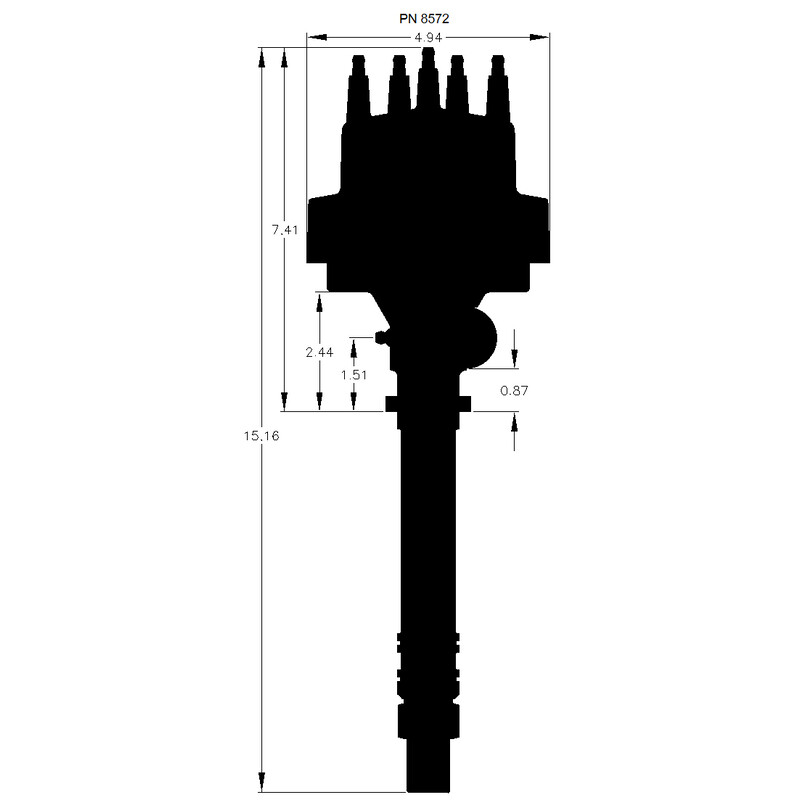

- Distributor Shaft Diameter:
- 0.500 in.
- Distributor Gear Material:
- Iron
- Cap Diameter:
- 4.940 in.
- Compatible with Computer Control:
- No
- Rotation:
- Standard
- Shaft Material:
- Steel
- Fixed Collar or Slip Collar:
- Fixed Collar
- Includes Ignition Coil:
- No
- Quantity:
- Sold As Each
