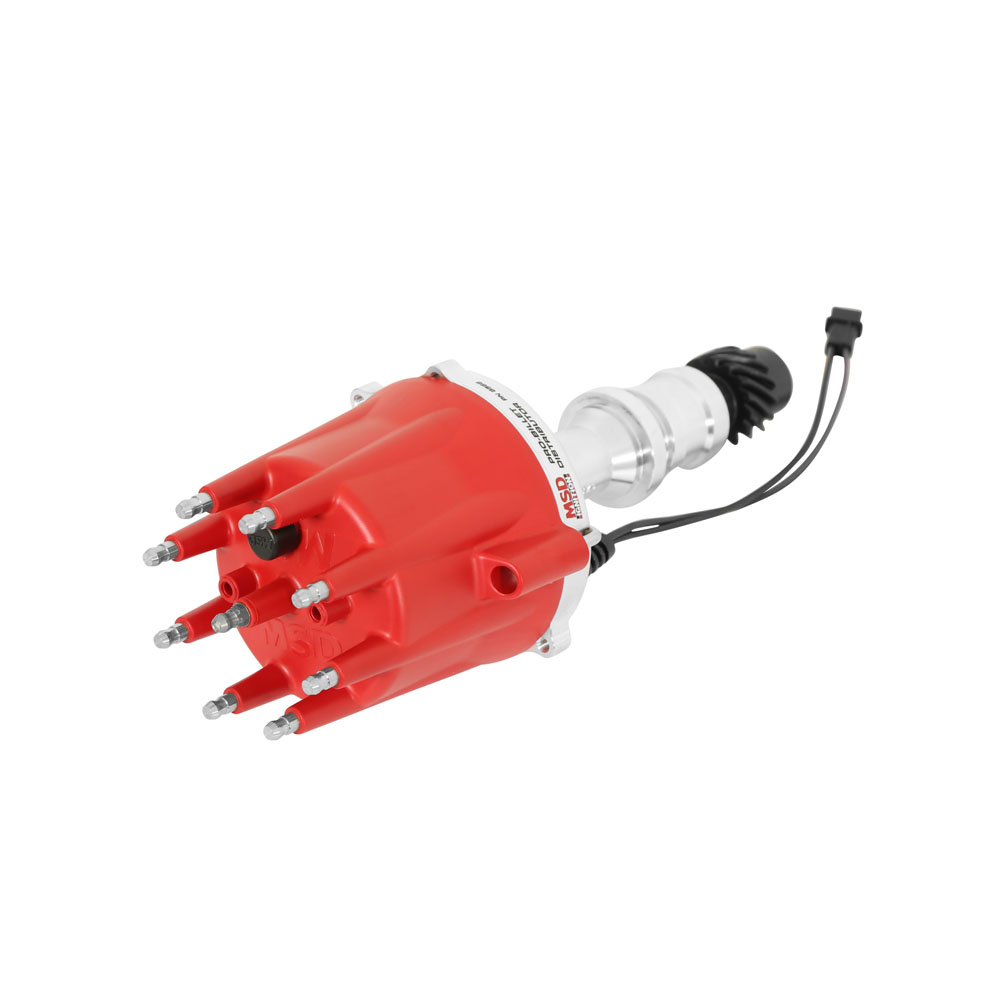

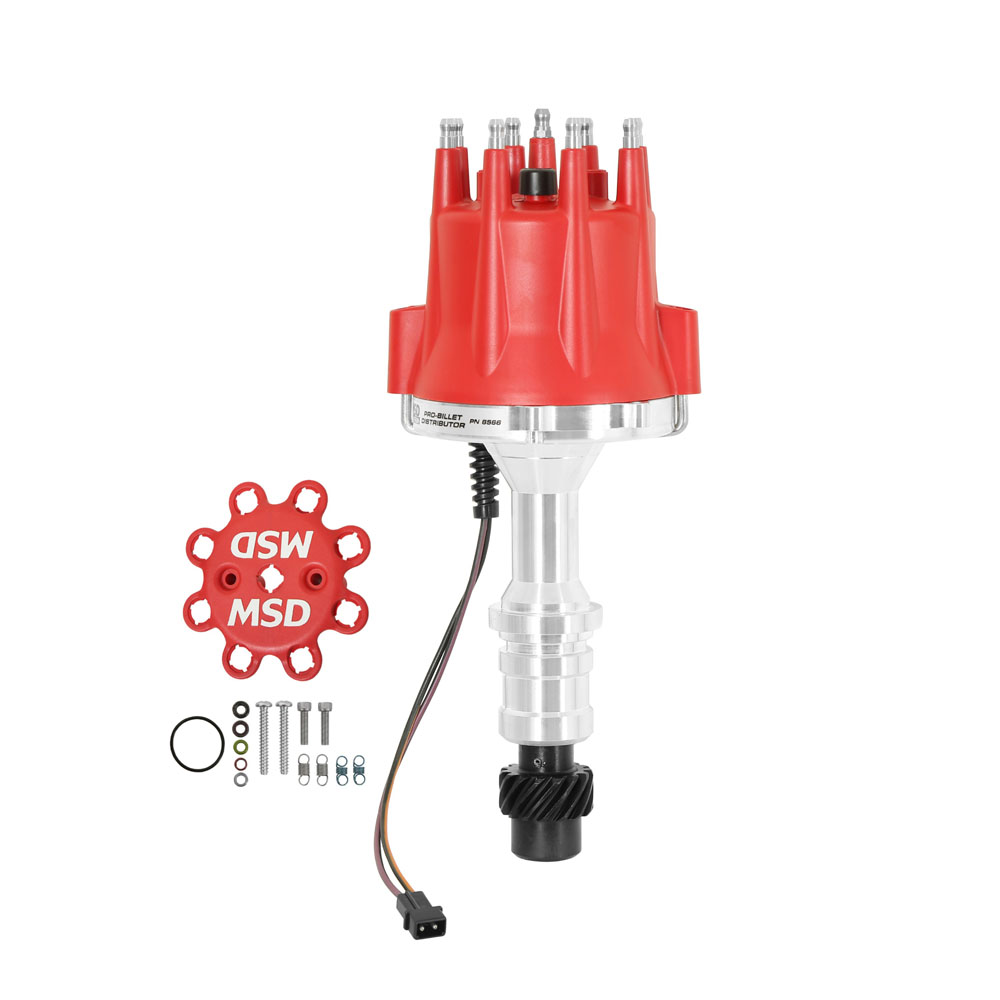

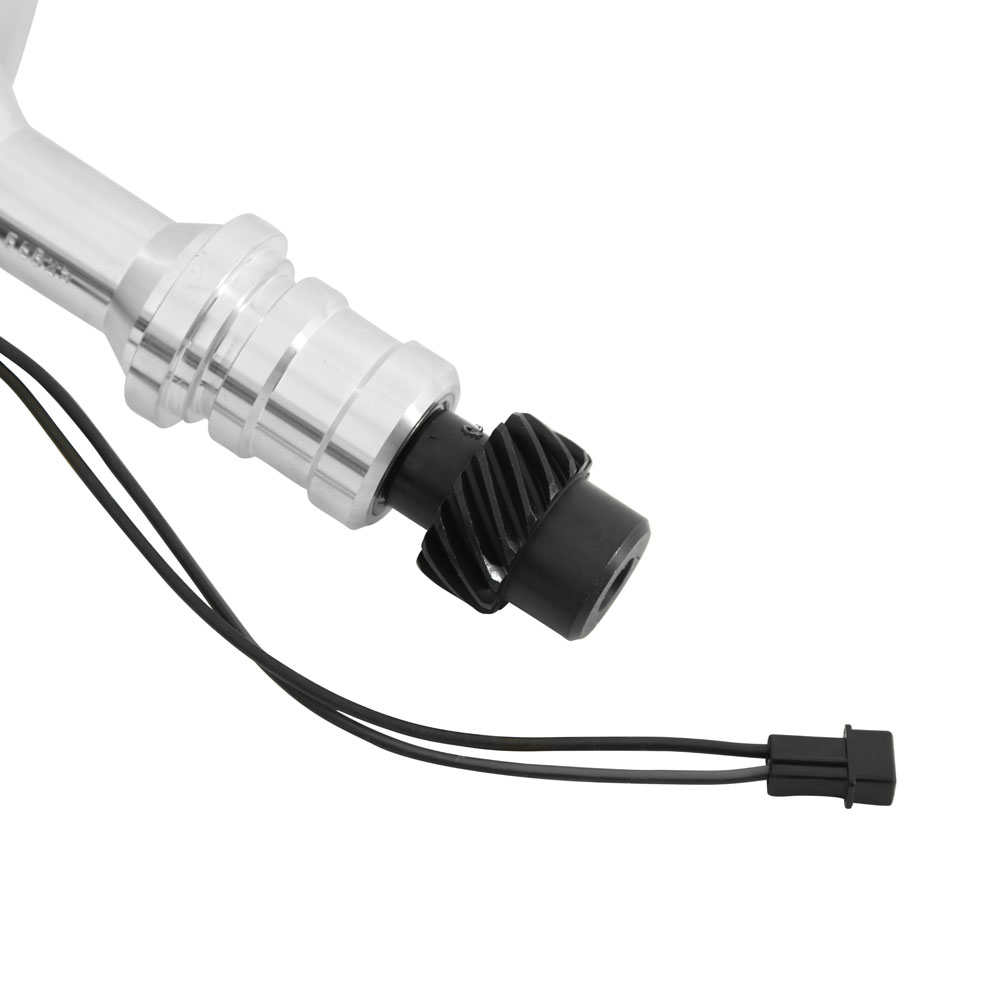

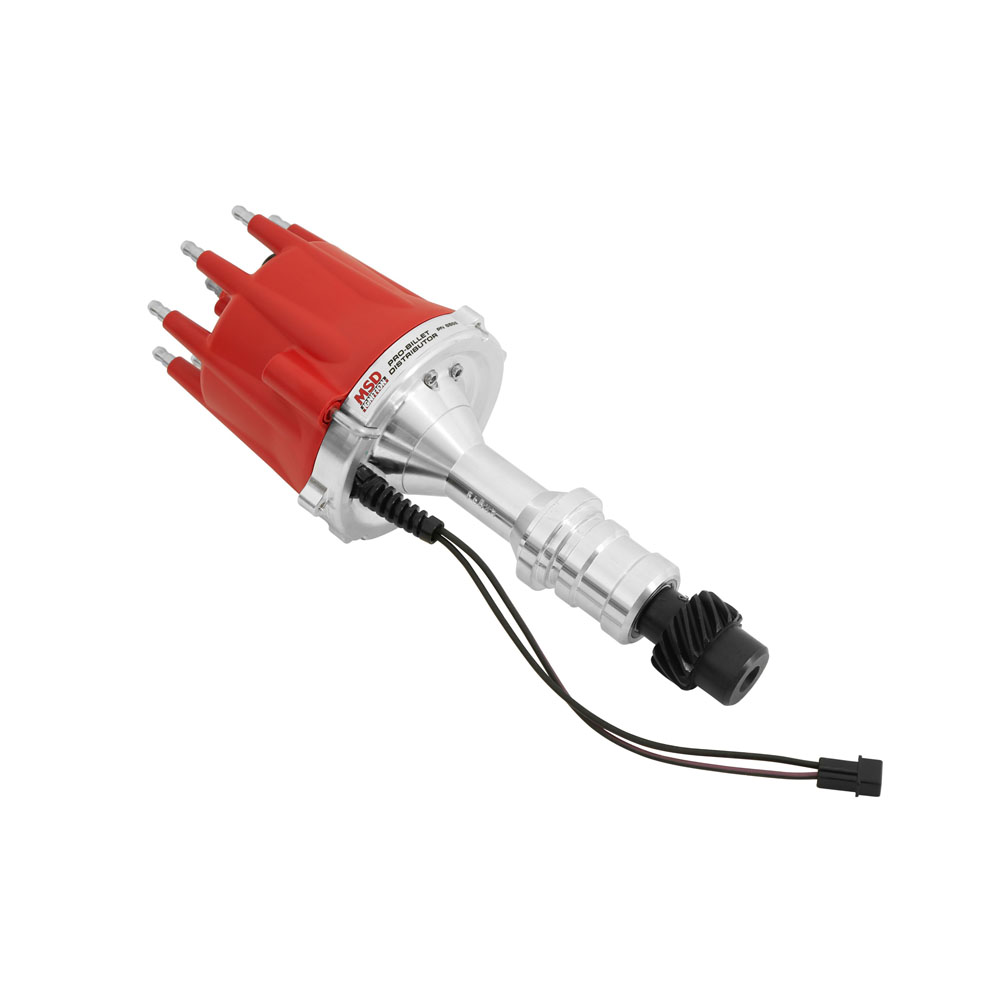

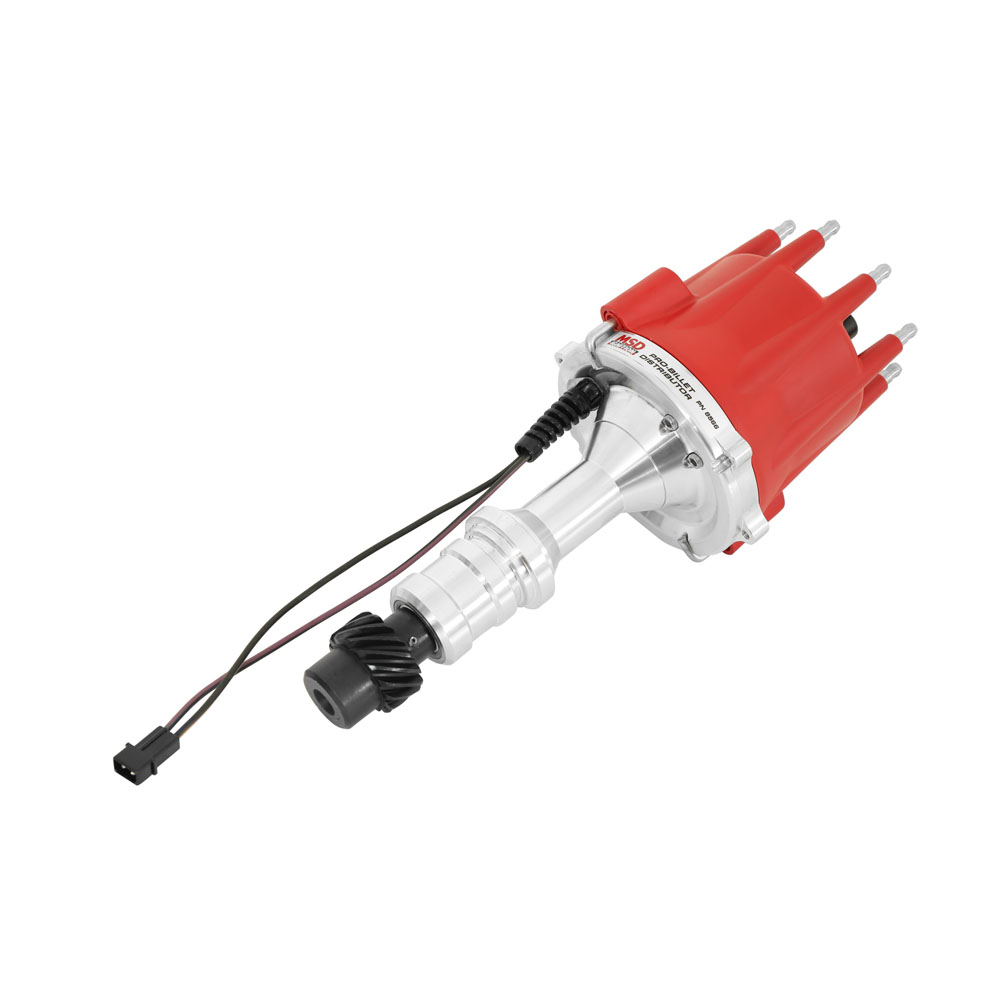

MSD Distributor 8566; Pro Billet Mechanical Magnetic for Oldsmobile 260 to 455
$454.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- CNC machined billet aluminum housing and billet aluminum base
- Will not accept a vacuum advance canister
- Must be used with an MSD Ignition Control
- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by two sealed ball bearings
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- No CARB Exemption Order Number
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by two sealed ball bearings
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- No CARB Exemption Order Number
Product Description
Sharing the CNC machining techniques with the rest of the MSD Distributor line, the Olds housing is machined from high quality 6061-T6 aluminum. Adding to this strength are two sealed ball bearings that guide the 0.500" shaft accurately through 10,000+ rpm. TIG-welded on top of the polished steel shaft is MSD's adjustable mechanical advance assembly. To accurately trigger the ignition, a high-output magnetic pick-up is bolted to the base. This trigger pick-up produces a precise trigger signal. An MSD red cap with brass terminals and Race Rotor are supplied.WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Distributor Series:
- Pro Billet
- Make:
- Oldsmobile
- Engine:
- 260 to 455
- Trigger Type:
- Magnetic
- Advance Type:
- Mechanical
- Cap Style:
- HEI/Male
- Cap Color:
- Red
- Housing Material:
- Billet Aluminum
- Requires Ignition Box:
- Yes
- Quantity:
- Sold As Each
