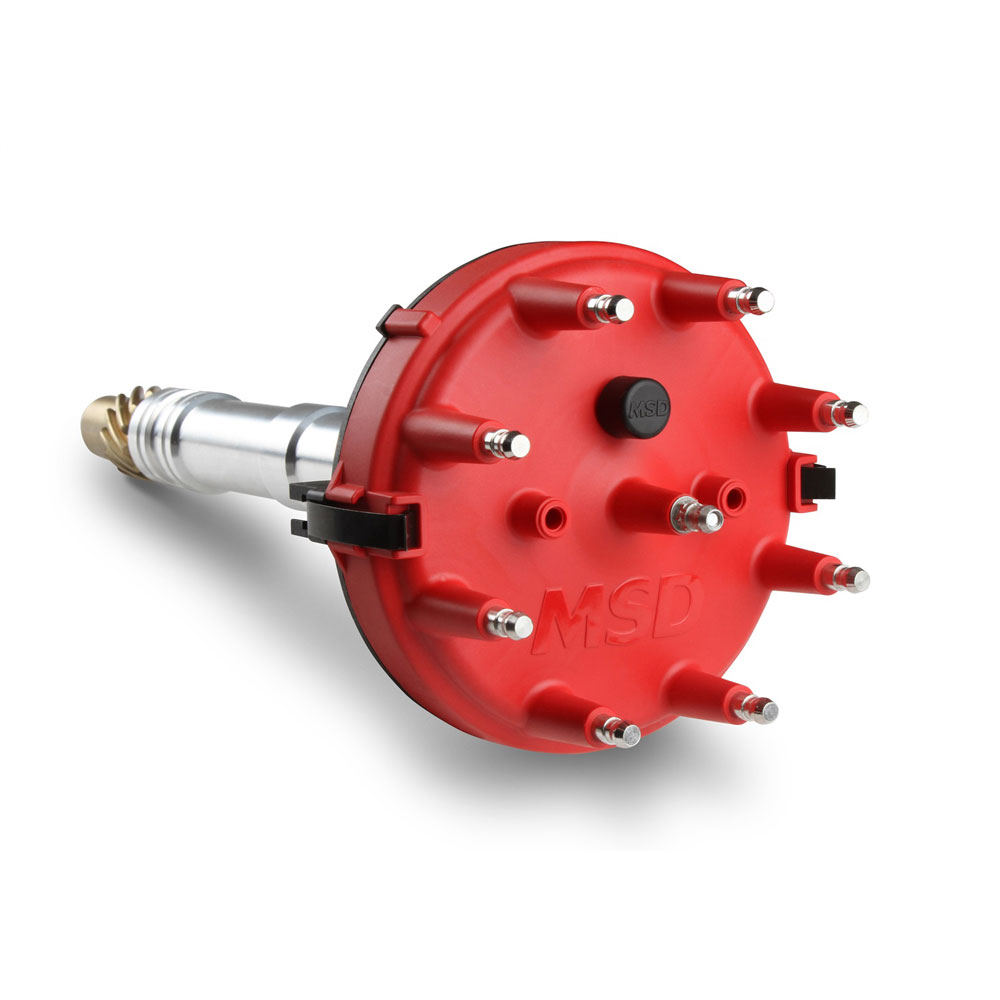

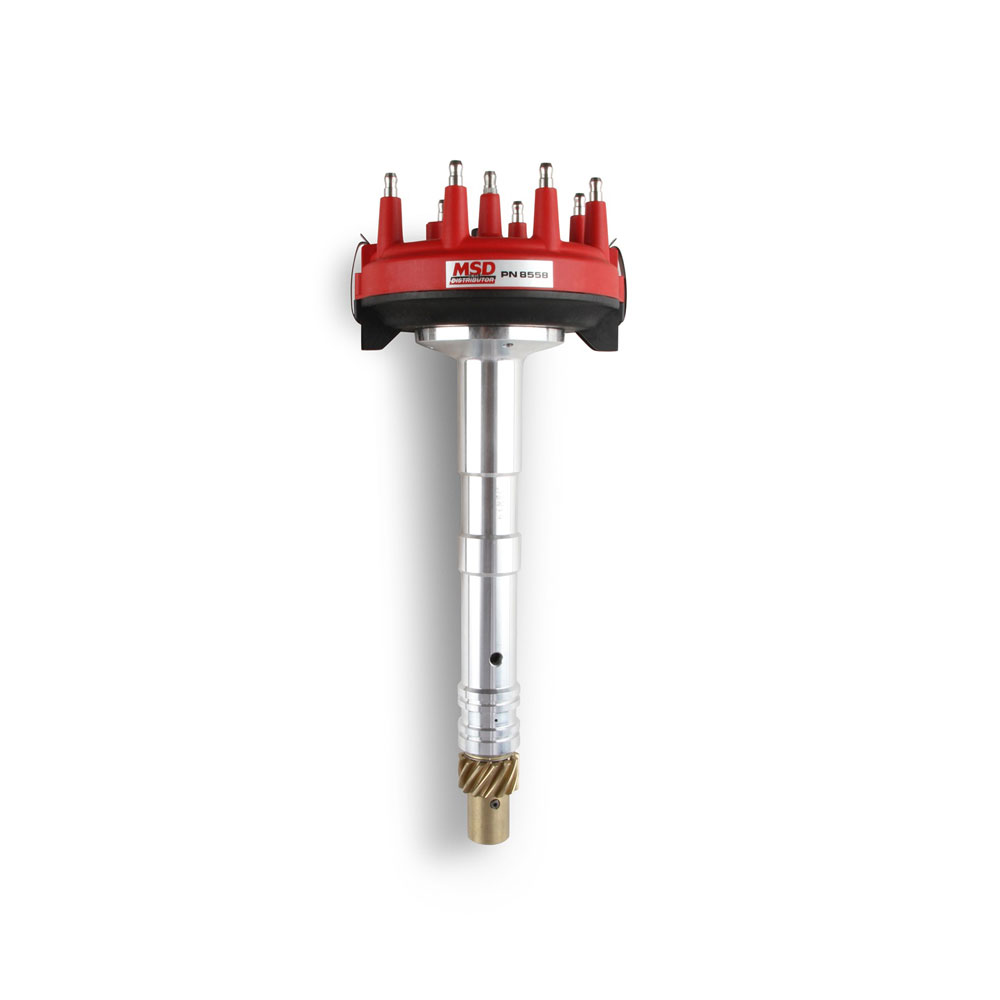

MSD Distributor 8558; Pro Billet Crank Trigger Locked Advance Crank Trigger for Chevy 427 Tall Deck
$513.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Designed to fit low in the block to clear firewall/intake combos
- CNC machined billet aluminum housing and Dupont Rynite base
- Red Cap
- Supplied with Bronze Gear
- Supplied with Large Diameter HEI Style Distributor Cap And Rotor
- Must Be Used with An MSD Crank Trigger And MSD Ignition Control
- O-ring seals can be installed for oil press. control (Mods only)
- Special oil tract improves lubrication to the dist./cam gear
- QPQ coated polished steel shaft
- guided by sealed ball bearings
- Oversized Polished Steel Shaft with QPQ Coating
- Adj. slip collar mounting flange for engines with modified deck hts.
- Supplied with Large Diameter HEI Style Distributor Cap And Rotor
- Must Be Used with An MSD Crank Trigger And MSD Ignition Control
- O-ring seals can be installed for oil press. control (Mods only)
- Special oil tract improves lubrication to the dist./cam gear
- QPQ coated polished steel shaft
- guided by sealed ball bearings
- Oversized Polished Steel Shaft with QPQ Coating
- Adj. slip collar mounting flange for engines with modified deck hts.
Product Description
The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. This includes a large diameter cap with wide spaced terminals and an injection molded Rynite rotor with thick vanes to stir up the air inside the cap. The high dielectric Rynite base also prevents arcing to the billet housing. Since these distributors are used primarily in racing applications, an oversized steel shaft is responsible for delivering the sparks. This shaft is QPQ coated for friction reduction and receives guidance from a sealed ball-bearing assembly and an extra long, precision sintered bushing for smooth operation. Note: must be used with an MSD crank trigger and ignition control.
Specifications
- Distributor Series:
- Pro Billet Crank Trigger
- Make:
- Chevy
- Engine:
- 427 Tall Deck
- Trigger Type:
- Crank Trigger
- Advance Type:
- Locked Advance
- Cap Style:
- HEI/Male
- Cap Color:
- Red
- Housing Material:
- Aluminum
- Housing Finish:
- Machined
- Requires Ignition Box:
- Yes
- Distributor Shaft Diameter:
- 0.500 in.
- Distributor Gear Material:
- Bronze

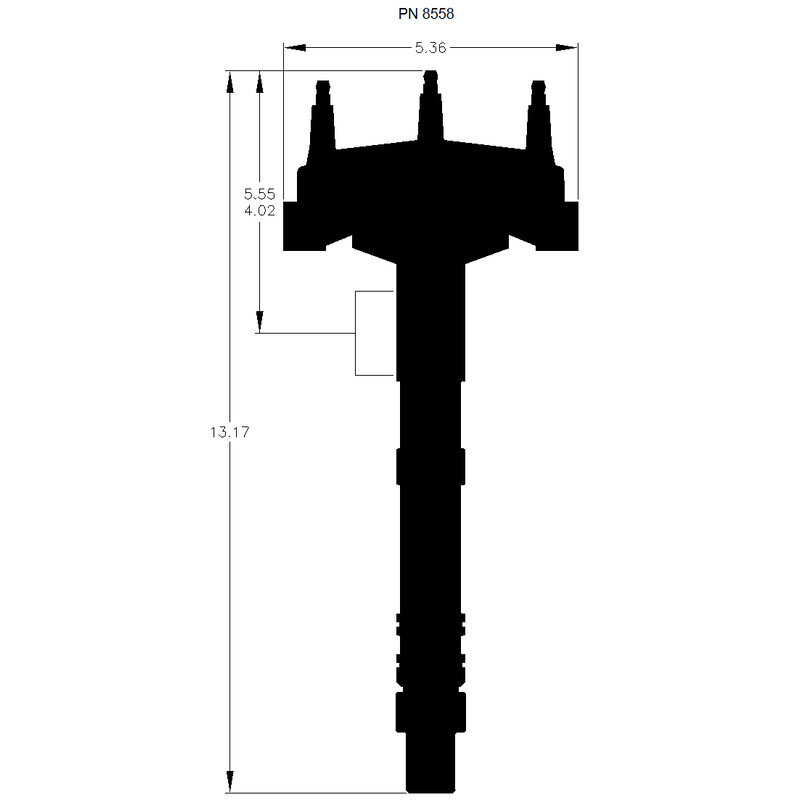

- Cap Diameter:
- 5.360 in.
- Compatible with Computer Control:
- No
- Rotation:
- Standard
- Shaft Material:
- Steel
- Fixed Collar or Slip Collar:
- Slip Collar
- Includes Ignition Coil:
- No
- Notes:
- For tall deck blocks
- Quantity:
- Sold As Each
