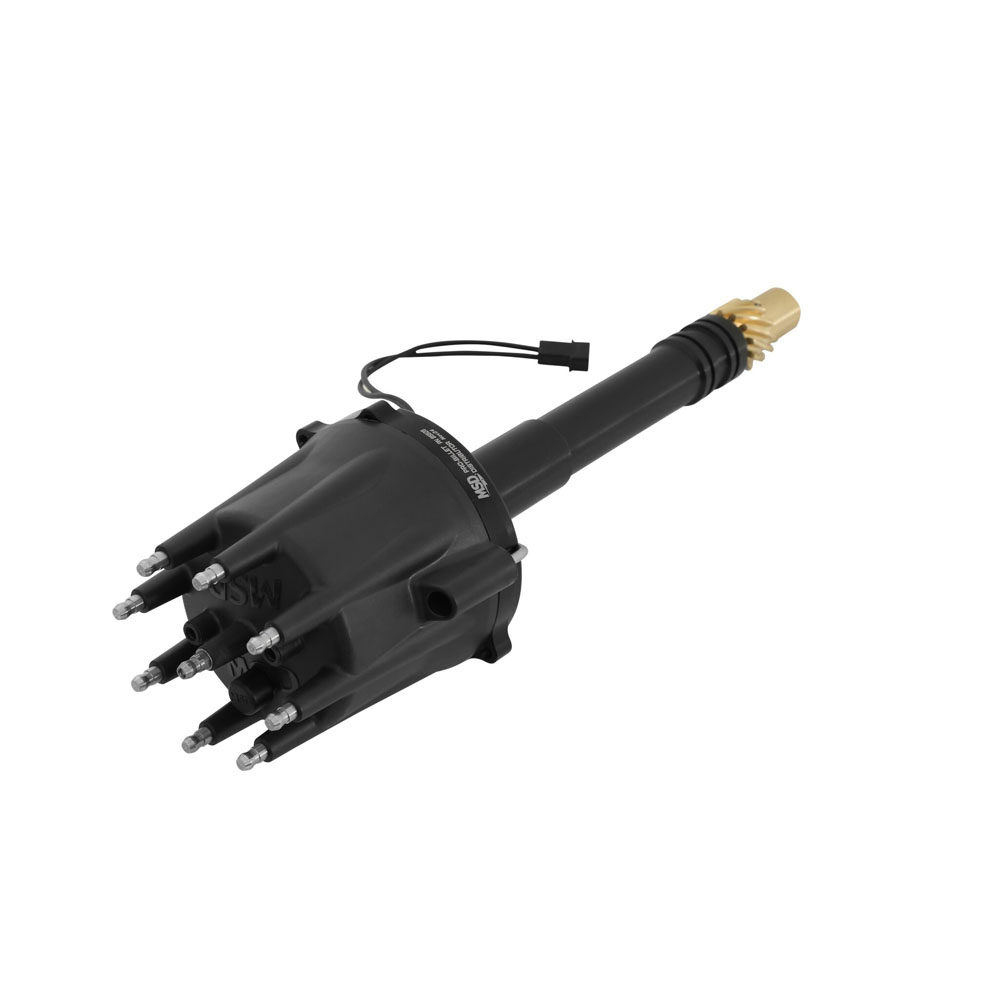

MSD Distributor 85505; Pro Billet Locked Out Locked Advance Magnetic for Chevy 262 to 400, 396 to 454
$404.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Must Be Used with An MSD Ignition Control
- Advance weight pins are staked and tig welded to the plate
- Nylon pads ensure smooth operation of the advance weights
- Mech. advance assem. can lock out for crank trigger/race app.

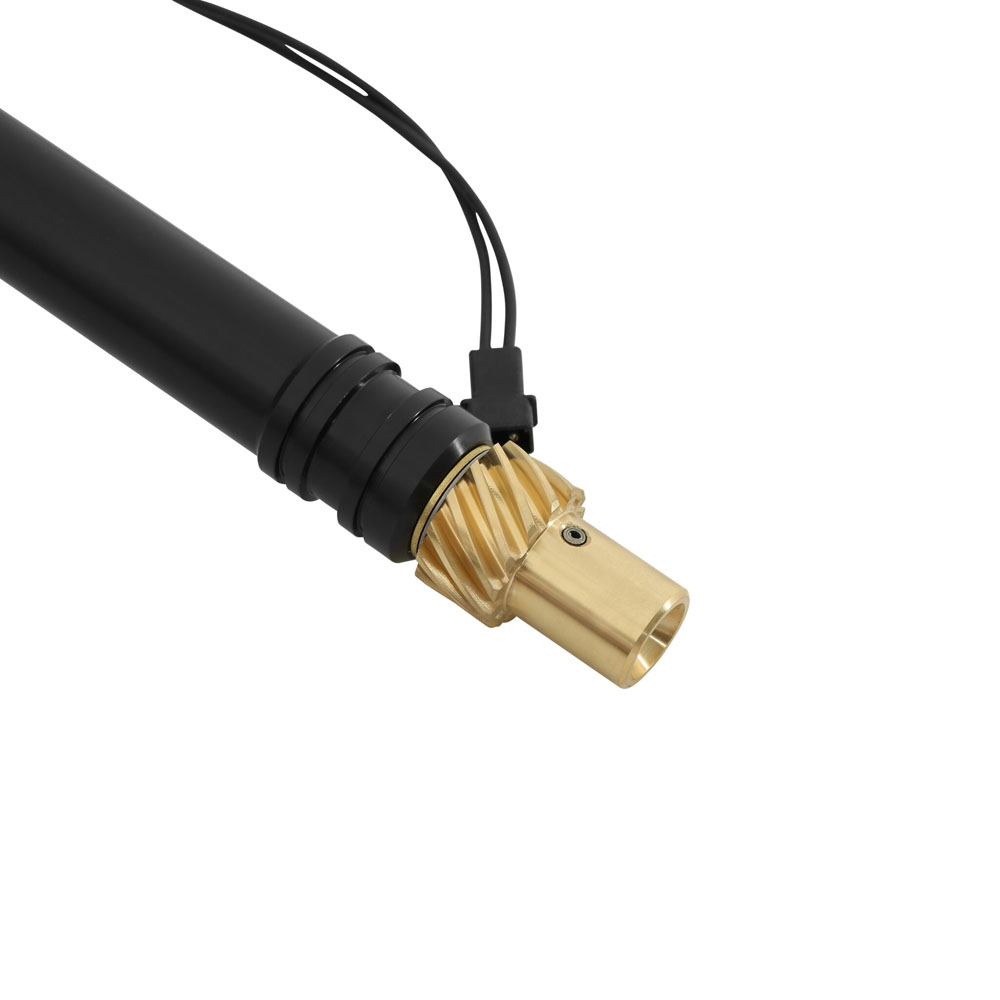

- QPQ coated polished steel shaft
- guided by sealed ball bearings
- Maintenance-free magnetic pickup and precision reluctor
- Creates stable trigger signals throughout the rpm range
- CNC machined billet aluminum housing and billet aluminum base
- Easy-to-adjust mechanical advance
- Supplied with springs and stop bushings (except locked out versions)
- Advance plate and weights are fine blanked from chrome moly steel
- QPQ coated for friction reduction
- QPQ coated polished steel shaft
- guided by sealed ball bearings
- Maintenance-free magnetic pickup and precision reluctor
- Creates stable trigger signals throughout the rpm range
- CNC machined billet aluminum housing and billet aluminum base
- Easy-to-adjust mechanical advance
- Supplied with springs and stop bushings (except locked out versions)
- Advance plate and weights are fine blanked from chrome moly steel
- QPQ coated for friction reduction
Product Description
MSD Pro-Billet Distributors are the finest performance and racing distributors available. Every feature has been engineered to endure the rigors of high performance and racing engines. Whether cruising the streets or racing stock cars, dragsters, boats or trucks, MSD has a distributor for it. MSD uses state-of-the-art, Computer Numerical Controlled (CNC) mills and lathes to machine each housing. After a long series of precise cuts and movements, the billet is formed into a flawless distributor housing that is accurate to within 0.001". The flex-free housings are lightweight, have no porosity or weak areas and look great on polished, show quality engines.
Specifications
- Distributor Model or Series:
- Pro Billet Locked Out
- Make:
- Chevy
- Engine:
- 262 to 400, 396 to 454
- Trigger Type:
- Magnetic
- Advance Type:
- Locked Advance
- Cap Style:
- HEI/Male
- Cap Color:
- Black
- Housing Material:
- Aluminum
- Housing Finish:
- Black Anodized
- Requires Ignition Box:
- Yes
- Distributor Shaft Diameter:
- 0.500 in.
- Distributor Gear Material:
- Bronze
- Cap Diameter:
- 4.940 in.
- Compatible with Computer Control:
- No
- Rotation:
- Standard
- Shaft Material:
- Steel
- Fixed Collar or Slip Collar:
- Slip Collar
- Includes Ignition Coil:
- No
- Quantity:
- Sold As Each
