MSD Distributor 8547; Pro Billet Mechanical Magnetic for Chevy 262 to 400, 396 to 454, 502
$533.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Extra tall housing is designed for use with Alan Root, Donovan, Merlin and Rocket racing blocks
- Must be used with an MSD Ignition Control
- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- O-ring seals can be added to modified blocks to improve oil pressure control
- Special oil tract improves lubrication to the distributor and cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

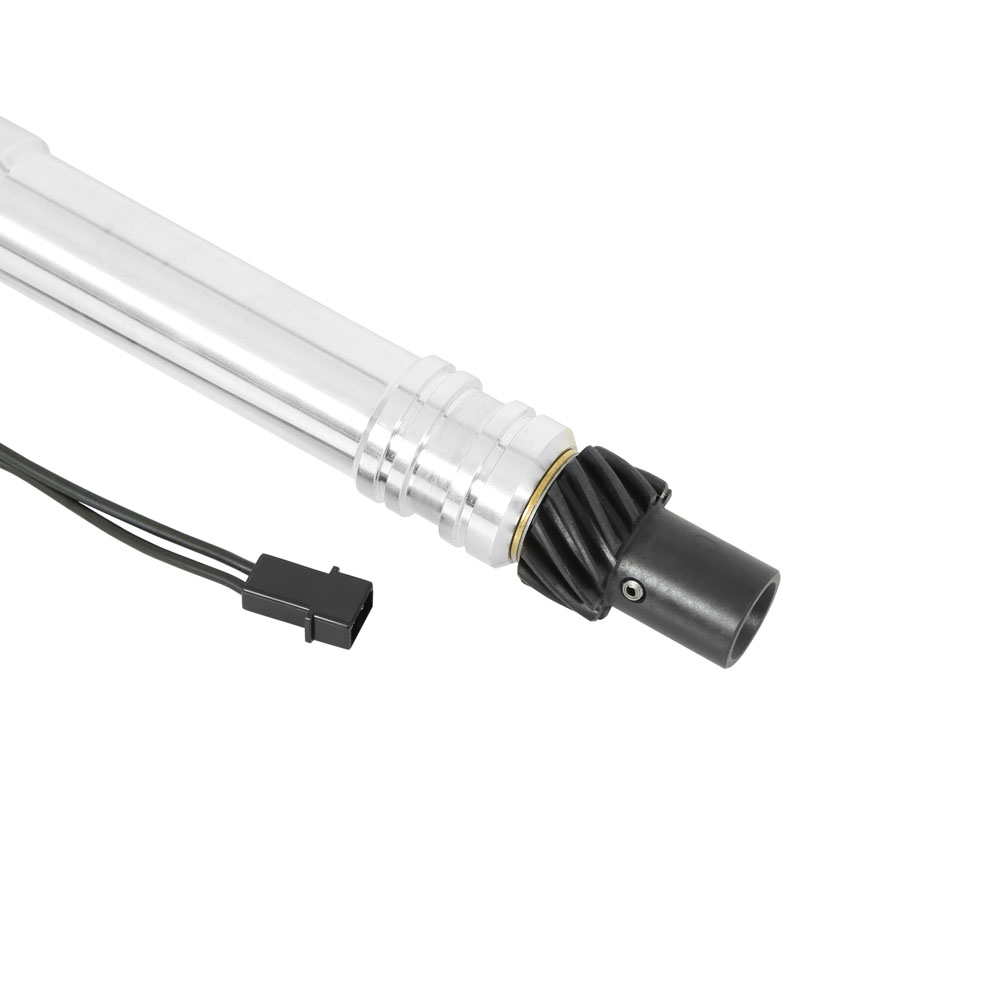

- Polished steel shaft is QPQ coated and guided by a sealed ball bearing and long sintered bushing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Adjustable slip collar mounting flange provides up to 3" of adjustment
- CNC machined billet aluminum housing and Dupont Rynite base
- No CARB Exemption Order Number
- Special oil tract improves lubrication to the distributor and cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing and long sintered bushing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Adjustable slip collar mounting flange provides up to 3" of adjustment
- CNC machined billet aluminum housing and Dupont Rynite base
- No CARB Exemption Order Number
Product Description

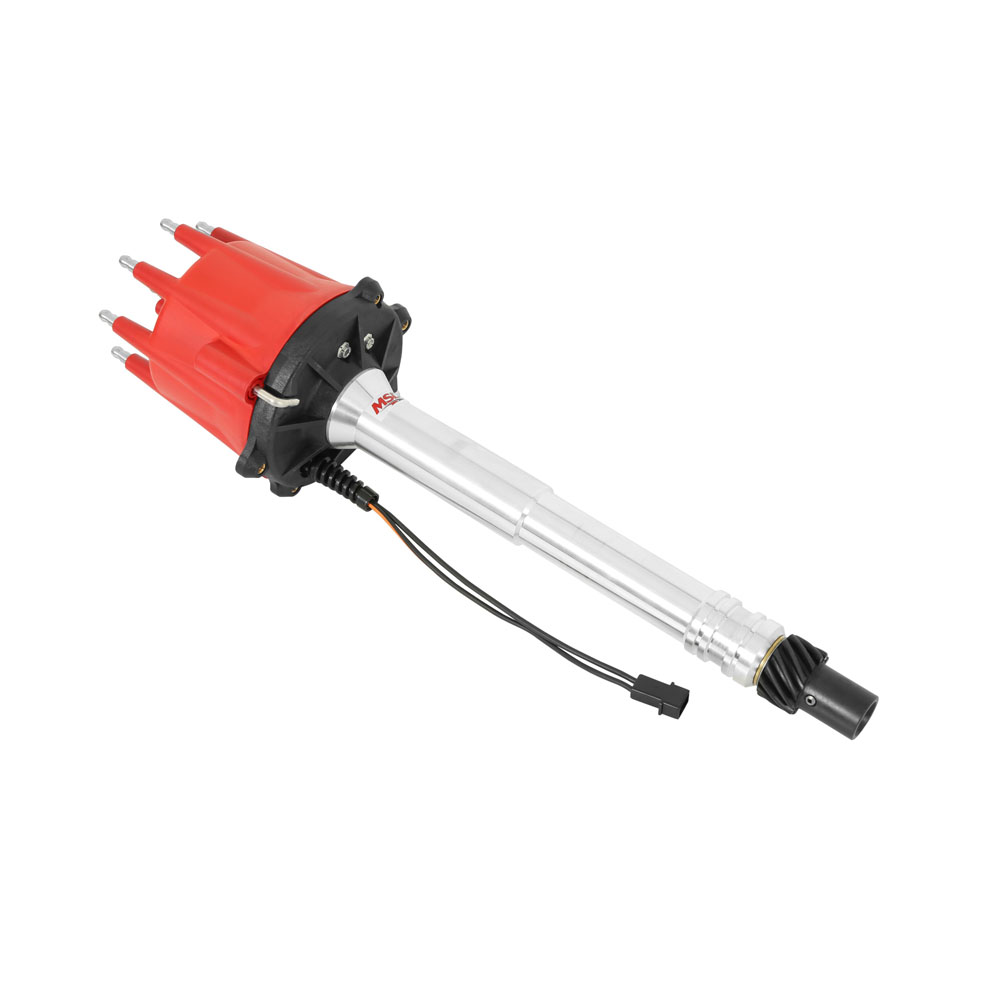

MSD Pro-Billet Distributors are the finest performance and racing distributors available. Every feature has been engineered to endure the rigors of high performance and racing engines. Whether cruising the streets or racing stock cars, dragsters, boats or trucks, MSD has a distributor for it. MSD uses state-of-the-art, Computer Numerical Controlled (CNC) mills and lathes to machine each housing. After a long series of precise cuts and movements, the billet is formed into a flawless distributor housing that is accurate to within 0.001". The flex-free housings are lightweight, have no porosity or weak areas and look great on polished, show quality engines. Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Distributor Model or Series:
- Pro Billet
- Make:
- Chevy
- Engine:
- 262 to 400, 396 to 454, 502
- Trigger Type:
- Magnetic
- Advance Type:
- Mechanical
- Cap Style:
- HEI/Male
- Cap Color:
- Red
- Housing Material:
- Aluminum
- Housing Finish:
- Machined
- Requires Ignition Box:
- Yes
- Distributor Shaft Diameter:
- 0.500 in.
- Distributor Gear Material:
- Iron
- Cap Diameter:
- 4.940 in.
- Compatible with Computer Control:
- No
- Rotation:
- Standard
- Shaft Material:
- Steel
- Fixed Collar or Slip Collar:
- Slip Collar
- Includes Ignition Coil:
- No
- Notes:

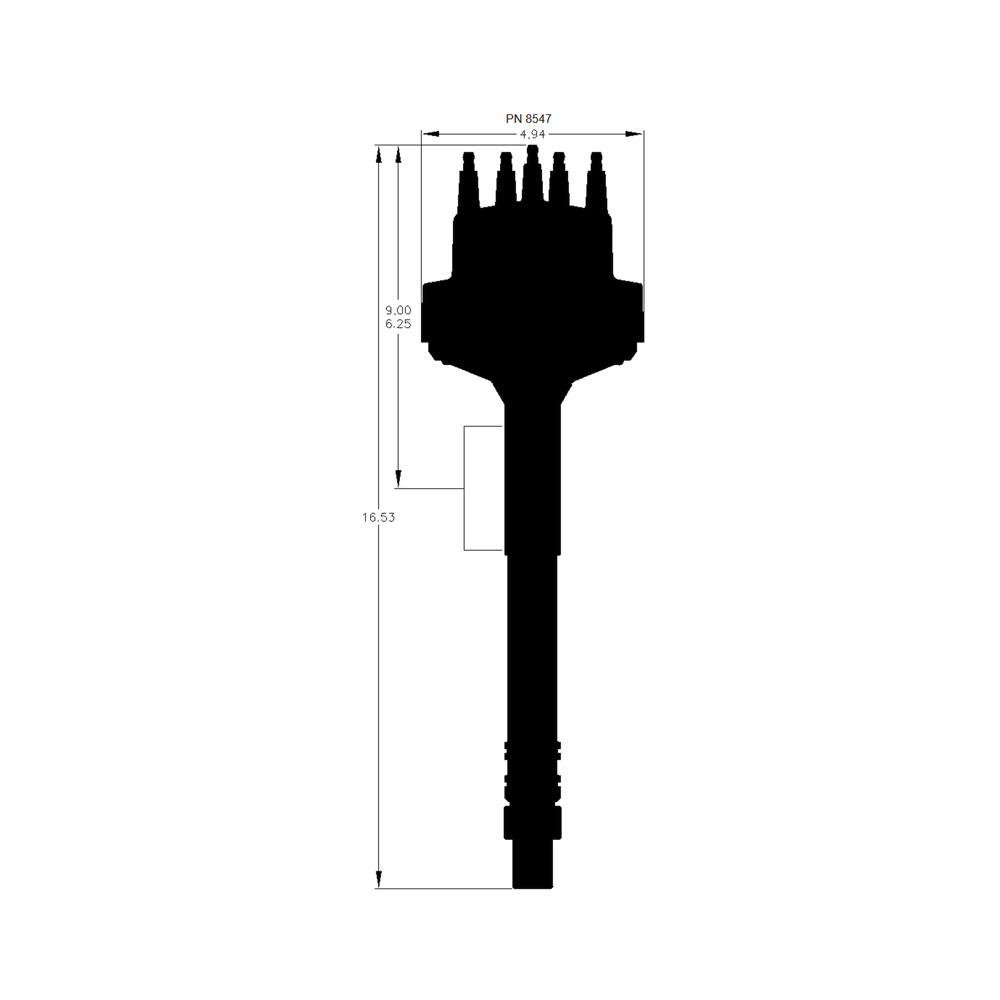

- Designed for racing blocks with maximum increased deck height such as Alan Root, Merlin and Rocket Blocks. Extra Tall, slip collar provides up to 3.000 in. of adjustment.Distributor is 6.125 in. - 9.125 in. tall from engine to top of distributor cap.
- Quantity:
- Sold As Each
