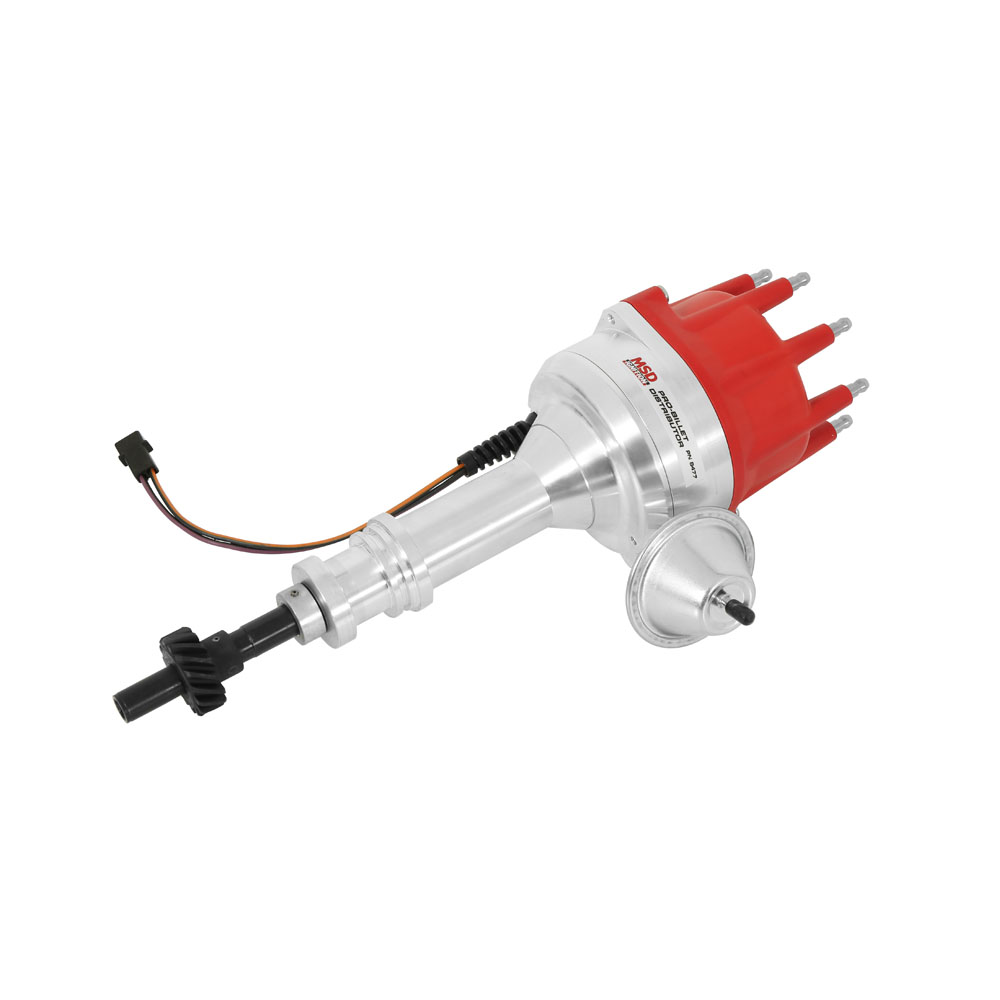

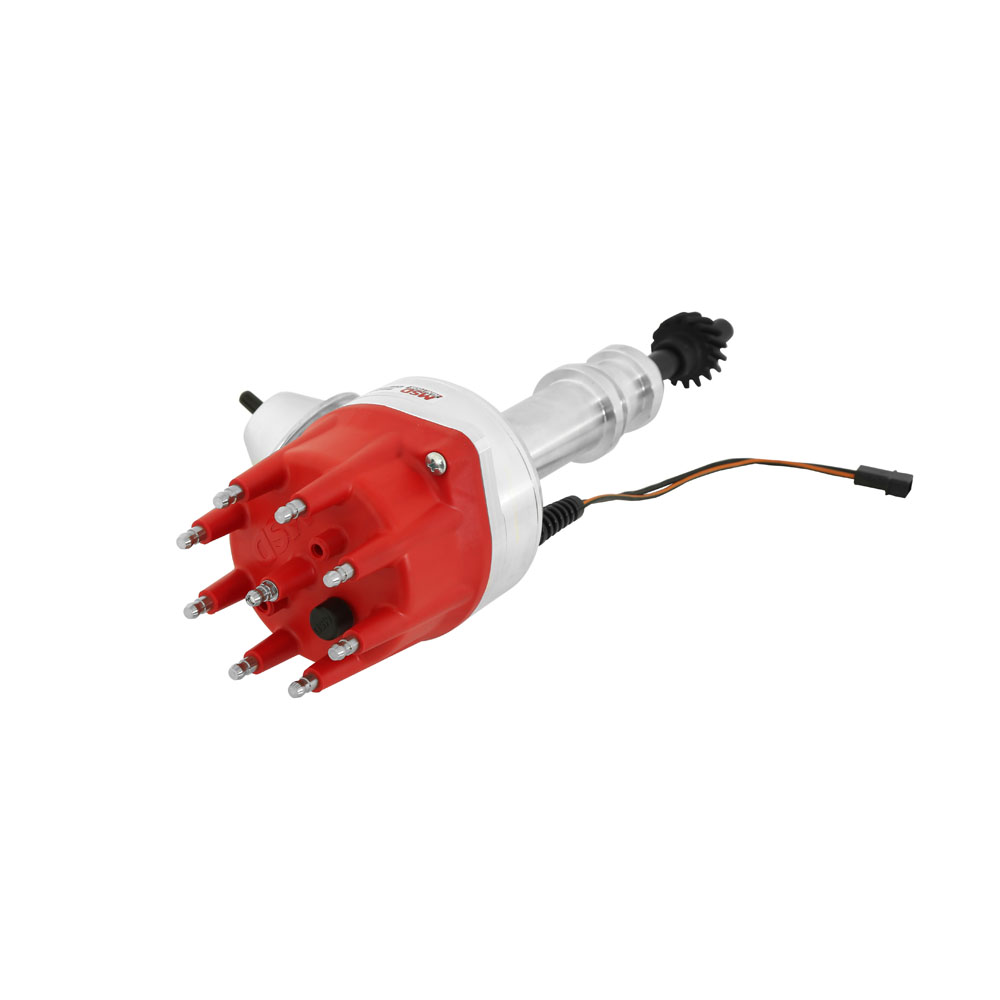

MSD Distributor 8477; Pro Billet Vacuum, Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

$522.95

Part #: 8477

Brand: MSD

UPC: 085132084777

Estimated Ship Date: This part is unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Need It Faster?

We recommend this alternative part:

Pertronix Distributor D132710; Flame Thrower Vacuum, Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

Pertronix Distributor D132710; Flame Thrower Vacuum, Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

PERD132710

$325.75

Estimated Ship Date: Today

Details

  • Integrated Ignitor II technology with adaptive dwell control.
  • Cobalt magnets and Hall Effect trigger for stable timing and precise spark distribution.
  • A powerful micro controller with adaptive dwell algorithms constantly adjust the dwell angle to maintain peak energy throughout the entire RPM range for increased high and low RPM performance.
  • The Ignitor II compensates for the inherent electronic delay by adjusting the spark timing throughout the enter RPM range.
  • Synchronized peak current and spark timing reduces heat build-up.
  • Precision CNC machined billet housings are polished to a high luster.
  • Tempered distributor shafts have low torsion displacement for accurate timing and longer life.
  • Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration.
  • Precision stamped advance weights eliminate erratic timing.
  • Adjustable mechanical advance with proprietary limiting functions permits multiple settings. Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.
  • High dielectric strength cap with male or female brass terminals and premium rotor with brass contact.
  • Compatible with most Capacitive Discharge Systems.
  • Legal in all 50 states and Canada.
  • Warranty: 30 months electronics / Limited 1 year mechanical.

Product Description

Integrated patented Ignitor II technology with adaptive dwell control; Cobalt magnets and Hall Effect trigger for stable timing and precise spark distribution; A powerful micro controller with adaptive dwell algorithms constantly adjust the dwell angle to maintain peak energy throughout the entire RPM range for increased high and low RPM performance; Ignitor II compensates for inherent electronic delay by adjusting the spark timing throughout the entire RPM range; Synchronized peak current and spark timing reduces heat build-up; Precision CNC machined billet housings are polished to a high luster; Tempered distributor shafts have low torsion displacement for accurate timing and longer life; Upper ball bearing and extra long oil impregnated bronze lower bushing work together to reduce friction and high RPM vibration; Precision stamped advance weights eliminate erratic timing; Adjustable mechanical advance with proprietary limiting functions permits multiple settings; Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves; High dielectric strength cap with male or female brass terminals and premium rotor with brass contact; Compatible with most Capacitive Discharge SystemsWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specifications

Distributor Series:
Pro Billet
Make:
Ford
Engine:
351C, 351M, 400, 429, 460
Trigger Type:
Magnetic
Advance Type:
Vacuum, Mechanical
Cap Style:
HEI/Male
Cap Color:
Red
Housing Material:
Billet Aluminum
Housing Finish:
Satin
Requires Ignition Box:
Yes
Quantity:
Sold As Each

Tech Resources

  • 8477_frm28387.pdf
