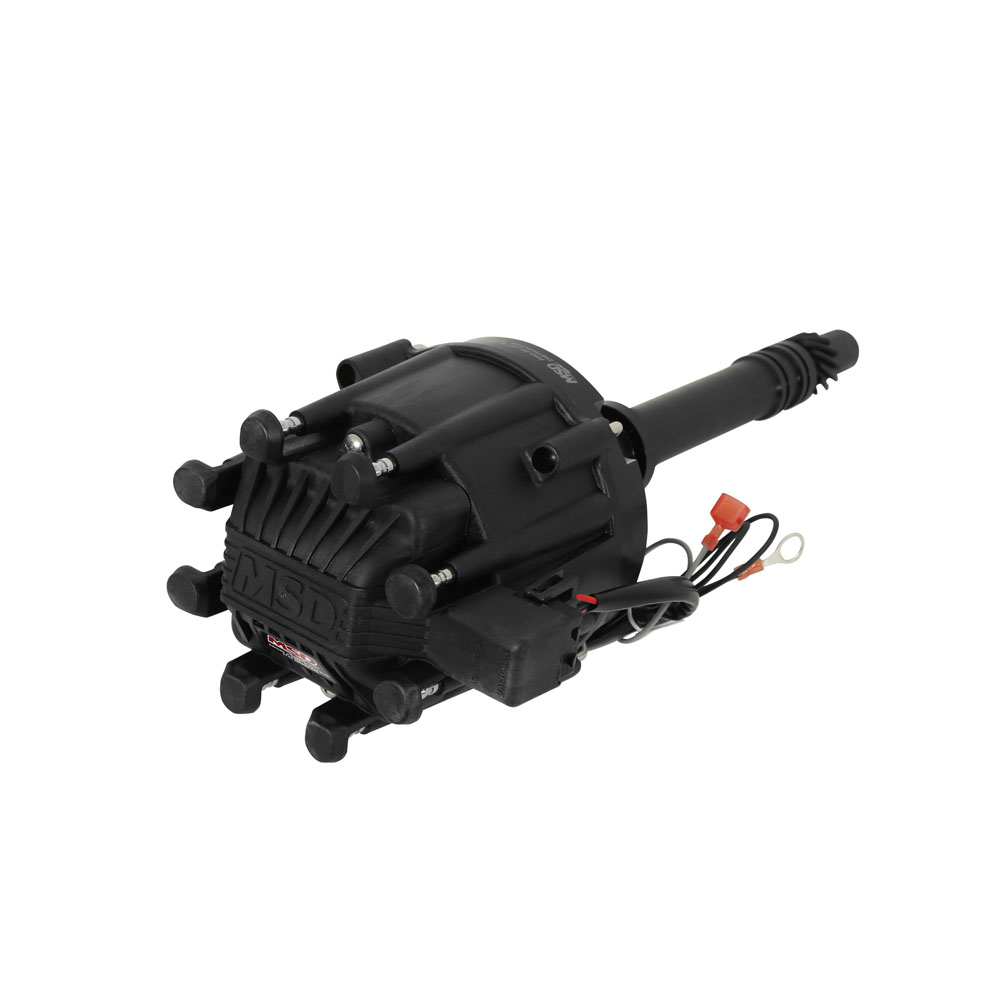

MSD Distributor 83653; Pro Billet HEI Vacuum, Mechanical Magnetic for Chevy 262 to 400, 396 to 454

$709.95

Part #: 83653

Brand: MSD

UPC: 085132836536

Estimated Ship Date: 6/18/2025 (From manufacturer)

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Complete performance HEI distributor upgrade for Chevy V8 engines
  • Advance plate and weights are fine blanked from chrome moly steel
  • QPQ coated for friction reduction
  • QPQ coated polished steel shaft
  • guided by sealed ball bearings
  • Supplied with Stainless Steel Distributor Cap For Long Life
  • Full Spark Energy Output To 9000 Rpm
  • 8.5 amp
  • single spark
  • inductive discharge ignition module
  • MSD PN[83647] and MSD HEI Coil PN[8225]
  • Special oil tract improves lubrication to the dist./cam gear
  • Nylon pads ensure smooth operation of the advance weights
  • Advance weight pins are staked and tig welded to the plate
  • Mech. advance assem. can lock out for racing/EFI applications

Product Description

MSD Pro-Billet Distributors are the finest performance and racing distributors available. Every feature has been engineered to endure the rigors of high performance and racing engines. Whether cruising the streets or racing stock cars, dragsters, boats or trucks, MSD has a distributor for it. MSD uses state-of-the-art, Computer Numerical Controlled (CNC) mills and lathes to machine each housing. After a long series of precise cuts and movements, the billet is formed into a flawless distributor housing that is accurate to within 0.001". The flex-free housings are lightweight, have no porosity or weak areas and look great on polished, show quality engines.

Specifications

Distributor Series:
Pro Billet HEI
Make:
Chevy
Engine:
262 to 400, 396 to 454
Trigger Type:
Magnetic
Advance Type:
Vacuum, Mechanical
Cap Style:
HEI/Male
Cap Color:
Black
Housing Material:
Aluminum
Housing Finish:
Black Anodized
Requires Ignition Box:
No
Distributor Shaft Diameter:
0.500 in.
Distributor Gear Material:
Iron
Cap Diameter:
6.010 in.
Compatible with Computer Control:
No
Rotation:
Standard
Shaft Material:
Steel
Fixed Collar or Slip Collar:
Fixed Collar
Includes Ignition Coil:
Yes
Quantity:
Sold As Each

Videos

Tech Resources

  • 83653.pdf
