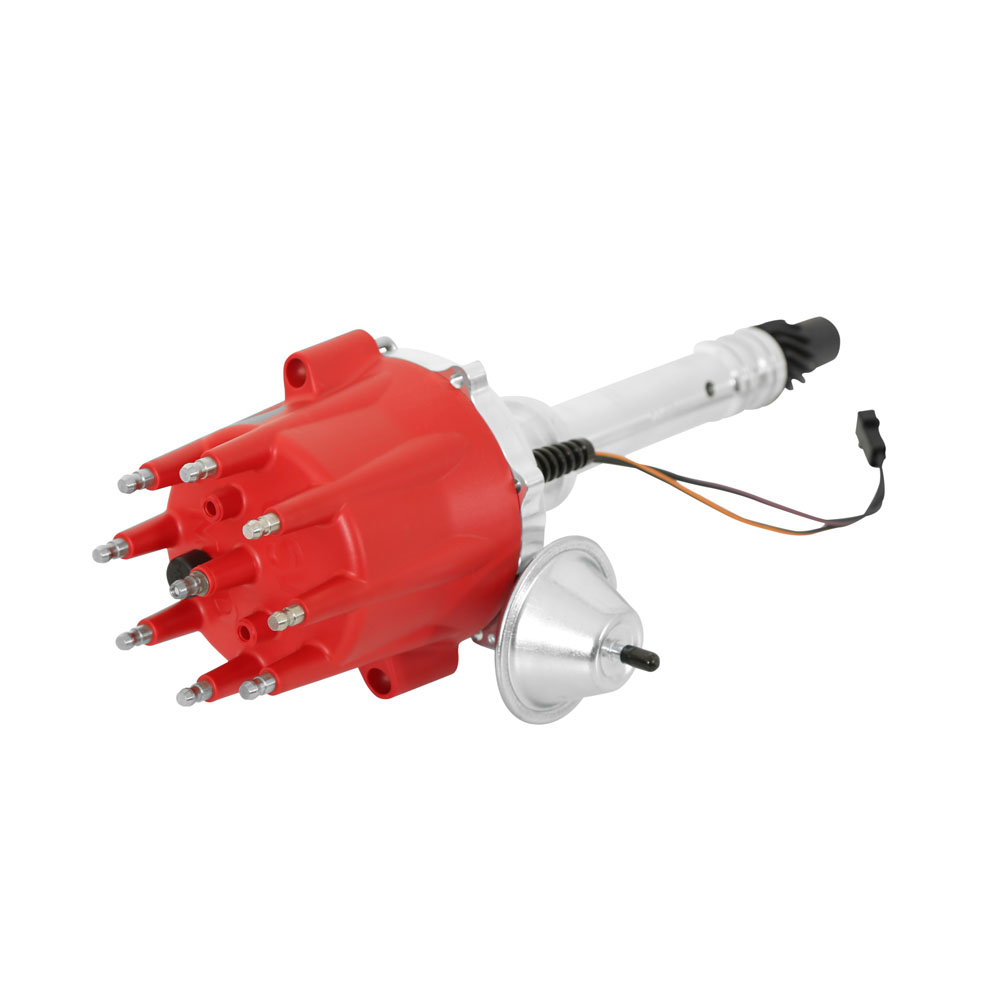

MSD Distributor 8361; Pro Billet Street Vacuum, Mechanical Magnetic for Chevy 262 to 400, 396 to 454, 502
$359.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Designed for street/performance use with a mechanical and vacuum advance
- Must be used with an MSD Ignition Control
- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- O-ring seals can be added to modified blocks to improve oil pressure control
- Special oil tract improves lubrication to the distributor and cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- CNC machined billet aluminum housing and billet aluminum base
- Vacuum advance canister for improved economy (can be locked out)
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- CARB E.O. Approved
- Special oil tract improves lubrication to the distributor and cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- CNC machined billet aluminum housing and billet aluminum base
- Vacuum advance canister for improved economy (can be locked out)
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- CARB E.O. Approved
Product Description
MSD's Ready-to-Run Marine Distributors are the perfect upgrade for boats that are relying on worn-out breaker points or weak ignition systems. Built off our tried and true billet marine distributors, the 6061-T6 aluminum housing is now hard anodized with a sleek black finish for great looks.This module produces a stout inductive spark that will improve combustion of the fuel mixture for better drivability. Beneath the durable bolt-down, injection-molded cap, a maintenance-free magnetic pickup produces accurate trigger signals while an oversized shaft is guided by a sealed ball bearing. An easy-to-adjust mechanical advance allows you to custom tailor a timing curve to match your application. The Ready-to-Run distributors are a breeze to install. Simply drop it into the engine and contect three wires and you're ready-to-run across the lake! Supplied with a cap, rotor, gear and weathertight wiring harness.WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Distributor Model or Series:
- Pro Billet Street
- Make:
- Chevy
- Engine:
- 262 to 400, 396 to 454, 502
- Trigger Type:
- Magnetic
- Advance Type:
- Vacuum, Mechanical
- Cap Style:
- HEI/Male
- Cap Color:
- Red
- Housing Material:
- Aluminum
- Housing Finish:
- Machined
- Requires Ignition Box:
- Yes
- Distributor Gear Material:
- Iron

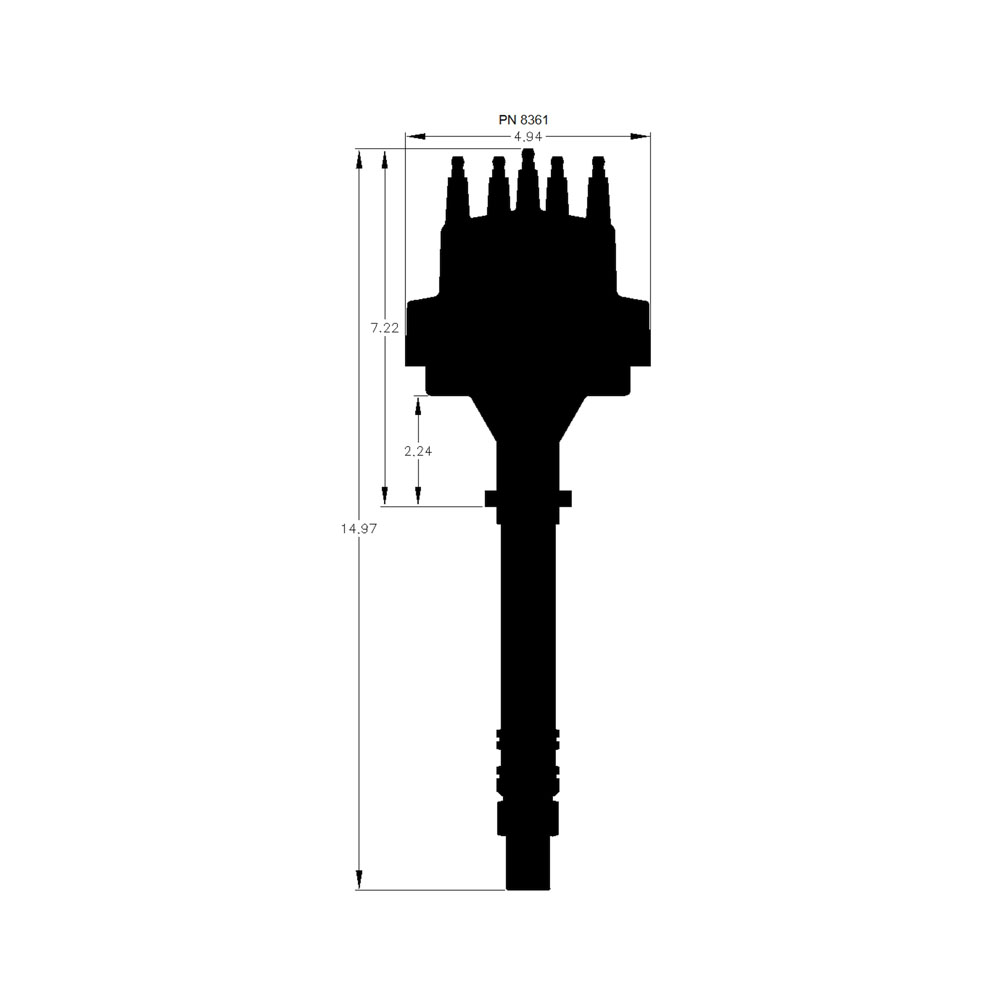

- Cap Diameter:
- 4.940 in.
- Compatible with Computer Control:
- No
- Rotation:
- Standard
- Shaft Material:
- Steel
- Fixed Collar or Slip Collar:
- Fixed Collar
- Includes Ignition Coil:
- No
- Quantity:
- Sold As Each
