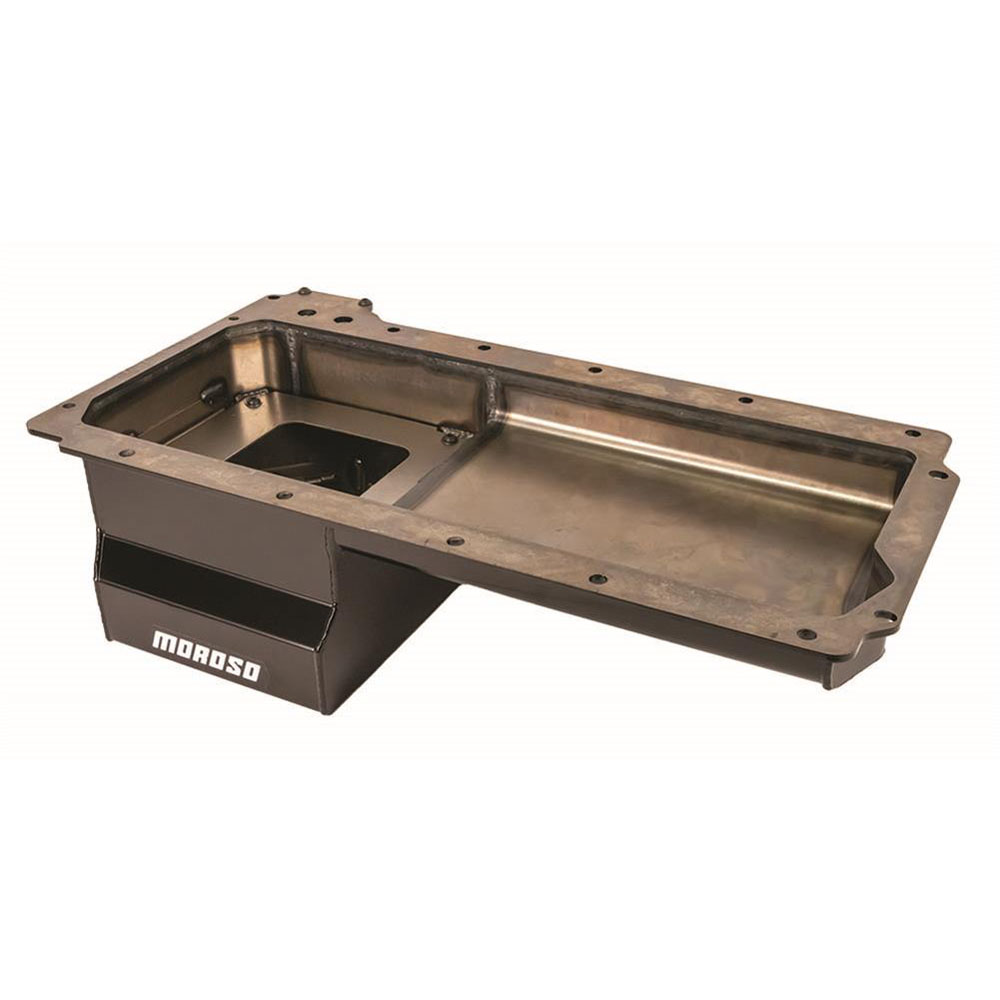

Moroso Oil Pan 20142; Road Race Wet Sump 7 Quart Black for GM Camaro, Nova, Chevelle, Corvette, G Body LS

Details

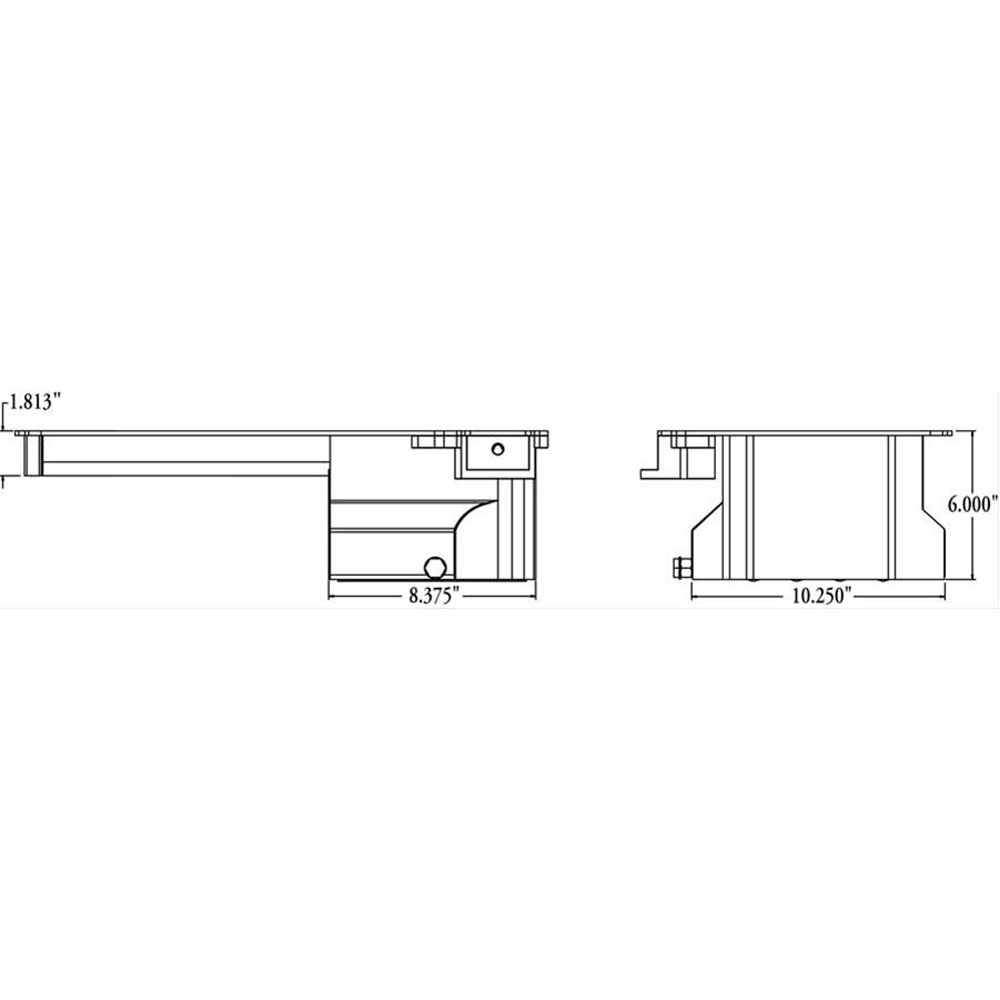

• Steel, Wet Sump, 7 Quart Capacity, 6" deep
• Fits: Early F-Body
• Engine Application: GM LS Series
• Fits: 67-15 Camaro/firebird, 68-72 Nova, 65-72 Chevelle, 53-96 Corvette, 78-88 G-Body and GM S10/S15 Two Wheel Drive Blazer/Truck. Can also be used in additional applications; check dimensions for clearance
• Oil pan has a thick precision laser cut steel rail and a clear zinc finish

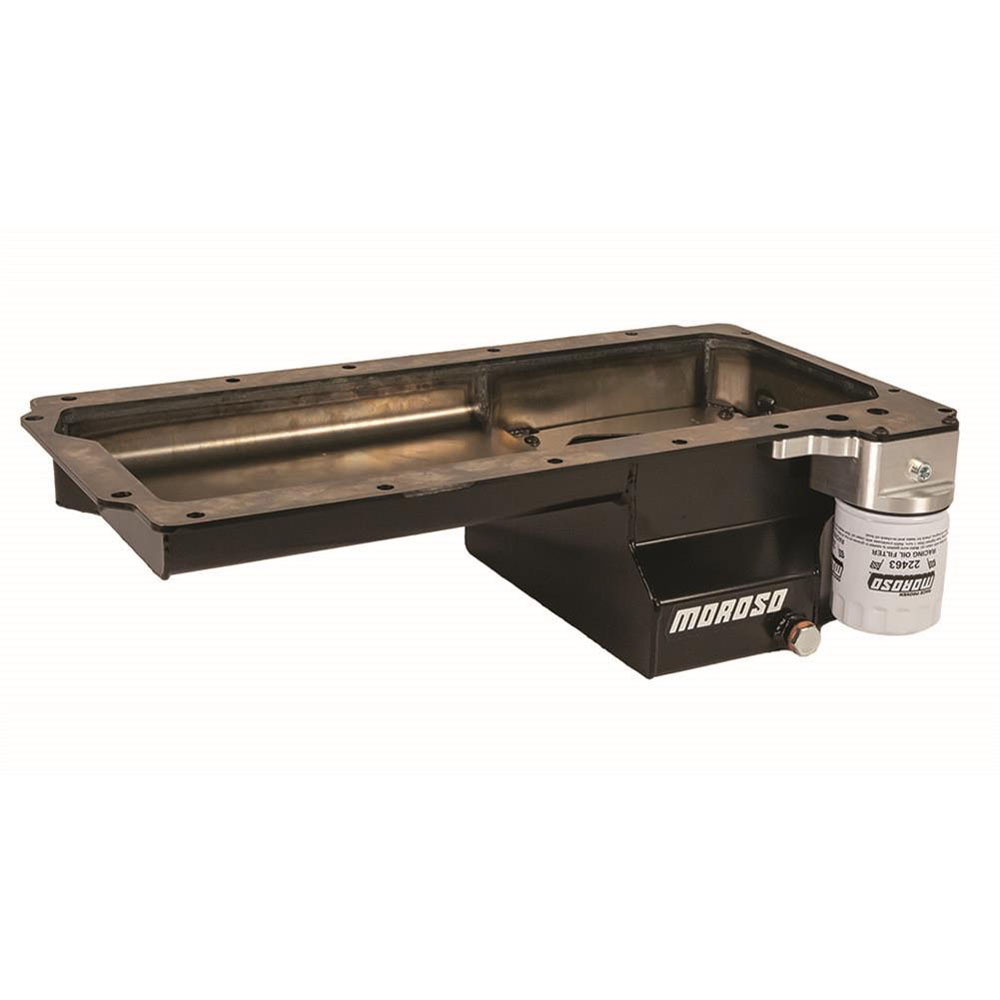

• Has a Billet Aluminum Spin-On Filter Adapter that accepts a 22mm thread. Moroso No. 22463 or O.E. M. oil filter to be mounted in the stock location, clears 4.25" stroke with most steel rods

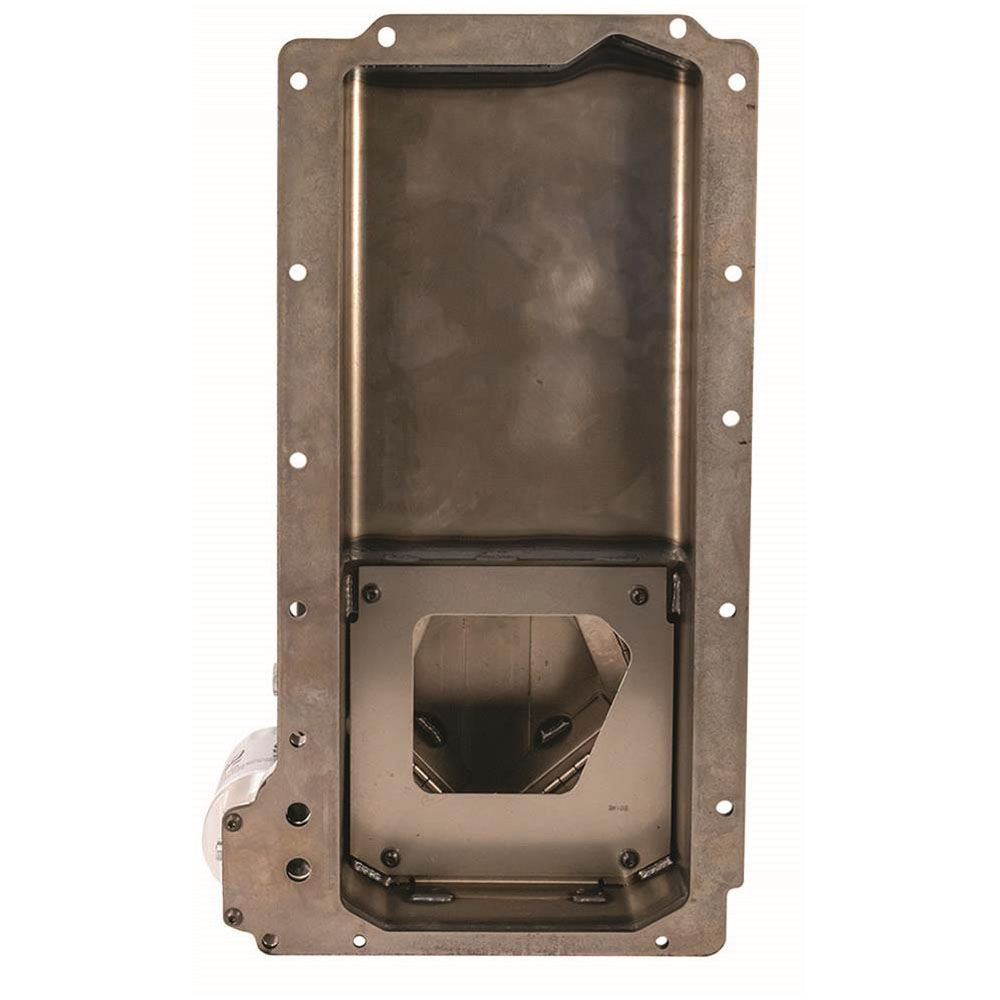

• Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
• The 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
• Uses stock dipstick

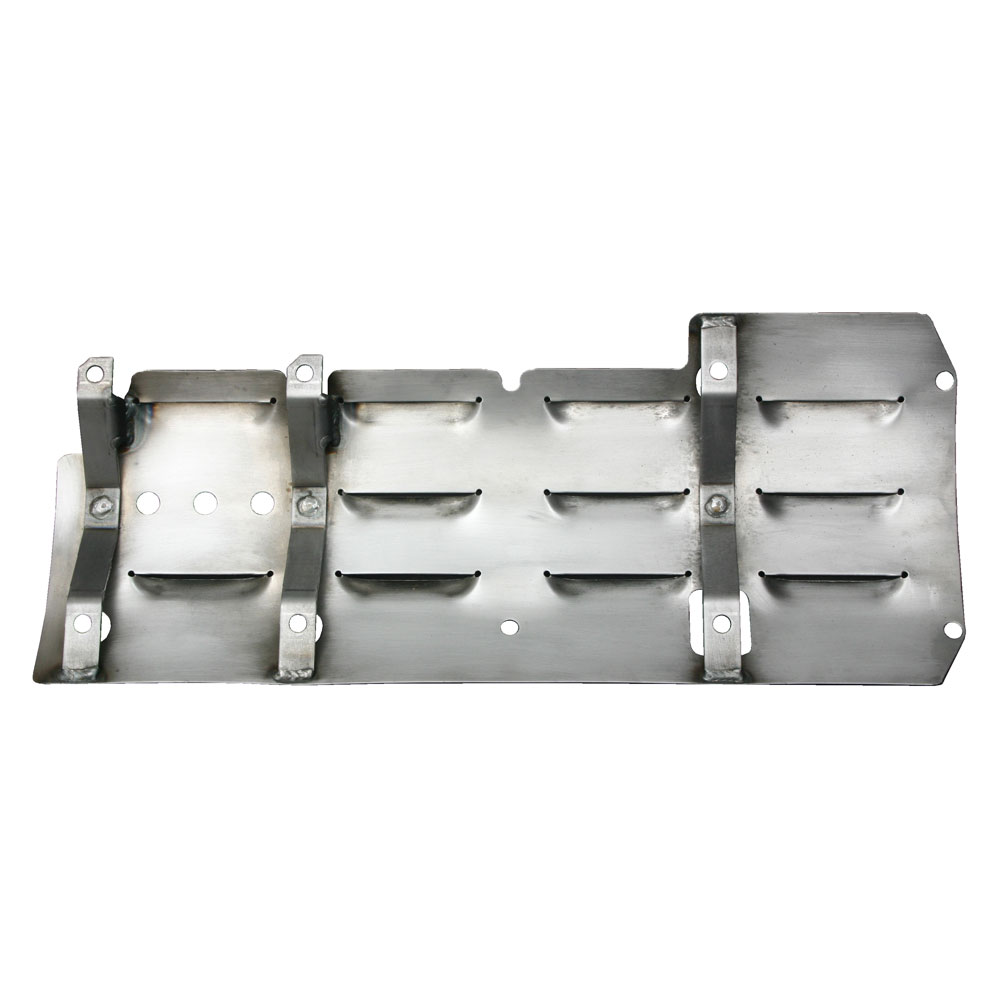

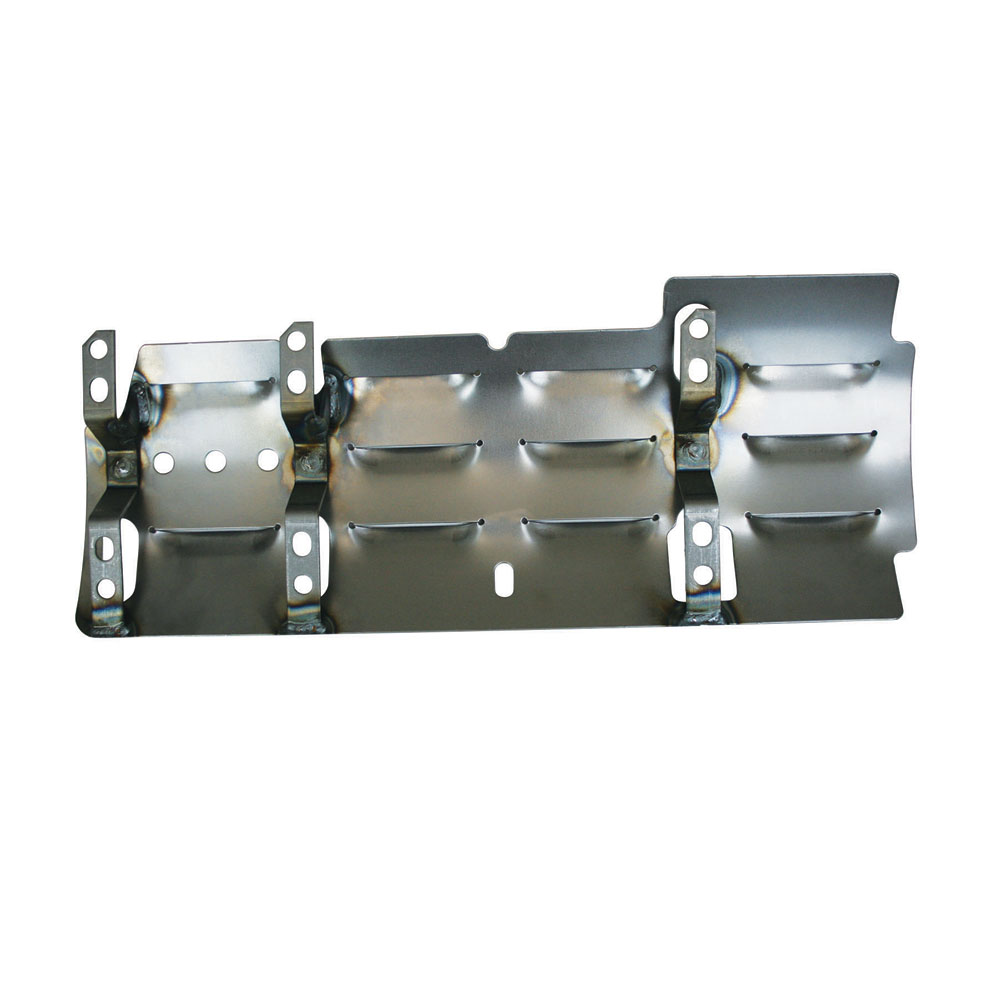

• Accepts GM Part No. 12558253 Windage Tray with modification
• Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pick up area during road racing and drag racing
• The 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
• Features a billet aluminum adapter that allows a 22mm thread Moroso Part No. 22463 or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
• Included billet aluminum oil filter adapter has a ¼" N.P.T. sensor port
• Uses stock dipstick

• Oil pan has a thick precision laser cut steel rail and a clear zinc finish
• Has a Billet Aluminum Spin-On Filter Adapter that accepts a 22mm thread. Moroso No. 22463 or O.E. M. oil filter to be mounted in the stock location, clears 4.25" stroke with most steel rods
• Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
• The 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
• Uses stock dipstick
• Accepts GM Part No. 12558253 Windage Tray with modification
• Features a race proven diamond shape four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pick up area during road racing and drag racing
• The 7 Quart Capacity moves the oil away from the rotating assembly for oil control and horsepower saving
• Features a billet aluminum adapter that allows a 22mm thread Moroso Part No. 22463 or O.E.M. oil filter to be mounted in the stock location, no need to run a remote oil filter
• Included billet aluminum oil filter adapter has a ¼" N.P.T. sensor port
• Uses stock dipstick
