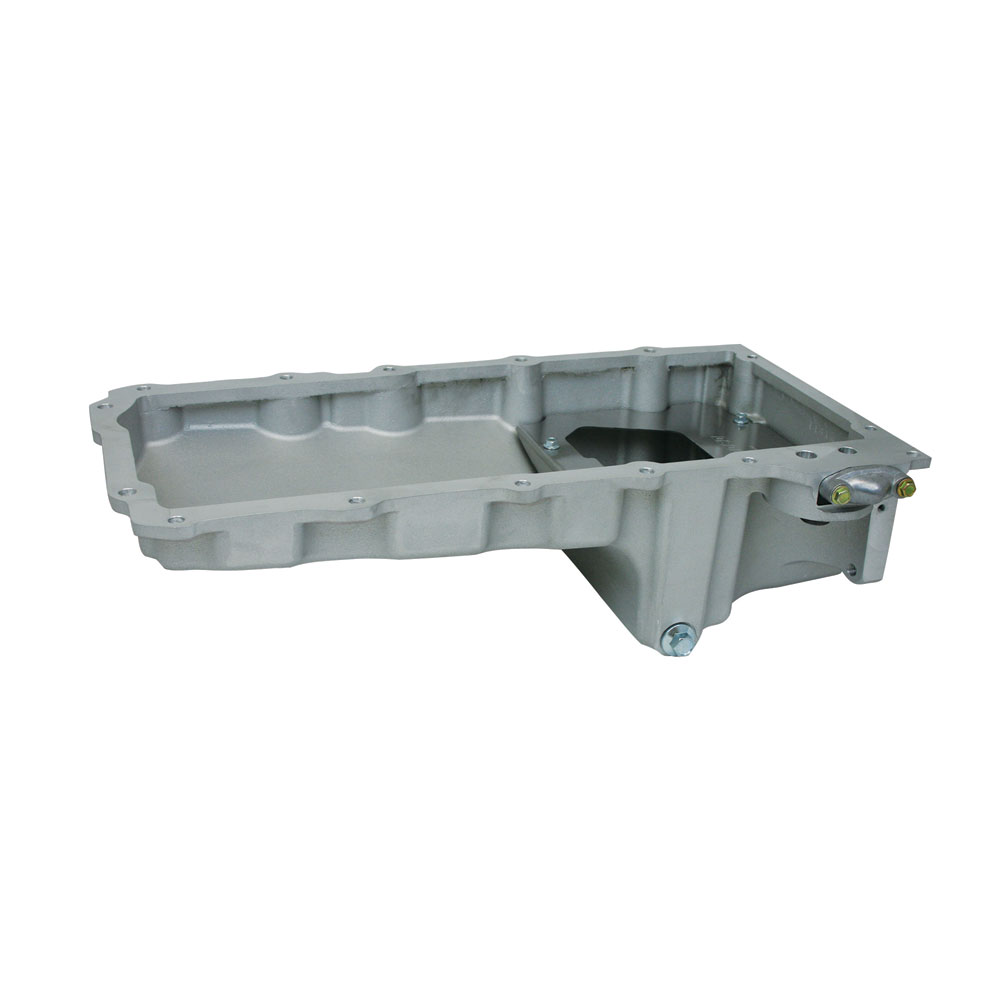

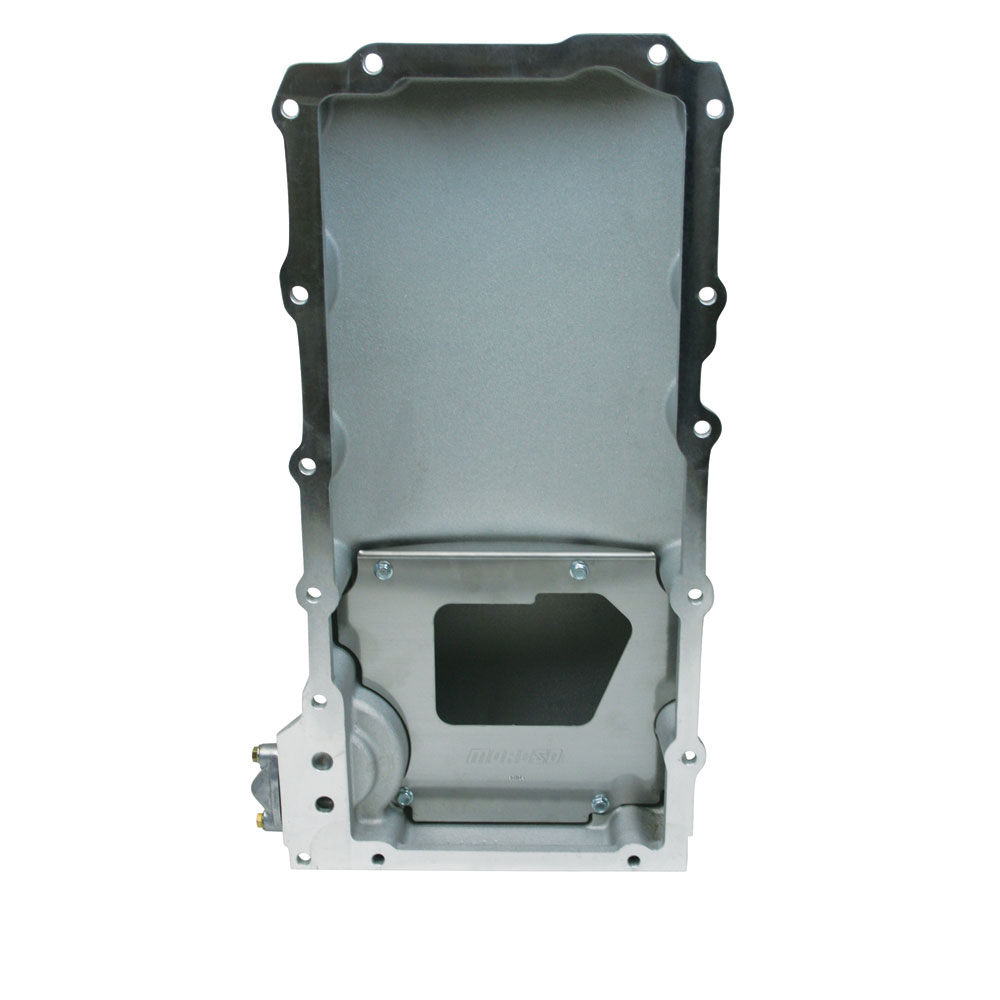

Moroso Oil Pan 20105; Street/Strip Wet Sump 6 Quart Natural for 1965 to 1972 GM Camaro, Nova, Chevelle LS
$528.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Aluminum, Wet Sump, 6 Quart Capacity, 5-3/4" deep
- Engine Application: GM LS Series
- Fits: LS Engine Conversions such as '55-'87 GM Cars & Trucks (except G-Body) that require a Rear Sump Oil Pan with a Spin-On Filter provision (Check Measurements)
- Based on consumer inquiries, this product is for the individual who prefers the O.E.M. look of a cast aluminum oil pan
- The oil pan is cast, then machined from aluminum
- Clears 4.25" of stroke with most steel rods
- Includes a removable, heavy duty, stainless steel anti-slosh baffle
- Features a heavy duty, high flow oil pump pickup
- Integral Spin-On oil filter provision with an O.E.M. oil cooler port that accepts a 22mm-1.5 thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
- Includes oil pan gasket, mounting bolts and nuts
- Uses stock dipstick
- The oil pan is cast then machined aluminum
- Clears 4.25” stroke with most steel rods
- Includes a removable, heavy duty, stainless steel anti-slosh baffle
- Features a heavy duty, high flow oil pump pick up
- Integral Spin-On oil filter adapter with a O.E.M. oil cooler port that accepts a 22 mm-1.5 thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
- Includes oil pan gasket, mounting studs and nuts
- Use stock dipstick
- The oil pan is cast, then machined from aluminum
- Clears 4.25" of stroke with most steel rods
- Includes a removable, heavy duty, stainless steel anti-slosh baffle
- Features a heavy duty, high flow oil pump pickup
- Integral Spin-On oil filter provision with an O.E.M. oil cooler port that accepts a 22mm-1.5 thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
- Includes oil pan gasket, mounting bolts and nuts
- Uses stock dipstick
- The oil pan is cast then machined aluminum
- Clears 4.25” stroke with most steel rods
- Includes a removable, heavy duty, stainless steel anti-slosh baffle
- Features a heavy duty, high flow oil pump pick up
- Integral Spin-On oil filter adapter with a O.E.M. oil cooler port that accepts a 22 mm-1.5 thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
- Includes oil pan gasket, mounting studs and nuts
- Use stock dipstick
Product Description
GM LS Conversion Cast Aluminum Oil Pan, for 1967-1969 Camaro, 1968-72 Nova, 1965-72 Chevelle, Fits Other Applications check Dimensions for clearance, Includes Heavy Duty High Flow Oil Pump Pick Up, Gasket, Hardware
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Oil Pan Series:
- Street/Strip
- Year:
- 1965 to 1972
- Make:
- GM
- Model:
- Camaro, Nova, Chevelle
- Engine:
- LS
- Pan Style:
- Wet Sump
- Dip Stick Location:
- OEM
- Capacity:
- 6 Quart
- Depth:
- 5.750 in.
- Material:
- Cast Aluminum
- Finish:
- Natural
- Kick Out:
- None
- Sump Location:
- Rear
- Baffled:
- No
- Includes Pickup:
- Yes
- Includes Windage Tray:
- No
- Includes Crank Scraper:
- No
- Includes Gasket:
- Yes
- Includes Hardware:
- Yes
- Notes:
- Engine swap pan; Fits Other Applications - check dimensions for clearance; Includes Heavy Duty High Flow Oil Pump Pick Up, Gasket, and Hardware
- Quantity:
- Sold As Each
