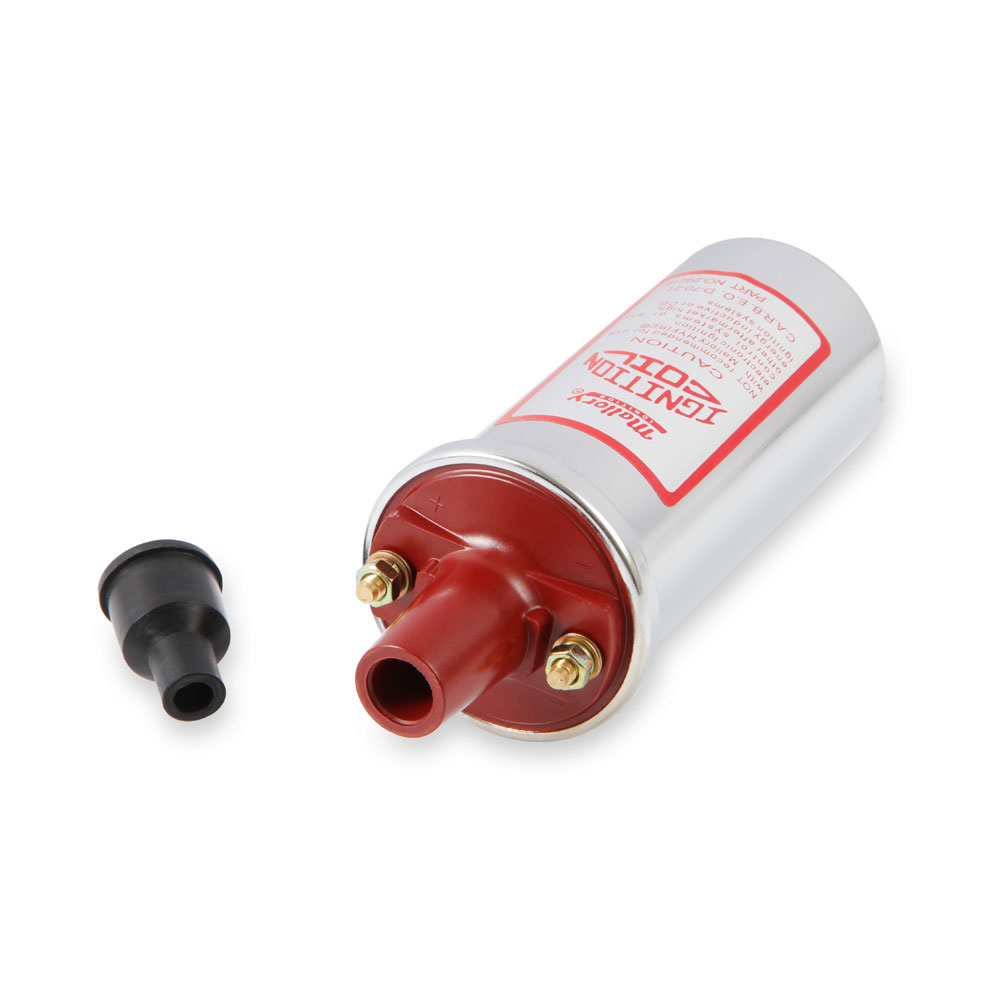

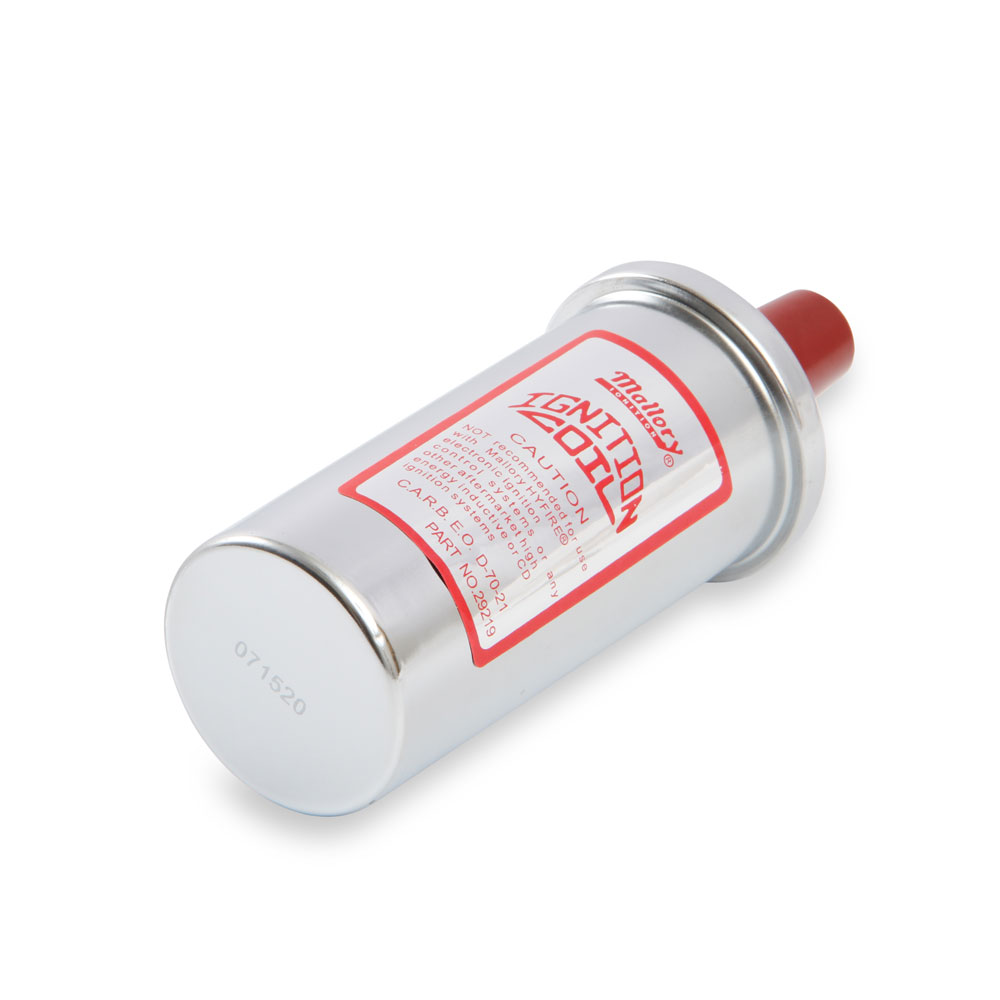

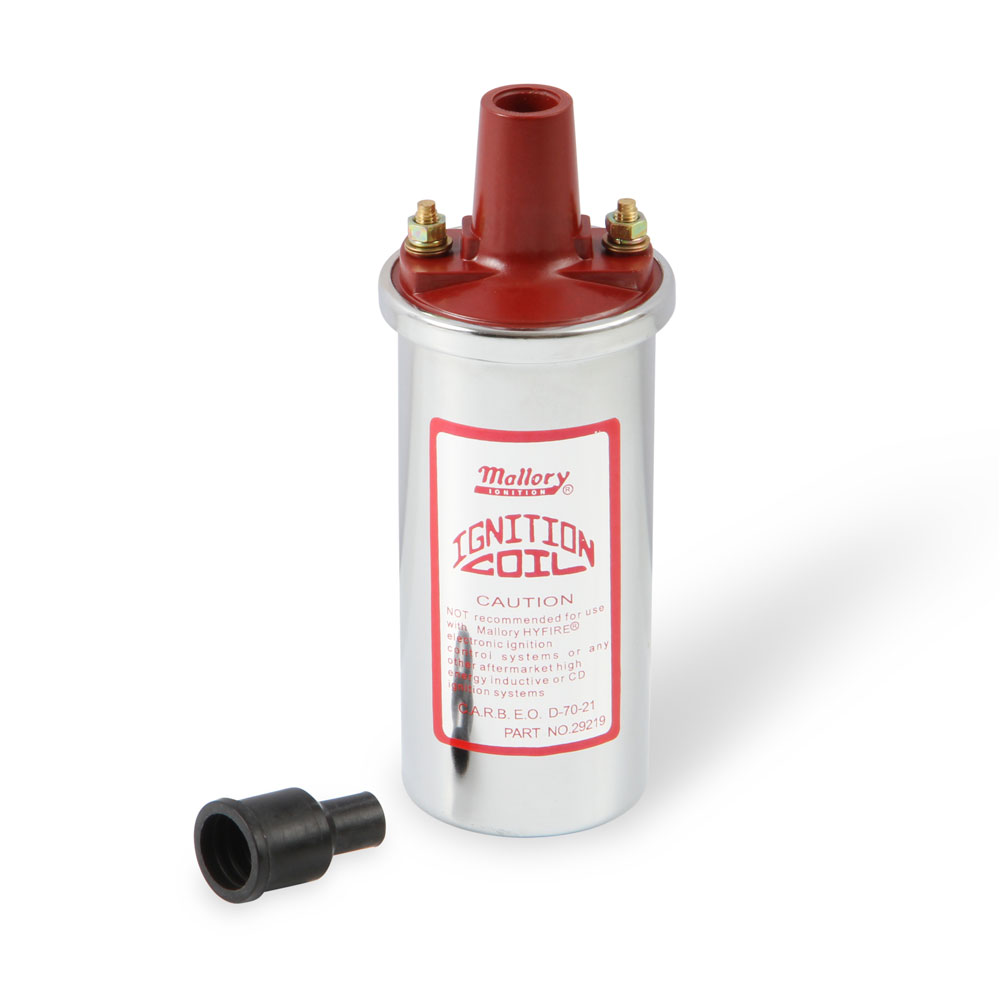

Mallory Ignition Coil 29219; Universal Chrome Coil Chrome 40000 Volt Canister Style Female, Socket
$68.81
Part #: 29219
Brand: Mallory
UPC: 769105121637
Estimated Ship Date: This part is temporarily unavailable with no ETA
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Maximum Voltage 58000 Volts
- Fits In Most Stock Brackets
- Alkyd tower with high dielectric prop. less prone to carbon tracking
- 100:1 Turns Ratio/Lower Primary Resistance Produce High Voltage
- Metal Canister Is Filled With A Premium Grade Oil For Cooling
Product Description

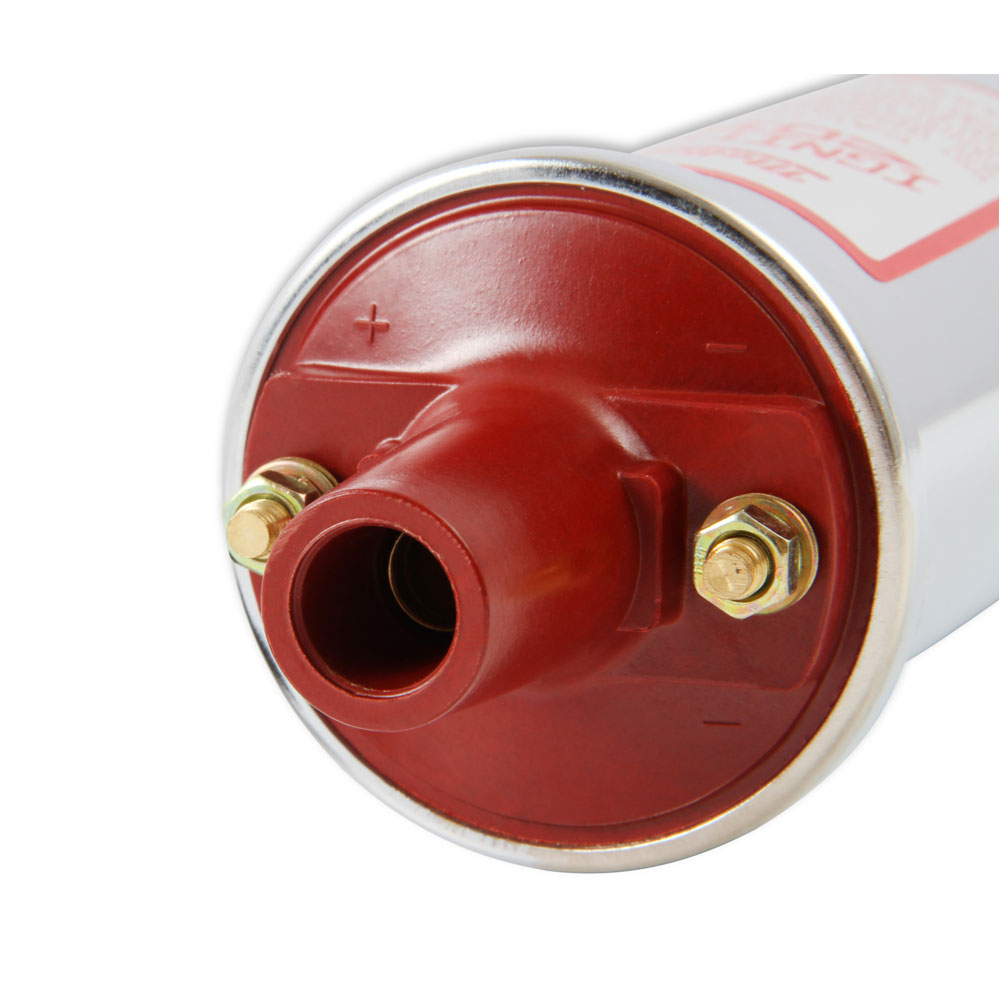

If you are looking to upgrade your stock coil, or want to compliment the performance of your Mallory HyFire Ignition, this coil is the right choice. Designed for improved spark output, special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil filled metal canister. The tower assembly is molded of durable alkyd material due to its high dielectric characteristics while wide spaced brass primary terminals prevent the possibility of arcing. When installing this coil, most late model vehicles with electronic ignitions do not require a ballast resistor, check your ignition and manufacturers specifications to determine if a ballast is required in your application. Mallory Unilite applications require the ballast resistor.
Specifications
- Ignition Coil Model or Series:
- Universal Chrome Coil
- Coil Type:
- Canister Style
- Maximum Voltage:
- 40000 Volt
- Primary Resistance:
- 1.360 Ohms
- Secondary Resistance:
- 10.87k Ohms
- Coil Wire Attachment:
- Female, Socket
- Diameter:
- 2-1/8 in.
- Finish:
- Chrome
- Internal Construction:
- Oil Filled
- Primary Inductance:
- 6.80 mH
- Turns Ratio:
- 104:1
- Includes Mounting Bracket:
- No
- Includes Ballast Resistor:
- No
- Includes Hardware:
- No
- Notes:
- Designed for use with Mallory Unitlite, Magnetic, or points
- Quantity:
- Sold As Each
