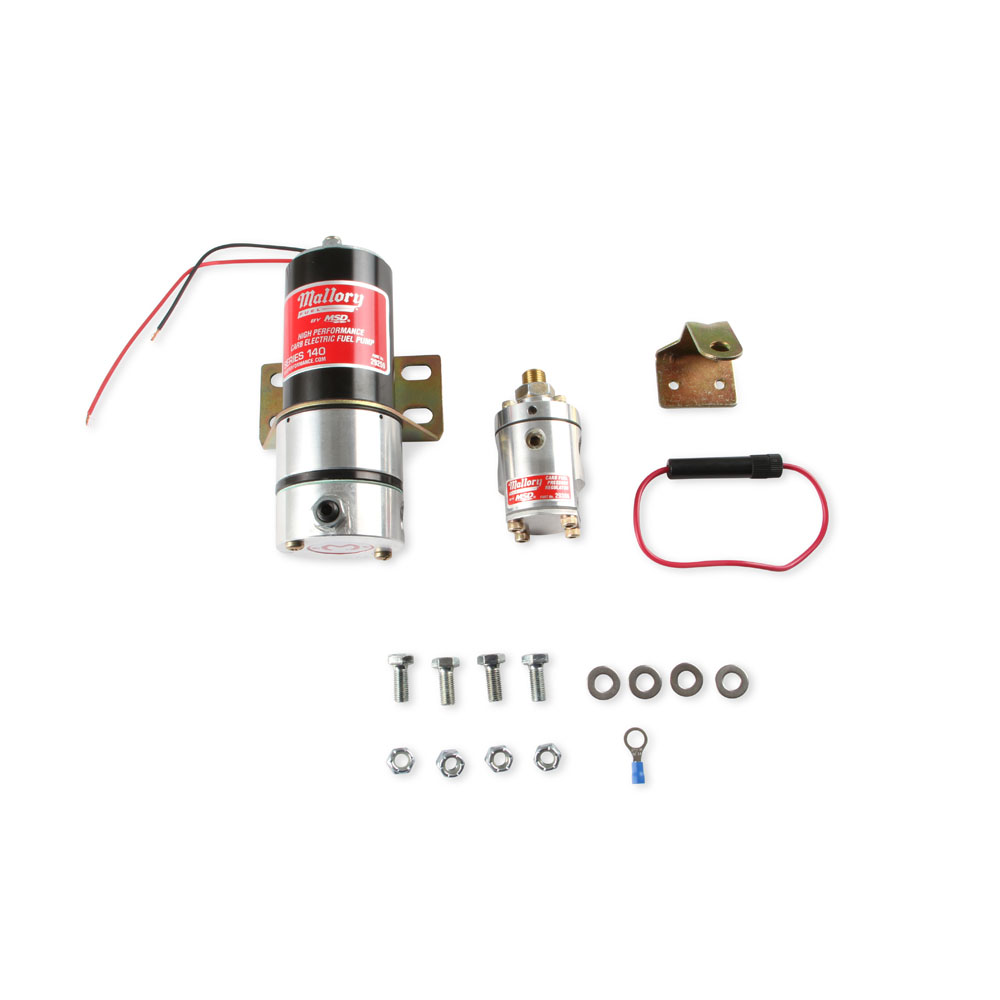

Mallory Fuel Pump and Regulator Kit 29209; Comp 140 Pump and Regulator Kit
$709.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Quiet High Efficiency Design for Stable Output
Product Description

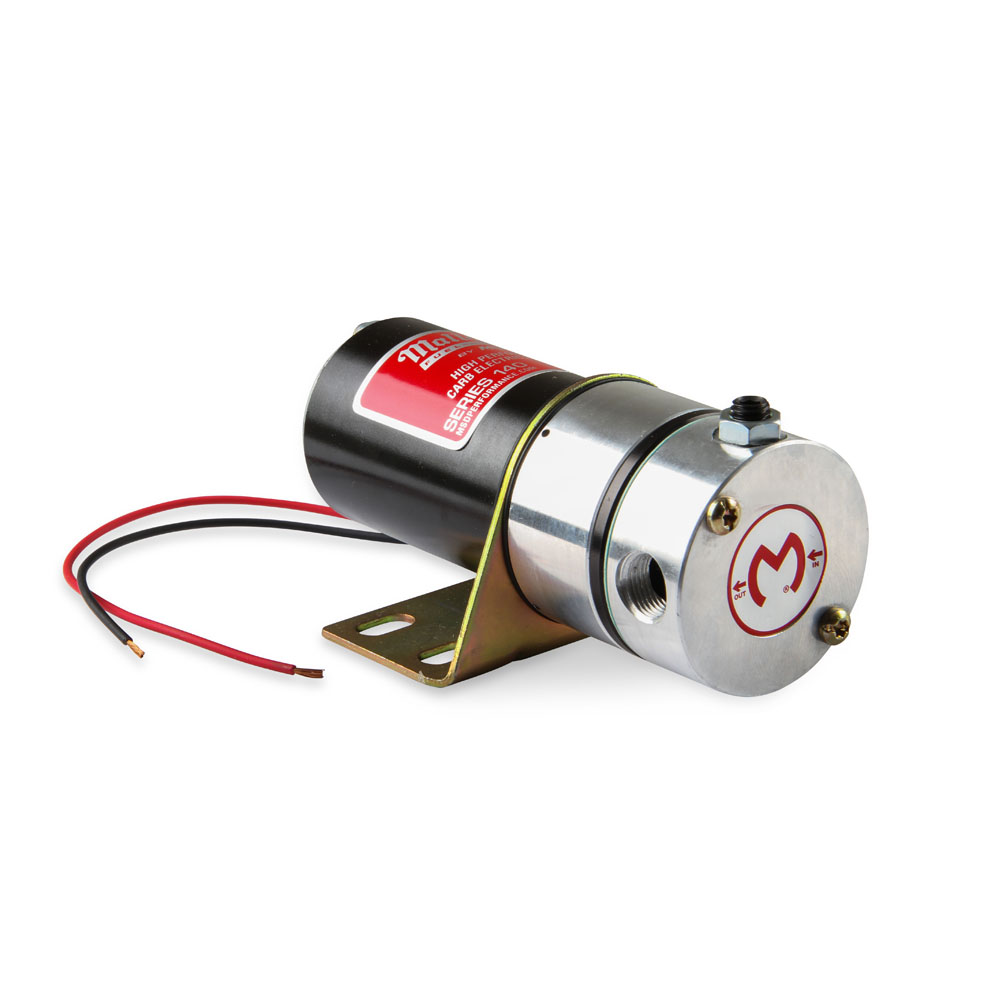

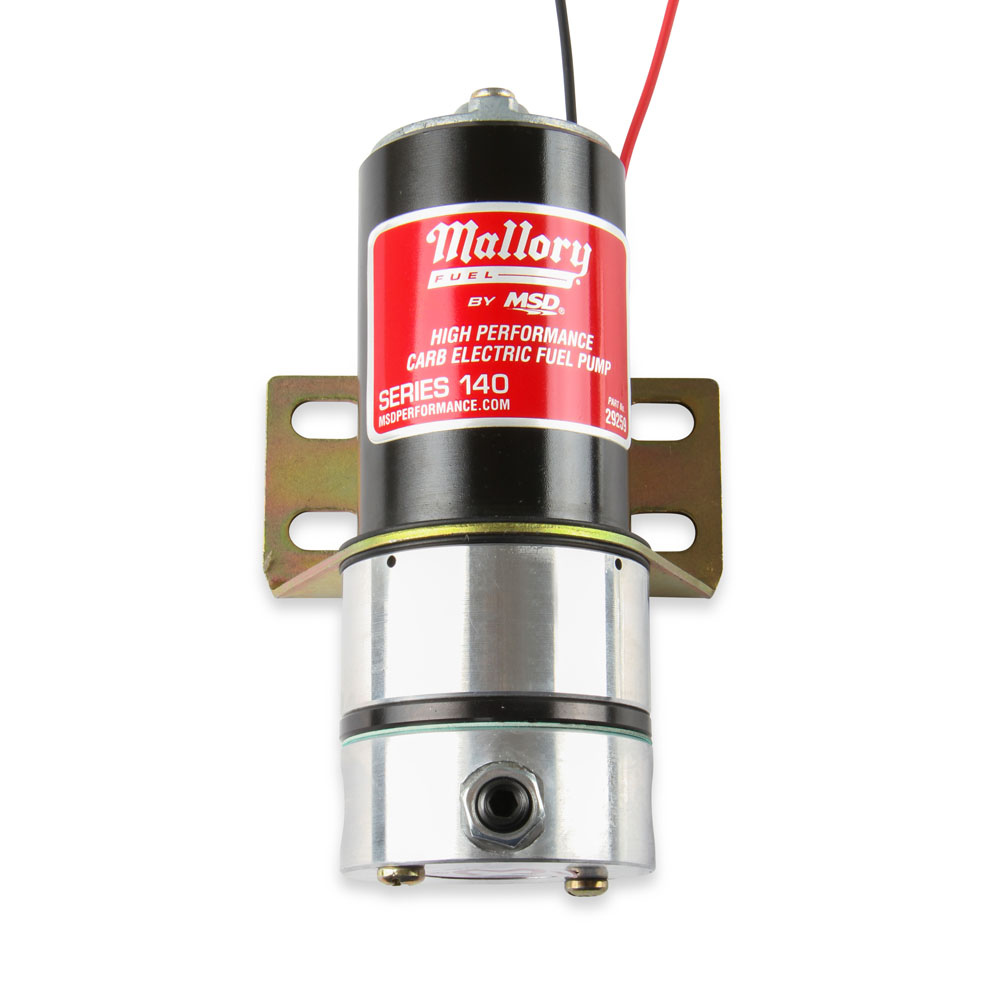

The Mallory Fuel 140 Electric Fuel Pump is a high volume high pressure fuel pump designed for high performance street, racing and marine applications. The operating fuel pressure is factory set at 12 PSI. This pump must be used with a fuel pressure regulator to prevent carburetor flooding. We recommend a 3/8" or larger fuel line with this fuel system. The Mallory Fuel Series 140 Part Nos. 4142 and 4142A come with a 3 Port Return Style Regulator. These fuel Systemsmust have a fuel return line installed between the fuel pressure regulator's fuel return port and the fuel tank.
Specifications
- Fuel Pump and Regulator Kit Series:
- Comp 140 Pump and Regulator Kit
- Compatible Fuels:
- Gasoline
- Fuel Pump Material:
- Aluminum
- Fuel Pump Finish:
- Natural
- Horsepower Rating:
- 600 to 750 HP
- Volume:
- 140 GPH
- Bypass:
- Yes
- Regulator Style:
- Non-Bypass
- Regulator Pressure Range:
- 4 to 12 PSI
- Regulator Material:
- Aluminum
- Regulator Spring Chamber Finish:
- Natural
- Regulator Fuel Chamber Finish:
- Natural
- Number of Inlet Ports:
- 2
- Inlet Port Size:
- 3/8 in. NPT
- Number of Outlet Ports:
- 1
- Outlet Port Size:
- 3/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- No
- Includes Fittings:
- No
- Quantity:
- Sold as Kit
