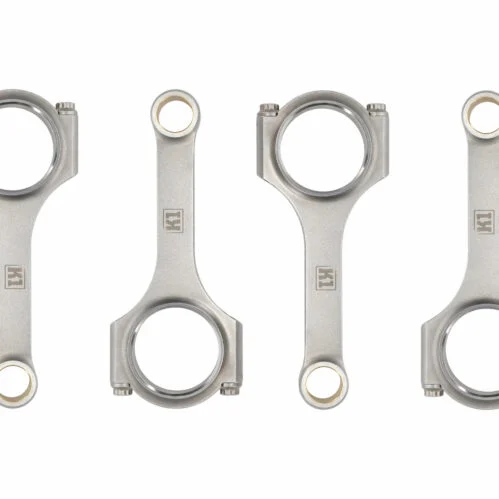

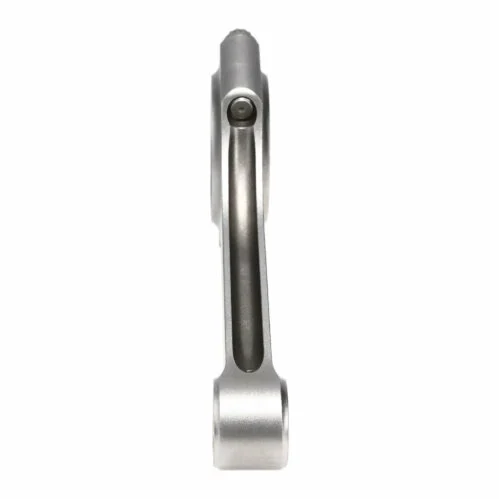

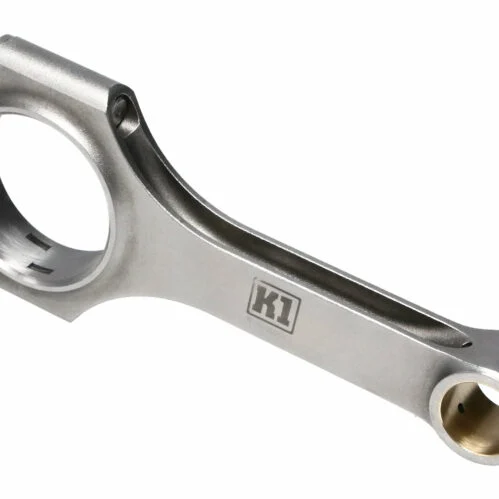

K1 Technologies Connecting Rods 042DO16143; H-Beam H-Beam 5.634 in. (143.1mm) Bushed for Opel, Vauxhall 2.0L, C20XE
$279.99
$371.97
Save 25%
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 4340 Forged Steel for strength, toughness, and resistance to impact
- High quality ARP 2000 fasteners included
- All rods are finished in the USA and held to very tight tolerences Bores finished to +/- .0001 in. and weight to +/- 1 gram per end
- Shot peened for improved fatigue life
- Premium bronze wrist pin bushings
- Designed by in-house engineering team for high-stress racing applications
- Premium bronze wrist pin bushings
- Designed by in-house engineering team for high-stress racing applications
Product Description
K1 Technologies connecting rods are manufactured with optimized strength and weight characteristics in mind to deliver reliable performance. Forged from 4340 steel, K1 rods featured a shot-peened surface finish which smooths surface blends and reduces potential stress profiles. K1 connecting rods are held to strict quality standards and undergo magnetic particle testing to ensure material properties are free of flaws. Each rod is also subject to bore tolerance compliance, holding them to +/- .0001? after finishing. Additionally, K1 rods are balanced and tested to be within +/- 1 gram per end. A dual-ribbing design on the rod caps of K1 connecting rods helps maximize strength and allows the rod big end to maintain roundness as engine RPMs increase. Full-floating, precision-honed bronze bushings are fixed into the small ends of the rods for low friction and high wear resistance. Fitted with ARP 2000 rod bolts rated at 200,000 psi tensile strength for most applications, K1 connecting rods deliver an industry-leading combination of strength and value.
Specifications
- Connecting Rods Series:
- H-Beam
- Make:
- Opel, Vauxhall
- Engine:
- 2.0L, C20XE
- Beam Style:
- H-Beam
- Rod Length:
- 5.634 in. (143.1mm)
- Material:
- Forged 4340 Steel
- Weight:
- 524 g
- Wrist Pin Diameter:
- 0.826 in.
- Wrist Pin Style:
- Bushed
- Rod Bolt Style:
- Cap Screw
- Rod Bolt Diameter:
- 3/8 in.
- Rod Bolt Material:
- ARP 2000
- Stroker Clearanced:
- No
- Big End Width:
- 1.038 in.
- Rod Bolt Part Number:
- BT61501-S
- Connecting Rod Finish:
- Shot Peened
- Big End Bore:
- 2.047 in.
- Quantity:
- Sold As Set (4/pkg)
