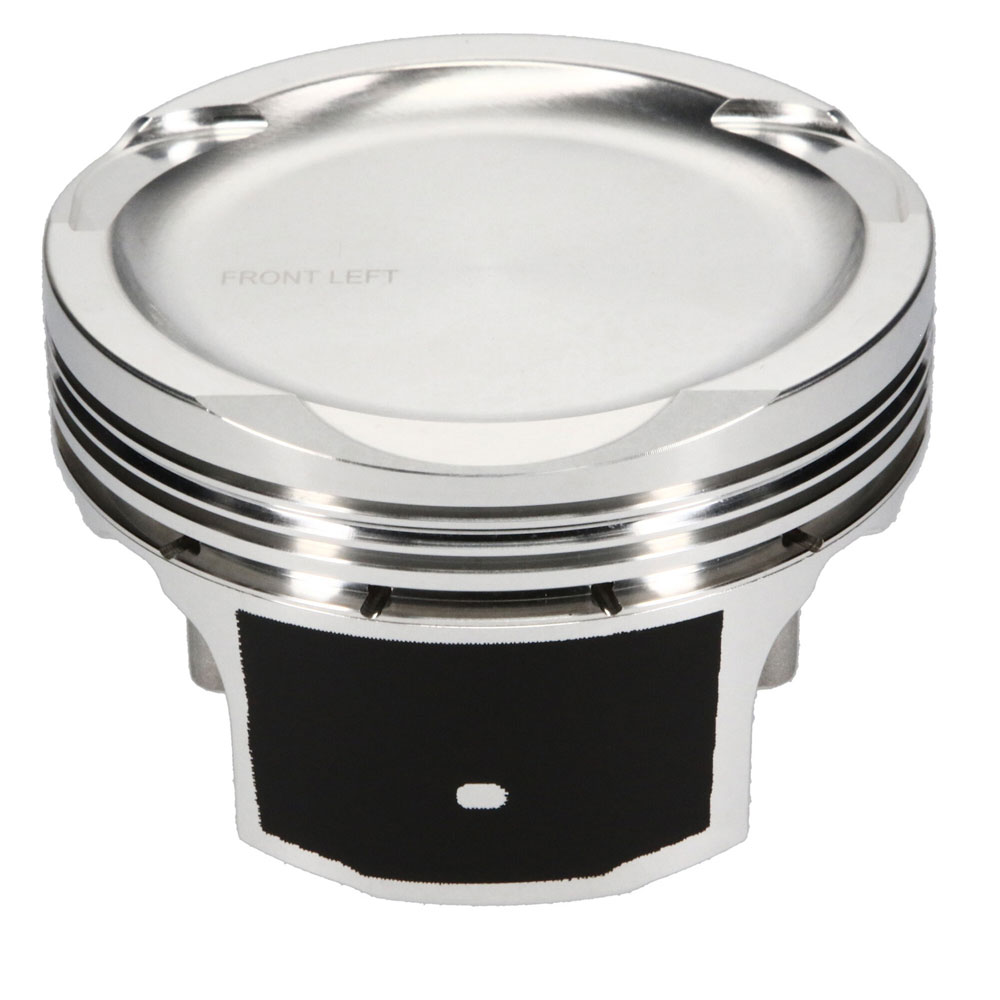

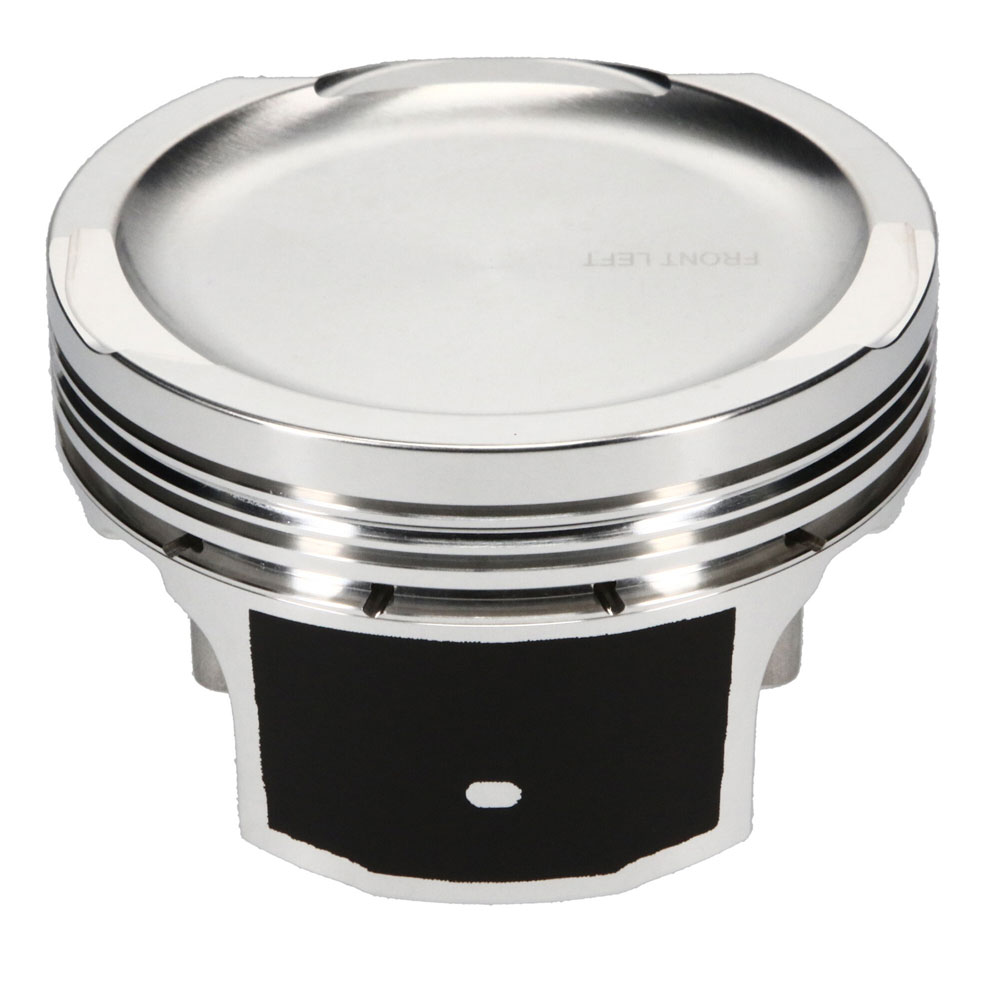

JE Pistons Piston Set 314623; FSR 3.701 in. -7.40 cc Dish (3V) for Ford 5.3L MOD 4.6L Stroker3V
$924.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
Product Description
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications
- Piston Set Series:
- FSR
- Make:
- Ford
- Engine:
- 5.3L MOD 4.6L Stroker3V
- Bore:
- 3.701 in.
- Stroke:
- 3.750 in.
- Rod Length:
- 144.000 mm
- Compression Height:
- 30.500 mm
- Crown Volume:
- -7.40 cc Dish (3V)
- Weight:
- 362 g
- Pin Diameter:
- 22.000 mm
- Piston Material:
- Forged 2618 Alloy
- Ring Lands:
- 1.0, 1.2, 2.8 mm
- Wrist Pin Fitment:
- Floating
- Rings Included:
- No
- Quantity:
- Sold As Set (8/pkg)
