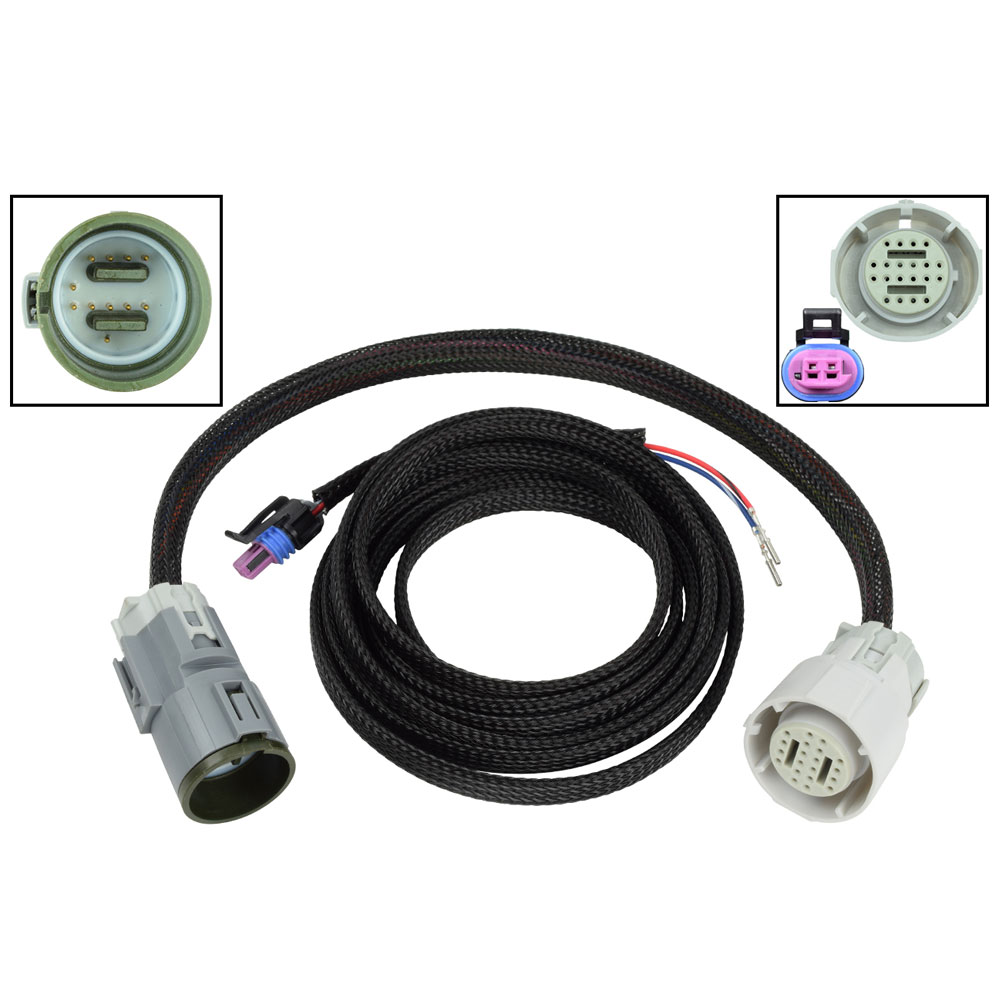

ICT Billet Transmission Wiring Harness WATRA30-18; 4L60E to 4L80E Conversion for Chevy 4L60E, 4L80E
$120.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- LS Transmission Adapter Harness-18" (4L60E vehicle harness to 4L80E transmission)
- Made with OEM grade TXL wire
- Fits GM Vehicles originally equipped with LS series 4L60E Transmissions
- Includes: 1 transmission adapter harness and 1 vehicle speed sensor connector
- Assembled with OEM tooling, OEM Delphi (connector, lock, seals, and terminals),(uses OEM harness wire colors) for a perfect fit
- Used to retain all appropriate electrical connections to transmission when converting from 4L60E to 4L80E
- VSS Pin Locations: Red(or Green) ECU Connector // Red w/ Black Stripe=Pin 22 ; Dark Blue w/ White Stripe=Pin 23
- Supplied VSS connector plugs into "front" Input Speed Sensor in transmission. Connector from engine harness plugs into rear VSS sensor in transmission.
- Assembled with OEM tooling, OEM Delphi (connector, lock, seals, and terminals),(uses OEM harness wire colors) for a perfect fit
- Used to retain all appropriate electrical connections to transmission when converting from 4L60E to 4L80E
- VSS Pin Locations: Red(or Green) ECU Connector // Red w/ Black Stripe=Pin 22 ; Dark Blue w/ White Stripe=Pin 23
- Supplied VSS connector plugs into "front" Input Speed Sensor in transmission. Connector from engine harness plugs into rear VSS sensor in transmission.
Specifications
- Transmission Wiring Harness Series:
- 4L60E to 4L80E Conversion
- Make:
- Chevy
- Transmission:
- 4L60E, 4L80E
- Length:
- 18.000 in. (adapter), 96.000 in. (VSS)
- Quantity:
- Sold As Each
