ICT Billet Motor Mount Adapter Plate 551628; LS to Swap Plates for GM LS

Details

• LS to SBC Engine Swap / Engine Mount Brackets

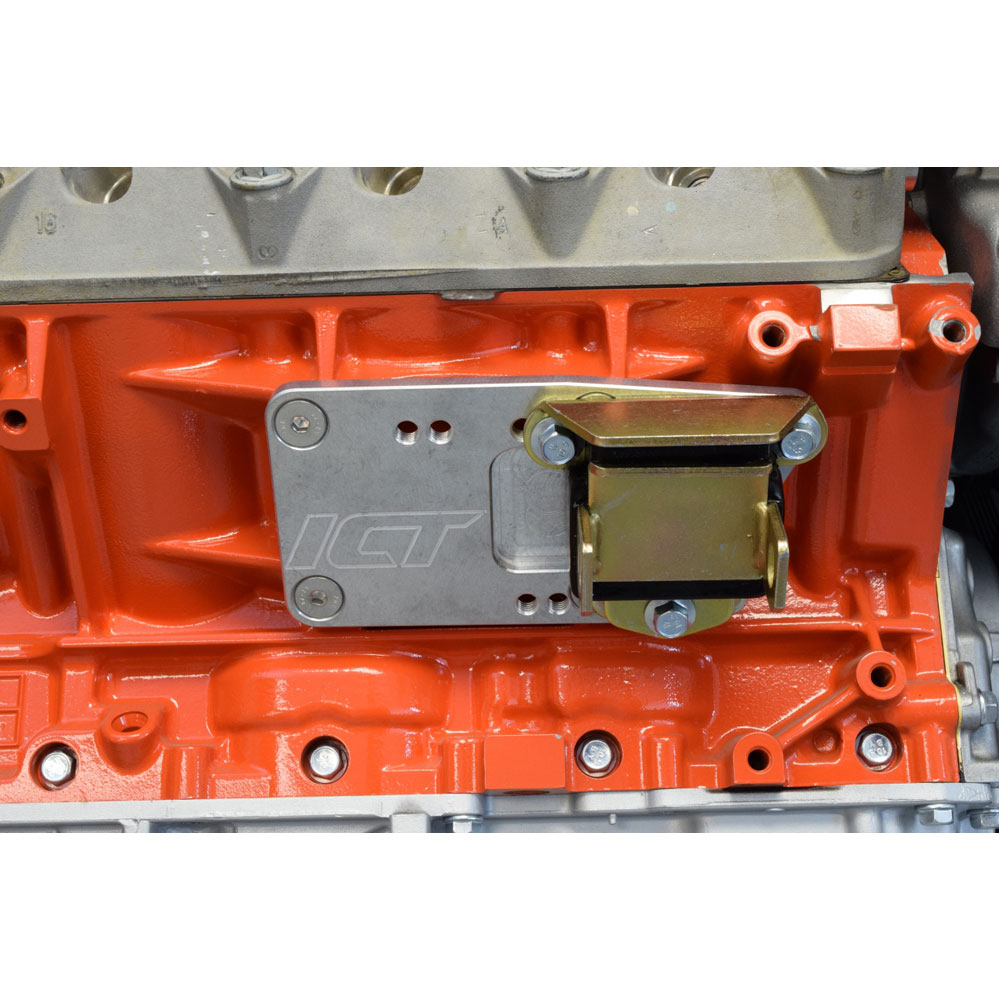

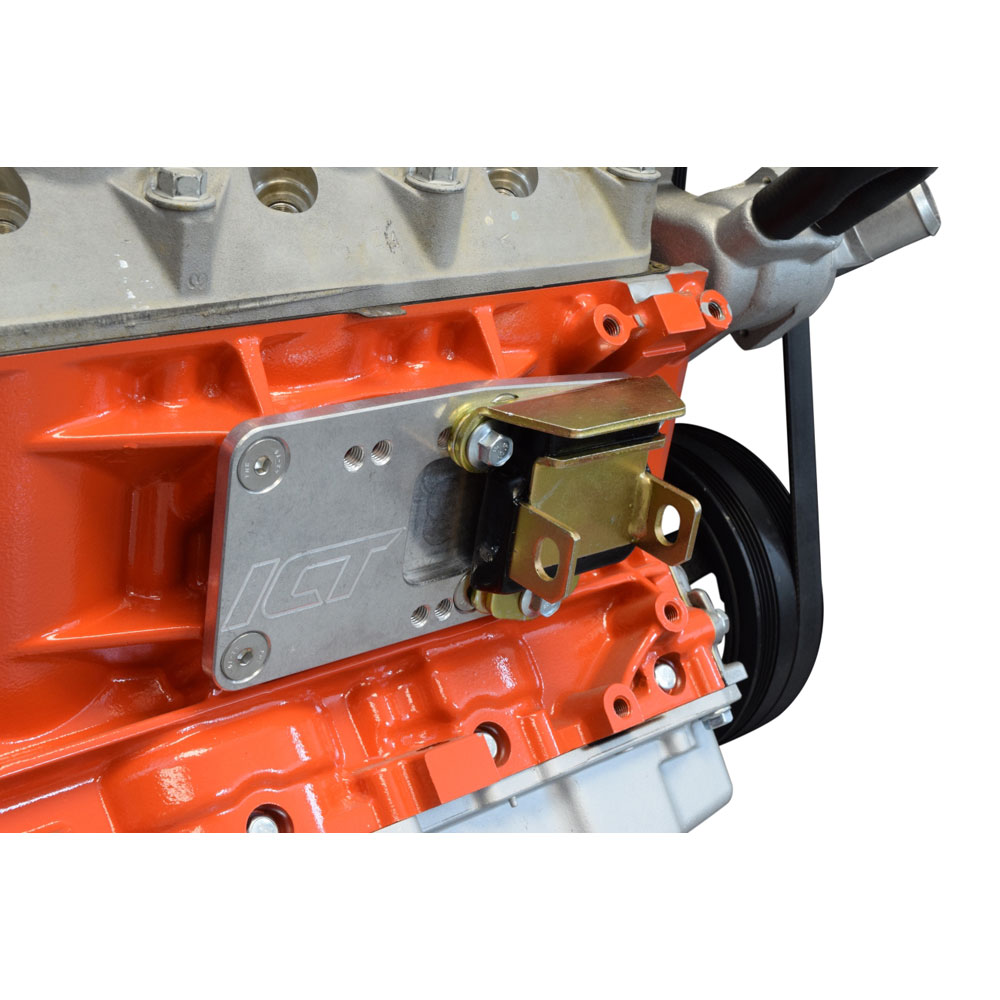

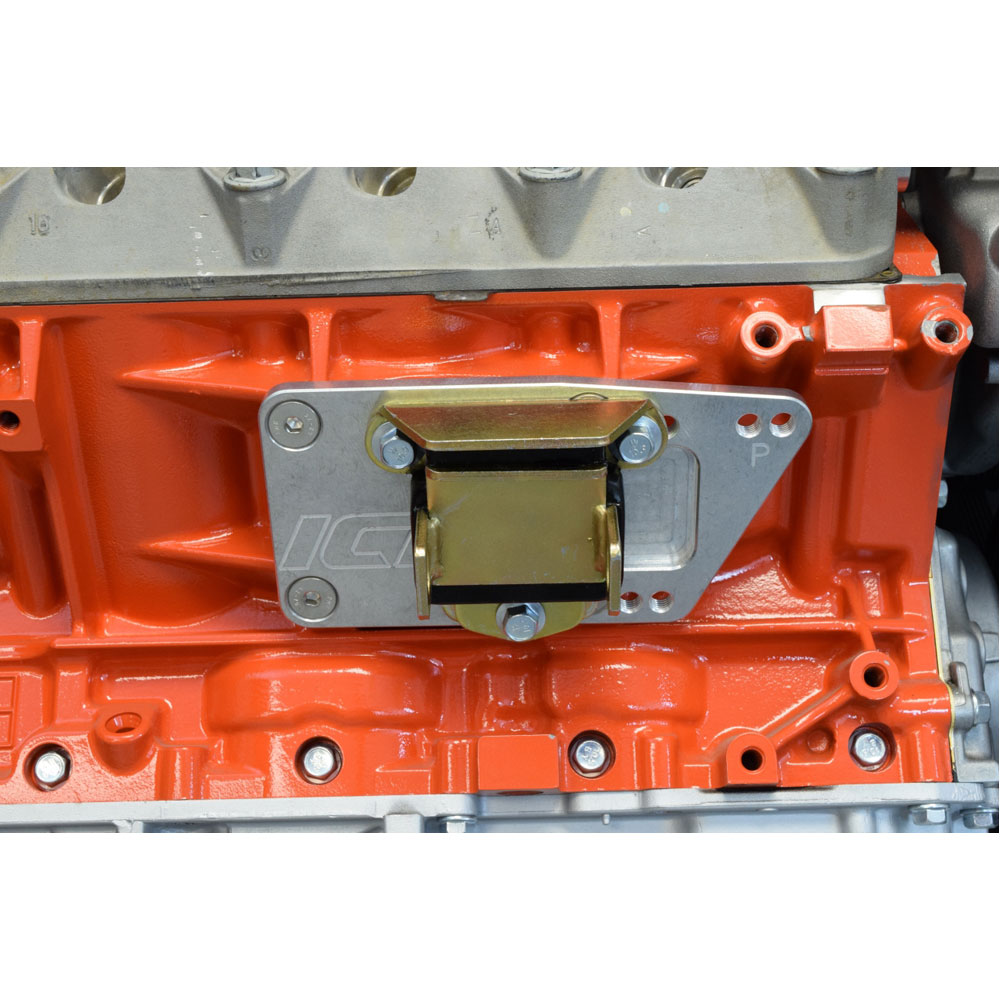

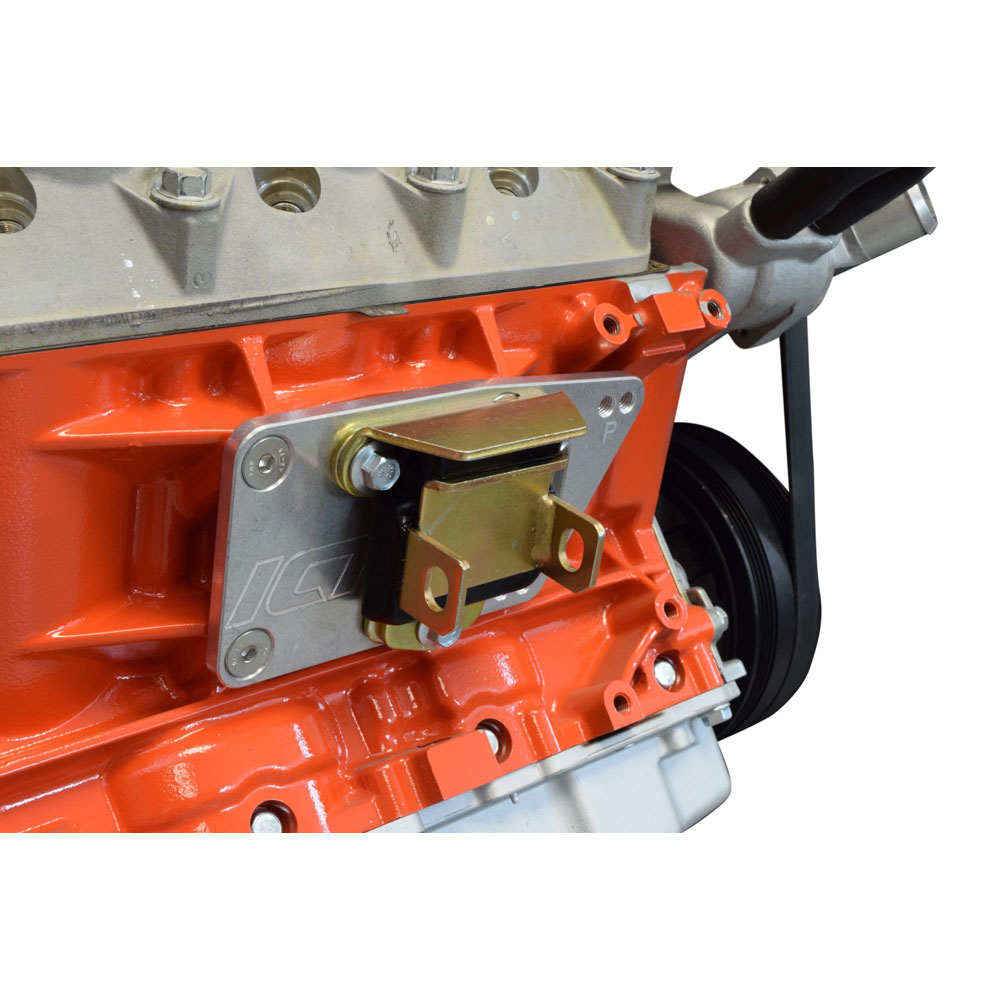

• These brackets allow a LS series engine to be bolted into a vehicle that originally had a small block chevy engine with your existing mounts (see photos).
• Made with OEM specifications for the best possible fitment into your vehicle
• These plates will move the crankshaft centerline up .177" in the vehicle
• Made in Wichita, Kansas from aerospace grade, USA produced, 3/8" billet aluminum
• Includes: 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts (plates are M10 threaded, use the hardware included)
• Natural aluminum finish
• There are 4 positions for maximum adjustment of engine (from forward of OEM bellhousing position [due to bolt interference, OEM location is not possible for any brand of flat style swap plates] ~forward most position shown in photos~, Secondary positions are: .600",1.86", and 2.36" engine moved forward)
• These swap plates will shift the crankshaft centerline up above factory small block location.
• At ICT Billet we use GM factory specifications to determine exact mounting locations for the most accurate engine positioning.

• Made in Wichita, Kansas from aerospace grade, USA produced, 3/8" billet aluminum
• Includes: 2 adapter plates, 8 flat head bolts, and 6 flange M10-1.5 bolts (plates are M10 threaded, use the hardware included)
• Natural aluminum finish
• There are 4 positions for maximum adjustment of engine (from forward of OEM bellhousing position [due to bolt interference, OEM location is not possible for any brand of flat style swap plates] ~forward most position shown in photos~, Secondary positions are: .600",1.86", and 2.36" engine moved forward)
• These swap plates will shift the crankshaft centerline up above factory small block location.
• At ICT Billet we use GM factory specifications to determine exact mounting locations for the most accurate engine positioning.
