ICT Billet Alternator Bracket 551587-LS01-3; Relocation Bracket LS3 or LS1 with 551690-71 Spacers Natural Passenger Side High for GM Truck LS
$115.99
Part #: 551587-LS01-3
Brand: ICT Billet
UPC: 840117201903
Estimated Ship Date: This part is unavailable with no ETA
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- LS Truck Turbo Alternator Bracket
- Water Pump - Compatible with: 1998-2002 LS1 Camaro water pump (ICT# WAT200 w/ 551690-71 spacers) (or L99/LS3 Camaro SS water pump w/o spacers) (ICT# WAT302)

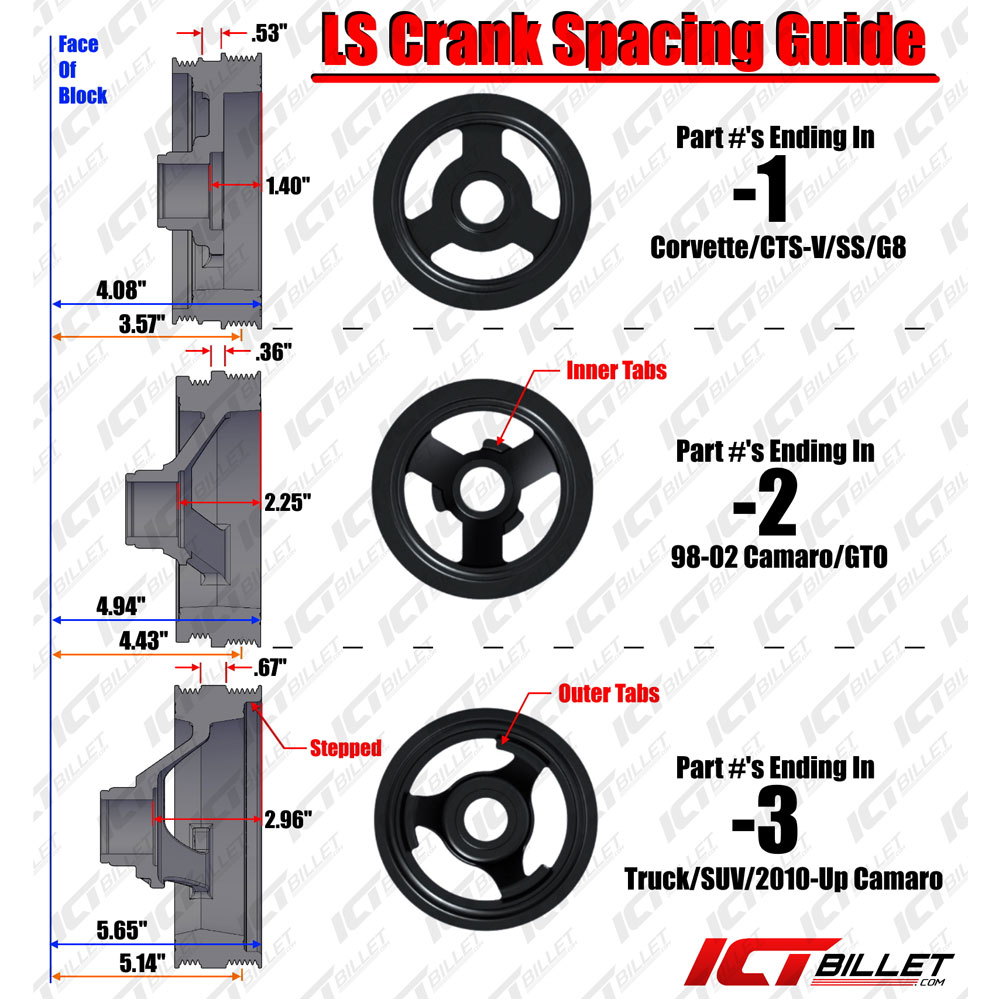

- Crank Pulley - Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
- Alternator - Use 105 or 145 amp alternator ONLY: (ICT# ALT300) (will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators)

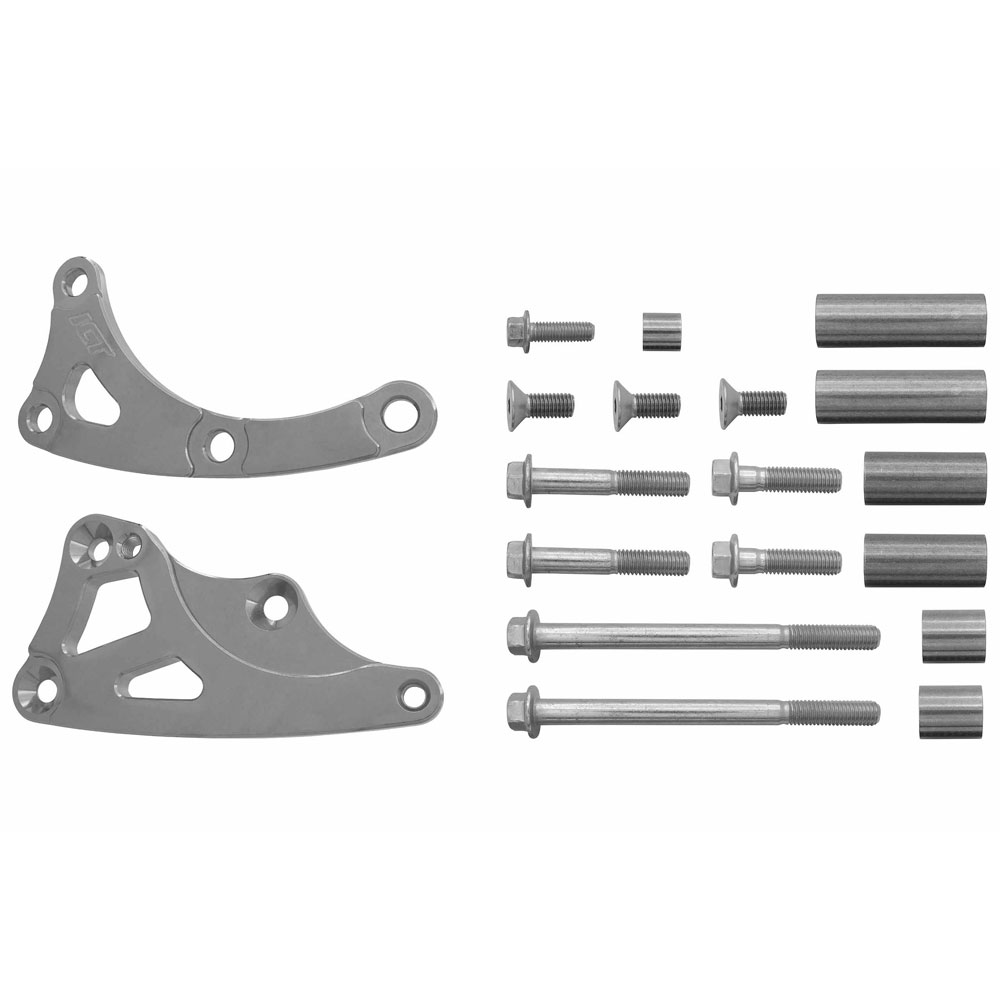

- Includes: alternator bracket and mounting hardware
- Compatible with all GM LS series engine cylinder heads
- If needing to extend your alternator harness connection, use ICT# WEALT30 (4-pin wired alternator) or WEALT40 (2-pin)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- NOT compatible with ICT #551675 coolant crossover kit with steam vent port
- Includes: alternator bracket and mounting hardware
- Compatible with all GM LS series engine cylinder heads
- If needing to extend your alternator harness connection, use ICT# WEALT30 (4-pin wired alternator) or WEALT40 (2-pin)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- NOT compatible with ICT #551675 coolant crossover kit with steam vent port
Product Description
LS Truck Turbo Alternator Bracket Â
Â
Water Pump - Compatible with:  1998-2002 LS1 Camaro water pump (ICT# WAT200 w/ 551690-71 spacers) (or L99/LS3 Camaro SS water pump w/o spacers) (ICT# WAT302)
Crank Pulley -Â Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
Alternator -Â Use 105 or 145 amp alternator ONLY: (ICT# ALT300) (will not fit Corvette/CTSV, SS, G8 or 2010-15 Camaro large bolt pattern alternators)
Includes: alternator bracket and mounting hardware
Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum
Compatible with all GM LS series engine cylinder heads
If needing to extend your alternator harness connection, use ICT# WEALT30Â (4-pin alternator) or WEALT40Â (2-pin)
Â
Compatible with: 670K6 (67.0 inch) belt when used with ICT 551581-3 power steering kit for turbo.
For non-power steering, use ICT Billet 551596-3 manual tensioner (or complete kit with water pump spacers 551573-3)
Â
Â
*NOTÂ compatible with ICT #551675 coolant crossover kit with steam vent port
Â
WARNING - This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm.
WARNING - This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm.
Specifications
- Alternator Bracket Series:
- Relocation Bracket
- Make:
- GM
- Model:
- Truck
- Engine:
- LS
- Mounting Position:
- Passenger Side High
- Finish:
- Natural
- Material:
- Billet Aluminum
- Includes Hardware:
- Yes
- Water Pump Style:
- LS3 or LS1 with 551690-71 Spacers
- Quantity:
- Sold As Kit
