ICT Billet Alternator Bracket 551136-3; Heavy Duty Remote, Electric Natural Passenger Side Low for GM Trucks, SUVs LS
$160.99
Details

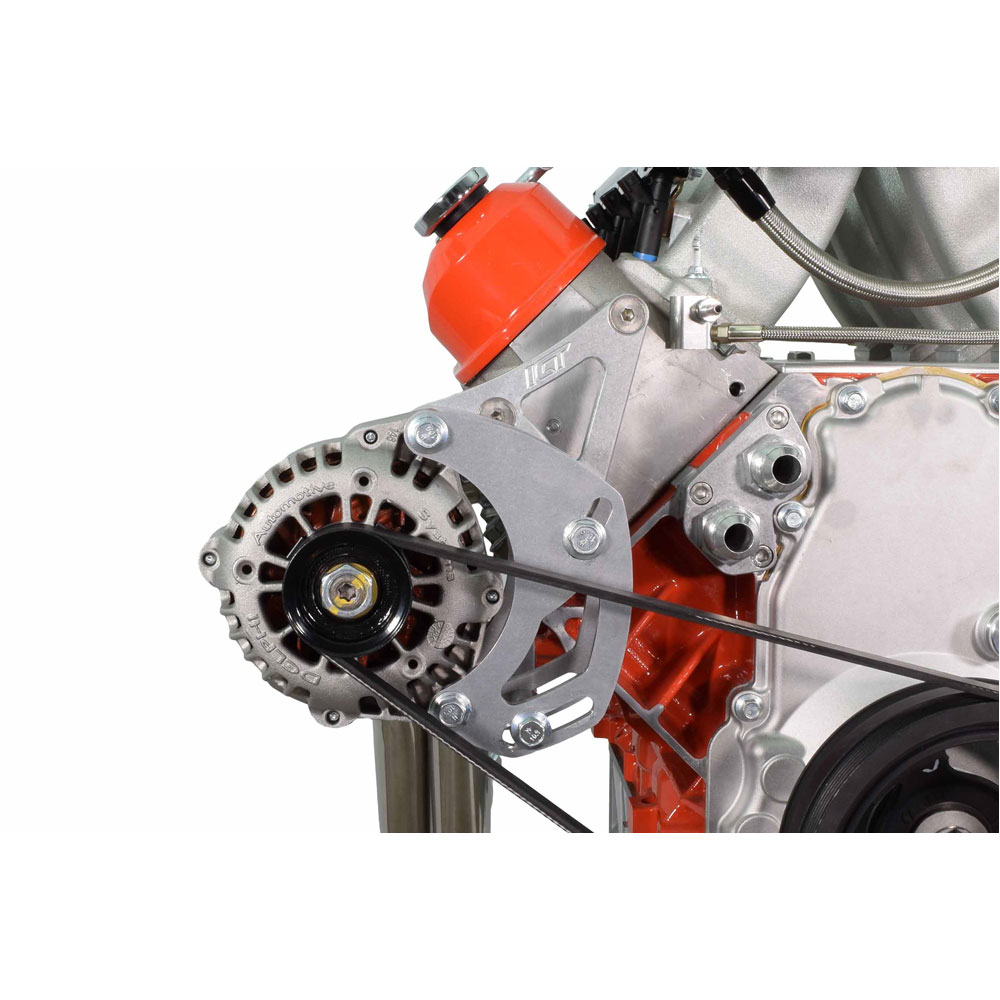

- Places the alternator next to the passenger side head, designed to clear electric or remote water pumps only
- Compatible with: LS Truck/SUV (or 2010-15 Camaro) crank pulley (ICT# BAL300)
- Alternator: (ICT# ALT300)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

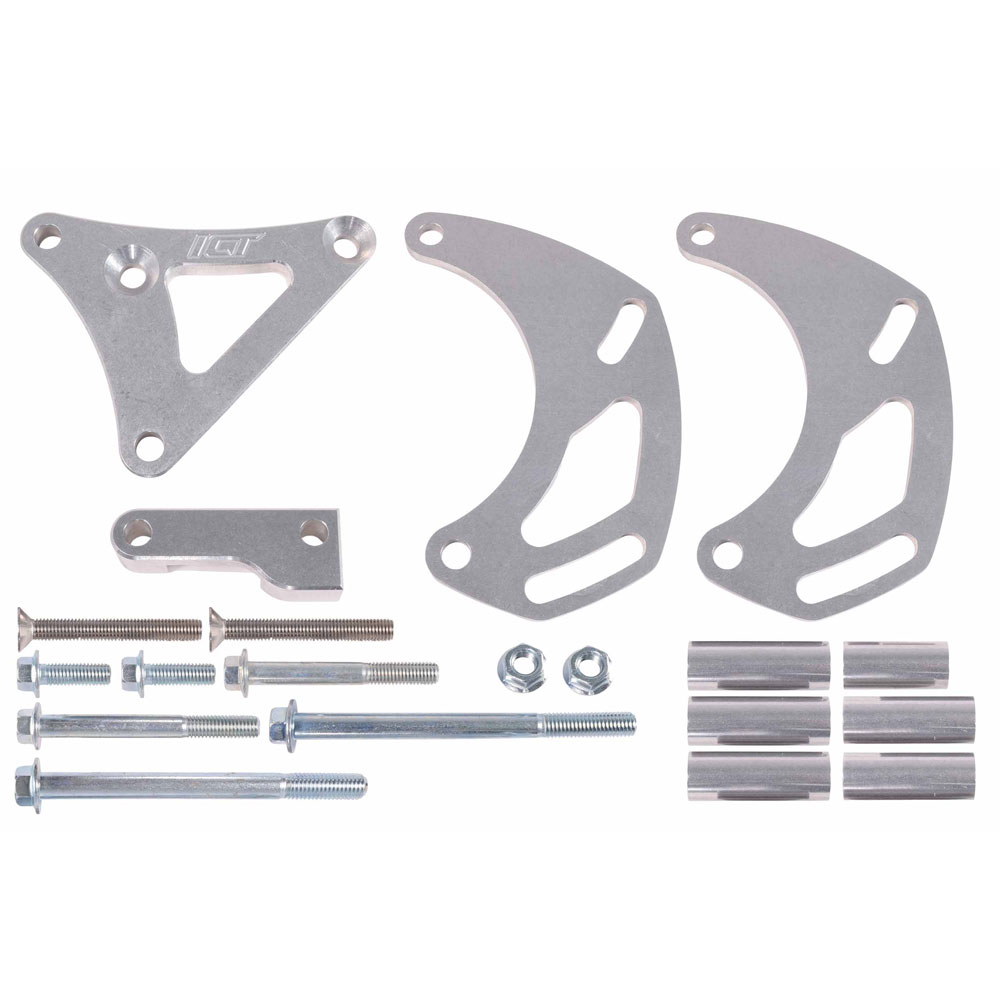

- Includes: alternator bracket and mounting hardware
- Compatible with 436K6 (43.6 inch) belt when used with 105 amp alternator. 145&160 amp alternators will use approx. 3/4" longer belt
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Includes: alternator bracket and mounting hardware
- Compatible with 436K6 (43.6 inch) belt when used with 105 amp alternator. 145&160 amp alternators will use approx. 3/4" longer belt
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
Specifications
- Alternator Bracket Series:
- Heavy Duty
- Make:
- GM
- Model:
- Trucks, SUVs
- Engine:
- LS
- Mounting Position:
- Passenger Side Low
- Finish:
- Natural
- Material:
- Billet Aluminum
- Includes Hardware:
- Yes
- Water Pump Style:
- Remote, Electric
- Quantity:
- Sold As Kit
