ICT Billet Alternator and Power Steering Bracket Kit 551669-2; Low Mount Natural Billet Aluminum Any LS – except Corvette/CTSV/G8 or 2010-up Camaro large bolt pattern 1998 to 2002 Camaro LS1 for 1998 to 2002 GM Camaro LS
$157.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- LS1 Camaro Alternator and Power Steering Pump Bracket Kit
- Requires: 1998-02 LS1 Camaro (GTO any year) crank pulley (12553118)
- Requires: 1998-02 LS1 Camaro power steering pump & pulley (PUM200 & PUL200)
- Alternator: (ALT300)(will not fit Corvette/CTSV/G8 or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage. 145+ alternators do not have the provision for the rear bracket, but can still be used.
- Made in Wichita, KS from aerospace grade, USA billet aluminum

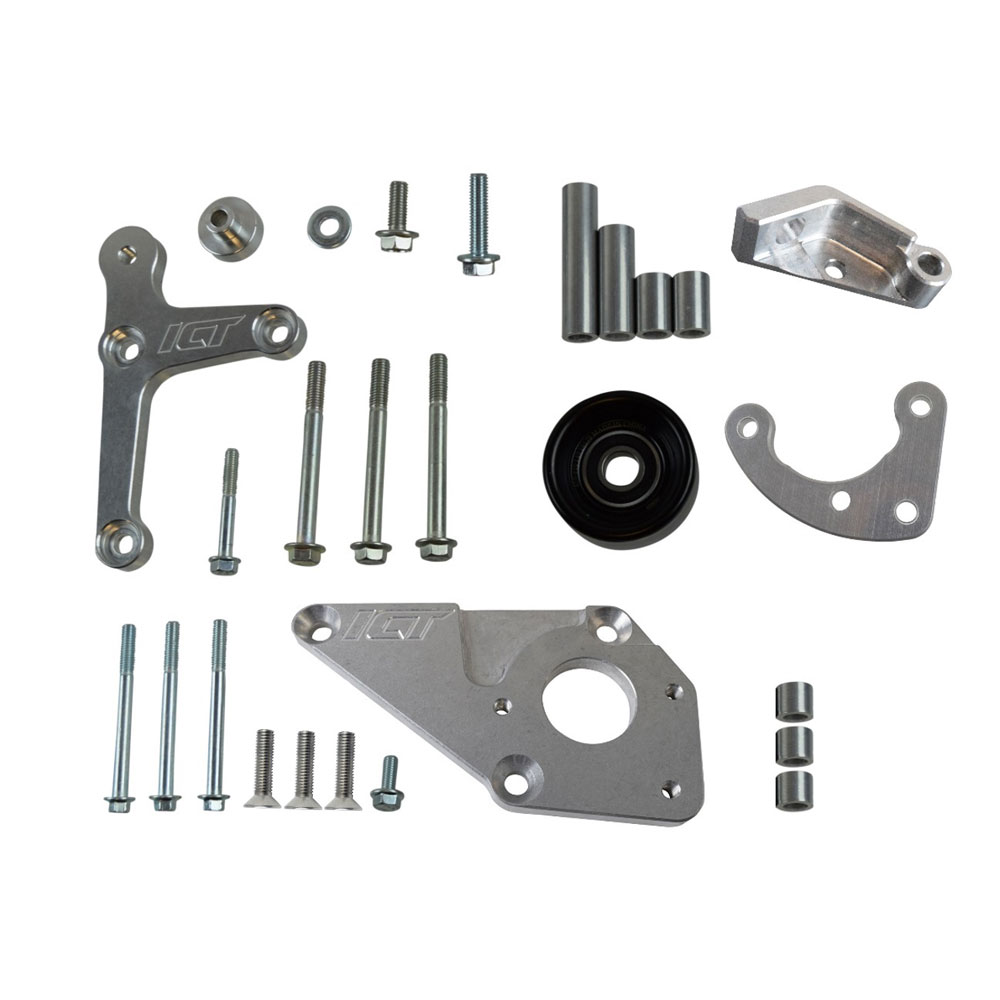

- Includes: alternator bracket, power steering bracket, idler pulley, and mounting hardware
- Fits: all GM LS series engines
- On truck engine blocks with only 1 mounting hole in the block, you will be required to drill a second mounting hole using drill template 551445
- Requires: 955K6 (95.5 inch) belt with 105 amp alternator and ICT Billet 551472-2 Sanden 7176 A/C kit
- 987K6 (98.7 inch) belt with 105 amp alternator and ICT Billet 551474-2 Sanden 508 A/C kit
- 895K6 (89.5 inch) belt with 105 amp alternator and ICT Billet 551495-2 R4 A/C kit
- 790K6 (79.0 inch) belt with 105 amp alternator and factory belt tensioner
- 980K6 (98.0 inch) belt with 105 amp alternator and ICT Billet 551585X-2 R4 A/C HD kit

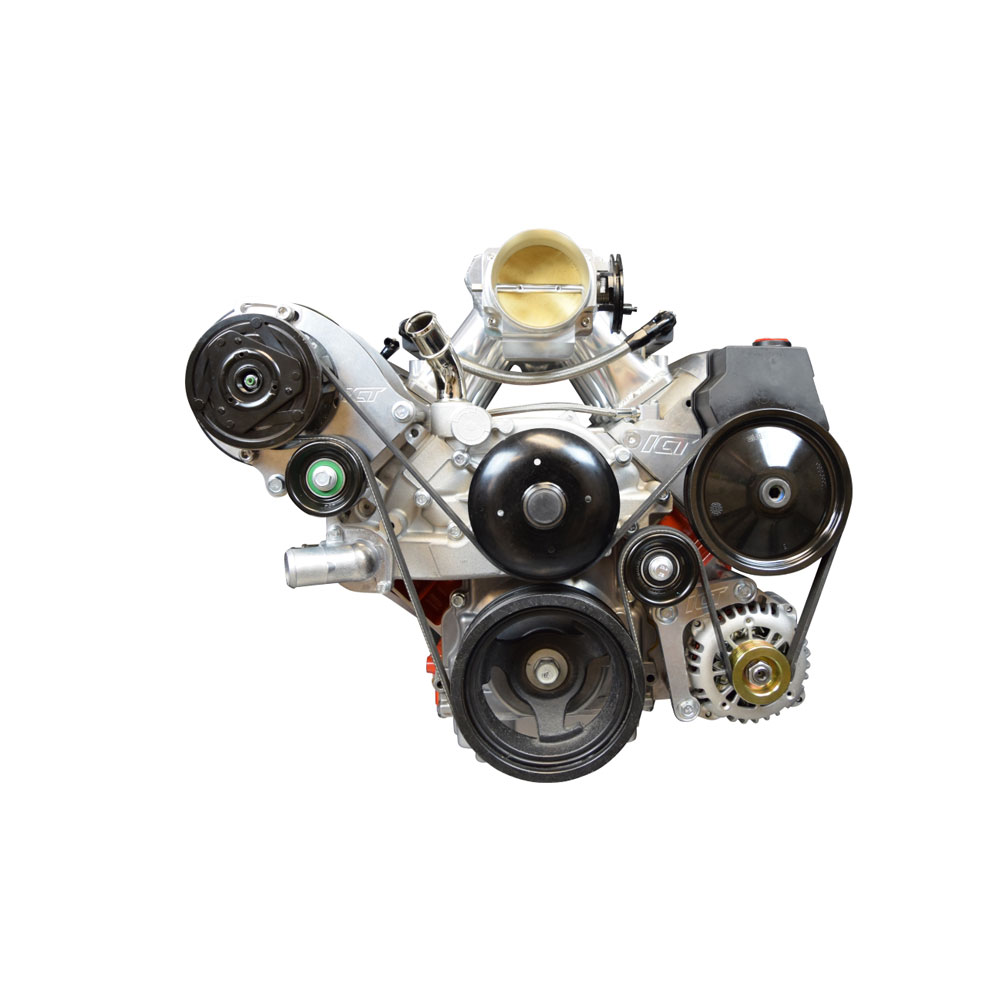

- These brackets mounts the power steering pump and alternator in the 98-02 Camaro Z28 Factory Location
- Made in Wichita, KS from aerospace grade, USA billet aluminum
- Includes: alternator bracket, power steering bracket, idler pulley, and mounting hardware
- Fits: all GM LS series engines
- On truck engine blocks with only 1 mounting hole in the block, you will be required to drill a second mounting hole using drill template 551445
- Requires: 955K6 (95.5 inch) belt with 105 amp alternator and ICT Billet 551472-2 Sanden 7176 A/C kit
- 987K6 (98.7 inch) belt with 105 amp alternator and ICT Billet 551474-2 Sanden 508 A/C kit
- 895K6 (89.5 inch) belt with 105 amp alternator and ICT Billet 551495-2 R4 A/C kit
- 790K6 (79.0 inch) belt with 105 amp alternator and factory belt tensioner
- 980K6 (98.0 inch) belt with 105 amp alternator and ICT Billet 551585X-2 R4 A/C HD kit
- These brackets mounts the power steering pump and alternator in the 98-02 Camaro Z28 Factory Location
Specifications
- Alternator and Power Steering Bracket Kit Series:
- Low Mount
- Year:
- 1998 to 2002
- Make:
- GM
- Model:
- Camaro
- Engine:
- LS
- Material:
- Billet Aluminum
- Finish:
- Natural
- Fits Alternator(s):
- Any LS - except Corvette/CTSV/G8 or 2010-up Camaro large bolt pattern
- Alternator Bracket Style:
- Low Mount
- Alternator Mounting Position:
- Low Drivers Side
- Fits Power Steering Pump(s):
- 1998 to 2002 Camaro LS1
- Power Steering Bracket Style:
- High Mount
- Power Steering Mounting Position:
- Driver Side
- Includes Hardware:
- Yes
- Quantity:
- Sold As Kit
