ICT Billet Alternator and Power Steering Bracket Kit 551416; Alternator and Power Steering Brackets Natural Billet Aluminum 12 SI Style 36P1435 Style for Chevy 396 to 454

Details

• Does NOT include pulley
• BBC Alternator & Power Steering Bracket Kit for Electric Water Pumps
• Works with serpentine and V-belt pulleys
• Fits BBC engines with electric water pump, must use long water pump pulleys and 36P1435 style power steering pump
• Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum
• Includes: alternator bracket, pump bracket, instructions, and mounting hardware
• Requires Long Water Pump & Pulleys.
• Cylinder head must have 3/8 threaded hole (same as water pump bolt thread)
• Depending on thickness of water pump base, the spacers may need trimmed to fit certain applications

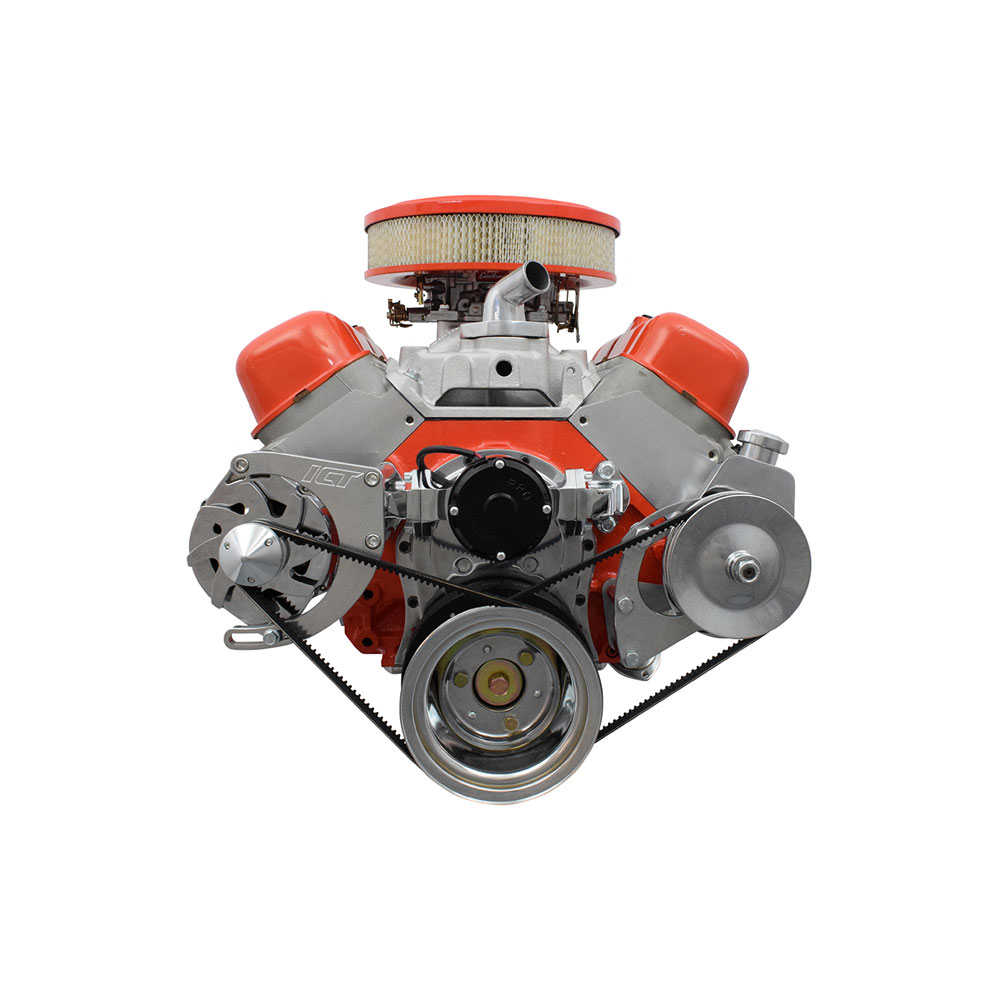

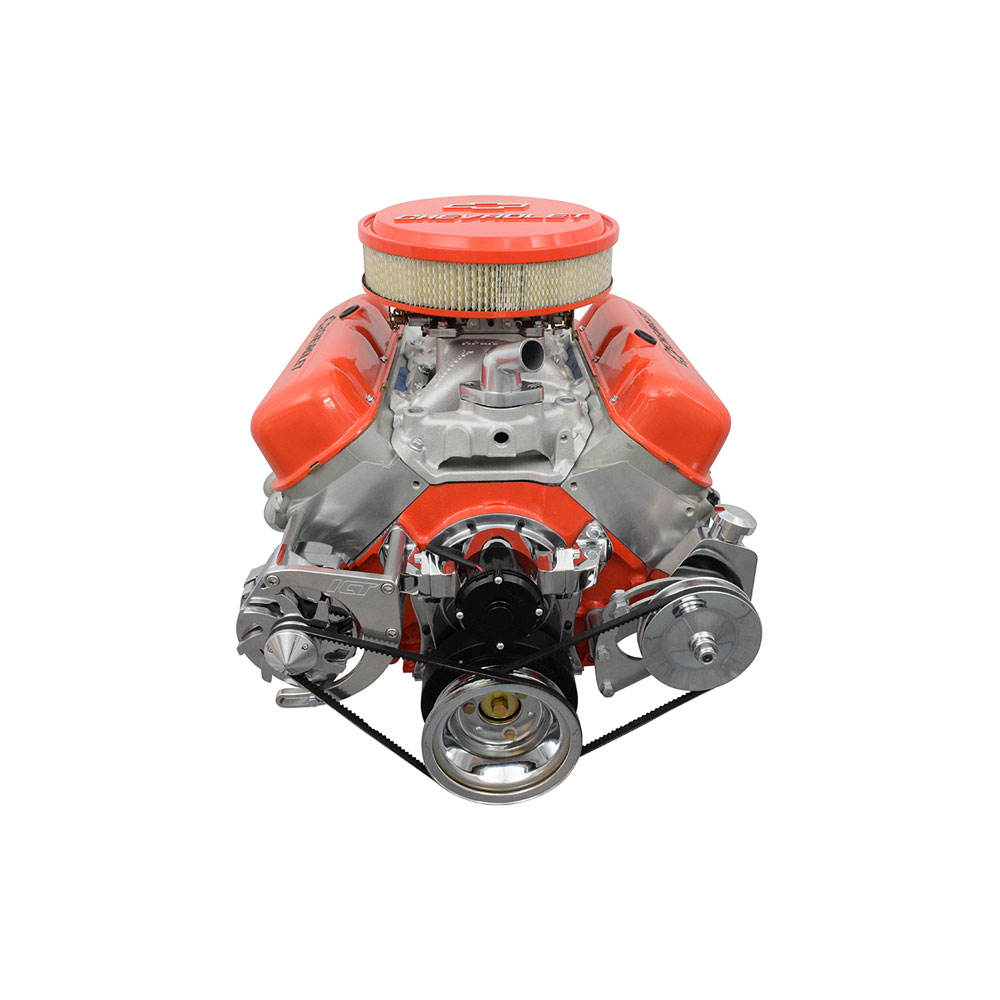

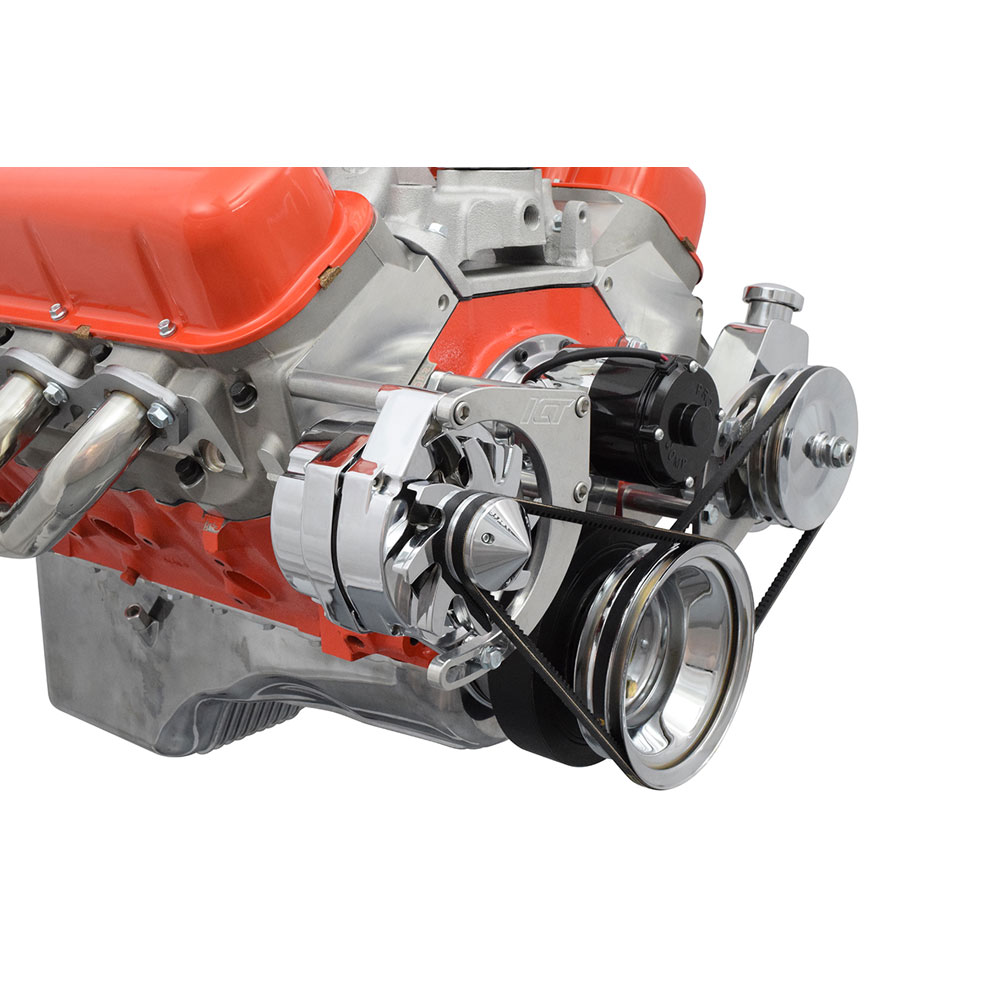

• Shown with electric water pump part# E-5927-P (not included) and AC Delco alternator part # 335-1093 (not included)
• Fits Chevy alternators with 6.56 inch, center to center bolt holes (12SI style alternators)
• Suggested Power Steering Pump Part # 36P1435 (see photo)
• Bracket is only compatible with the shown pump style
• Power steering Uses 41" V-belt (with factory diameter pulleys)

• Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum
• Includes: alternator bracket, pump bracket, instructions, and mounting hardware
• Requires Long Water Pump & Pulleys.
• Cylinder head must have 3/8 threaded hole (same as water pump bolt thread)
• Depending on thickness of water pump base, the spacers may need trimmed to fit certain applications
• Shown with electric water pump part# E-5927-P (not included) and AC Delco alternator part # 335-1093 (not included)
• Fits Chevy alternators with 6.56 inch, center to center bolt holes (12SI style alternators)
• Suggested Power Steering Pump Part # 36P1435 (see photo)
• Bracket is only compatible with the shown pump style
• Power steering Uses 41" V-belt (with factory diameter pulleys)
