ICT Billet A/C Compressor Bracket 551585X-2; for GM Camaro LS

Details

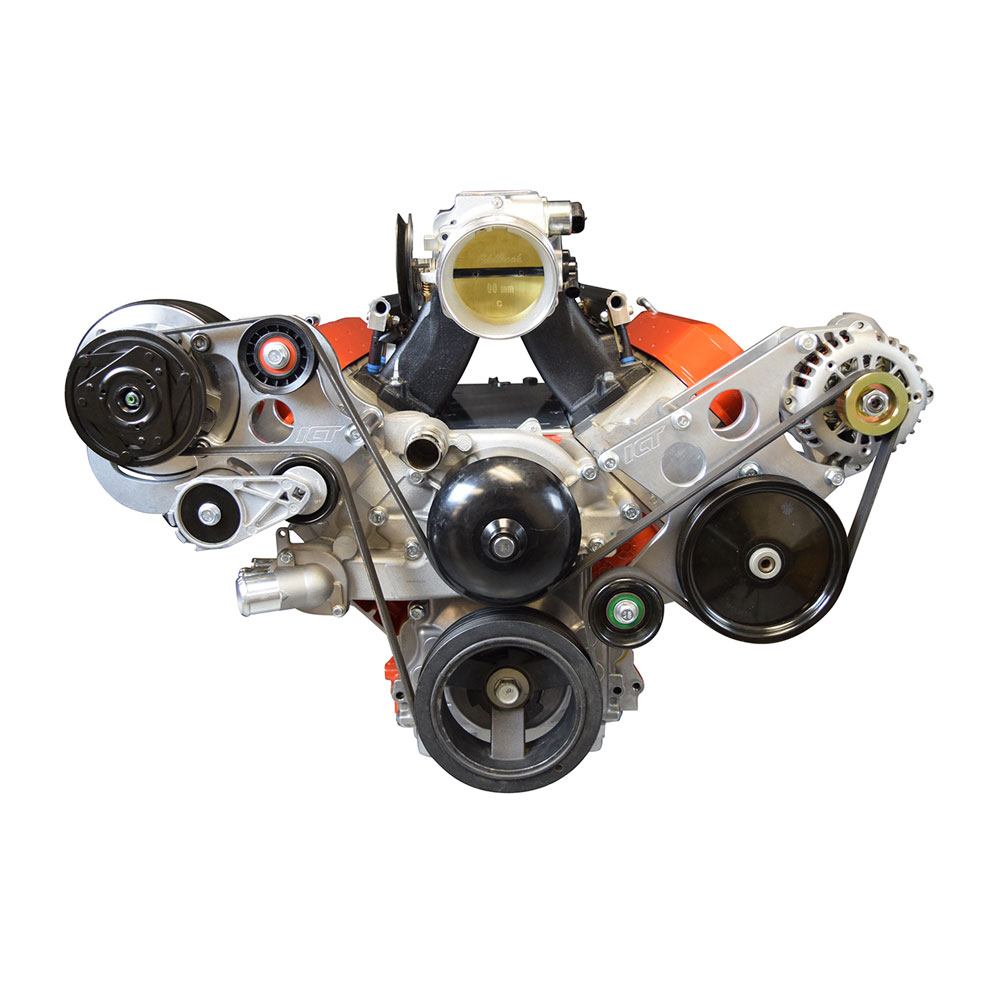

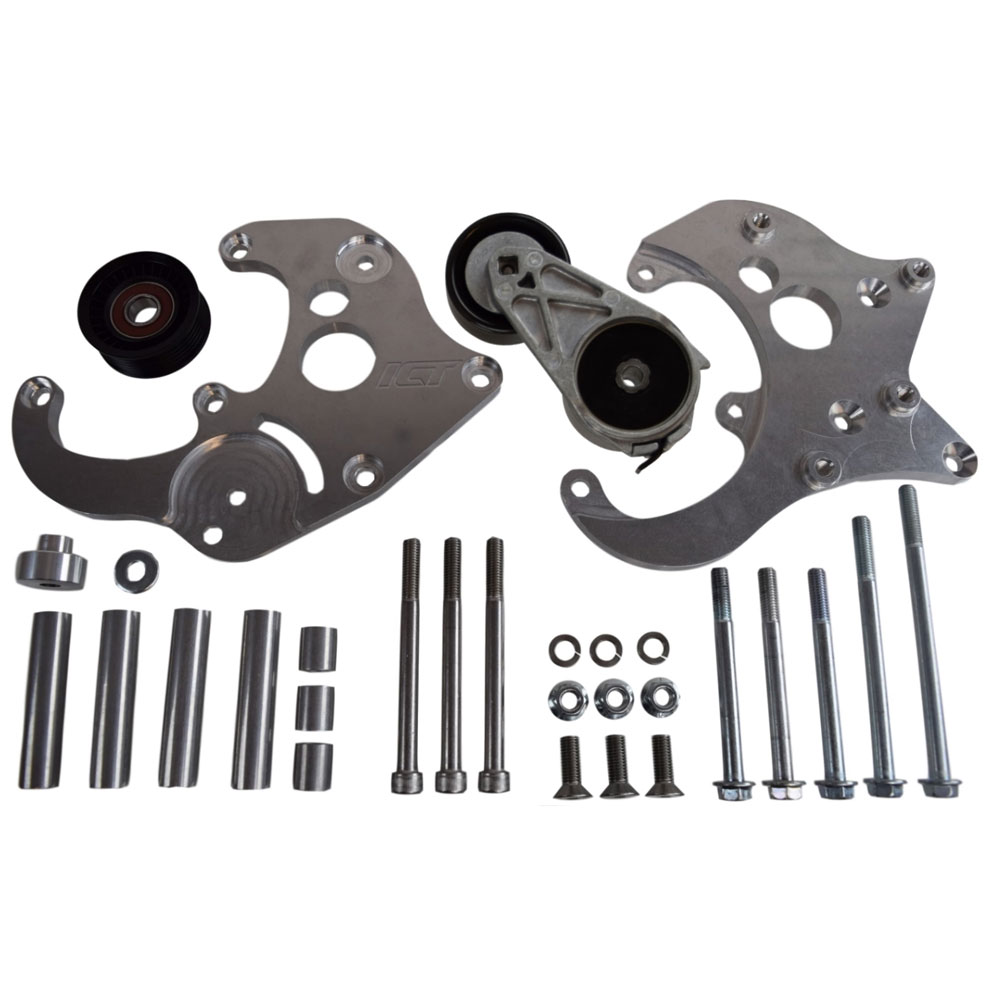

• LS1 Camaro R4 A/C Compressor Heavy Duty Bracket Kit
• Requires: 1998-02 Camaro LS1 (GTO any year) crank pulley (12553118) bracket, belt tensioner, and mounting hardware
• Can be used with AC Delco compressor part # 1520285 (has 4.25" pulley)
• Made in Wichita, KS from aerospace grade, USA billet aluminum
• Belt length with 105 amp alternator and ICT 551521-2: 970K6 (97.0 inch).
• Belt length with 105 amp alternator and ICT 551669-2: 980K6 (98.0 inch).
• This does NOT use the factory style LS vehicle a/c compressors (25891791)small
• If using a Camaro R4 A/C compressor (has larger 5" diameter pulley) then bolt heads will need clearanced at the compressor pulley.
• Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 551479

• Belt length with 105 amp alternator and ICT 551521-2: 970K6 (97.0 inch).
• Belt length with 105 amp alternator and ICT 551669-2: 980K6 (98.0 inch).
• This does NOT use the factory style LS vehicle a/c compressors (25891791)small
• If using a Camaro R4 A/C compressor (has larger 5" diameter pulley) then bolt heads will need clearanced at the compressor pulley.
• Manual belt tensioners are available separately or can be requested instead of the automatic tensioner - Part# 551479
