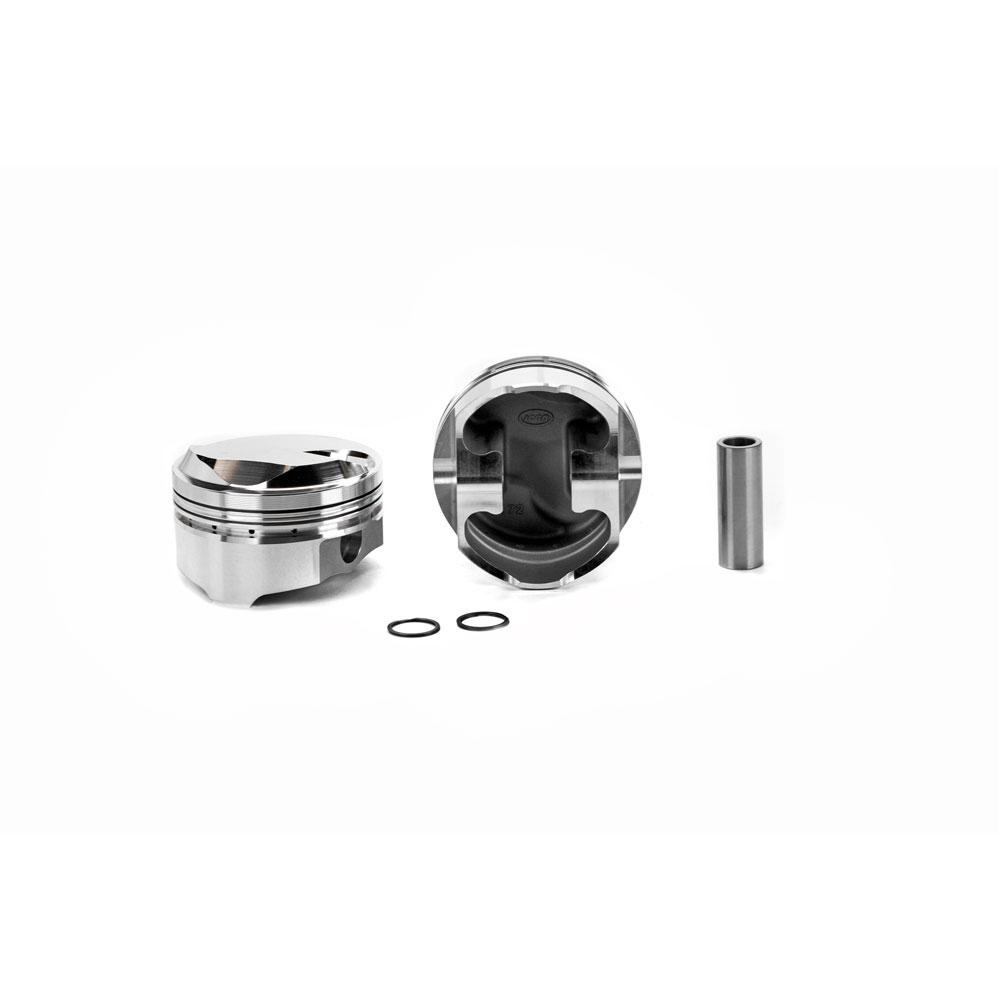

Icon Pistons Piston Set IC996.100; Premium 4.566 in. 38.00 cc Dome (1V) for Chevy 540
$853.25
Part #: IC996.100
Brand: Icon Pistons
UPC: 800745227300
Estimated Ship Date: This part is unavailable with no ETA
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Specifications
- Piston Set Series:
- Premium
- Make:
- Chevy
- Engine:
- 540
- Bore:
- 4.566 in.
- Stroke:
- 4.250 in.
- Rod Length:
- 6.135 in.
- Compression Height:
- 1.520 in.
- Crown Volume:
- 38.00 cc Dome (1V)
- Cylinder Head Volume to Calculate Compression Ratio:
- 119.00 cc
- Compression Ratio:
- 13.1:1
- Pin Diameter:
- 0.990 in.
- Piston Material:
- Forged 2618 Alloy
- Ring Lands:
- 1/16, 1/16, 3/16 in.
- Wrist Pin Fitment:
- Press Fit or Floating
- Rings Included:
- No
- Notes:
- .425 in. Hollow Dome. Hollow Dome. Centered pin. Will fit AFR, RHS, Trick Flow, World, Edelbrock, Brodix, Dart and OE Chevy open chamber heads that are 118cc's or larger. Always check piston to chamber and valves to assure you have adequate operating clearance.
- Quantity:
- Sold As Set (8/pkg)
