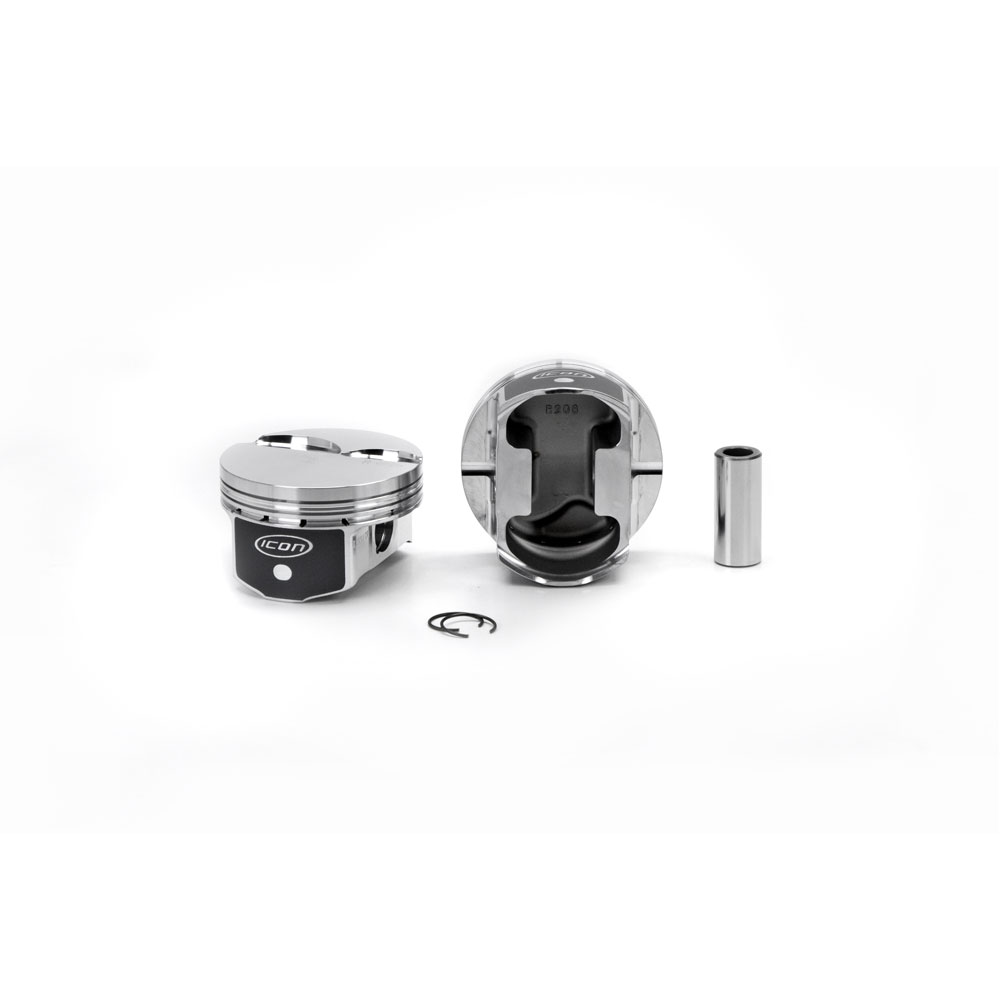

Icon Pistons Piston Set IC551C.070; Premium 4.070 in. -4.00 cc Flat Top for Chevy 6.0L LS2

Specifications

Piston Set Series:

Premium

Make:

Chevy

Engine:

6.0L LS2

Bore:

4.070 in.

Stroke:

3.622 in.

Rod Length:

6.125 in.

Compression Height:

1.304 in.

Crown Volume:

-4.00 cc Flat Top

Cylinder Head Volume to Calculate Compression Ratio:

68.40 cc

Compression Ratio:

10.3:1

Pin Diameter:

0.927 in.

Piston Material:

Forged 4032 Alloy

Ring Lands:

1.2, 1.2, 3.0 mm

Wrist Pin Fitment:

Press Fit or Floating

Rings Included:

No

Notes:

LS2 LS3 LSA LS9 6.0L and 6.2L, 15 degree valve angle. Offset pin. UltraWear M42 skirt coating.

Quantity:

Sold As Set (8/pkg)
