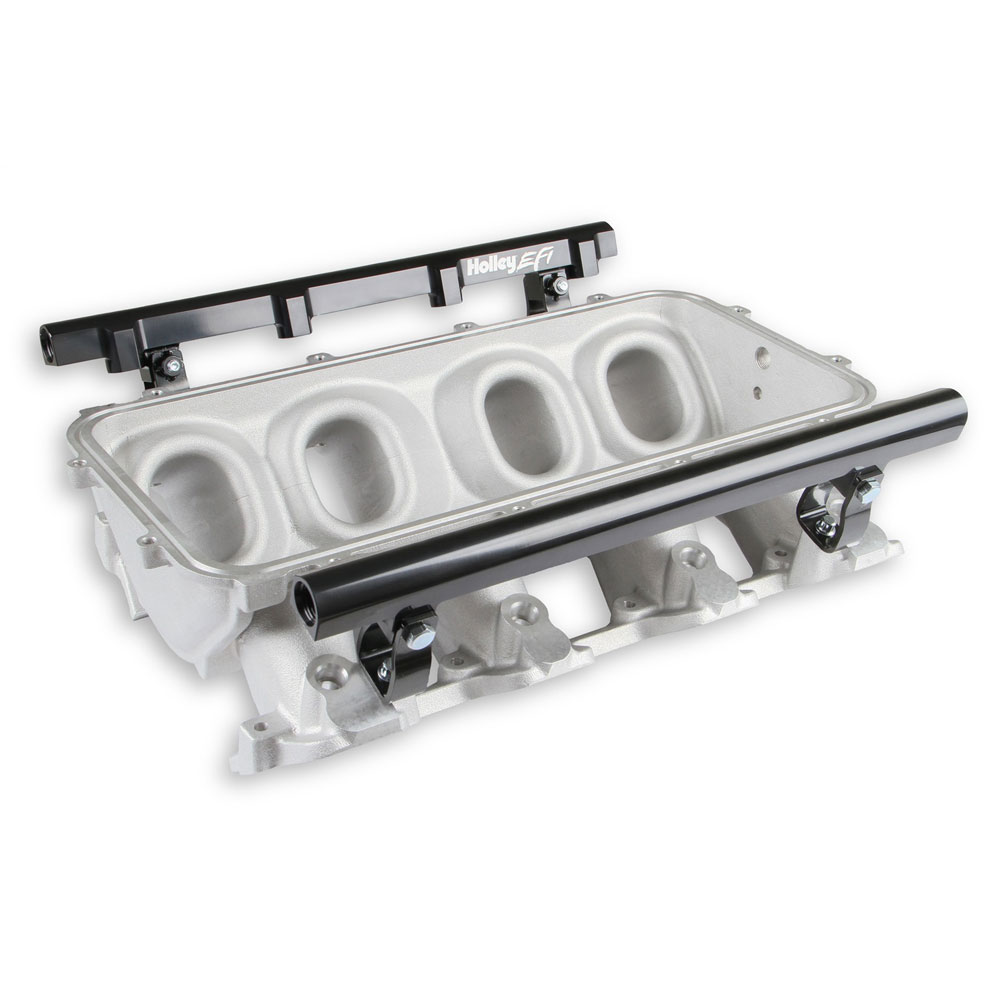

Holley Intake Manifold Base 300-600; Terminator X Lo Ram Satin for Chevy LS

$524.95

Part #: 300-600

Brand: Holley

UPC: 090127077443

Estimated Ship Date: 5/26/2025 (From manufacturer)

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • For Forced Induction Engines With Peak Power At 7000-8000 Rpm
  • Modular Design Allowing The Use Of Front-Feed Plenum Entry
  • Custom Inlet Duct And Throttle Body Placement
  • Fit Under A Stock Or Mildly Modified Hood In The Front-Feed
  • Clears 4Th Gen Camaro/C5 Corvette Cowls/Hoods with o Modification

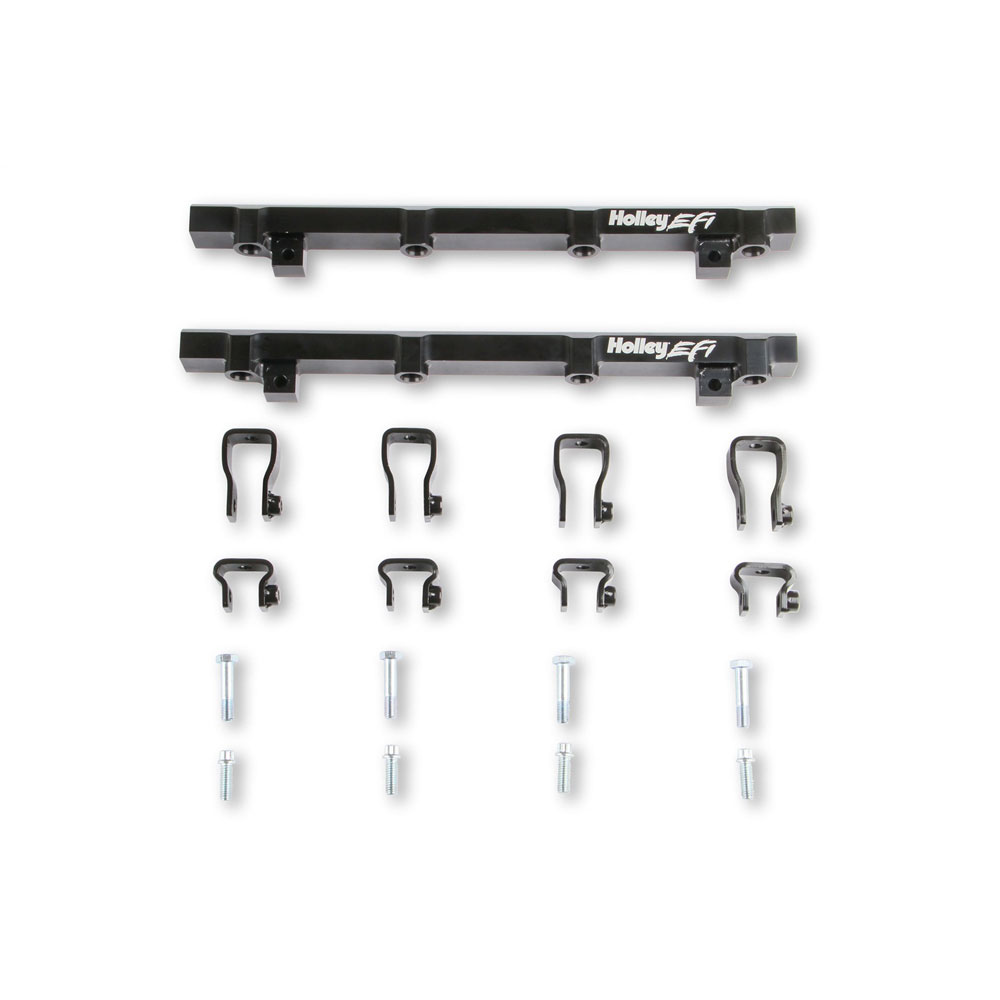

  • High Volume Fuel Rails And Mounting Hardware Included
  • 3/4 in.-16 O-Ring Ports 8 AN

Product Description

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads. The 300-600 is the lower manifold in the 300-620 complete kit. Offering this separately allows you to select your components individually as you build your system.The 300-600 is the lower manifold in the 300-620 complete kit. Offering this separately allows you to select your components individually as you build your system. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration. The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.

Specifications

Intake Manifold Base Model or Series:
Terminator X
Make:
Chevy
Engine:
LS
Intake Style:
Lo Ram
Finish:
Satin
Fuel System Type:
EFI
Quantity:
Sold As Each

Tech Resources

  • 199r11813.pdf
