Holley Intake Manifold 300-621; Lo Ram Satin Aluminum for Chevy LS
$710.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- For Forced Induction Engines With Peak Power At 7000-8000 Rpm
- Modular Design Allowing The Use Of Front-Feed Plenum Entry
- Custom Inlet Duct And Throttle Body Placement
- Fit Under A Stock Or Mildly Modified Hood In The Front-Feed
- Clears 4Th Gen Camaro/C5 Corvette Cowls/Hoods with o Modification
- High Volume Fuel Rails And Mounting Hardware Included
- 3/4 in.-16 O-Ring Ports 8 AN
- Clears 4Th Gen Camaro/C5 Corvette Cowls/Hoods with o Modification
- High Volume Fuel Rails And Mounting Hardware Included
- 3/4 in.-16 O-Ring Ports 8 AN
Product Description

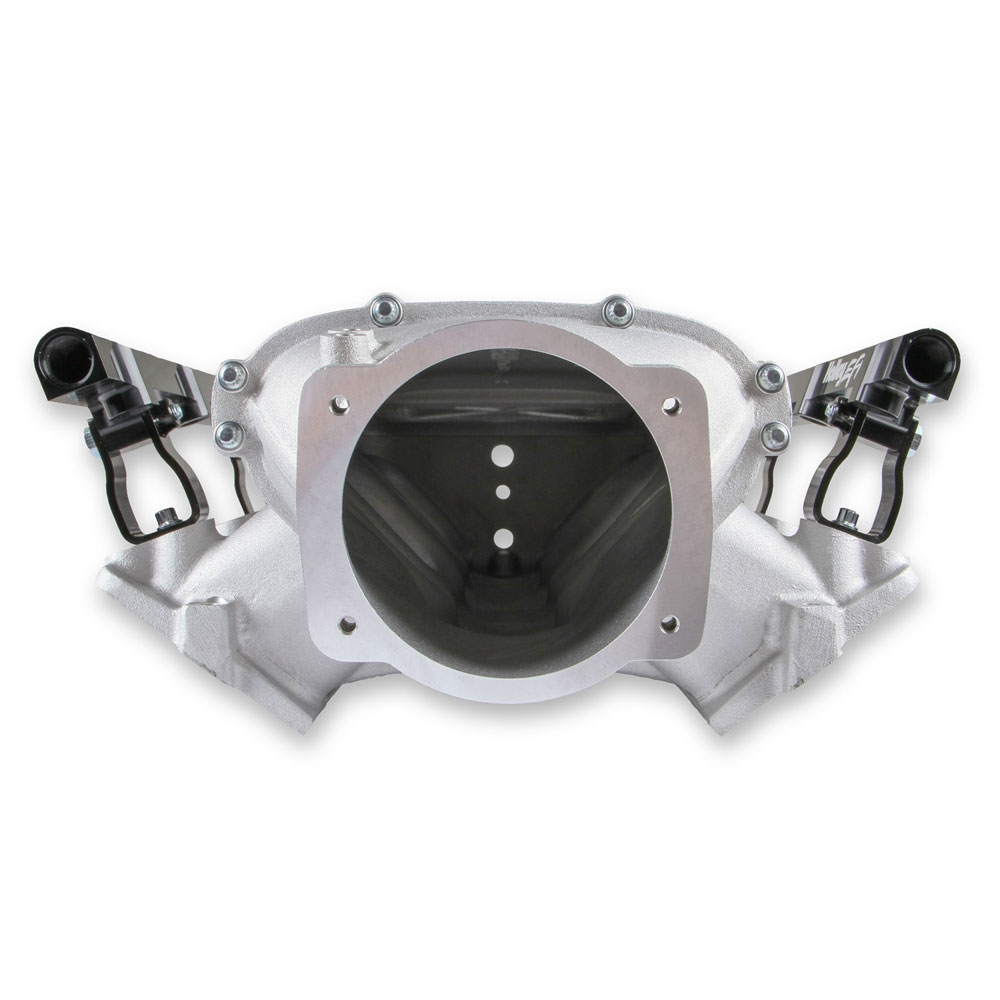

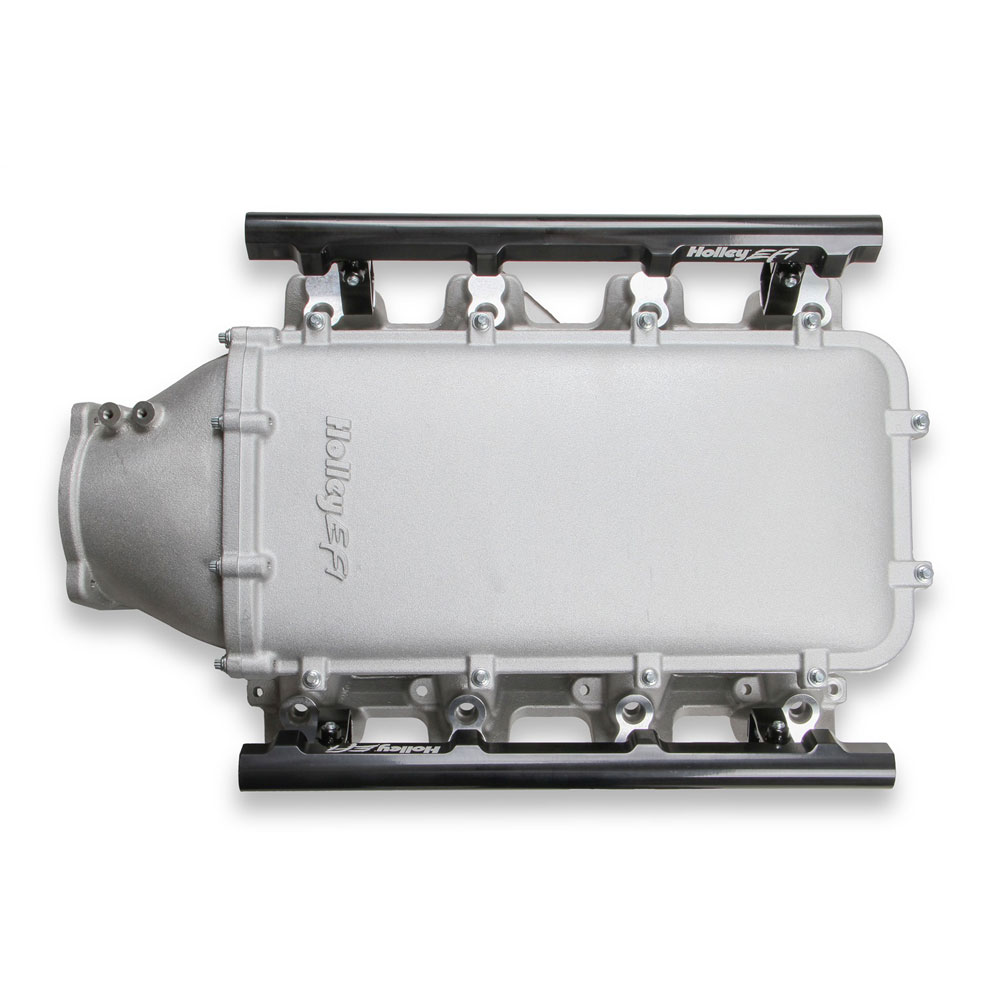

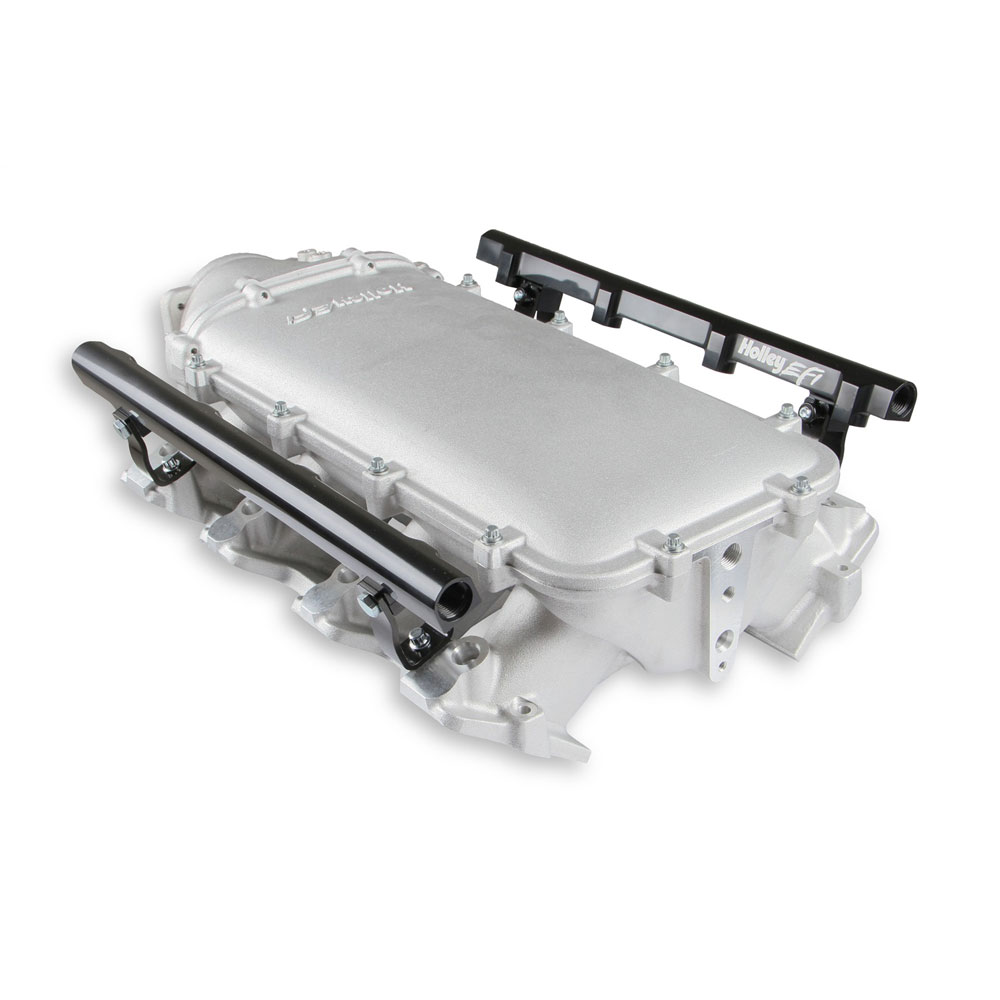

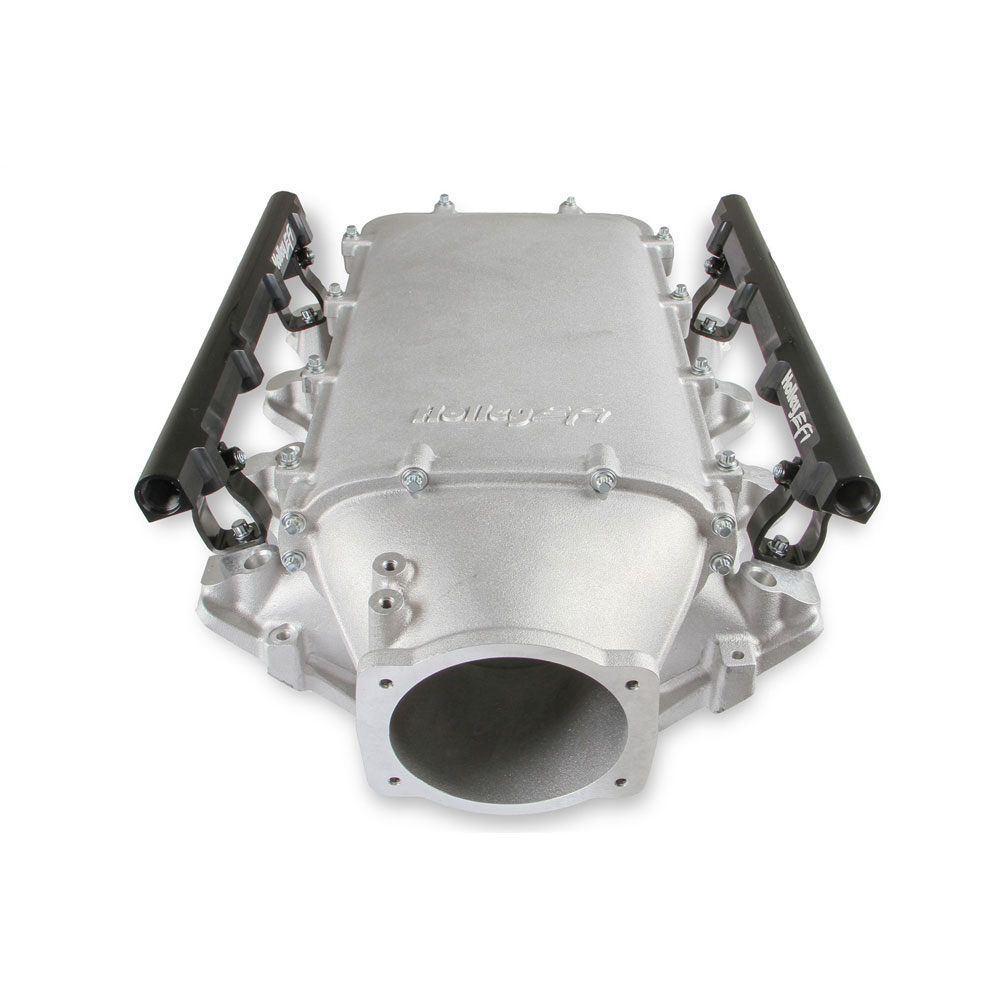

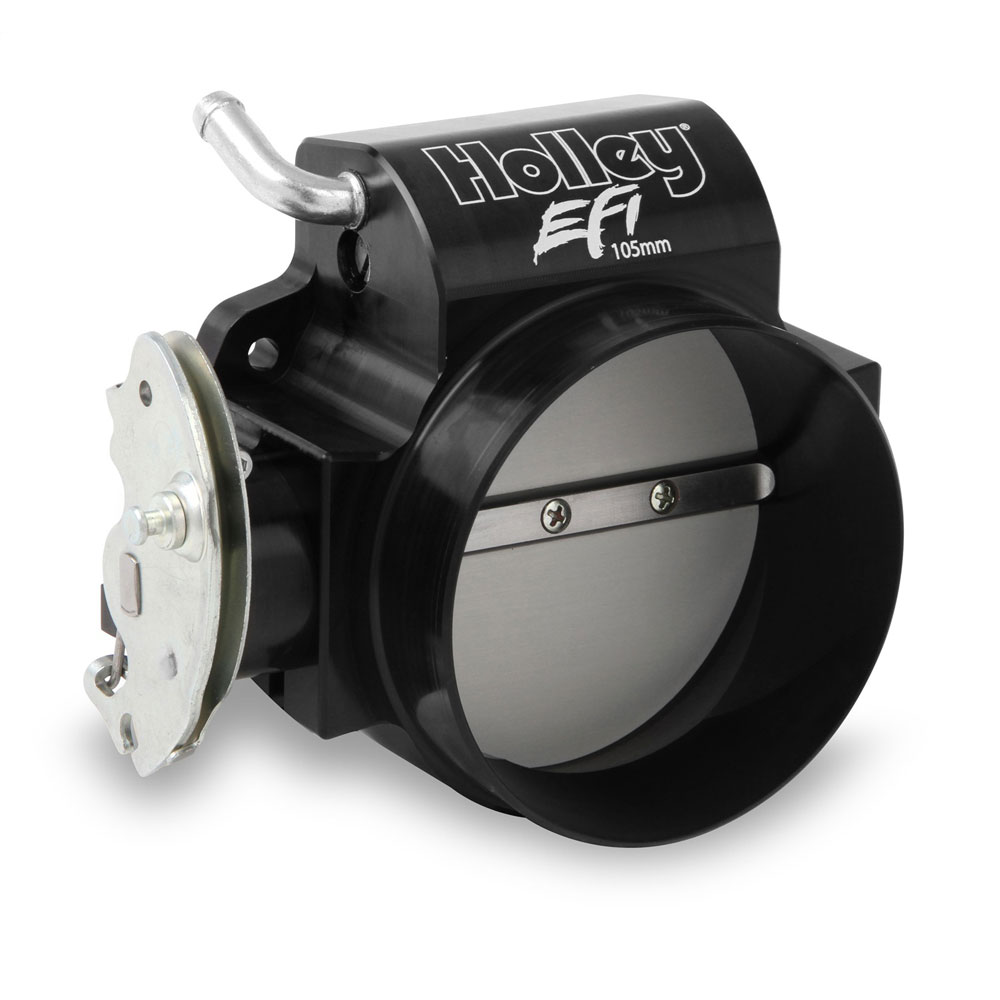

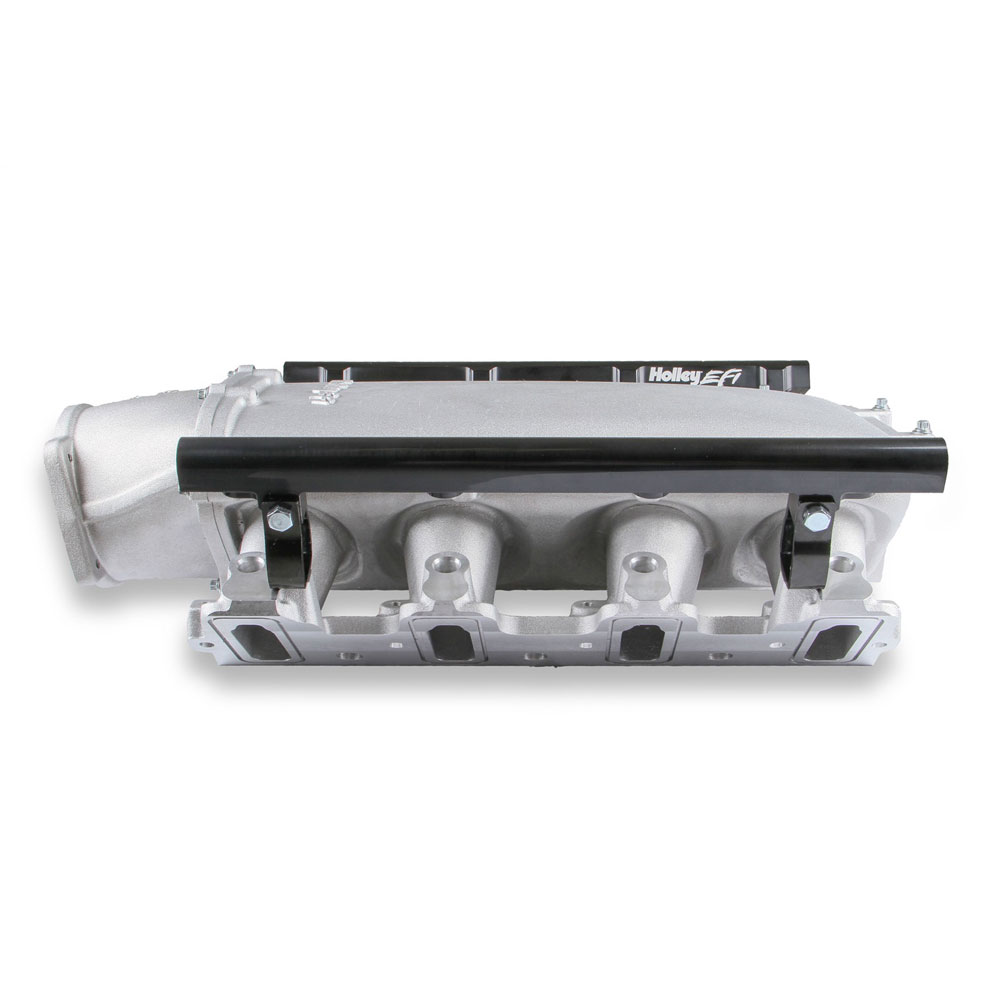

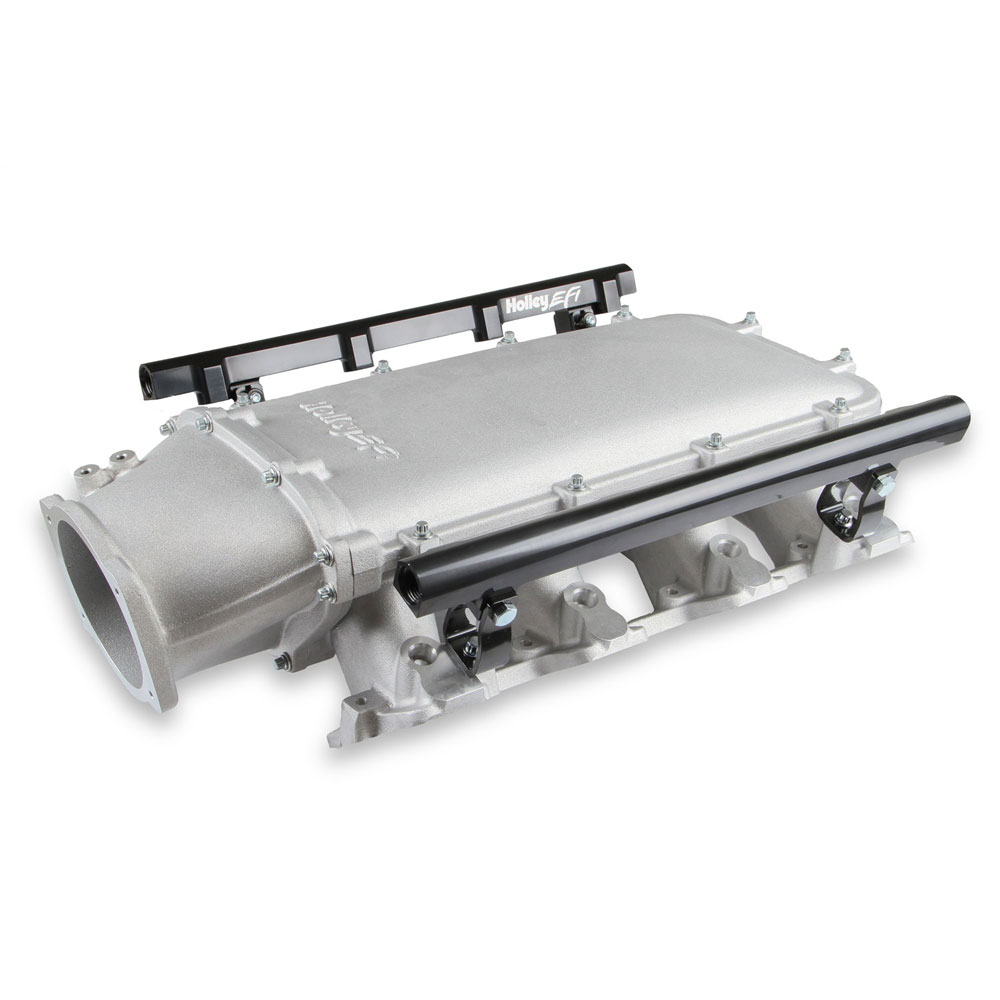

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front-feed configuration. The 300-621 Lo-Ram front-feed plenum entry was configured to provide a very low profile modular intake manifold suitable for turbocharged or centrifugally supercharged engines. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Specifications
- Make:
- Chevy
- Engine:
- LS
- Intake Style:
- Lo Ram
- Material:
- Aluminum
- Finish:
- Satin
- Front Height:
- 6.860 in.
- Fuel System Type:
- EFI
- Notes:
- Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.Feed Plenum Configuration w/105mm Throttle Body Adapter - 6.86 in.
- Quantity:
- Sold As Each
