Holley Intake Manifold 300-290BK; EFI Split Design Race Rectangular Single Plane 3500 to 8000 Black Aluminum for GM LS
$633.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Maximum Performance Race Design With Hood Clearance Consideration
- Lighter Than Other Split Race Intakes
- Split Feature Making Porting Efforts Easy
- 33 To 50 Percent The Price Of Other Split Race Intakes
- Captured O-Ring Seals At Head Ports and Split

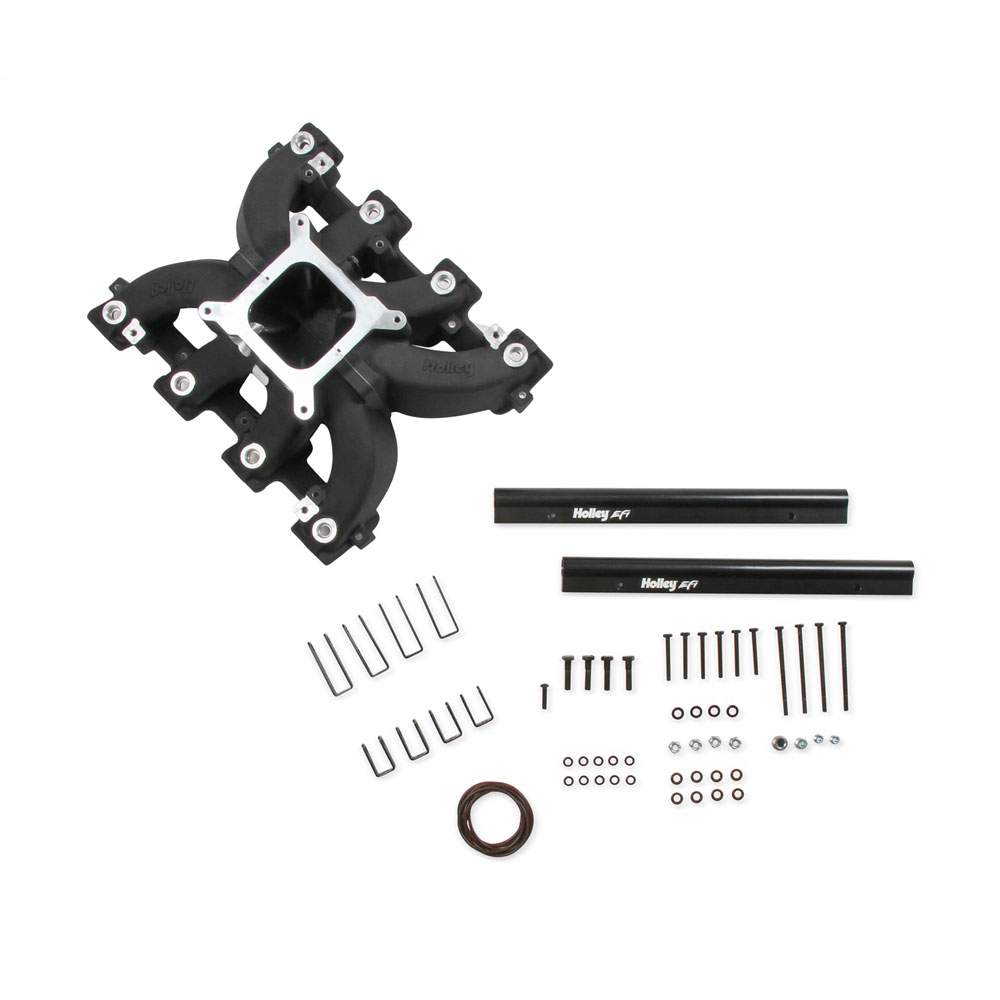

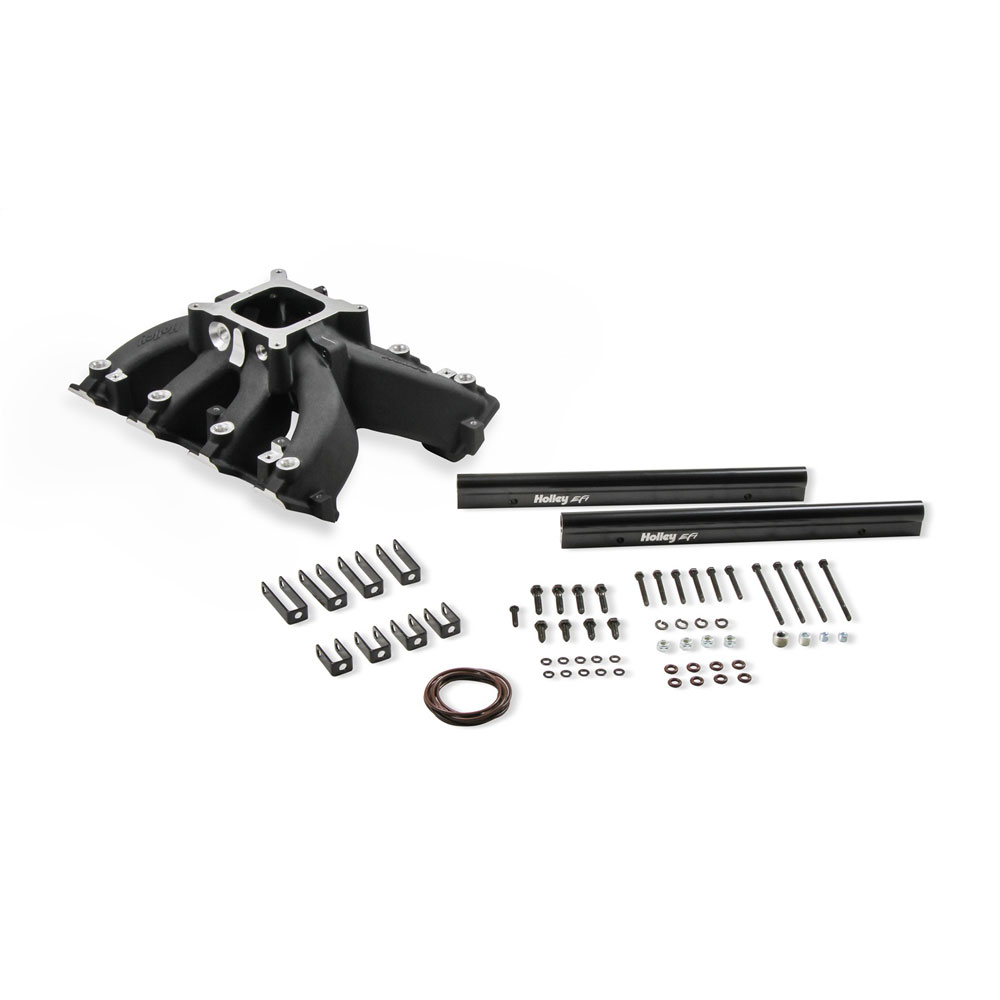

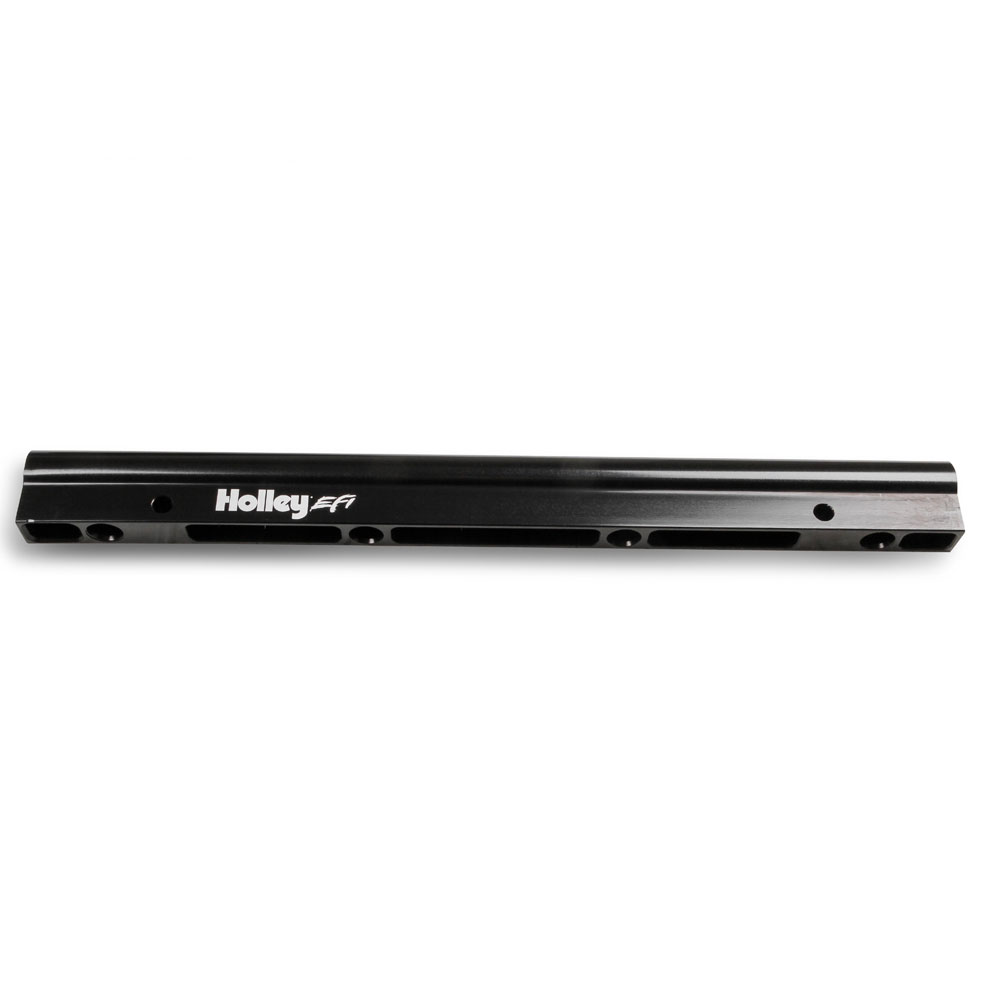

- Billet Fuel Rails And Rail Mounting Hardware Included
- Captured O-Ring Seals At Head Ports and Split
- Billet Fuel Rails And Rail Mounting Hardware Included
Product Description

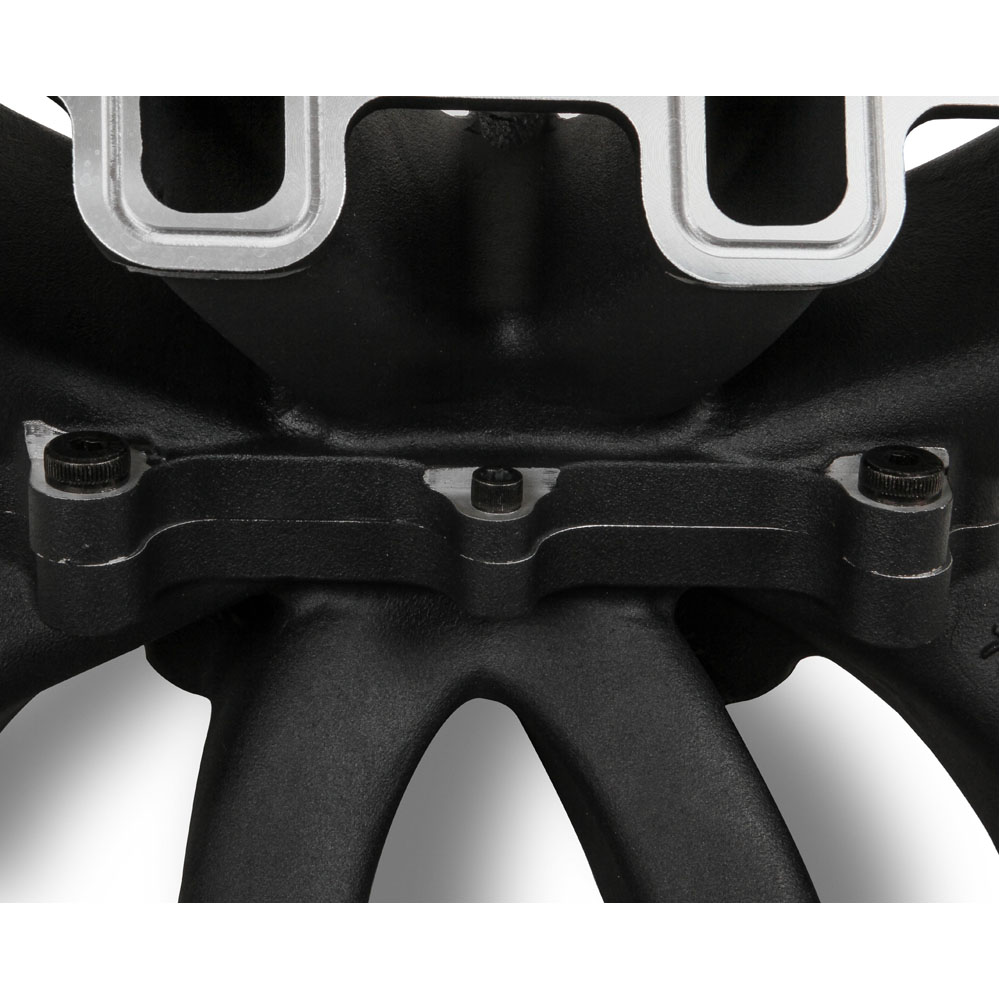

The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with LS3/L92 heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI. The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm. The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise.
Specifications
- Intake Manifold Model or Series:
- EFI Split Design Race
- Make:
- GM
- Engine:
- LS
- Deck Height:
- Standard
- Port Style:
- Rectangular
- Intake Style:
- Single Plane
- Carburetor or Throttle Body Flange:
- 4150 Square Flange
- RPM Range:
- 3500 to 8000
- EGR or Non-EGR:
- Non EGR
- Material:
- Aluminum
- Finish:
- Black
- Includes Gaskets:
- Yes
- Front Height:
- 7.320 in.
- Fuel System Type:
- EFI
- Requires Aftermarket Fuel Rails:
- Yes
- Includes Fuel Rails:
- Yes
- Rear Height:
- 7.320 in.
- Quantity:
- Sold As Each
