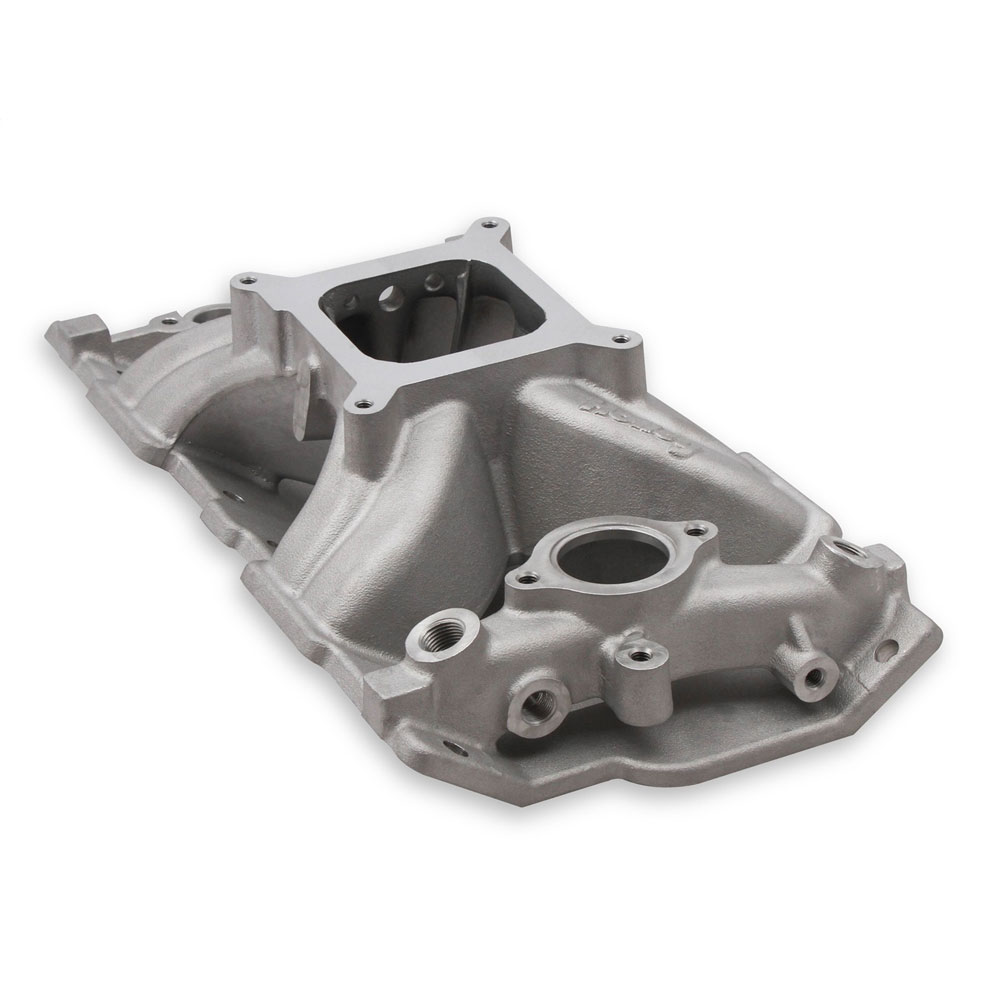

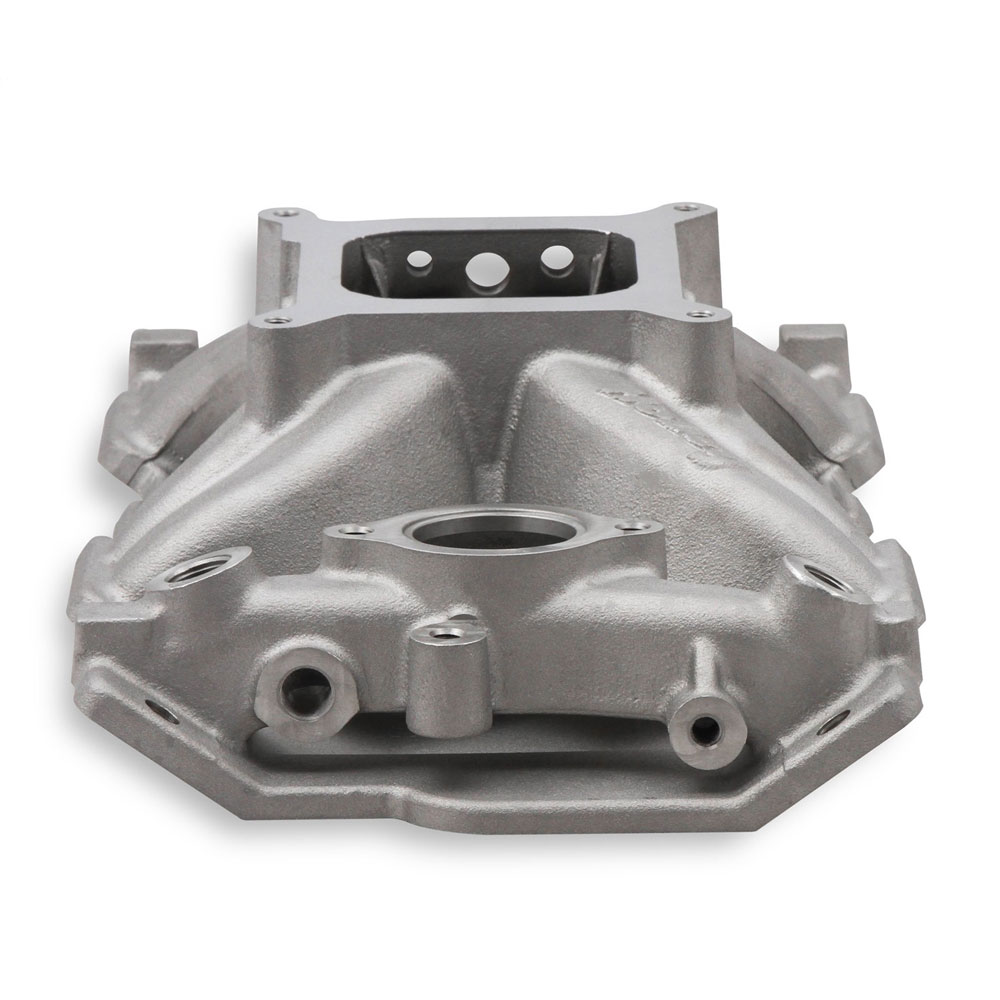

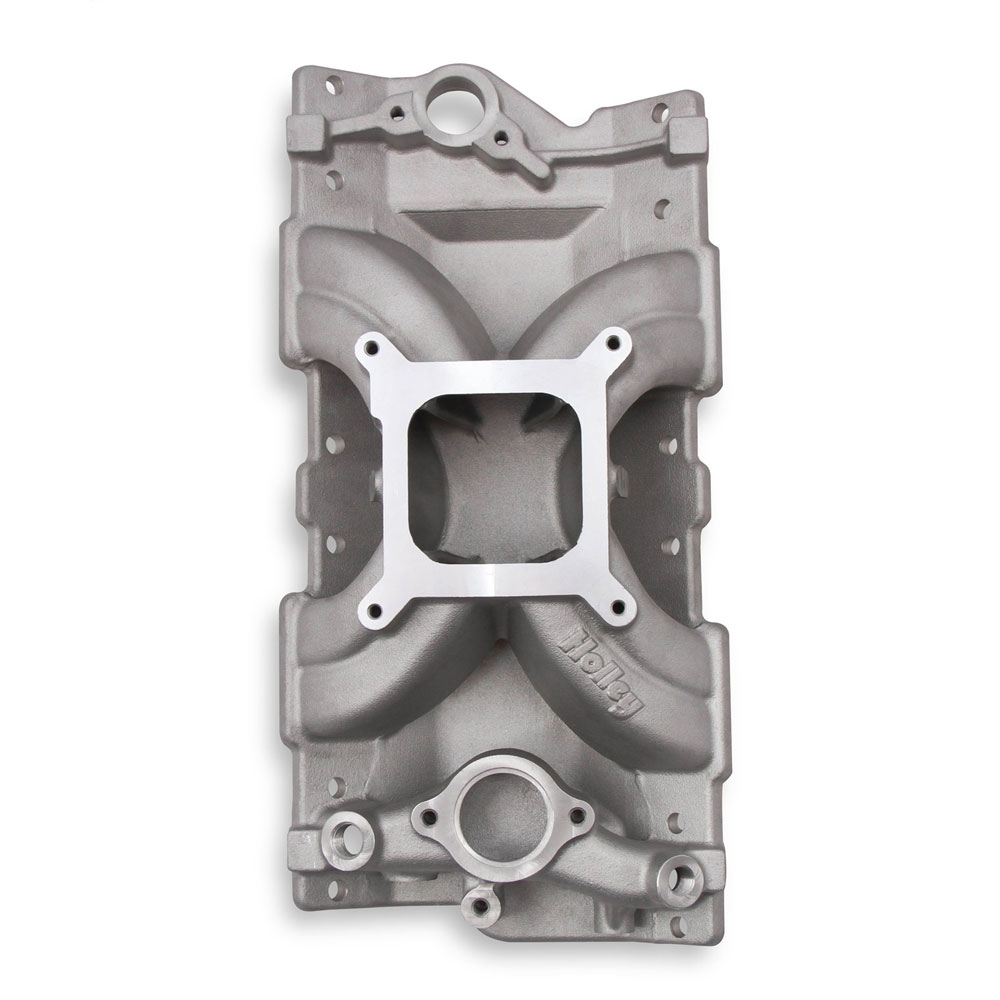

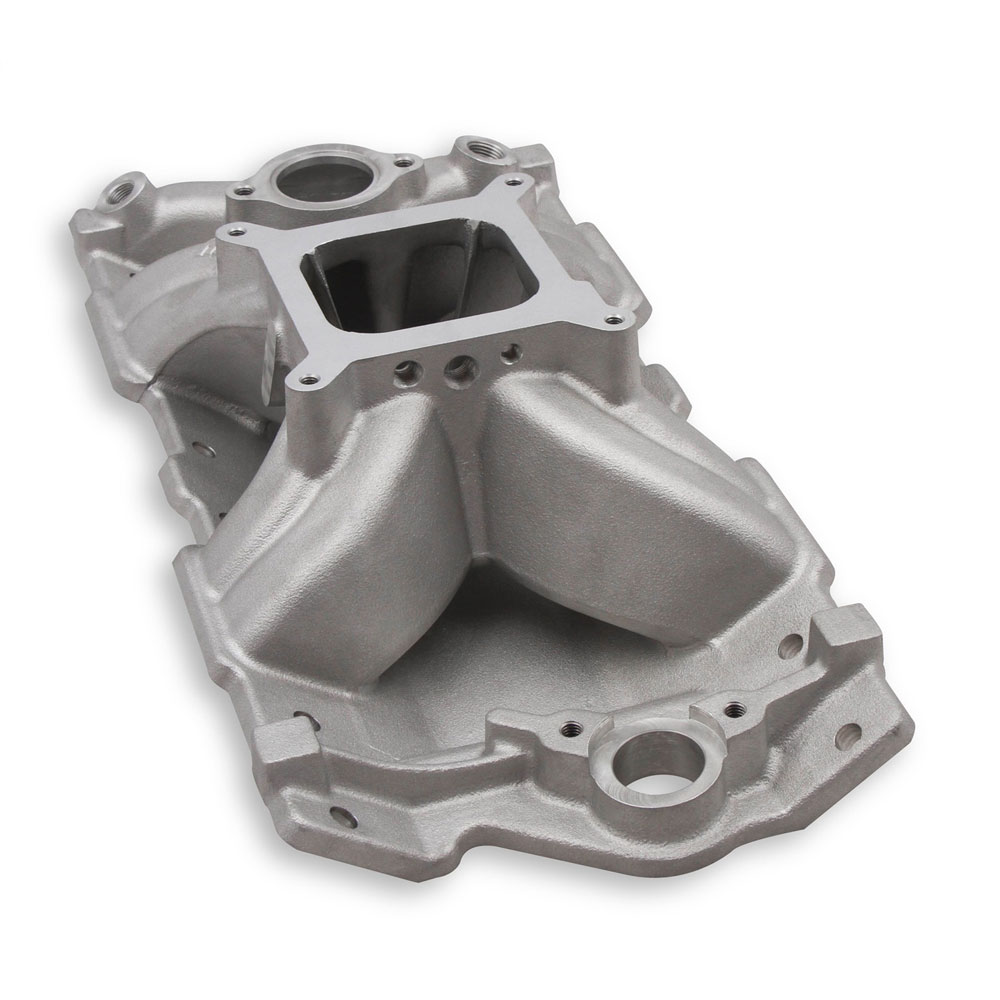

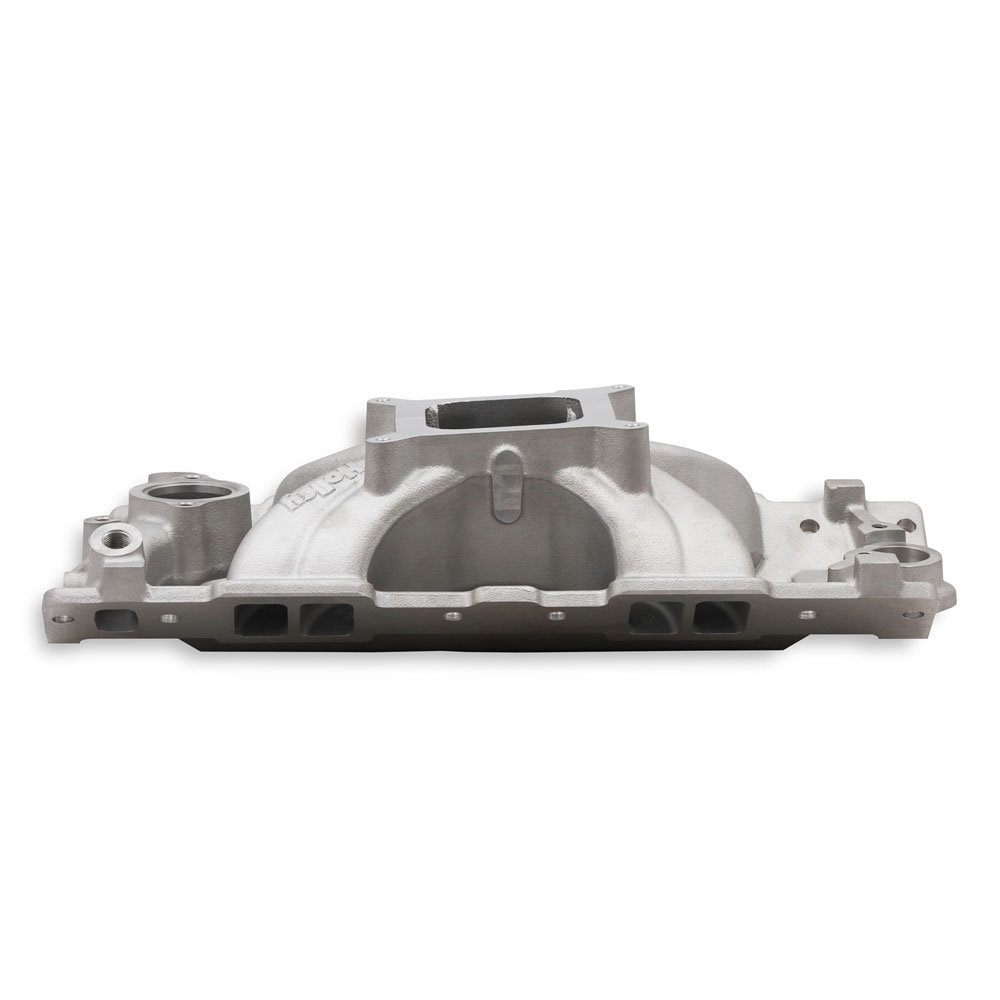

Holley Intake Manifold 300-261; Rectangular Single Plane 2500 to 7500 Satin Aluminum for Chevy 262 to 400

$344.75

Part #: 300-261

Brand: Holley

UPC: 090127052136

Estimated Ship Date: Special Order

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Single Plane With Isolated Plenum
  • Square Bore Carburetor Mounting Flange
  • Isolated Water Cross-Over
  • Power Band 2500-7500 RPM

Product Description

The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1" shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations.

Specifications

Make:
Chevy
Engine:
262 to 400
Port Style:
Rectangular
Intake Style:
Single Plane
Carburetor or Throttle Body Flange:
4150 Square Flange
RPM Range:
2500 to 7500
Material:
Aluminum
Finish:
Satin
Front Height:
4.180 in.
Fuel System Type:
Carbureted
Rear Height:
5.280 in.
Quantity:
Sold As Each

Videos

Tech Resources

  • 199r11523.pdf
