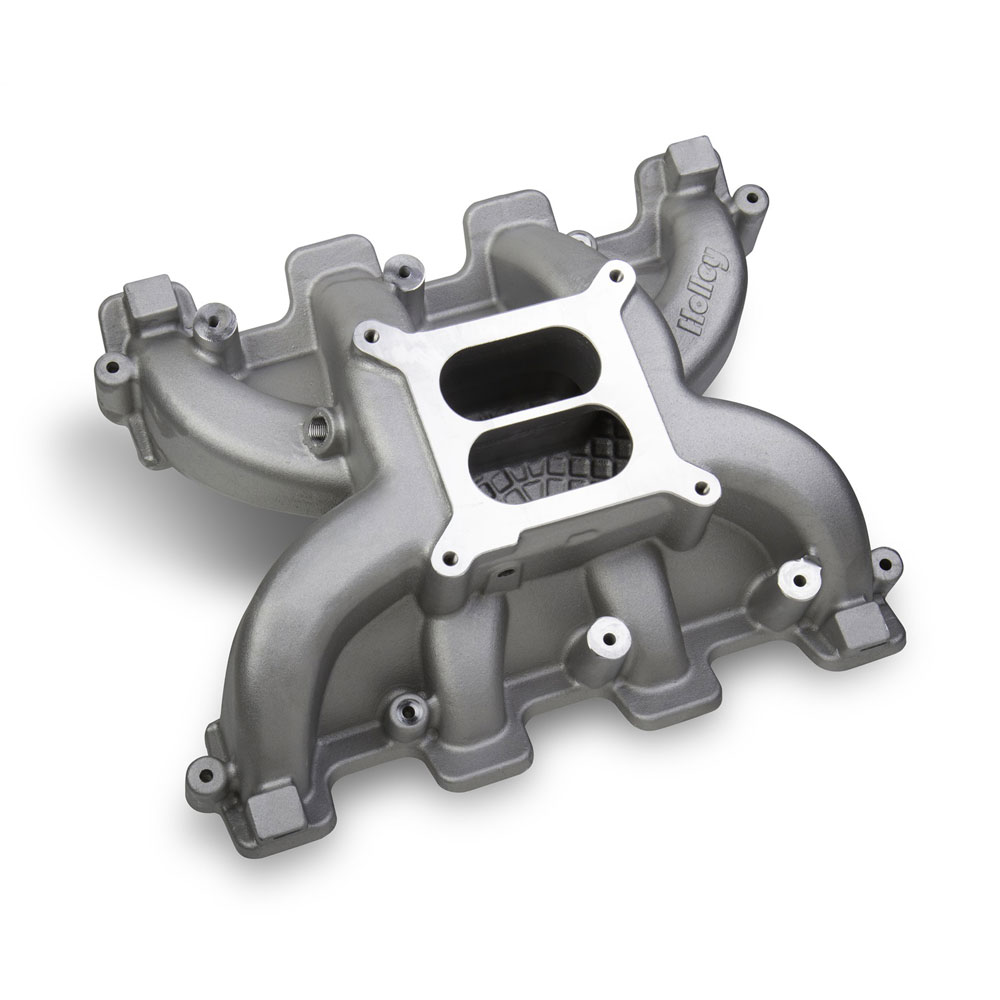

Holley Intake Manifold 300-129; Rectangular Dual Plane 1500 to 6500 Satin Aluminum for Chevy LS3, L92
$344.65
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 1500-6500 rpm Power Band
- Includes Viton O-Rings
- 4150 Square Bore Carb Mounting Flange
- Optimized Runner Layout Provide A Broad Torque Curve
- Minimum Carb Flange Height Results Minimum Hood Modifications
- Great For Carbureted Or Throttle Body EFI Street Applications
- Efficient Cast Design For Light Weight Consistent Wall Thickness
- Weighs 14.56 lbs..
- Port Size 2.454in. Height X 1.09in. Wide
- Mounting Flange Gasket Type O-Ring
- Minimum Carb Flange Height Results Minimum Hood Modifications
- Great For Carbureted Or Throttle Body EFI Street Applications
- Efficient Cast Design For Light Weight Consistent Wall Thickness
- Weighs 14.56 lbs..
- Port Size 2.454in. Height X 1.09in. Wide
- Mounting Flange Gasket Type O-Ring
Product Description
The Modular Mid–Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid–Rise 2 x 4 intake Manifold along with a purpose built plenum base Adapter and a Holley 92MM EFI plenum top which converts it into a Mid–Rise EFI intake manifold. With a max overall height of only 10.44in., the Mid–Rise Manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500–6,500 RPM and limited hood clearance. It's perfect for a blow–thru or turbocharged application. Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake, adapter, 92MM top and fuel rails, but all parts can also be purchased separately for a custom intake build. The plenum Adapter (PN 300–231) will accept all of the popular Holley Hi–Ram plenum tops as a foundation for custom induction systems.
Specifications
- Make:
- Chevy
- Engine:
- LS3, L92
- Deck Height:
- 9.240 in.
- Port Style:
- Rectangular
- Intake Style:
- Dual Plane
- Carburetor or Throttle Body Flange:
- 4150 Square Flange
- RPM Range:
- 1500 to 6500
- EGR or Non-EGR:
- Non EGR
- Material:
- Aluminum
- Finish:
- Satin
- Includes Gaskets:
- Yes

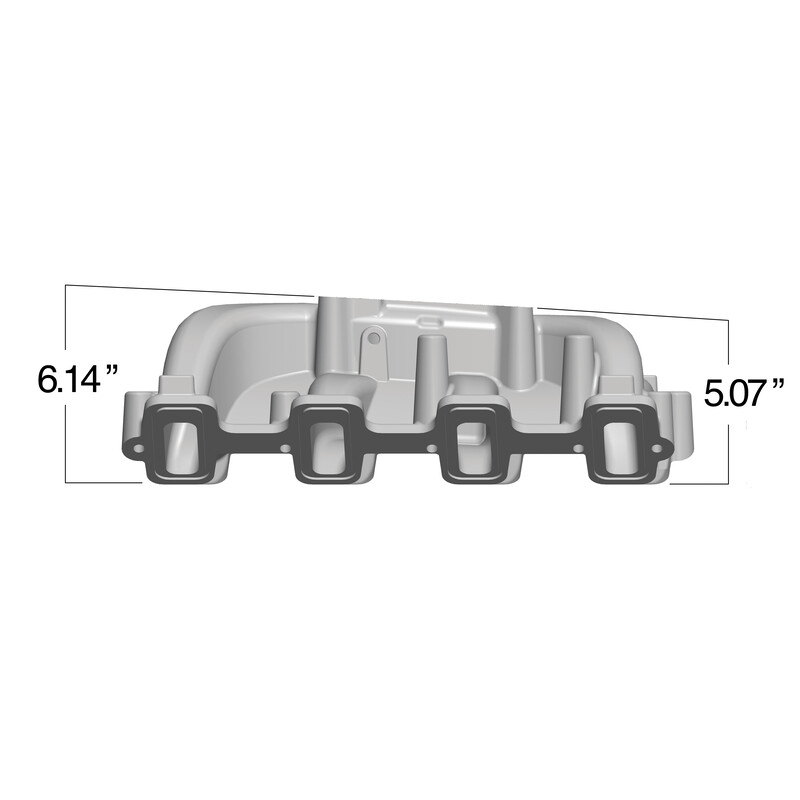

- Front Height:
- 5.070 in.
- Fuel System Type:
- Carbureted
- Requires Aftermarket Fuel Rails:
- No
- Includes Fuel Rails:
- No
- Rear Height:
- 6.140 in.
- Quantity:
- Sold As Each
