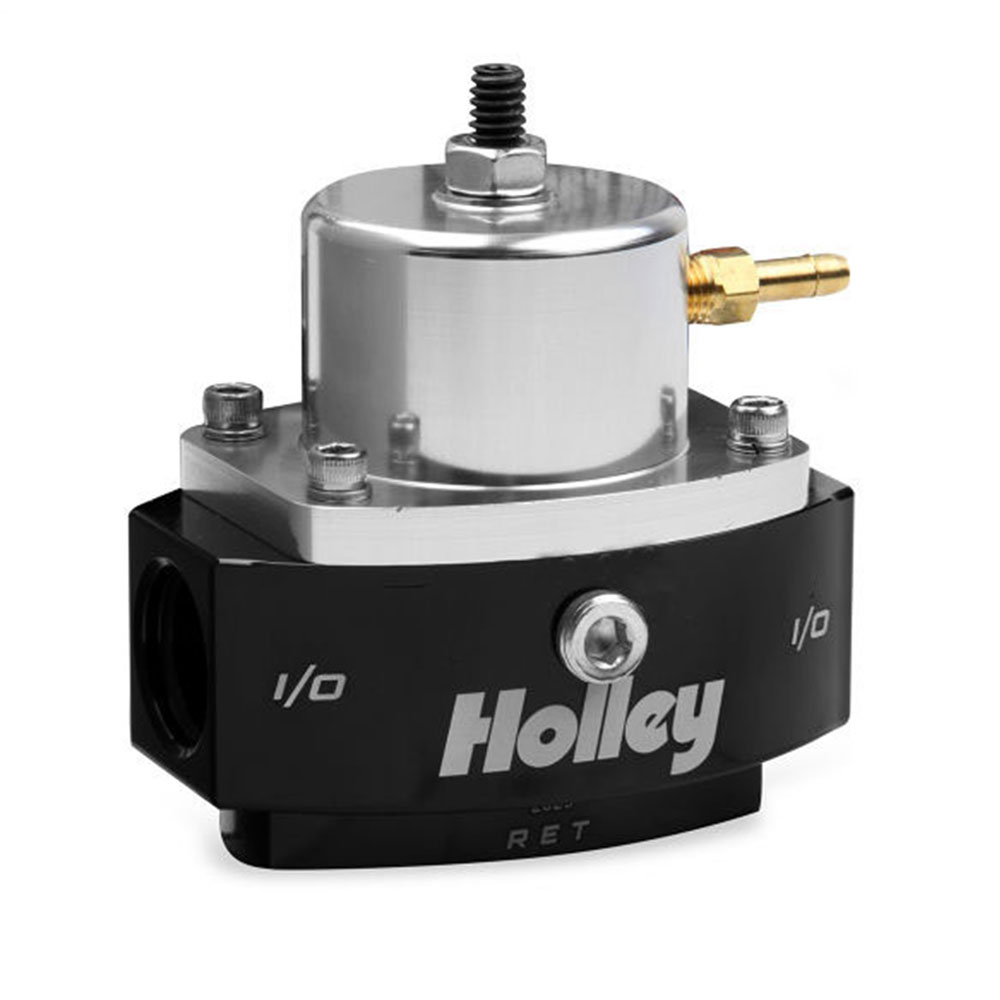

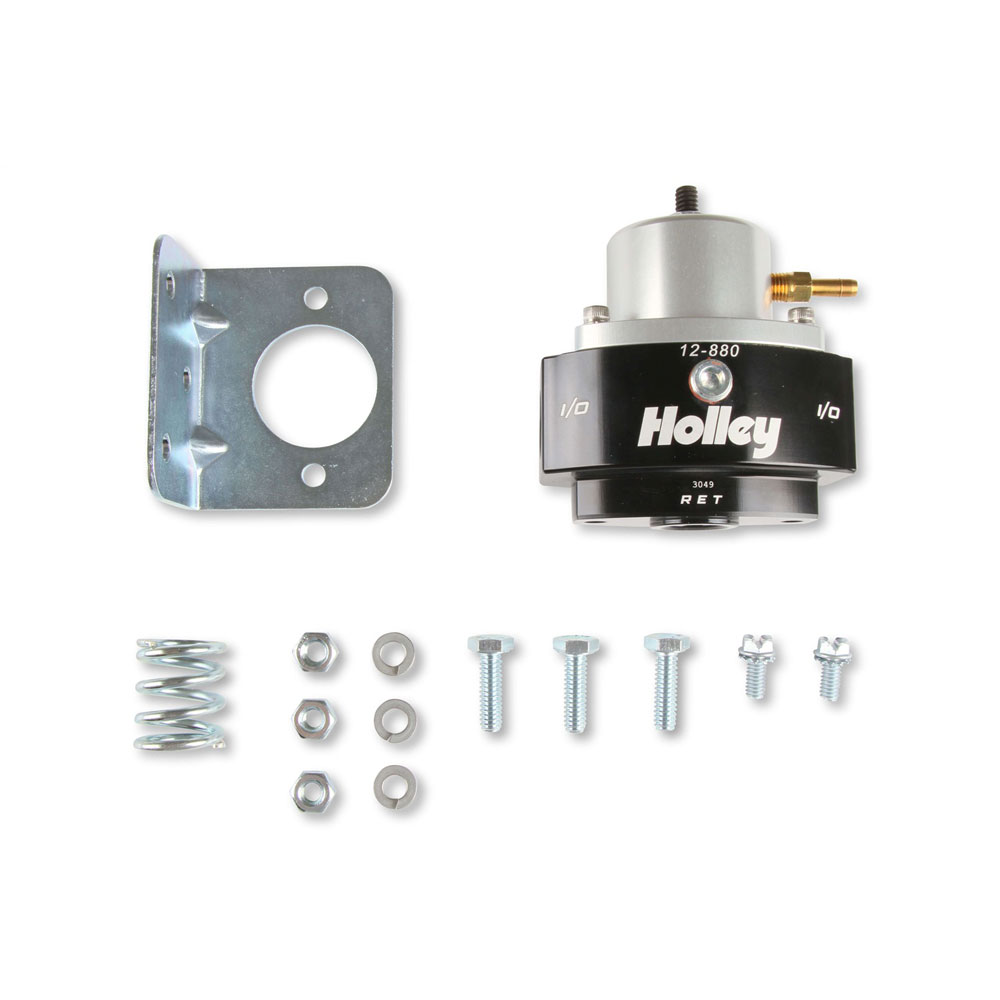

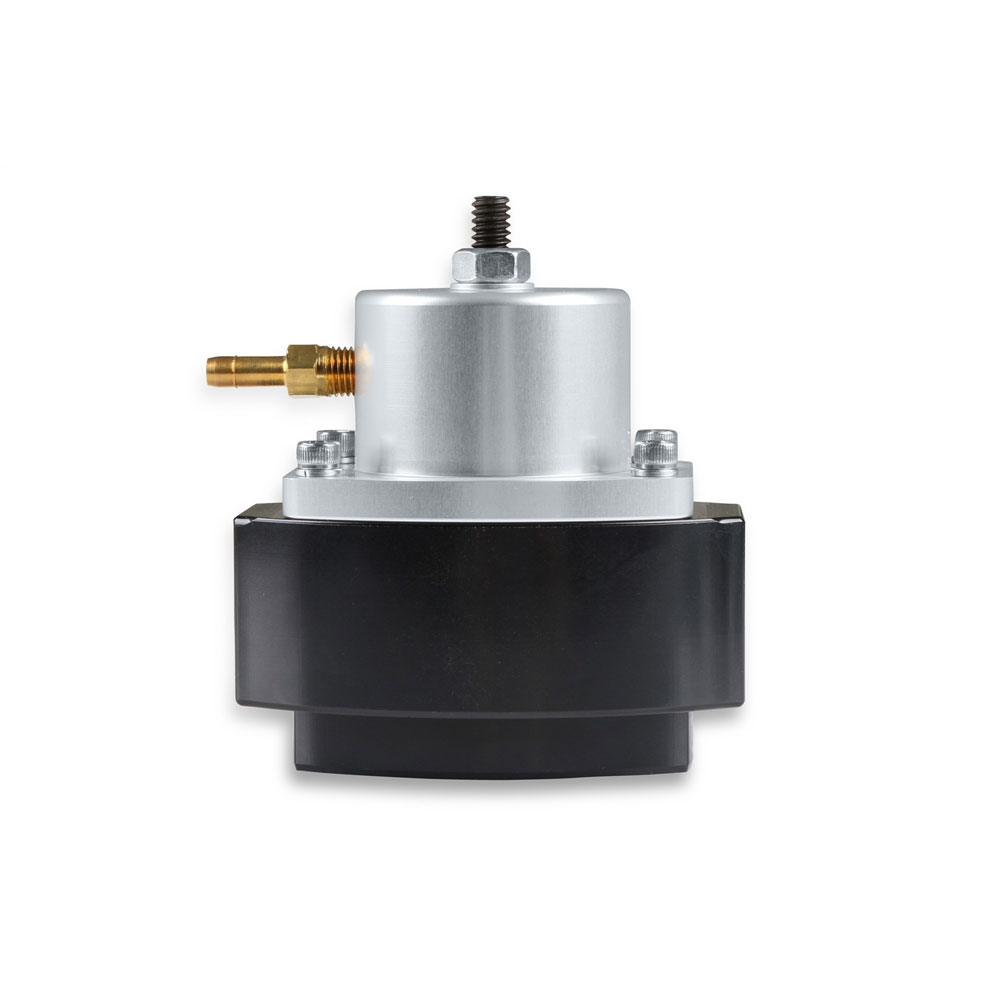

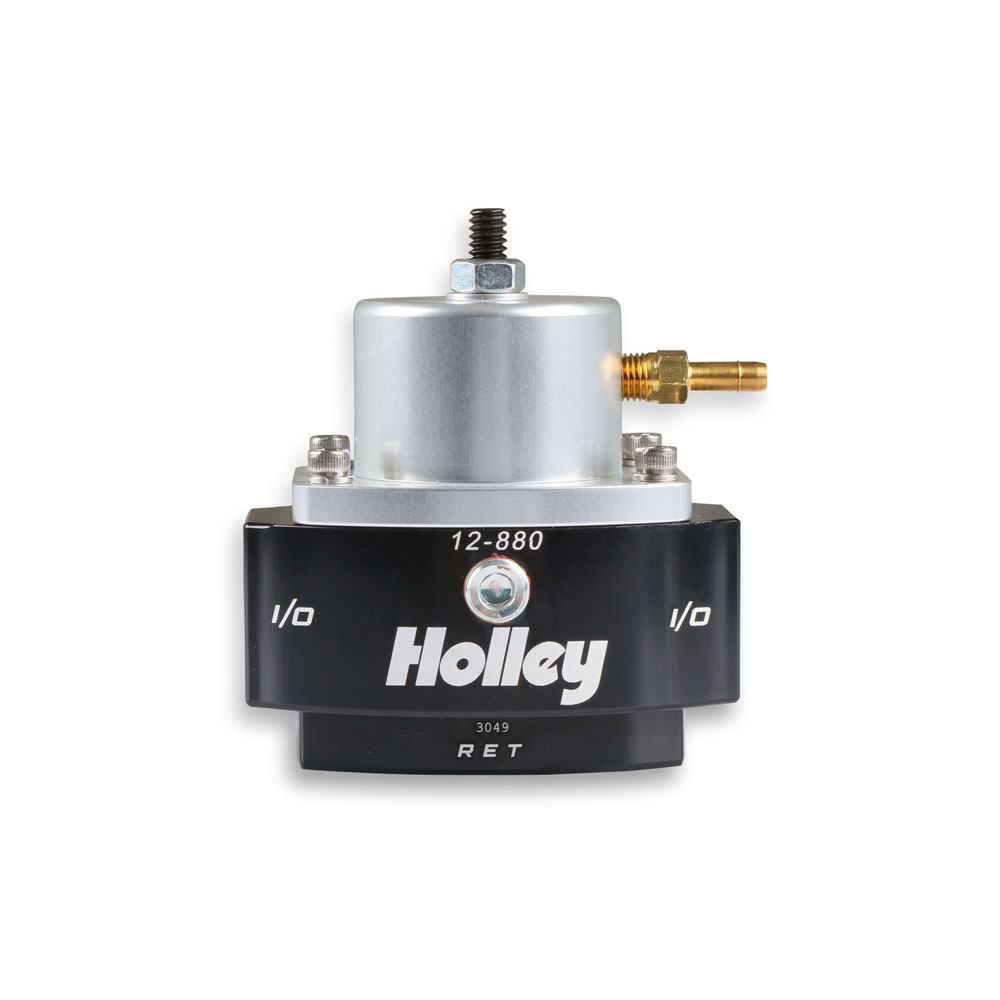

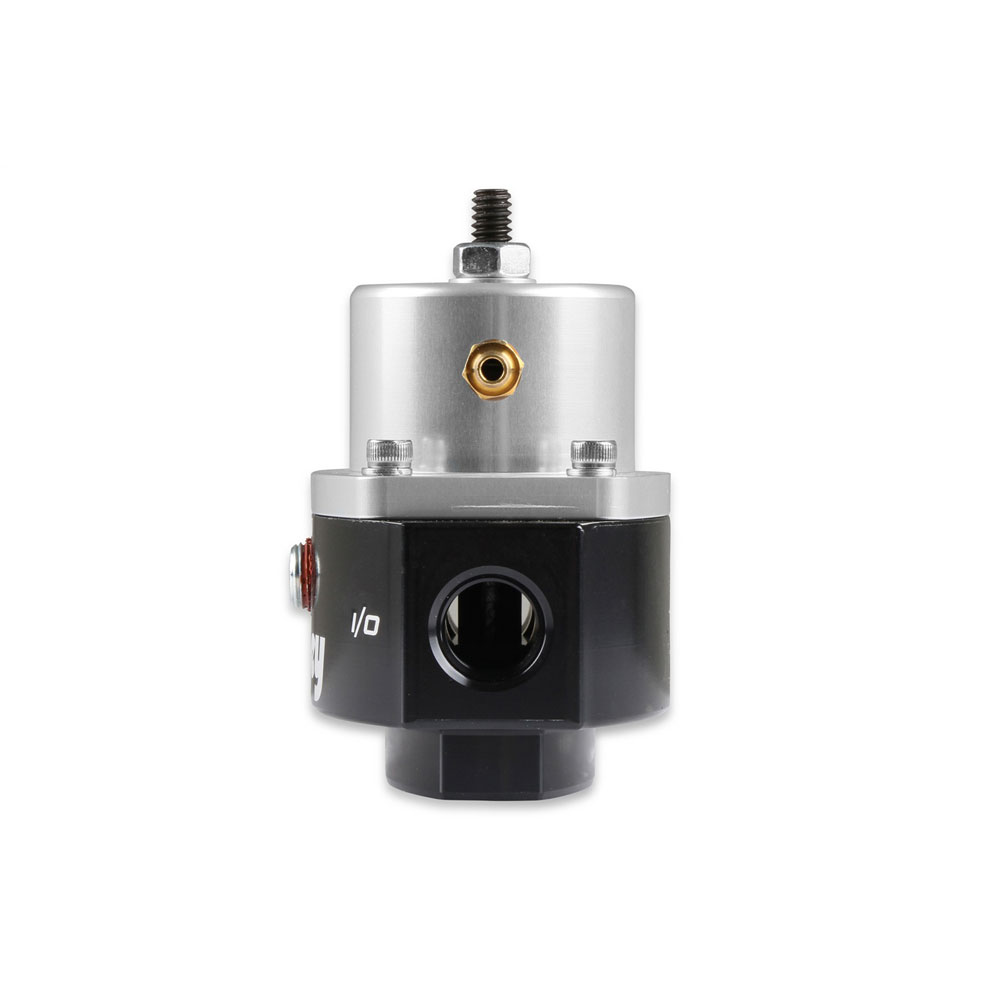

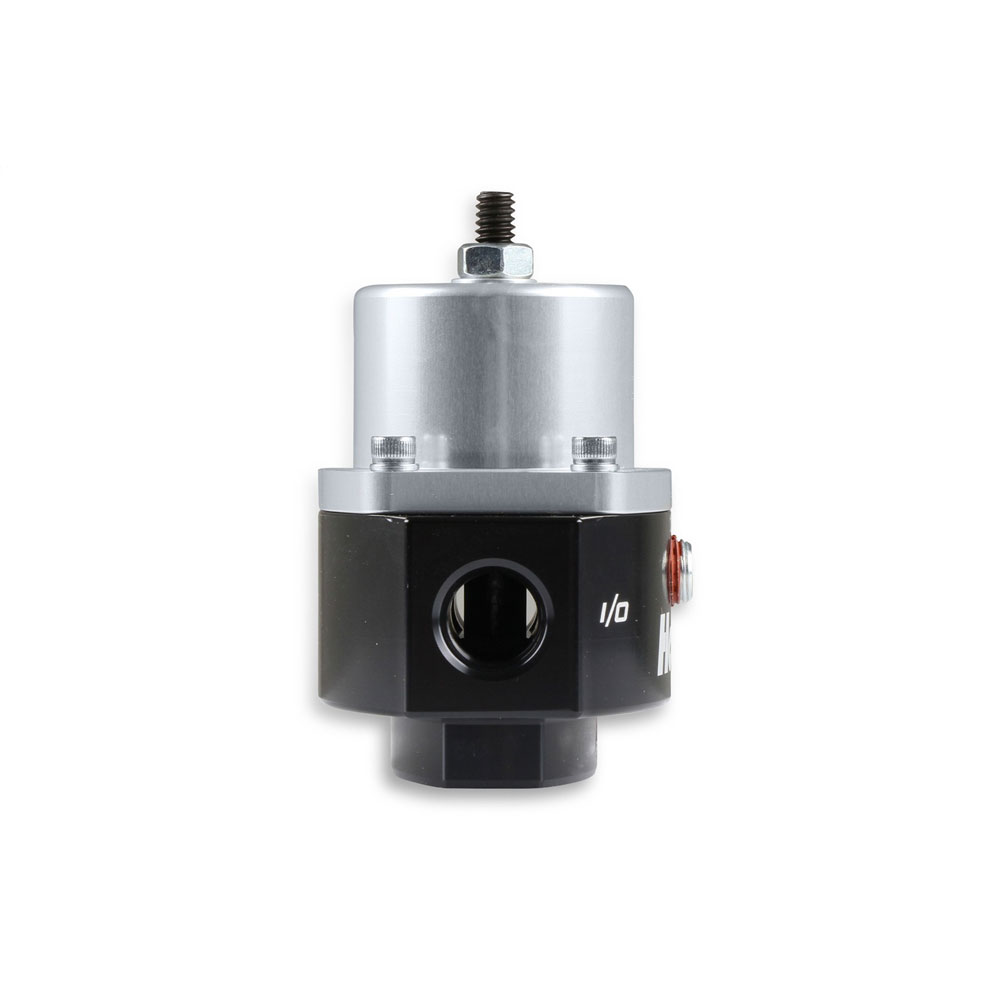

Holley Fuel Pressure Regulator 12-880; Adjustable Bypass Regulator 4 to 65 PSI Return Gasoline, E85, Diesel Billet Aluminum
$168.25
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Adjustable From 4-65 Psi For Precise Fuel Pressure Adjustments
- Billet Aluminum with Black Anodized Base/Clear Top For Good Looks
- Used In Systems With A Return Line Back To The Tank
- Includes Fitting For Manifold Reference
- Includes An 1/8 Npt Gauge Port
- Boost Reference 1:1
- Includes An 1/8 Npt Gauge Port
- Boost Reference 1:1
Product Description
Holley Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley. They are precision machined from 6061-T6 billet aluminum for strength and durability. These regulators are adjustable from 4-65 psi and will handle both carbureted and EFI applications. They are offered with two port sizes, 3/8" NPT or 6AN to adapt to your new or existing fuel lines. So, if you are currently running a carbureted system but plan to upgrade to EFI in the future, these regulators will have you covered either way.
Specifications
- Fuel Pressure Regulator Series:
- Adjustable Bypass Regulator
- Regulator Pressure Range:
- 4 to 65 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, E85, Diesel
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Black
- Regulator Fuel Chamber Finish:
- Black
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- -06AN ORB Female
- Number of Outlet Ports:
- 1 Port
- Outlet Port Size:
- -06AN ORB Female
- Return Port Size:
- -06AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- Yes
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
