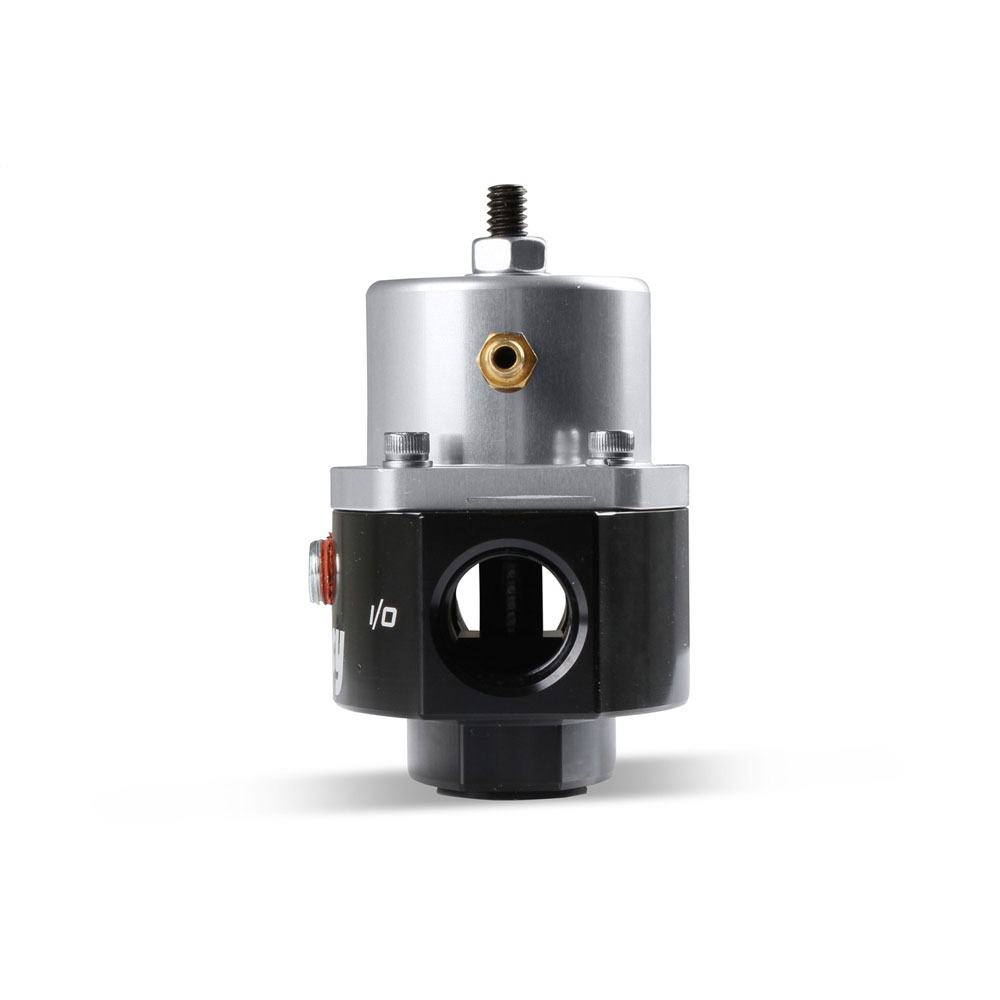

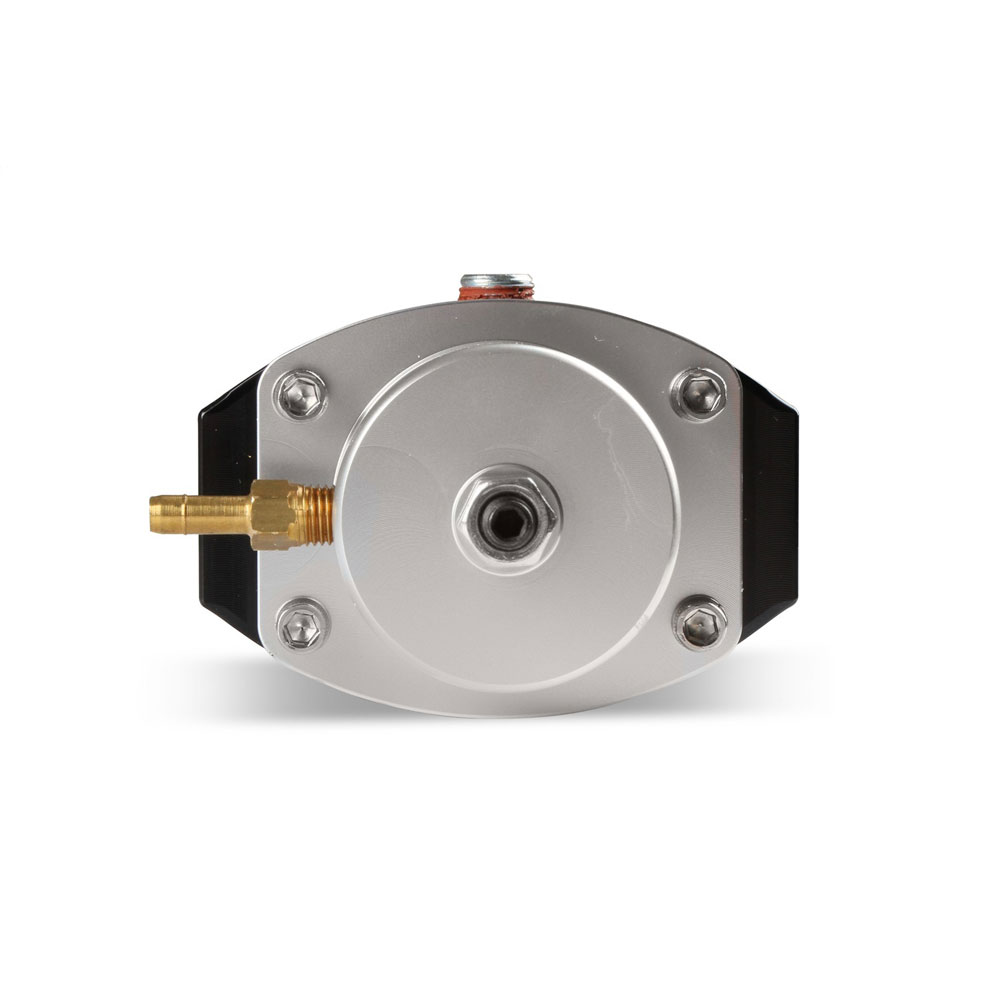

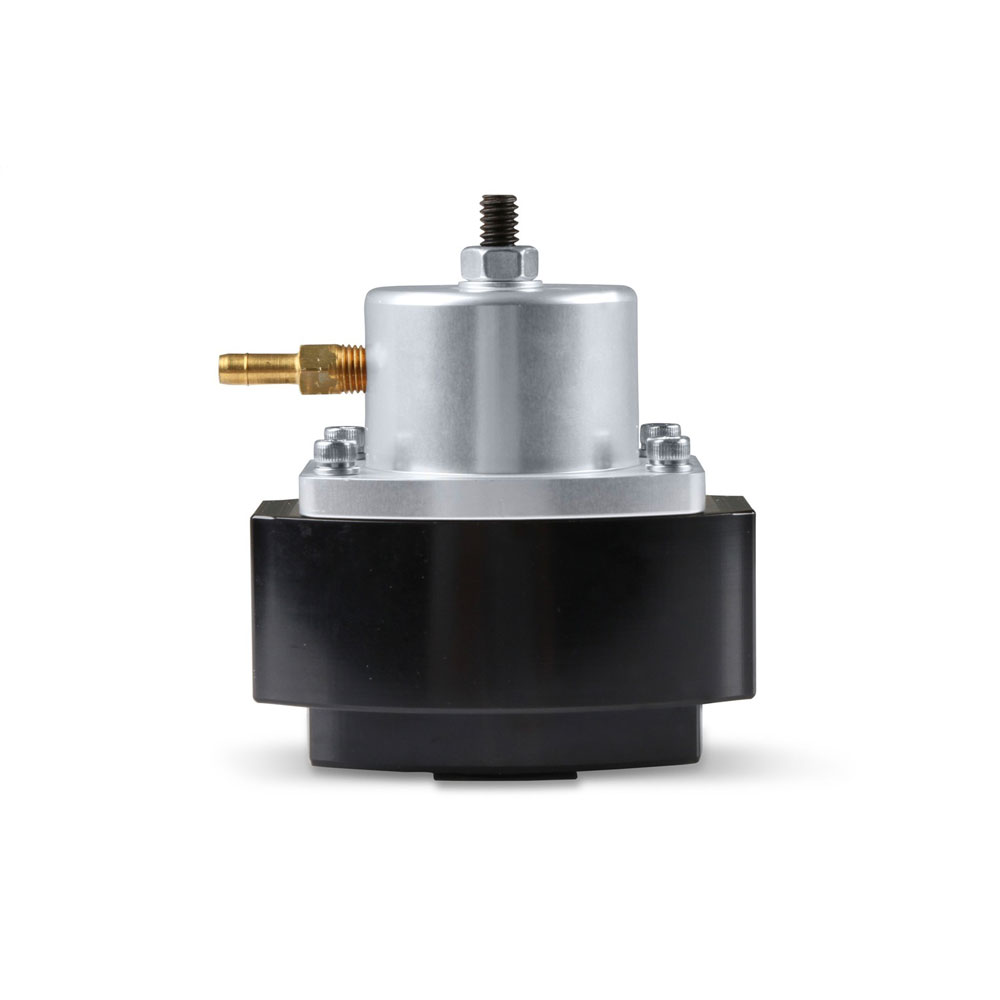

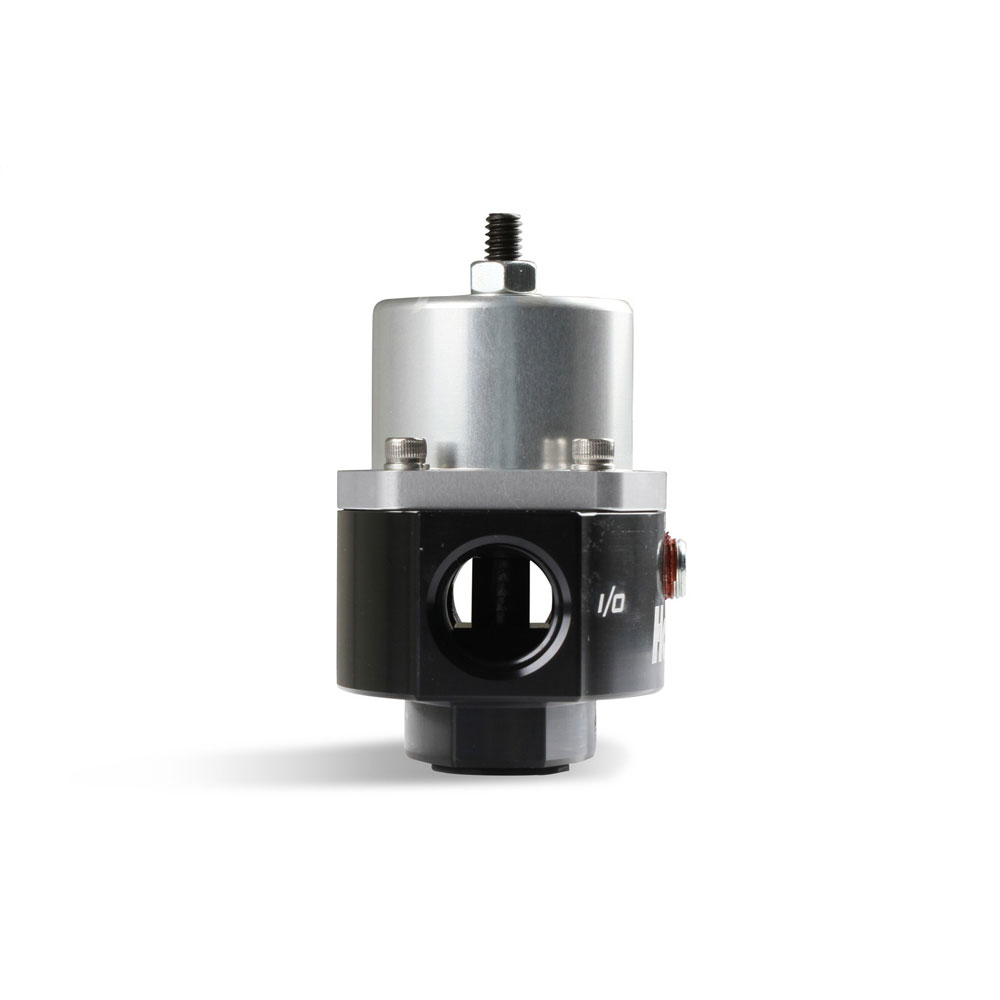

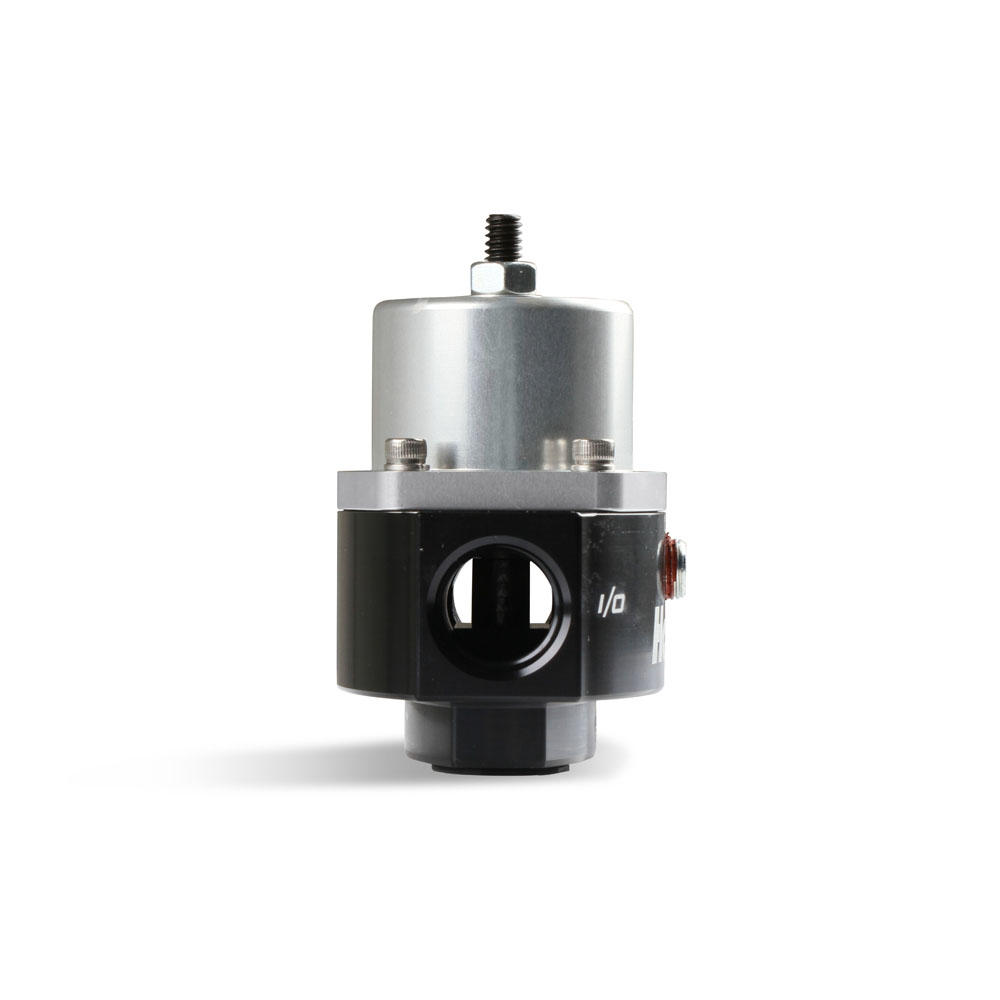

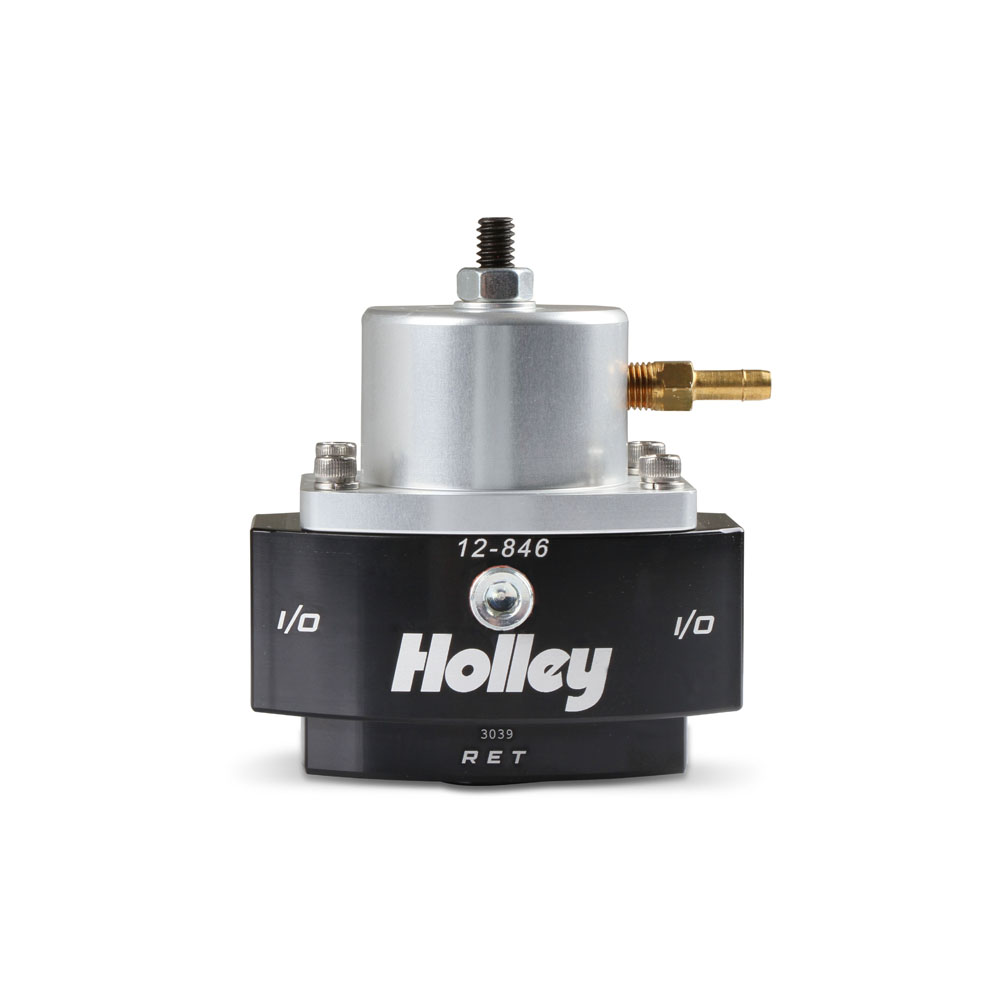

Holley Fuel Pressure Regulator 12-846; HP Billet Bypass 15 to 65 PSI Return Gasoline, E85, Diesel Billet Aluminum

$214.15

Part #: 12-846

Brand: Holley

UPC: 090127670507

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Adjustable From 15-65 PSI For Precise Fuel Pressure Adjustment
  • Constructed Of Billet Aluminum For Good Looks
  • Used In Systems With A Return Line Back To Tank
  • Includes Fitting For Manifold Reference
  • Use With Electric Pumps Only
  • 1/8 in. NPT Gauge Port
  • Mounting Bracket Included

Product Description

Holley Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley. They are precision machined from 6061–T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. Holley Billet Fuel Pressure Regulators are available in a variety of configurations.

Specifications

Fuel Pressure Regulator Series:
HP Billet Bypass
Regulator Pressure Range:
15 to 65 PSI
Regulator Style:
Return
Compatible Fuels:
Gasoline, E85, Diesel
Rebuildable:
Yes
Regulator Material:
Billet Aluminum
Regulator Spring Chamber Finish:
Polished
Regulator Fuel Chamber Finish:
Black
Number of Inlet Ports:
1 Inlet
Inlet Port Size:
-08AN ORB Female
Number of Outlet Ports:
1 Port
Outlet Port Size:
-08AN ORB Female
Return Port Size:
-06AN ORB Female
Includes Pressure Port:
Yes
Pressure Port Size:
1/8 in. NPT
Includes Boost/Vacuum Reference Port:
Yes
Includes Pressure Gauge:
No
Includes Fittings:
No
Notes:
EFI
Quantity:
Sold As Each

Videos

Tech Resources

  • 12-846.pdf
