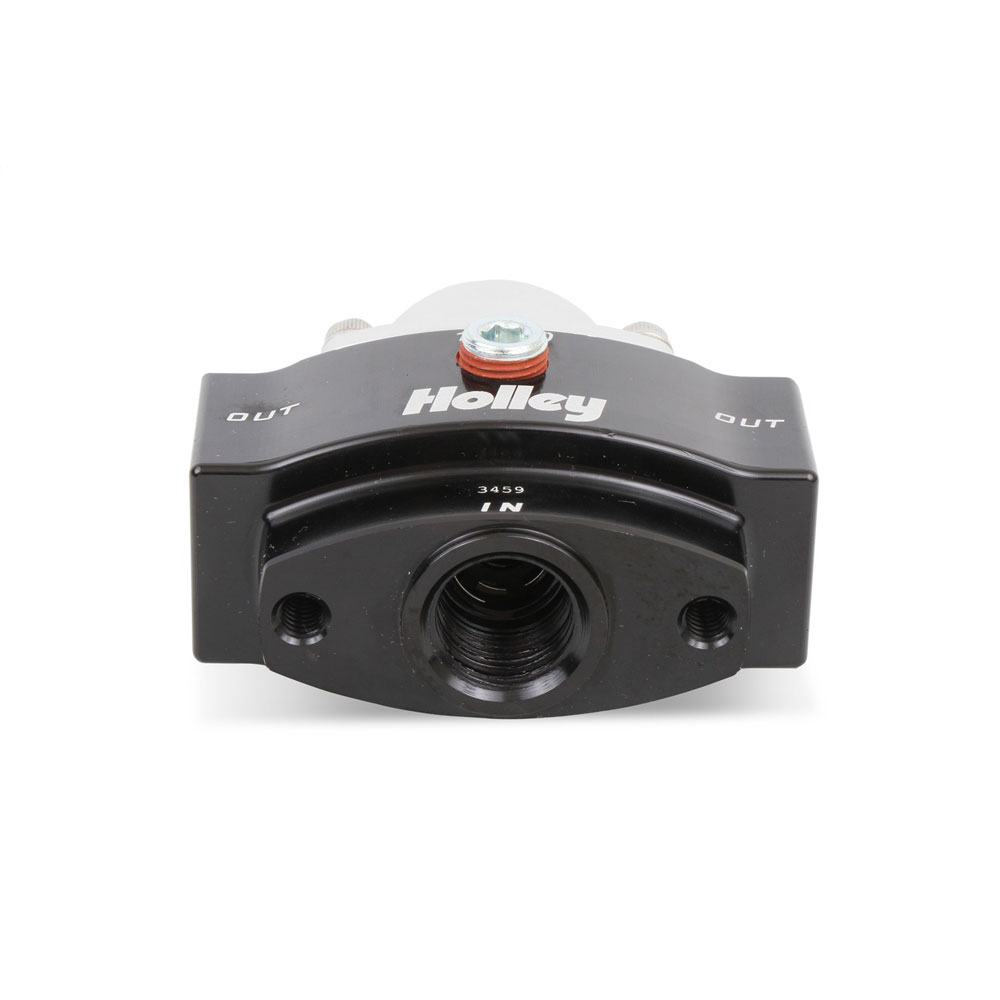

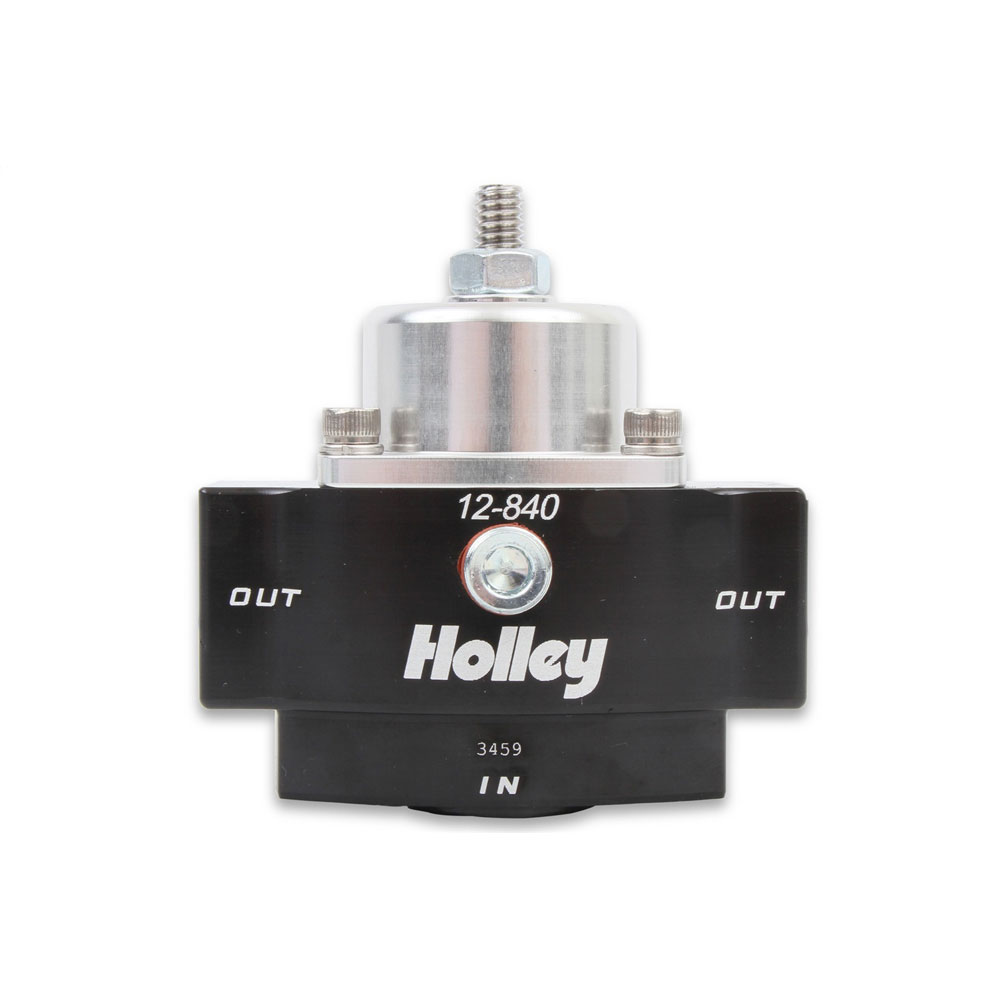

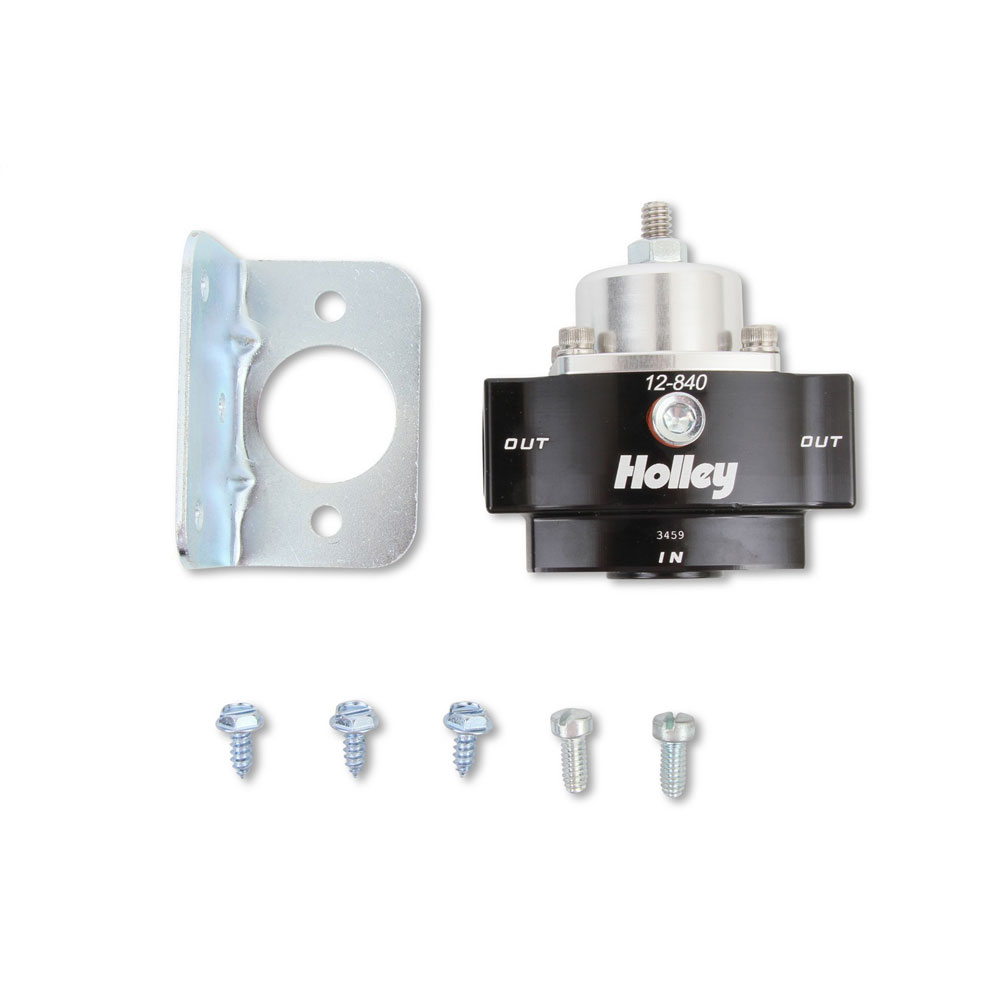

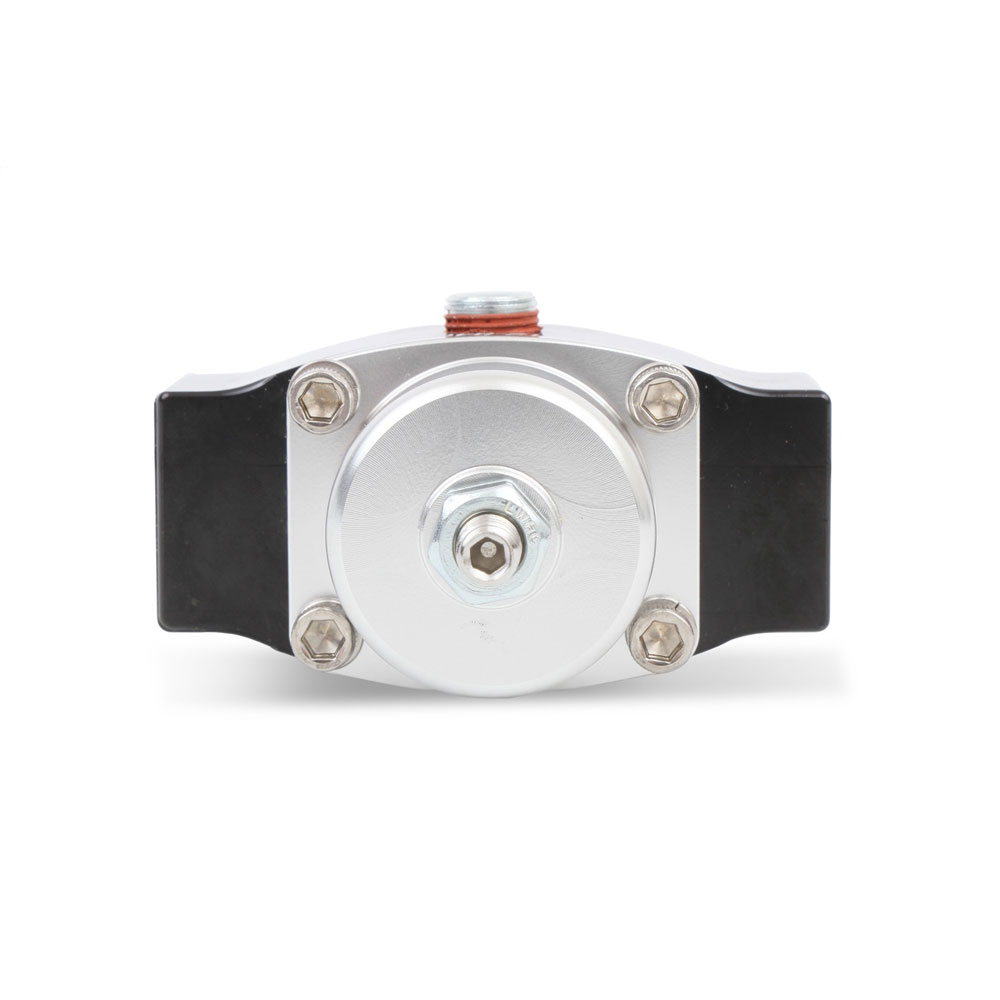

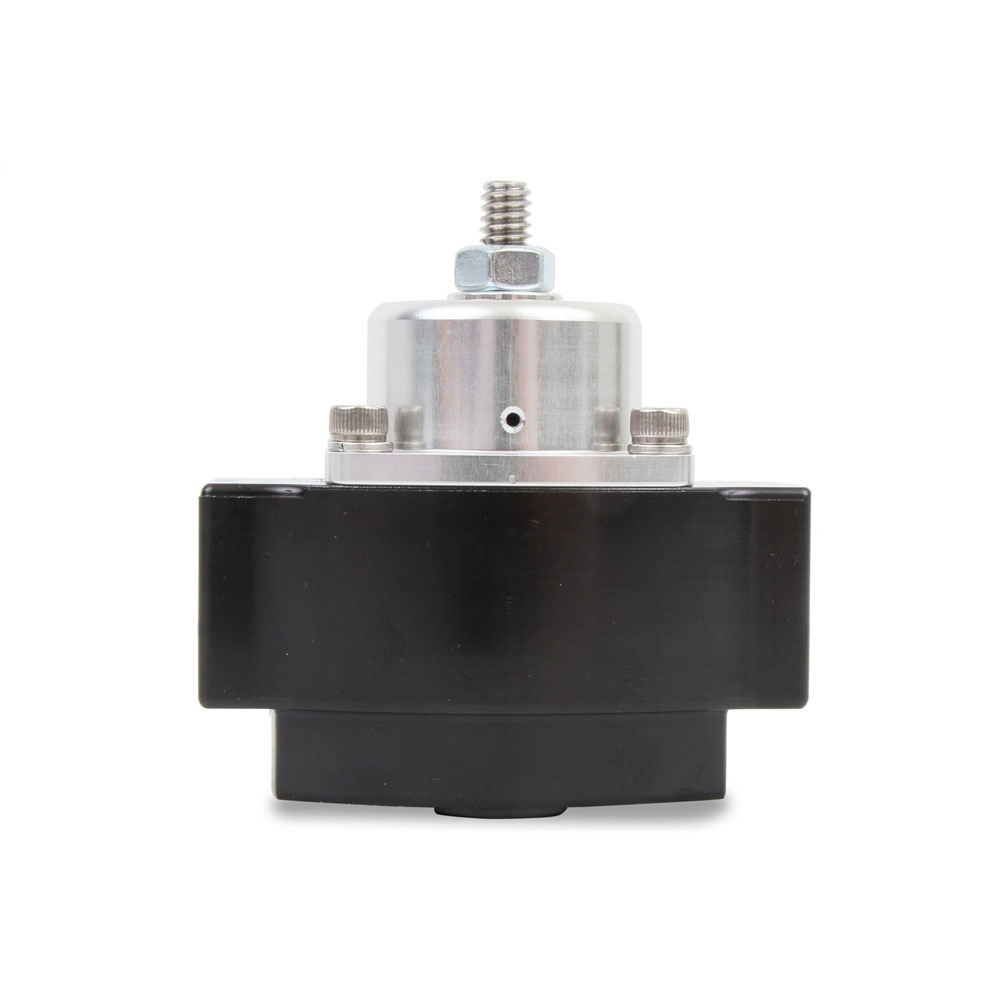

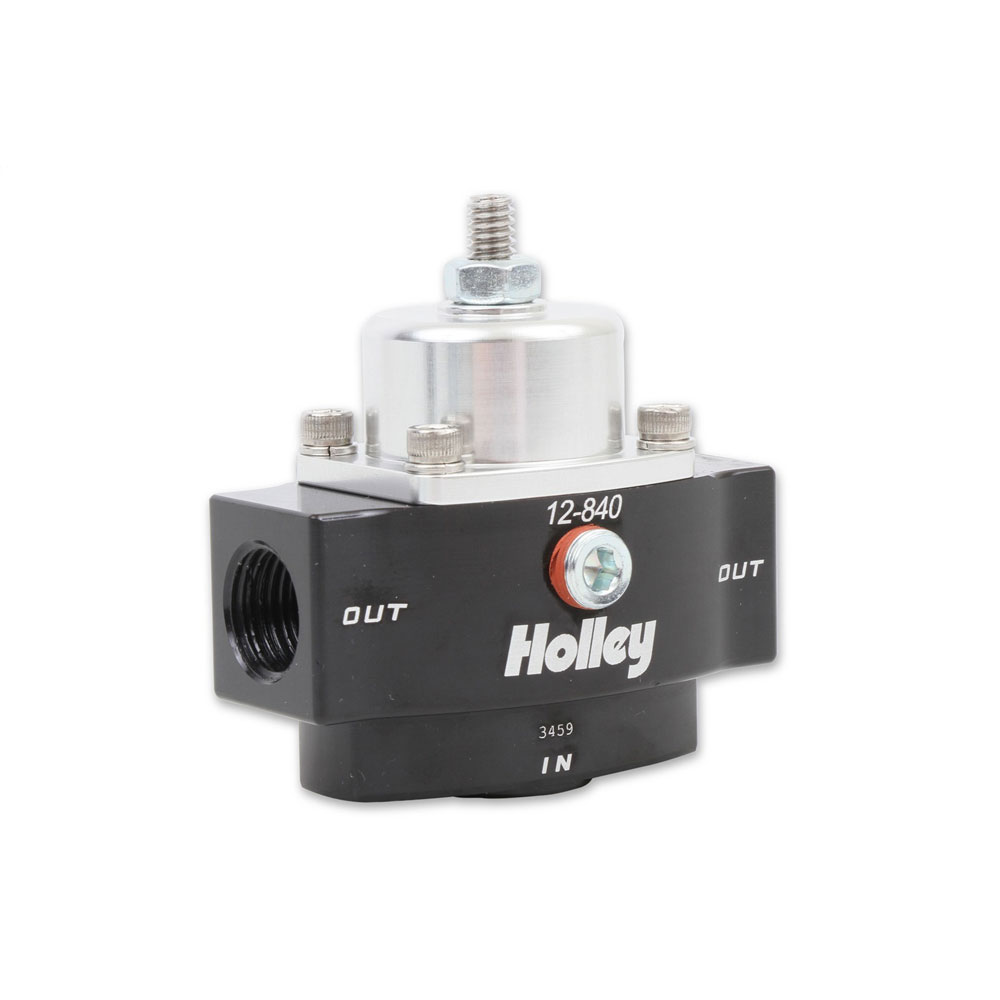

Holley Fuel Pressure Regulator 12-840; HP Billet 4.5 to 9 PSI Returnless Gasoline, E85, Diesel Billet Aluminum
$131.45
Part #: 12-840
Brand: Holley
UPC: 090127670453
Estimated Ship Date: This part is unavailable with no ETA
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Product Description

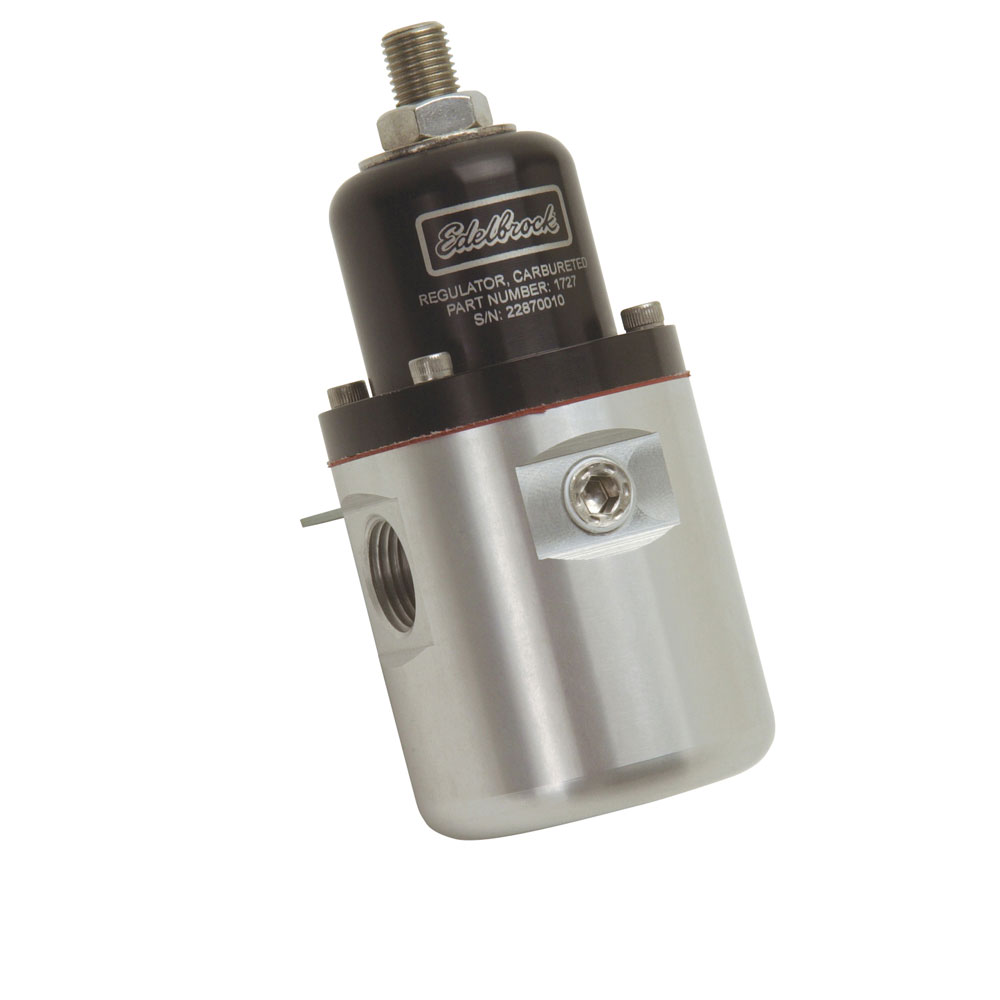

This Edelbrock fuel pressure regulator #1727 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #1727 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps.
Specifications
- Fuel Pressure Regulator Series:
- HP Billet
- Regulator Pressure Range:
- 4.5 to 9 PSI
- Regulator Style:
- Returnless
- Compatible Fuels:
- Gasoline, E85, Diesel
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Polished
- Regulator Fuel Chamber Finish:
- Black
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- 3/8 in. NPT
- Number of Outlet Ports:
- 2 Port
- Outlet Port Size:
- 3/8 in. NPT
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- No
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
