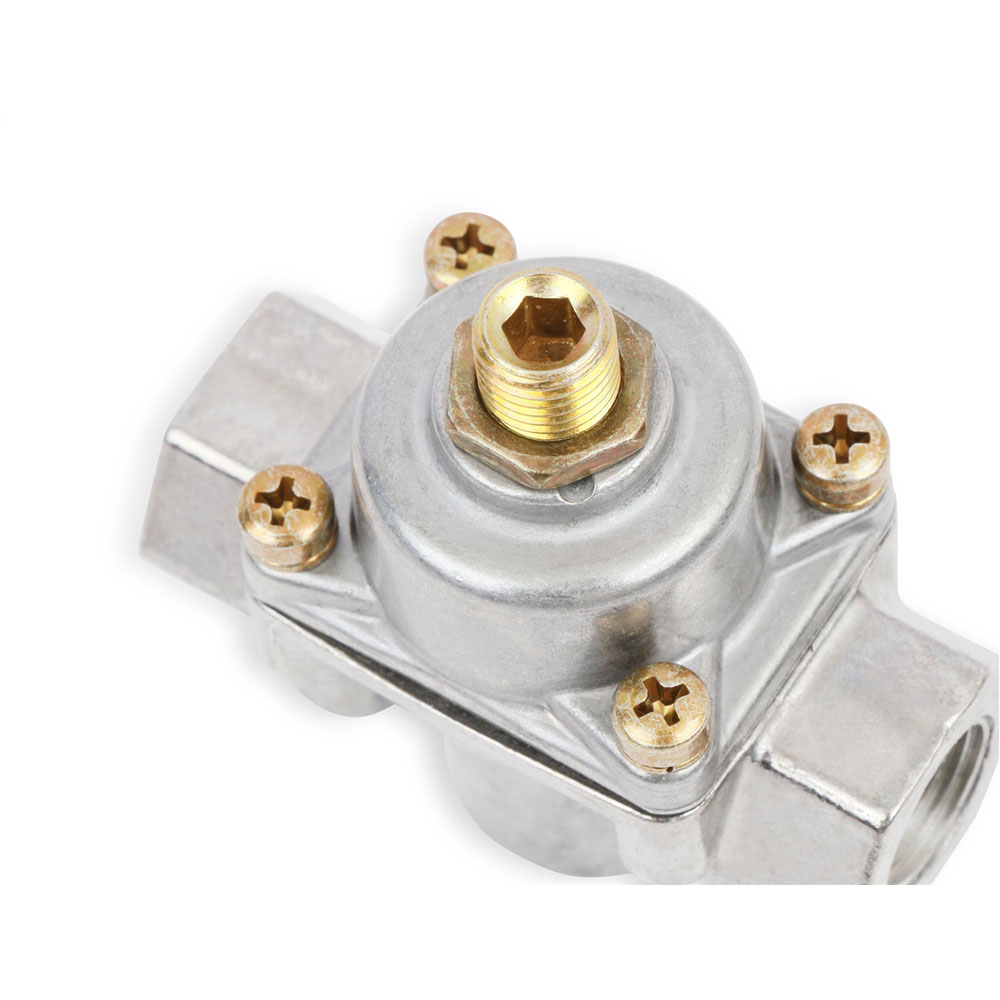

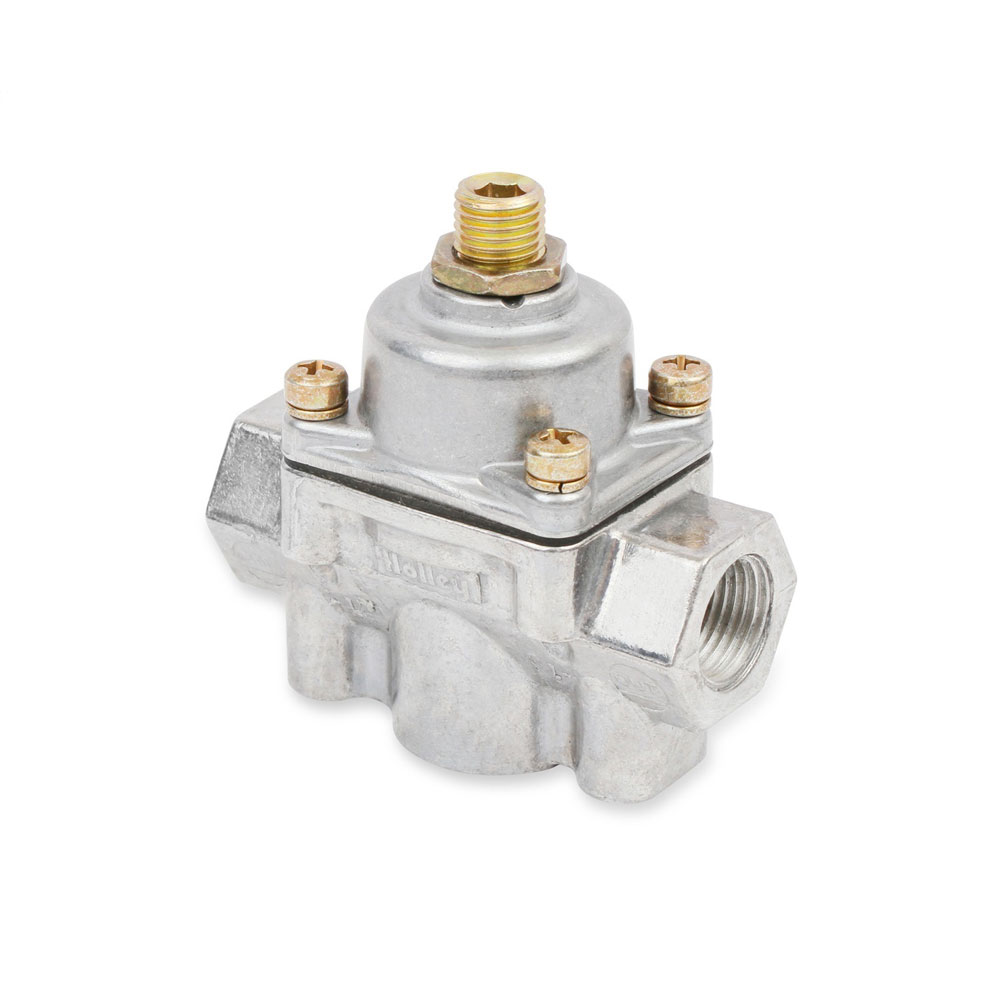

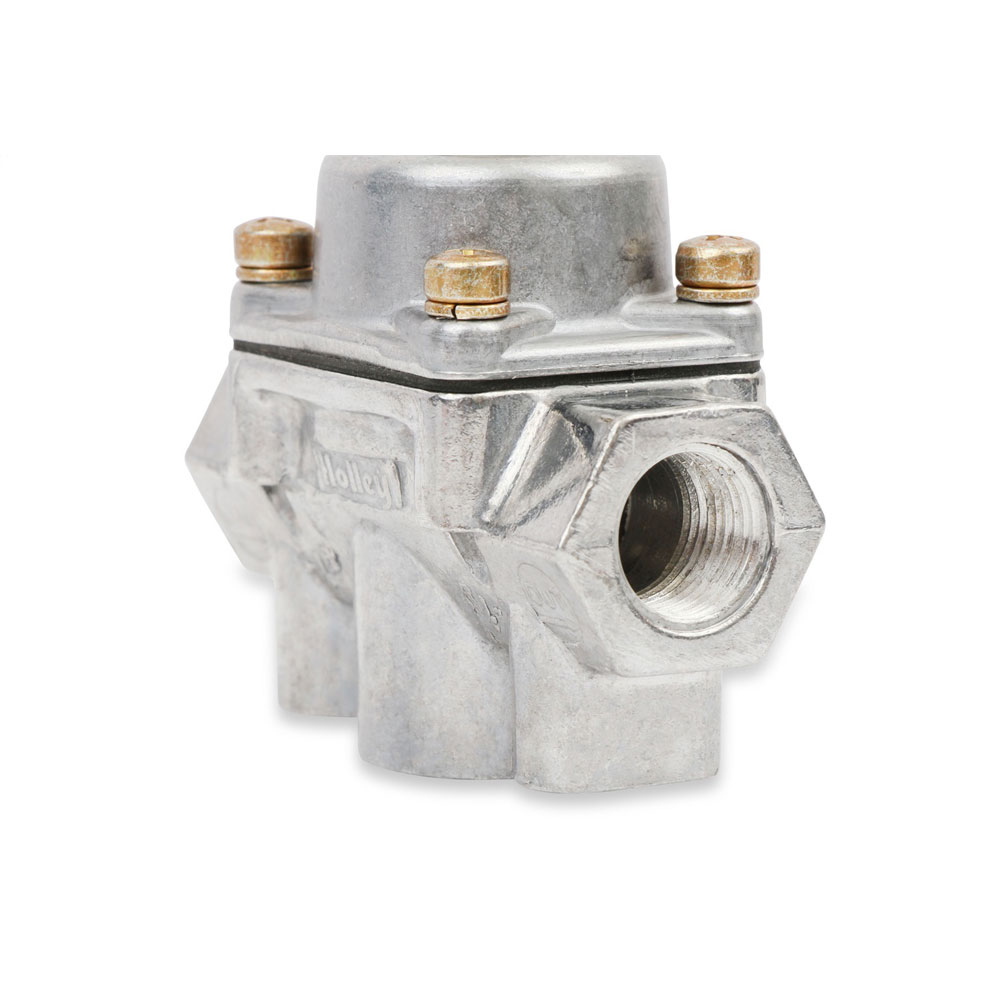

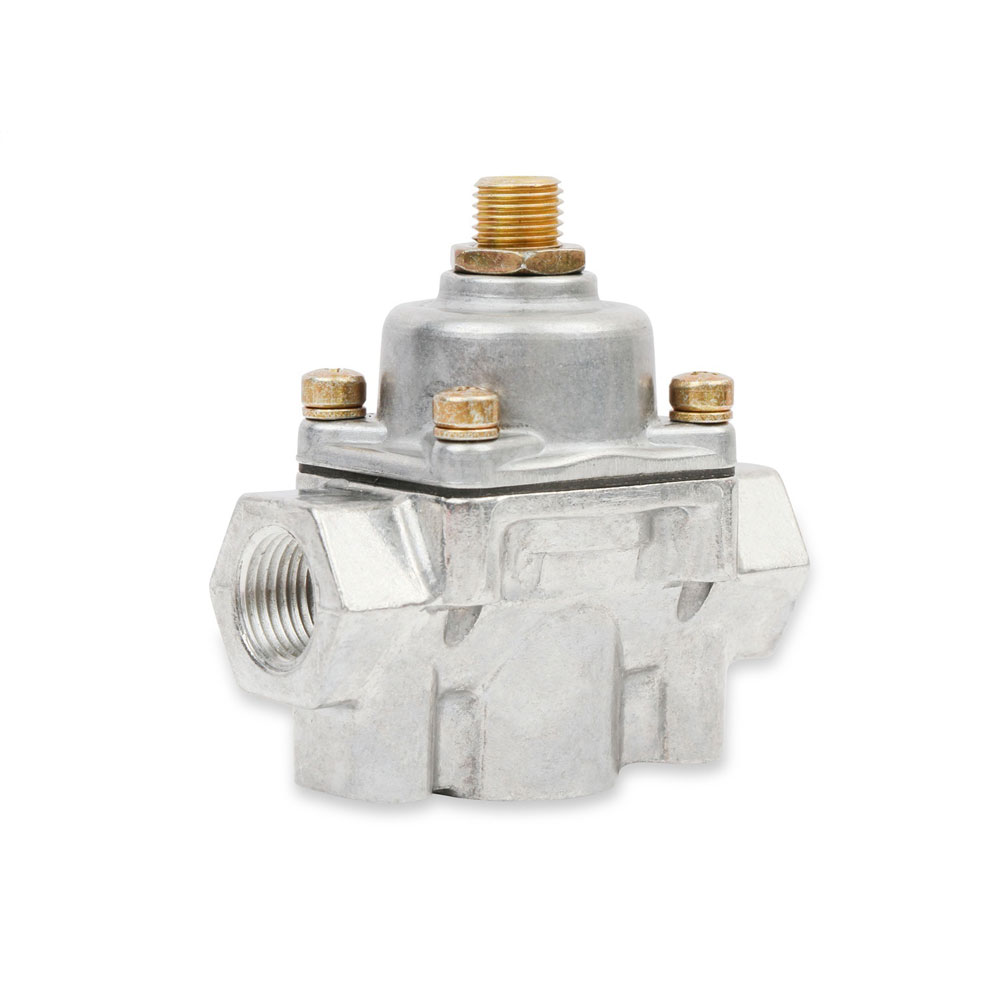

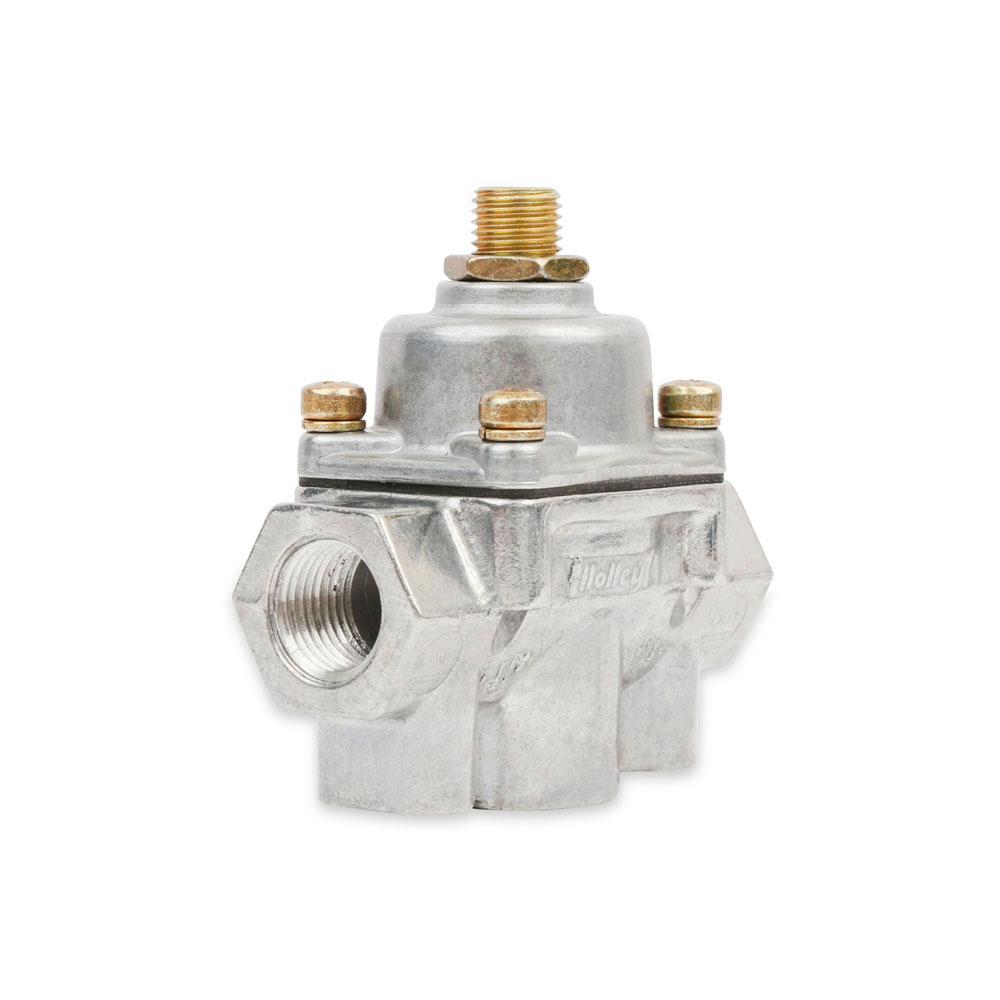

Holley Fuel Pressure Regulator 12-803BP; Street, Strip Bypass 4.5 to 9 PSI Return Gasoline Aluminum
$112.45
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Adjustable Fuel Regulation From 4-1/2 To 9 PSI
- Preset To 7 PSI
- 3/8in. Npt Ports 1 in. 1 Out 1 Bypass Or Return
- Used In Systems With A Return Line Back To The Fuel Tank
- Quieter Fuel Pump Operation
- Designed Only For Carburetor Use
- Chrome Finish

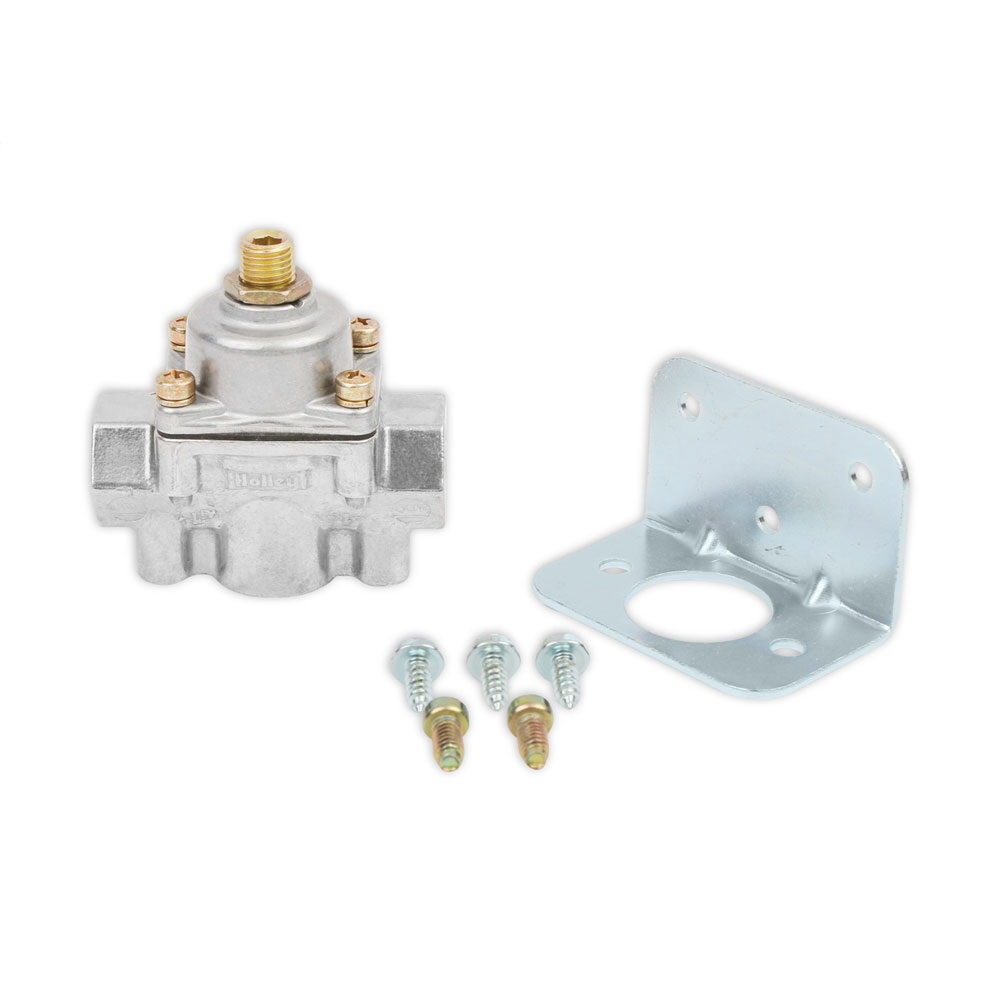

- Mounting Bracket Included
- Quieter Fuel Pump Operation
- Designed Only For Carburetor Use
- Chrome Finish
- Mounting Bracket Included
Product Description
Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems. Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory so there is no guesswork when first installing the regulator.
Specifications
- Fuel Pressure Regulator Series:
- Street, Strip Bypass
- Regulator Pressure Range:
- 4.5 to 9 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline
- Rebuildable:
- Yes
- Regulator Material:
- Aluminum
- Regulator Spring Chamber Finish:
- Natural
- Regulator Fuel Chamber Finish:
- Natural
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- 3/8 in. NPT
- Number of Outlet Ports:
- 1 Port
- Outlet Port Size:
- 3/8 in. NPT
- Return Port Size:
- 3/8 in. NPT
- Includes Pressure Port:
- No
- Includes Boost/Vacuum Reference Port:
- No
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
