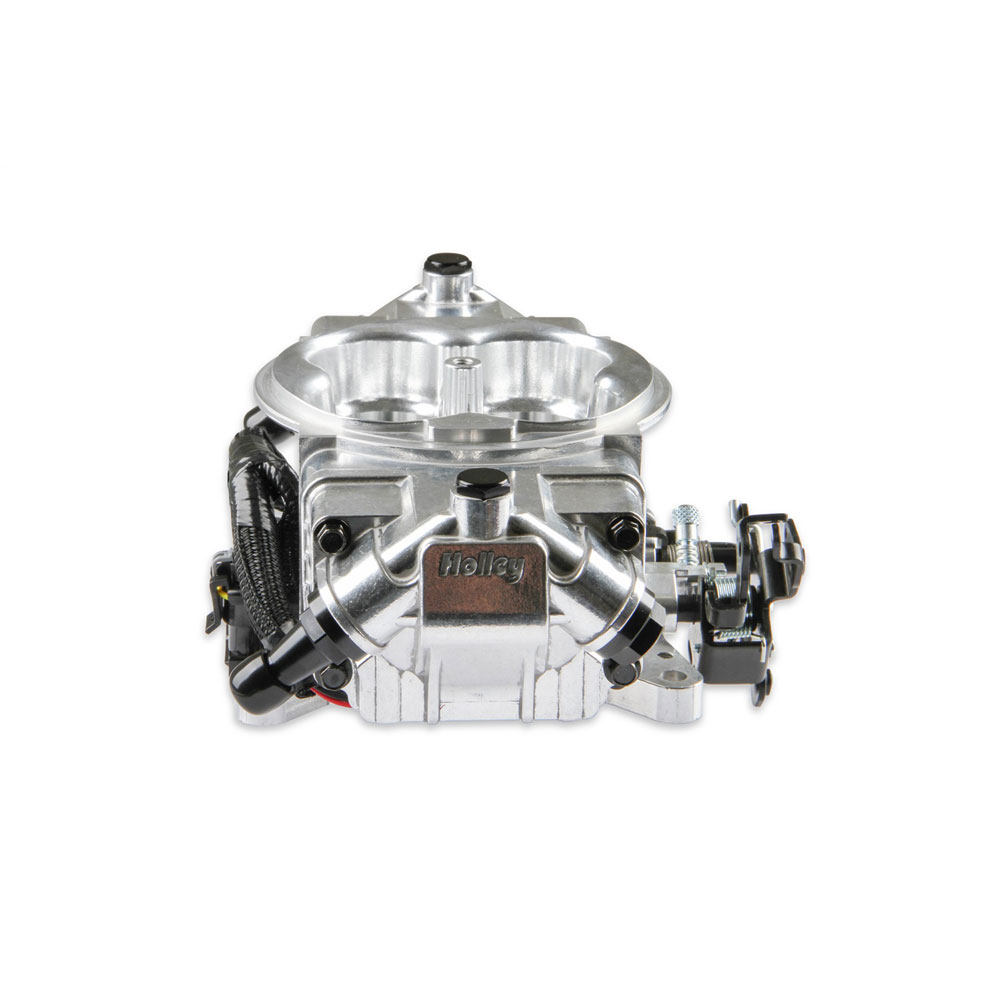

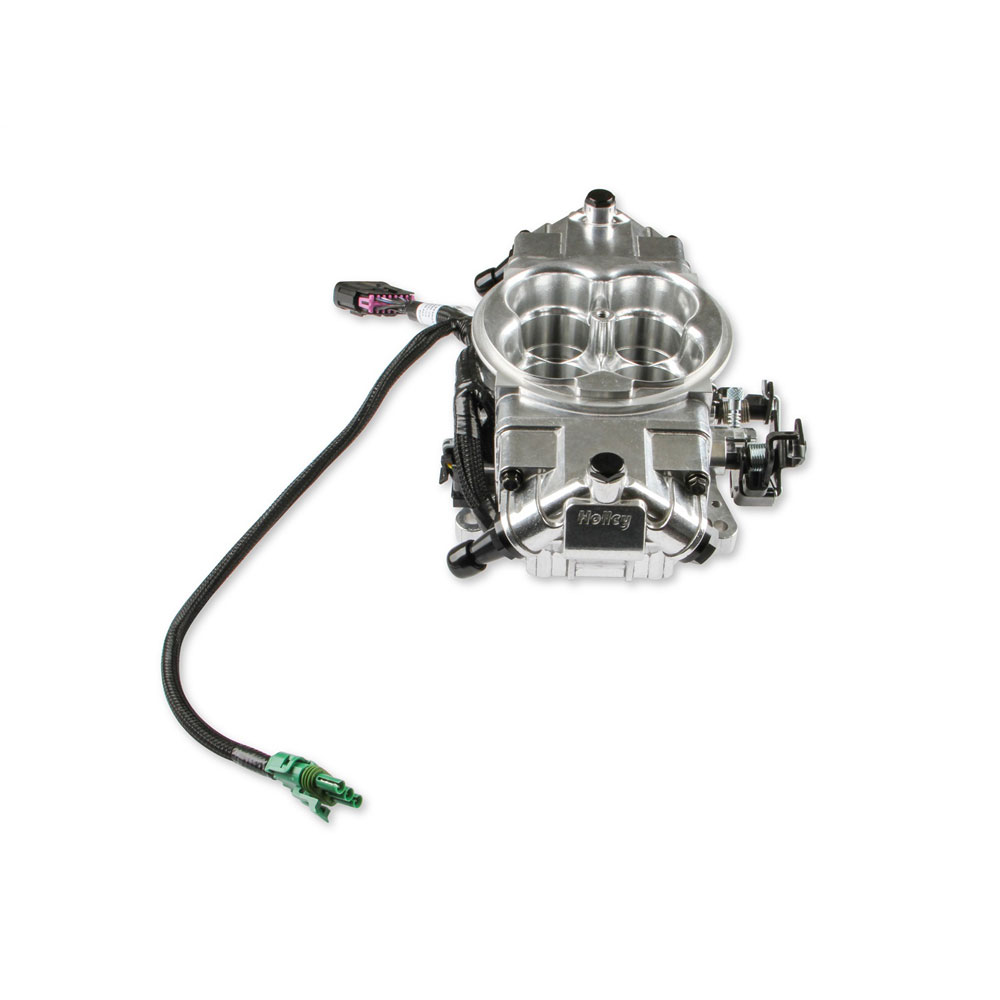

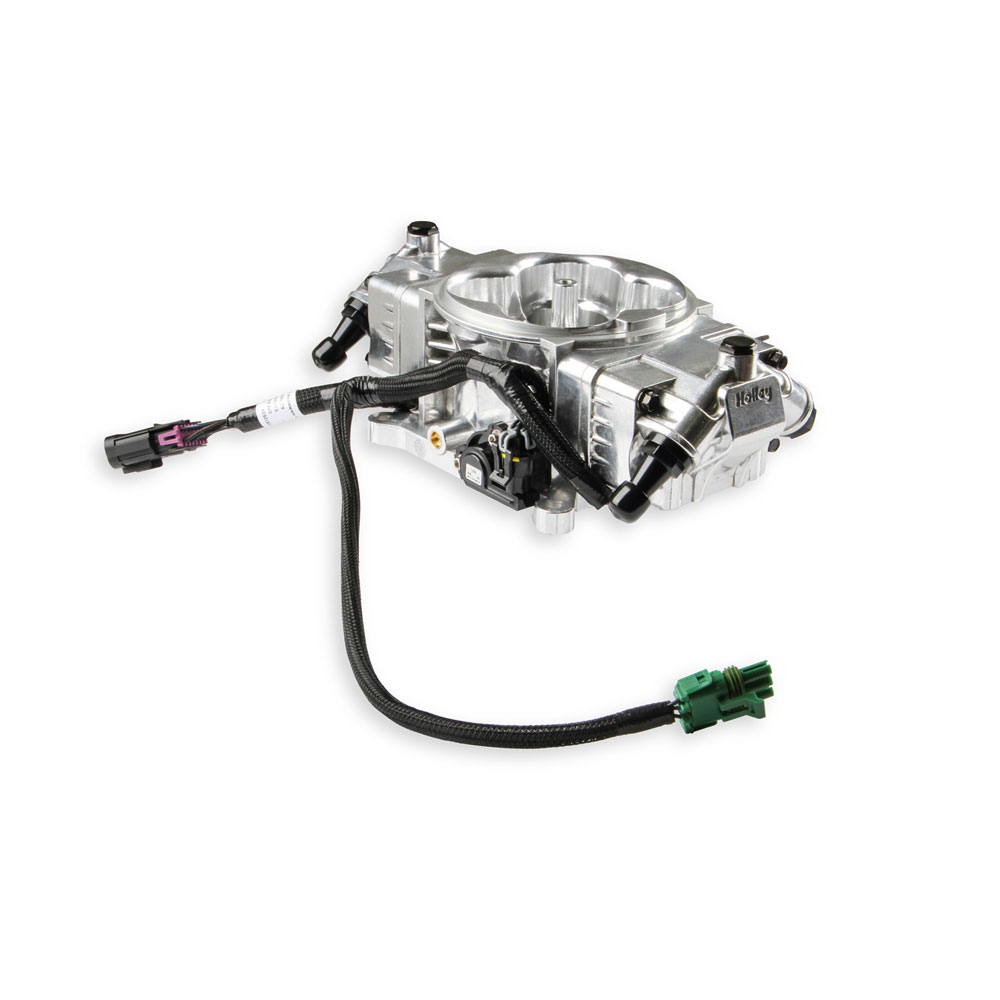

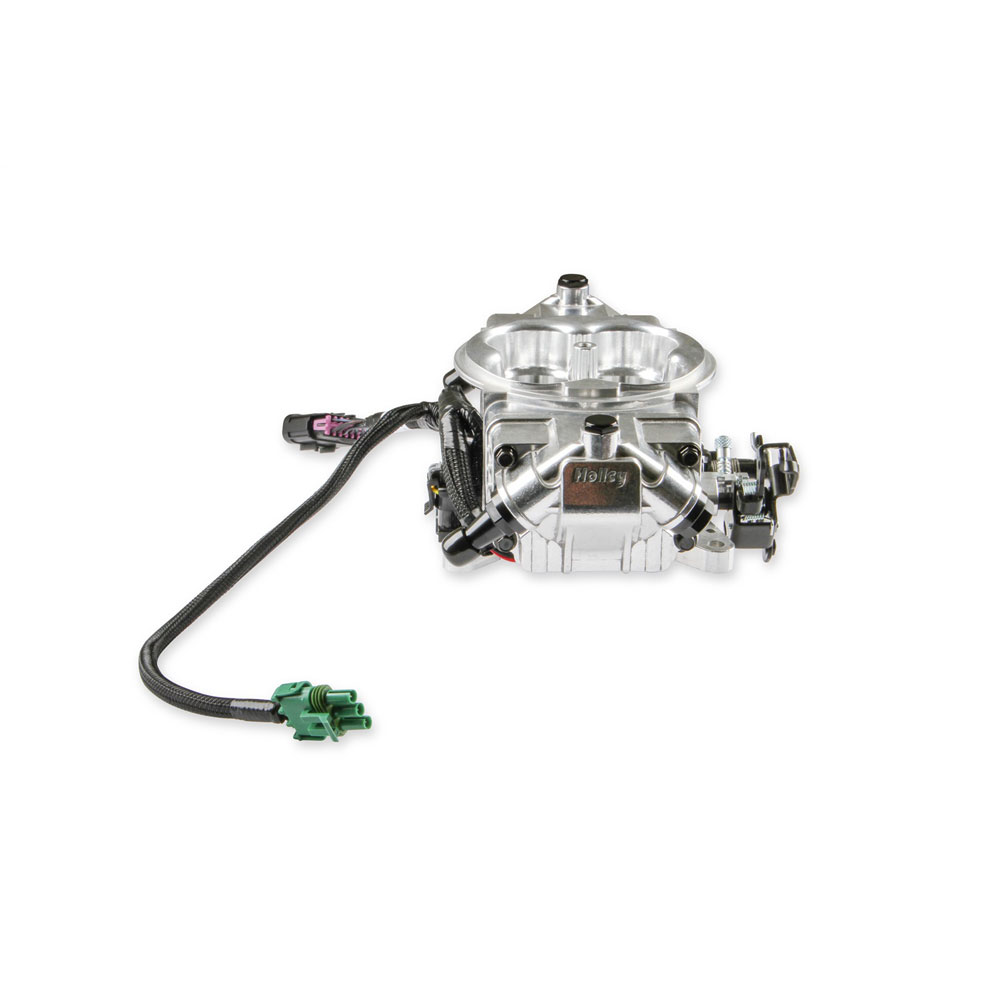

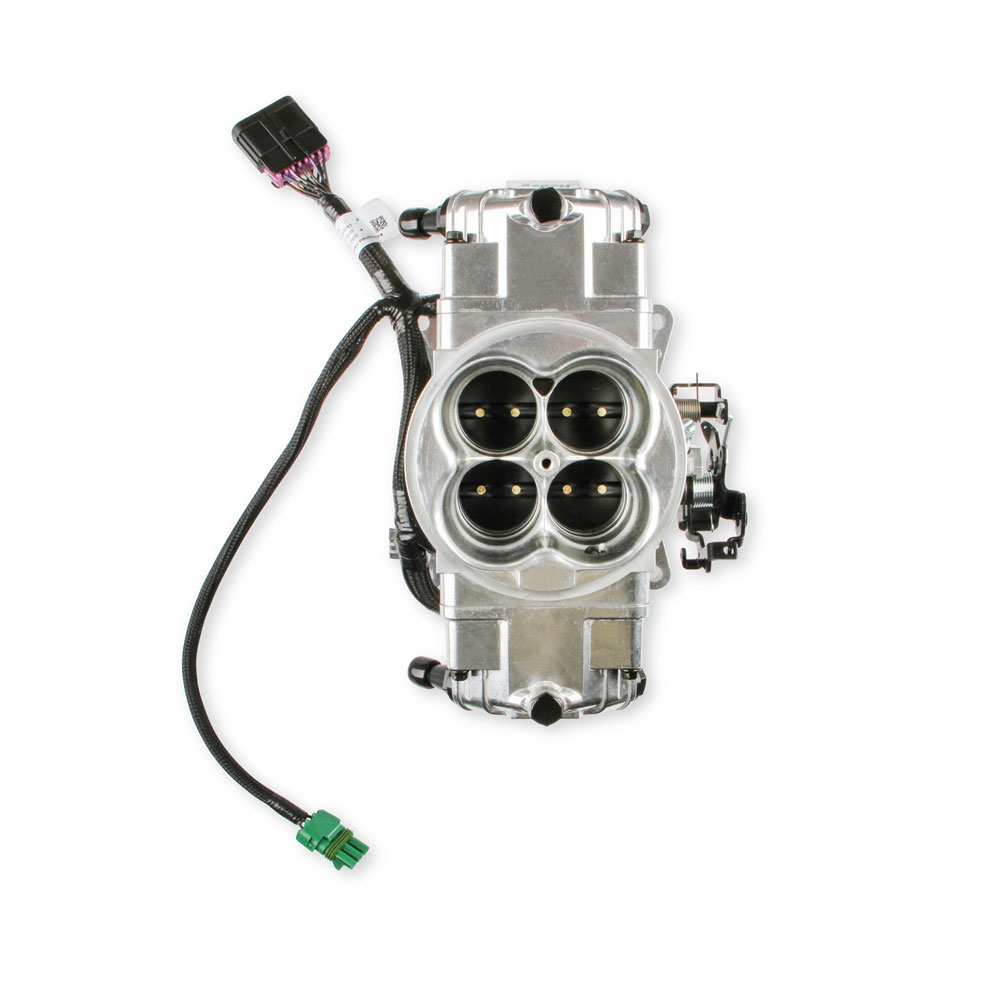

Holley Fuel Injection System Kit 550-1028; Terminator X Max Stealth 650 Throttle Body 950 Polished Aluminum for GM LS
$2,438.95
Part #: 550-1028
Brand: Holley
UPC: 090127107621
Estimated Ship Date: This part is unavailable with no ETA
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Supports Up To 650HP With Four 100lb./hr. Injectors
- Included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor
- Provide Plug And Play Transmission Control For GM Transmissions
- All Of The Wiring Exits Below The Fuel Injector Bowls
- Air Entry Machined To Fit Most Stock Style Air Cleaners
- Fuel Pressure Regulator Set To A Base Pressure Of 58.5 PSI
- Integrated Ignition Timing Control
- Plug And Play With Factory LS Coil Sub Harness And OEM LS Coils
- High Resolution Full Color Touchscreen For Setup/Tuning/Displays
- Simple Calibration Wizard No Laptop Required
- Air Entry Machined To Fit Most Stock Style Air Cleaners
- Fuel Pressure Regulator Set To A Base Pressure Of 58.5 PSI
- Integrated Ignition Timing Control
- Plug And Play With Factory LS Coil Sub Harness And OEM LS Coils
- High Resolution Full Color Touchscreen For Setup/Tuning/Displays
- Simple Calibration Wizard No Laptop Required
Product Description
The Terminator X Stealth 4150 EFI system from Holley features 4, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications. The Terminator X ECU features fuel maps that self-learn and integrated ignition timing control, yielding improved idle stability, drivability, and horsepower at wide open throttle! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications? Terminator X Max kits provide plug and play Transmission control for GM 4L60 and 4L80 Transmissions.
Specifications
- Fuel Injection System Kit Series:
- Terminator X Max Stealth
- Make:
- GM
- Engine:
- LS
- Injection Style:
- Throttle Body
- Supported Horsepower:
- 650
- Includes Intake Manifold:
- No
- Includes Throttle Body:
- Yes
- Throttle Body Mounting Flange:
- Square 4150
- Throttle Body CFM:
- 950
- Throttle Body Material:
- Aluminum
- Throttle Body Finish:
- Polished
- Includes Fuel Rails:
- No
- Number of Injectors Included:
- 4
- Injector Flow Rate:
- 100 lb/hr
- Includes Hand-Held Calibration Module:
- Yes
- Includes ECM:
- Yes
- Includes Fuel Pump:
- No
- Includes Fuel Pressure Regulator:
- No
- Sensors Included:
- O2, MAP, IAT, TPS, IAC
- Notes:
- For use with 24x crank reluctor. Transmission controller will work with 1996 and newer 4L60E and 4L80E.
- Quantity:
- Sold as Kit
