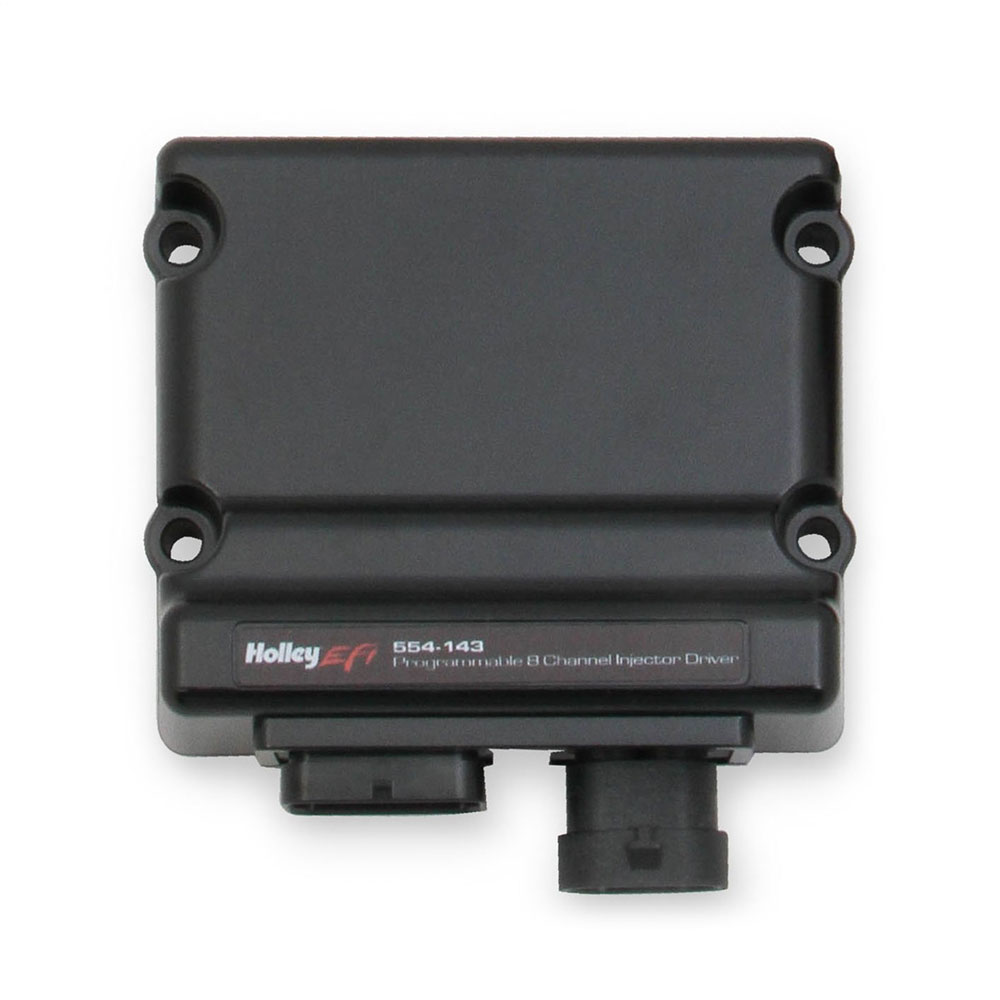

Holley Fuel Injection Electronic Control Unit 554-143; Fuel Injection Driver Module
$629.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Eight easily programmable channels for precise injector control
- Eight Pre-Programmed Injector Current Curves
- Hold current settings from 1A to 2.5A
- Peak current settings from 4A to 10A
- Peak Hold Duration Settings From .5 to 1.0ms
- Injector Test Fire Program For Quick Troubleshooting

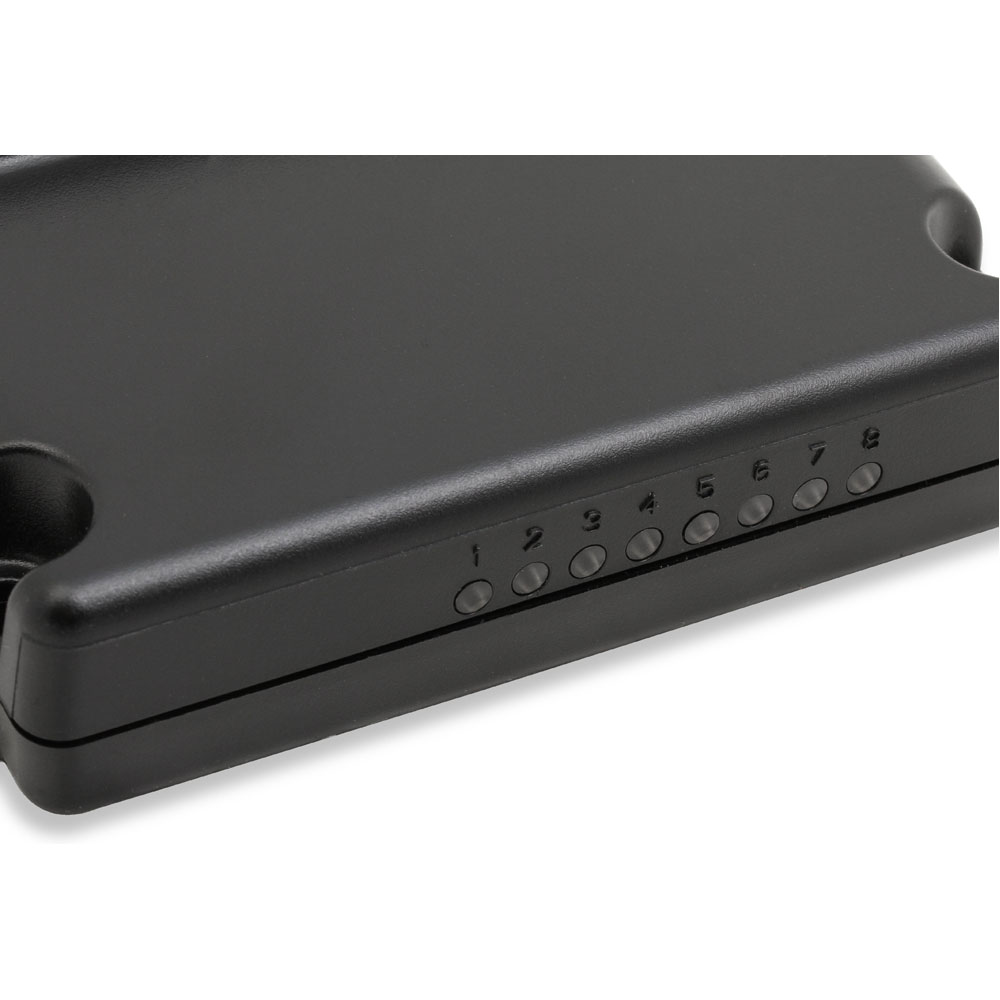

- 8 RGB LEDs Indicate Proper Operation As Well As Log Faults
- Two Outputs Can Be Run To ECU To Datalog Injector Faults
- Peak Hold Duration Settings From .5 to 1.0ms
- Injector Test Fire Program For Quick Troubleshooting
- 8 RGB LEDs Indicate Proper Operation As Well As Log Faults
- Two Outputs Can Be Run To ECU To Datalog Injector Faults
Product Description
Introducing the Holley EFI Programmable 8 Channel Injector Driver Module. The ultimate solution for methanol burning engines that require a large set of secondary injectors. The Holley EFI Injector Driver Module will have you in complete control of your fuel injected behemoth, featuring easily programmable injector current curves, injector test fire mode, two datalogger outputs, multiple peak and hold current settings and more. This module will allow you to expand the capabilities of your current Electronic Fuel Injected Engine, keeping you at the front of the field!
Specifications
- Fuel Injection Electronic Control Unit Series:
- Fuel Injection Driver Module
- Includes Coil(s):
- No
- Includes Wiring Harness:
- No
- Notes:
- For use with Holley Dominator EFI
- Quantity:
- Sold As Each
